1994-1998 Dodge 5.9L Cummins Parts & Upgrades

The 12-valve 5.9L Cummins on the 1994-1998 Ram 2500 and 3500

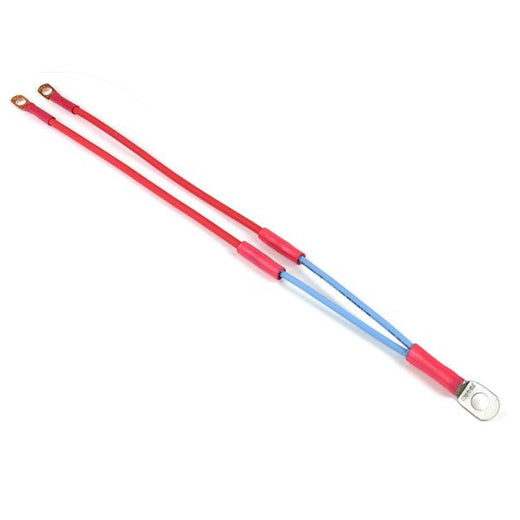

This is the 6BT: cast-iron block and head, forged crank and rods, a solid-lifter valvetrain with one intake and one exhaust valve per cylinder, and a front gear train that drives both the camshaft and the injection pump. There is no engine computer. The only electrical parts the engine needs to run are the fuel shutoff solenoid and the grid heater circuit, which takes the place of glow plugs. The 6BT carries a 350,000-mile B50 rating, and the bottom end holds far more than stock power.

For 1994 Dodge replaced the old D/W pickup with the second-generation Ram and changed most of what matters here. The Cummins went from the Bosch VE rotary pump to the P7100 inline pump, whose higher injection pressure is what met the federal standard that took effect that January. The turbo became a wastegated Holset - the WH1C in the 1994 transition year, the HX35 after that - feeding an air-to-air intercooler and a 3-inch downpipe at roughly 18-22 psi. Underneath, 4x4 trucks traded leaf springs for a coil-sprung solid axle on control arms and a track bar, locking hubs gave way to a vacuum-operated center axle disconnect, and the 47RH automatic and NV4500 five-speed became the transmissions.

Which engine is in your 1998?

Dodge switched the Cummins from the 12-valve and P7100 to the 24-valve ISB with the electronic VP44 pump partway through the 1998 model year. 1997 was the last full year of 12-valve production, so a 1998 truck can be either one. Look at the pump: the P7100 is an inline pump with a mechanical shutoff solenoid on top, while the VP44 is a rotary pump with a wiring harness. Head gaskets, head bolts, injectors, the pump itself, the gear cover and the intake horn do not cross that split. 1998 also brought the Quad Cab, a revised interior and dual airbags.

What fails and why

Start with the killer dowel pin. The steel dowel that locates the aluminum front gear housing can vibrate out of its bore and drop into the timing gears; if it wedges between gears it can crack the cam nose or the housing, and if it falls to the pan it does no harm. The 1994-1998 P7100 engines are the highest-risk years because the heavier pump adds vibration to the gear case, which is why a tab kit is treated as preventive work on any truck that has not had one. The other engine-side pattern is clamp load: the factory 12mm head bolts lose 20-30 ft-lb with age and heat cycling, and gaskets can begin leaking once fueling is turned up, with coolant pushed into the overflow bottle as the tell. Freeze plugs corrode and seep on high-mileage blocks, the 1994-1997 dipstick tube cracks at the handle, and the road-draft breather tube drips right over the front differential yoke, which has sold a lot of unnecessary pinion seals.

On the fuel side the injection pump is the durable part and everything feeding it is not. The cam-driven mechanical lift pump loses output with age - hard cold starts, a sagging idle, lost pep, then a no-start - and unlike a 24-valve VP44, a failed lift pump does not damage the P7100. A tired overflow valve on the pump bleeds off supply pressure and imitates a bad lift pump, usually showing up as hot-idle stalling on automatics. The shutoff solenoid, its relay and fuse #9 are one of the most common no-start causes on these trucks. The rubber return hose under the intake manifold hardens and lets air into the system, and the Dodge-only fuel heater pre-strainer clogs and starves the pump. Elsewhere: charge-air boots slip under their clamps and hand you low power with smoke, cast exhaust manifolds crack from thermal cycling, the factory track bar wears fast enough to bring on death wobble, steering boxes go loose at the sector shaft, the NV4500 fifth-gear mainshaft nut backs off on trucks that get lugged in fifth, the 47RH/RE hunts in and out of lockup at 35-50 mph, and starter solenoid contacts pit.

Stock replacement vs. upgrade

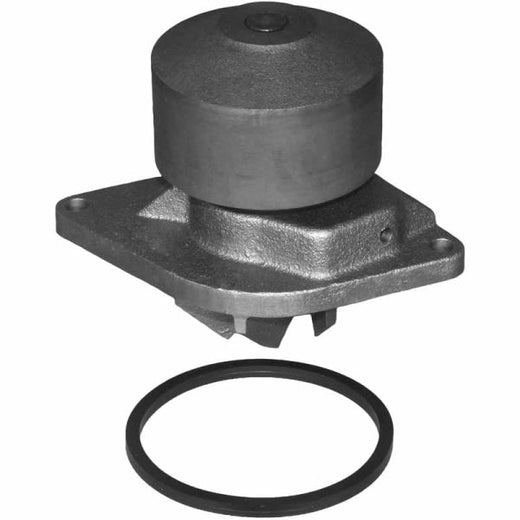

Most 12-valve complaints are fixed with OEM-grade parts, not power parts. A new lift pump, overflow valve, heat-resistant return hose with screw-type band clamps, a fresh pre-strainer and quad ring, and a shutoff solenoid kit cure the bulk of the fuel-side gripes. A KDP tab goes in with a new front crank seal while the gear cover is already off. Screw-in billet freeze plugs replace the corroded steel ones, and water pumps, thermostats, fan clutches and the 30-year-old upper coolant hose are straight wear items on a truck this age.

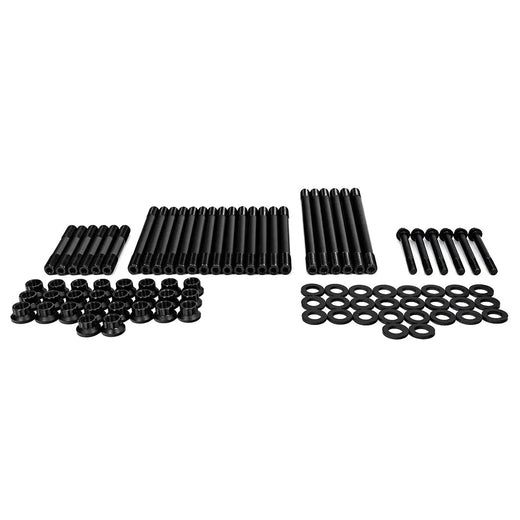

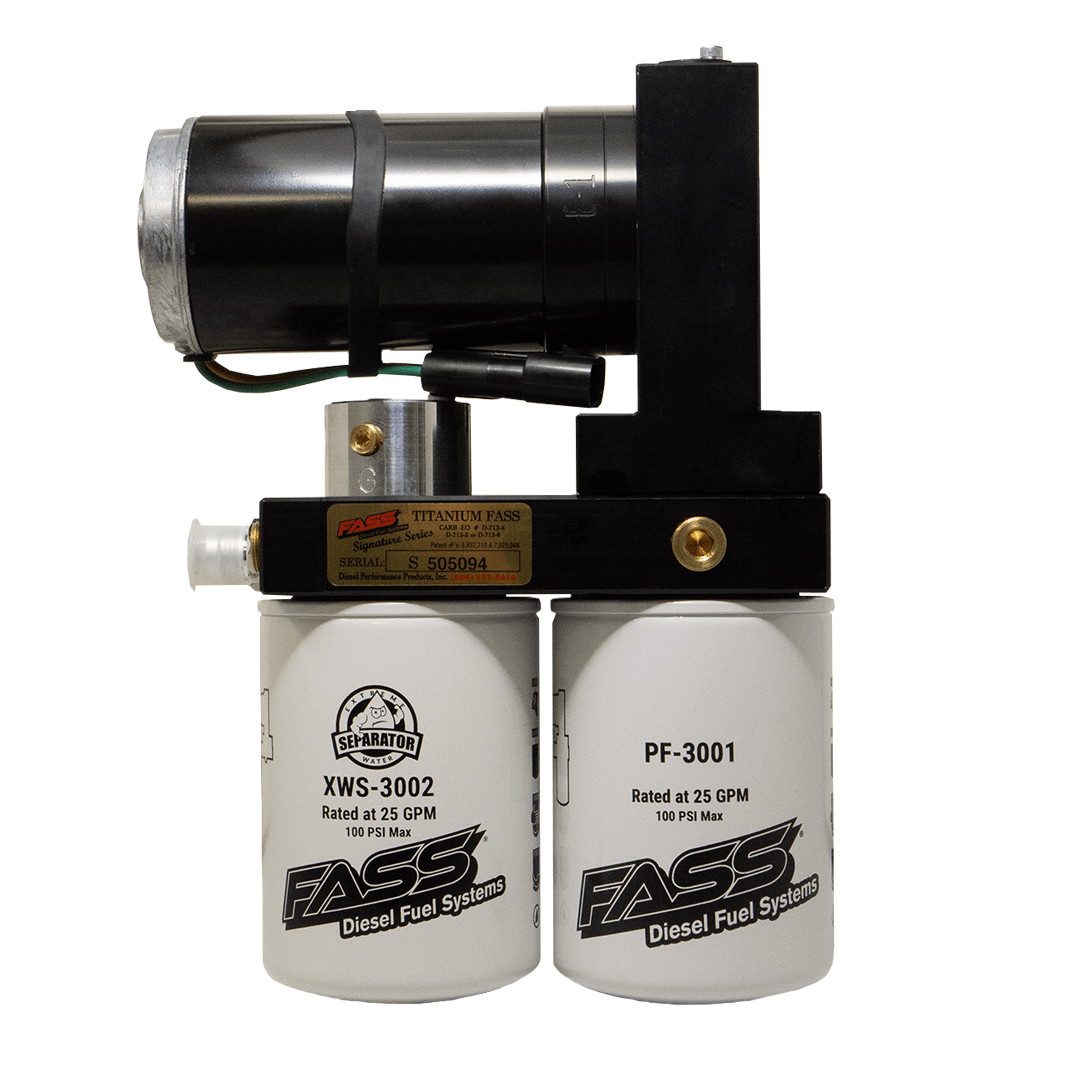

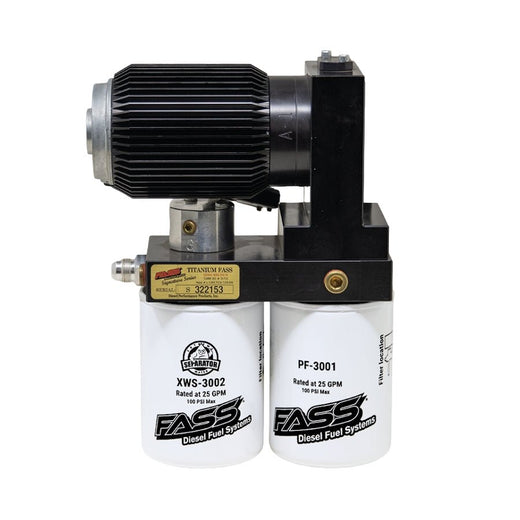

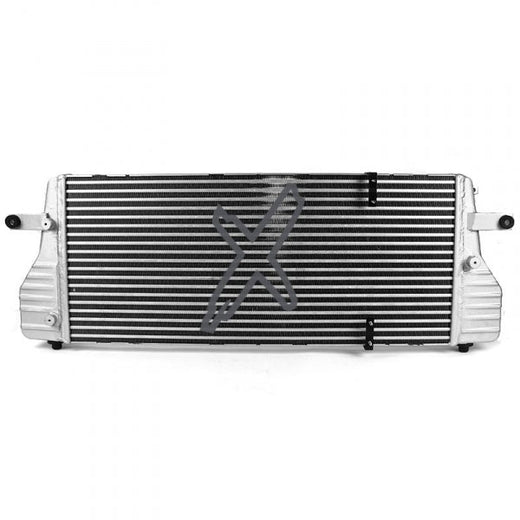

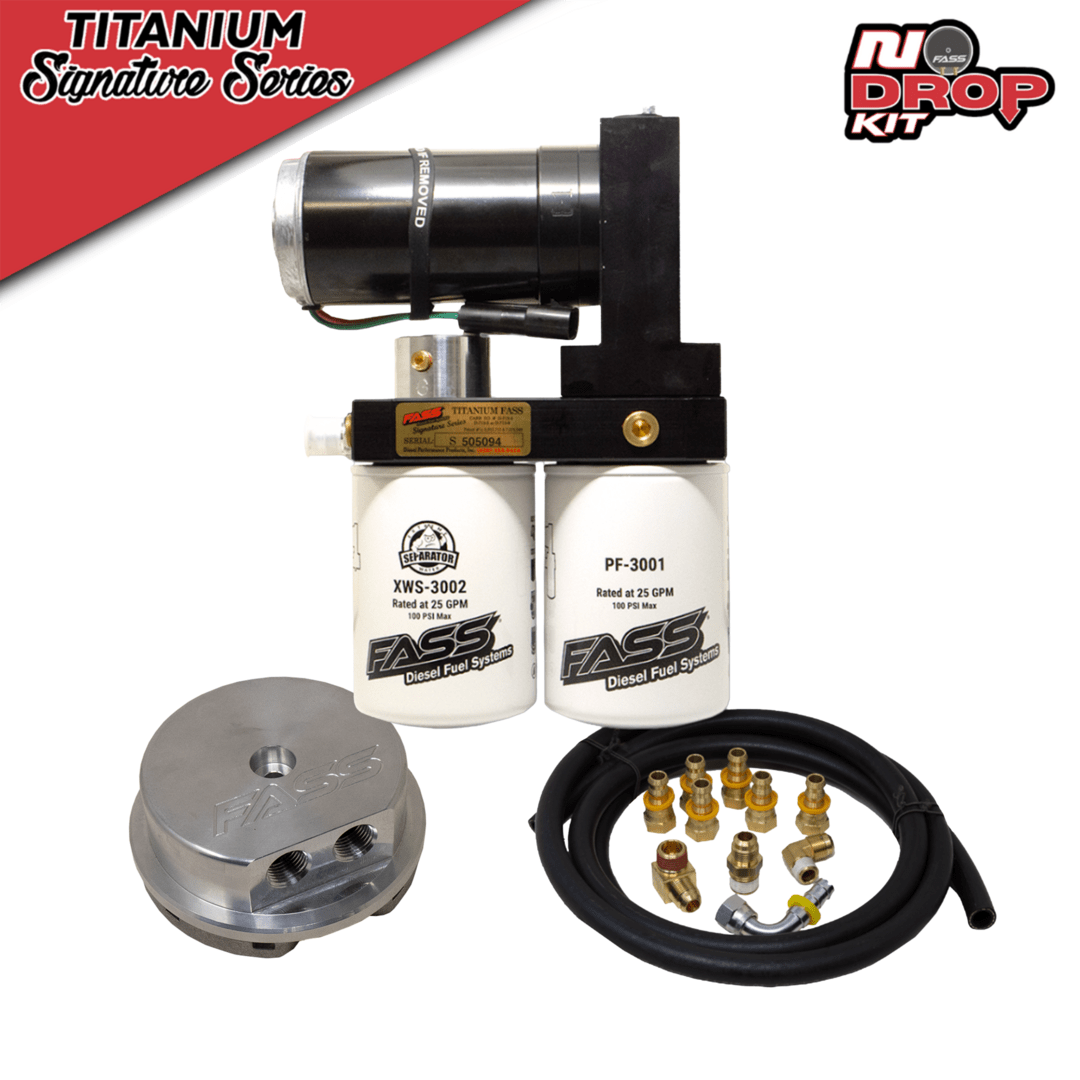

Upgrades make sense once the truck is healthy. A frame-mounted electric lift pump with water separation and fine filtration holds steady supply pressure and takes the mechanical pump out of the equation. A drop-in 63.5-64mm charger keeps stock-like spool with more airflow; one kept boost in the mid-20s and EGT near 1,200 F towing 11,000 lb behind a 425-hp 12-valve, which matters because EGT is the real limit on a fueled engine. A larger intercooler, a 4-inch turbo-back or downpipe-back exhaust, a triple-disc converter behind a fueled 47RH/RE, head studs when power climbs, and stiffer valve springs if the engine is going to see rpm are the usual order of operations. Since there is no ECM, gauges are not optional on a modified truck: boost, pyrometer, fuel pressure and transmission temperature.

What we carry

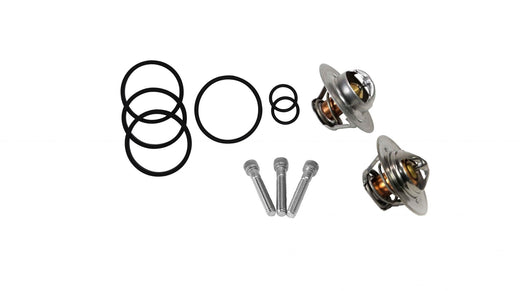

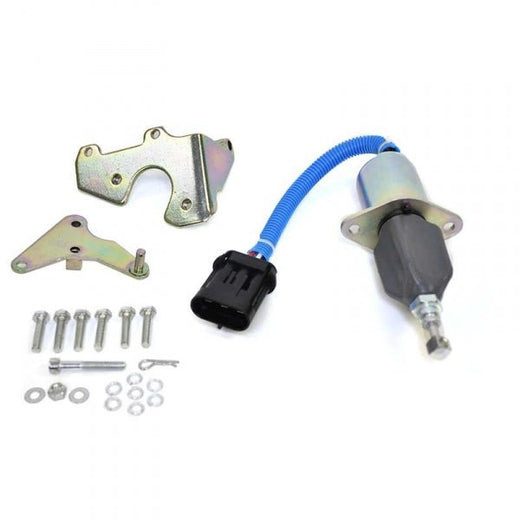

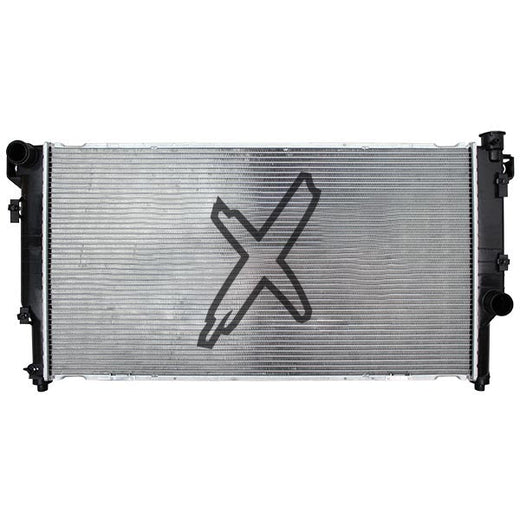

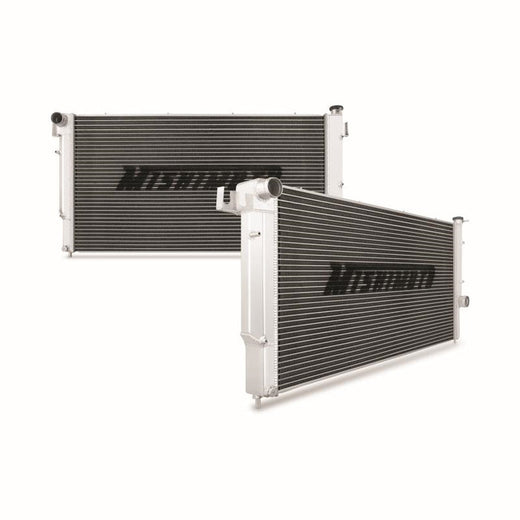

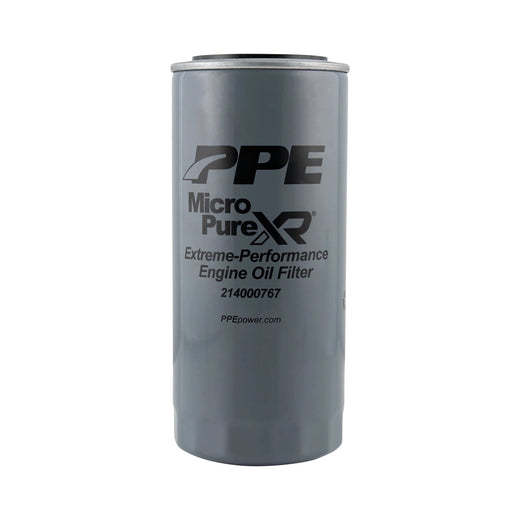

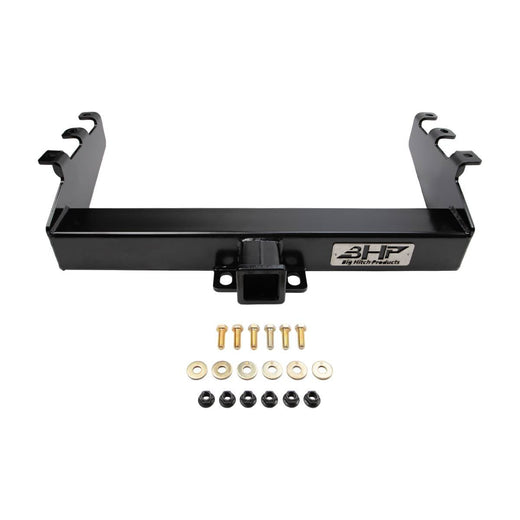

Gaskets and seals come from Cummins genuine kits - lower engine gasket sets, front crank seal service kits, timing gear case covers - and from Mahle for engine gasket kits and rear main seal sets. Dorman covers the age-related hardware: timing case front cover, thermostat housing, coolant recovery tank, clutch fan blade and pulley bracket, vacuum pump and gasket kit, block expansion plugs. Cooling and charge air run through Mishimoto aluminum radiators and Fleece Performance coolant bypass and turbo oil feed line kits. Fuel-system service parts include the XDP shutoff solenoid built for P7100 trucks plus S&B and FASS filters and water separators. BD Diesel and ATS Diesel Performance cover turbo and transmission hardware, MBRP the mufflers and resonators, Hamilton Cams the 12-valve valve springs, and Edge Products the EGT and pressure sensor kits that give this engine the data it never came with. For work and load there are B&W adjustable ball mounts and other hitches, Air Lift rear air springs, Daystar leveling kits, Wehrli traction bar bushings, and oil, filters and fuel additives from Hot Shot's Secret, Lucas Oil and PPE. More 5.9L parts live on the Cummins hub.

Fitment notes

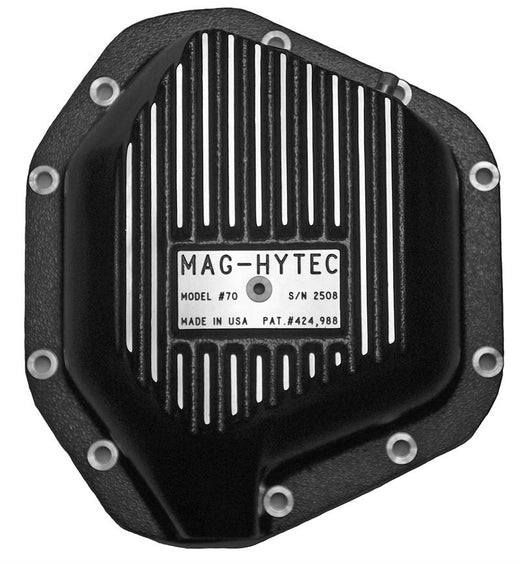

Identify the engine before anything else on a 1998. Fuel filters split at 1997: FS19519 fits 1994-1996 and FS19598 fits 1997-1998. This engine has no fuel rail, no rail pressure sensor and no electric lift pump from the factory, so anything listed as a fuel rail or lift pump for 1998.5-2002 VP44 trucks will not fit, and 12-valve injectors are not interchangeable with 24-valve injectors - they also have to be matched to the pump build. Check the turbo tag on a 1994 truck before ordering turbo parts or a rebuild kit, since it can be a WH1C or an HX35. Rear axle follows the transmission: 2500 automatics got the Dana 70, 2500 manuals the Dana 80, and every 3500 the Dana 80, so covers, gears and shafts go by the axle tag. 2WD and 4x4 front ends share nothing - leveling kits, ball joints and track bars are drivetrain-specific. Exhaust routing and fifth-wheel rails follow cab and bed length and single-rear-wheel versus dually. Front brakes are the early single-piston caliper on every 12-valve truck. Use the fitment checker on any product page, or call and give us the VIN.

Frequently asked questions

How do I tell a 12-valve from a 24-valve 1998 Ram?

Open the hood and look at the injection pump. A 12-valve has the Bosch P7100: an inline pump with a mechanical fuel shutoff solenoid on top and nothing electronic metering the fuel. A 24-valve has the VP44, a rotary pump with an electrical connector and harness. Model year will not answer the question, because the change happened in the middle of the 1998 model year.

Do I need to deal with the killer dowel pin?

If a tab kit has never been installed, plan on it. The dowel either stays put, drops harmlessly into the oil pan, or jams the timing gears and cracks the gear housing or the cam nose. The repair is a small tab held by a gear-cover bolt with thread locker, torqued to 18 ft-lb, and because the cover is already off the front crank seal goes in at the same time. These P7100 years are where most of the failures happen.

My truck is down on power and smoking. Where do I start?

Charge-air boots first. A boot that has slipped under its clamp or split is the classic low-power-with-smoke complaint on this platform, and it gets blamed on fuel constantly. If every boot is tight, put a gauge on the fuel supply: a worn lift pump and a weak overflow valve both drop pressure, and a clogged pre-strainer in the fuel heater housing starves the pump. Unscrew the bowl and look at the strainer.

Will a plug-in programmer or monitor work on my truck?

No. The 12-valve has no engine computer to read or flash, so OBD monitors and programmers sold for 1998.5-2002 24-valve trucks do nothing on a 1994-1998 truck. Monitoring here means real sensors: a boost gauge off the intake horn, a pyrometer probe in the exhaust manifold, a fuel-pressure sender at the filter head, and a transmission temperature sender. Running a fueled 12-valve without EGT data is the most common cause of heat damage.

What maintenance is specific to this engine?

Valve lash. The 12-valve uses solid lifters with no self-adjustment, so lash drifts and has to be checked and set every 24,000 miles or 24 months, cold, at 0.010 in intake and 0.020 in exhaust. Neglect it and you get valvetrain clatter, a rough idle and lost power. Behind the engine, the 47RH/RE wants its bands adjusted on that same 24,000-mile interval, and the band specs change by model year.

Is a failing lift pump going to take out my injection pump?

No, and that is one of the good things about this platform. A worn mechanical lift pump leaves you with hard morning starts, a low idle, soft power and eventually a no-start, but it does not damage the P7100 the way a starved VP44 destroys itself on a 24-valve. Confirm it with a fuel-pressure test instead of guessing, because a tired overflow valve on the pump looks identical from the driver's seat.

Not sure what fits? Call the shop at the number in the header, or use the fitment checker on any product page. We install everything we sell, right here in Wildwood, FL.
