1994-1998 Dodge 5.9L Cummins Turbo Parts

The turbo system on the 1994-1998 Dodge Ram 5.9L Cummins

Every 12-valve Cummins in a second-gen Ram left the factory with a single wastegated Holset turbo feeding an air-to-air intercooler. Some 1994 trucks carry the transitional WH1C; the rest of the 1994-1998 run uses the HX35. The turbo bolts to a cast exhaust manifold with a T3 flange and exhausts into a 3-inch downpipe. Stock boost runs about 18 to 22 psi, and the factory turbos are known to handle more than 30 psi over the long term. The stock charger spools quickly and keeps low-end smoke under control, which is why it is worth keeping healthy on a stock truck.

What fails and why

The most common turbo-related complaint on these trucks is not the turbo at all. Intercooler boots slip out from under their clamps or split, and the truck loses boost: low power, heavy smoke and an audible whoosh under load. Re-seat the boot and check every boot in the charge-air path before you blame anything else; higher boost makes the problem worse. The second issue is airflow. The stock HX35 runs out of air once fueling is raised. In one documented case it was pushing 35 to 40 psi with the wastegate wide open and could go no further, while EGTs climbed and the turbo over-sped. On 1994 trucks, check the turbo tag before ordering a direct replacement or rebuild parts, since you may have the WH1C.

Stock replacement vs. upgrade

If you want factory behavior back, a new stock-replacement unit is the straightforward choice. A boost elbow is the usual first turbo mod: an adjustable wastegate fitting that raises boost from the stock 18 to 22 psi toward 35 to 40 psi for roughly 20 to 30 hp, though it over-drives the stock charger if more power follows. For towing, a drop-in 62 to 64mm unit bolts to the stock T3 manifold and 3-inch downpipe; one documented 425-hp 12-valve with a Stealth 64 held boost in the mid-20s and EGT around 1,200 F towing 11,000 lb. Past that, an S300-frame single on a T4 manifold with a 4-inch downpipe took one truck from 390 to 475 rwhp, and compound sets of an S300 over a large S400 cover the 700-hp range and up.

What we carry

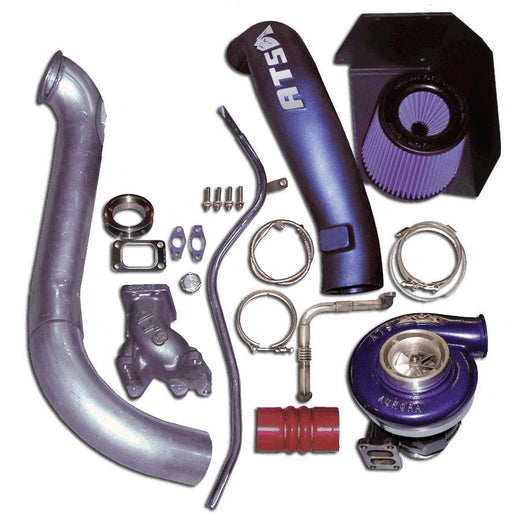

Turbos: XDP Xpressor new stock-replacement units, the Fleece Performance Engineering Cheetah HX35, the Calibrated Power HX35 Stealth 64 and Stealth STR, the ATS Diesel Aurora 3000/4000/5000 turbo systems and Aurora compound system, and the Banks Power Quick Turbo System. Supporting parts: MAHLE mounting and inlet gaskets; Fleece oil feed lines, fittings and an HX35 installation kit; BD Diesel turbo mounting kit, adjustable wastegate, cool-down timer and clamps; the Dynomite Diesel boost elbow; titanium turbo blankets from PPE, Mishimoto and ATS; Turbosmart constant-tension clamps; and the Calibrated Power Stealth boost tester kit. See every platform on our turbos page.

Fitment notes

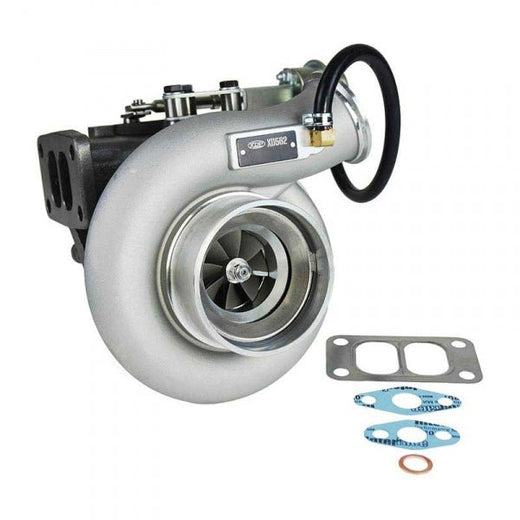

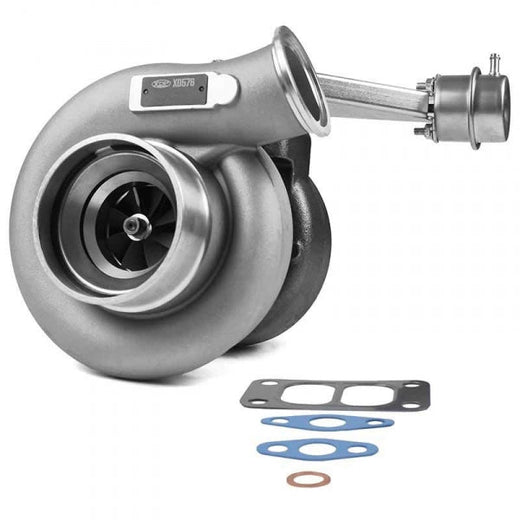

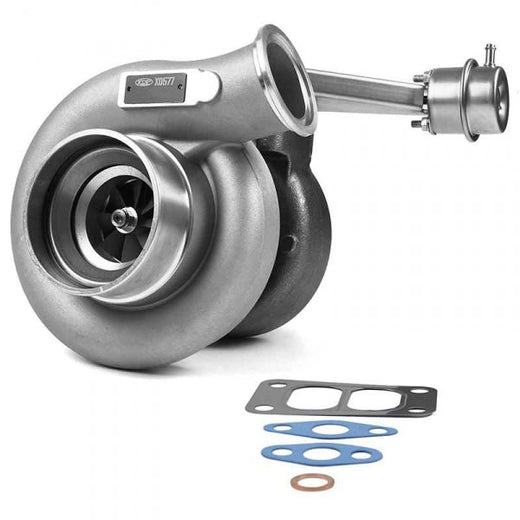

Three things trip people up. First, the 1998 model year: Dodge switched to the 24-valve ISB with the VP44 pump mid-year, so confirm the engine before ordering. The 12-valve has the P7100 inline pump with the shutoff solenoid on top; the 24-valve has the VP44 rotary pump with a wiring harness. Second, year splits inside the 12-valve run: the XDP Xpressor XD576 is listed for 1994-1995 while the XD562 and XD577 are listed for 1996-1998, and MAHLE splits its mounting gasket sets between 1997 and 1998. Third, flange math: most S300 and S400 upgrades need a T4 or T6 manifold and an HX40-style 4-inch downpipe, so the turbo, manifold and downpipe get ordered as a set. Verify by VIN or call us.

Frequently asked questions

Why does my 12-valve blow smoke and feel flat under boost?

Check the intercooler boots first. They slip from under their clamps or split, and the boost leak causes low power, heavy smoke and a whoosh under load. Re-seat the boots, inspect every one in the system, and pressure-test the charge-air side if you cannot find the leak by eye.

Which turbo does my truck have?

1995-1998 trucks use the wastegated Holset HX35. 1994 was a transition year, so a 1994 can have either the WH1C or the HX35. Read the tag on the turbo before ordering a direct replacement.

What makes a turbo a drop-in?

A drop-in bolts to the stock T3 manifold and 3-inch downpipe. Turbos that need a T4 or T6 manifold and an HX40-style 4-inch downpipe are not drop-ins, and the manifold and downpipe have to be bought with them.

Is a boost elbow worth it on a stock truck?

It is the most common first turbo mod, an adjustable wastegate fitting that lets boost rise from 18-22 psi toward 35-40 psi for roughly 20 to 30 hp. The catch is that it over-drives the stock turbo if you keep adding power after it, so plan the turbo before you plan more.

How much boost can the stock HX35 take?

Stock boost is about 18 to 22 psi, and the factory turbos handle more than 30 psi long term. The real limit is airflow: on a truck with added fuel the stock charger topped out at 35-40 psi with the wastegate wide open while EGTs climbed.

Not sure what fits? Call the shop at the number in the header, or use the fitment checker on any product page. We install everything we sell.
