2001-2004 Chevy Duramax LB7 Parts & Upgrades

The LB7 Duramax in the 2001-2004 Silverado 2500HD and 3500

GM launched the GMT800 heavy-duty Silverado 2500HD and 3500 alongside the first 6.6L Duramax for 2001, built by DMAX Ltd. in Moraine, Ohio and rated 300 hp at 3,100 rpm and 520 lb-ft at 1,800 rpm behind either the Allison 1000 five-speed automatic or the ZF S6-650 six-speed manual. Fueling is Bosch common rail at roughly 23,000 psi: a gear-driven CP3 in the valley feeds two rails and eight solenoid injectors seated in brass cups under the valve covers. There is no factory electric lift pump, so the CP3 pulls its own fuel from the tank through the frame-mounted filter head. Air moves through an IHI RHG6, the only fixed-geometry wastegated turbo GM used in a Duramax, mounted in the valley behind the engine between a driver-side and a passenger-side up-pipe. The 2001 trucks have no EGR and no catalytic converter in any state; from 2002, federal trucks (RPO FE9) stayed that way while California trucks (RPO YF5) added a cooled EGR valve and a converter.

What fails and why

Injectors define this engine. Bostech puts original-injector life at 60,000 to 120,000 miles and Diesel Power Products at 100,000 to 150,000; either way the signs are the same, with a gray haze at warm idle, rough idle or knock, hard cold starts, falling fuel economy, and balance rates outside roughly 4 mm3 in park. A 15-second crank return-flow test should stay under 5 ml per injector, and any injector over 18 ml is condemned. Because the injectors sit above the head oil drains, a leaking cup seal pushes fuel into the crankcase, so a rising oil level and a diesel smell on the dipstick are injector symptoms too. The harness under the covers chafes with age and imitates a dead injector with an open-circuit code. On the supply side, filter-head O-rings and the primer seal let air in rather than fuel out, which is why an LB7 starts hard after sitting overnight and loses prime at the primer. Past 100,000 miles the multi-layer head gasket can let combustion pressure work between its layers: a hard upper radiator hose, coolant loss with no external leak, bubbles or soot in the overflow tank. The early water pump seal has failed as soon as 75,000 miles, and a fan clutch that stops engaging turns a summer tow into an overheat with nothing leaking.

Stock replacement vs. upgrade

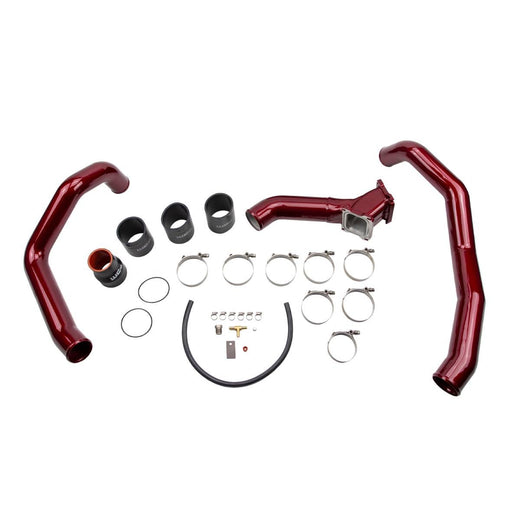

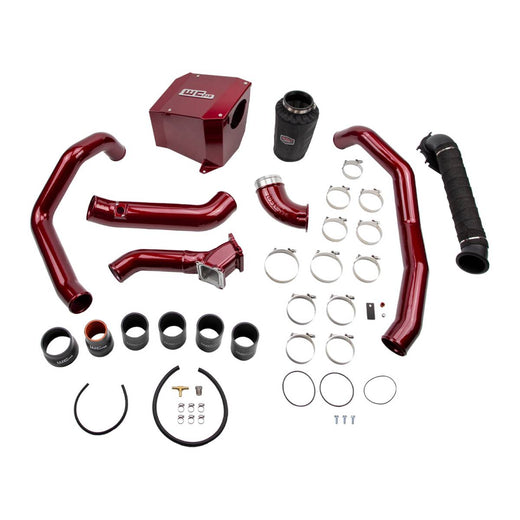

Most LB7 work is replacement, not power. Injectors go in as a set of eight with new cups, copper washers, banjo seals and seal kits, and past 150,000 miles the high-pressure lines go with them. Before condemning injectors or the CP3, rebuild the fuel filter head with a new O-ring kit and prove the truck holds prime overnight. When the heads come off, ARP studs replace the single-use torque-to-yield head bolts and add clamping force against head lift; complete kits pair those studs with new multi-layer steel gaskets. Do the water pump, its housing and both thermostats in one visit, since they share the same labor. The upgrades worth paying for are the ones that fix a factory limitation: a frame-mount or in-tank lift pump with filtration takes the suction job off the CP3, which matters the moment a tune asks for more fuel, because added fueling without one drops rail pressure under acceleration. A bar-and-plate intercooler with aluminum charge pipes ends the split-plastic-pipe routine, and a CARB EO-numbered cold-air intake is the compliant way to open up the inlet. Keep tuning mild, since the five-speed Allison starts slipping and locking into third gear roughly 80 to 100 hp over stock, and verify any tuning device carries a CARB EO for the 2001-2004 LB7.

What we carry

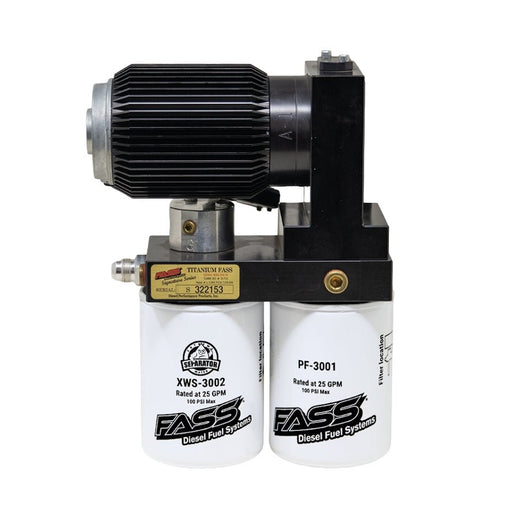

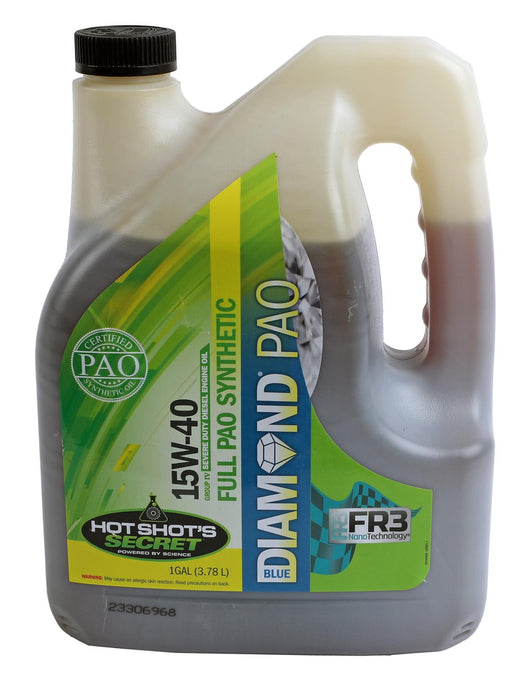

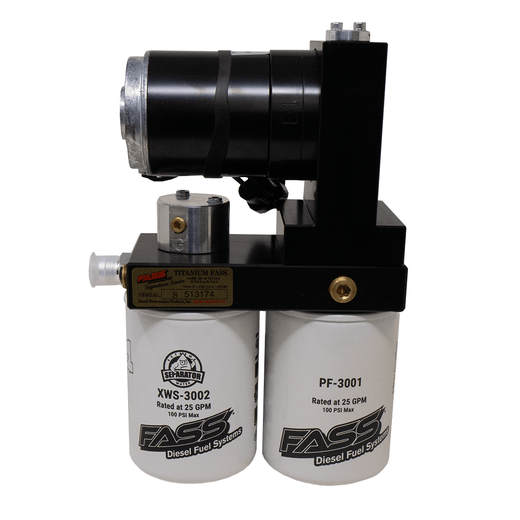

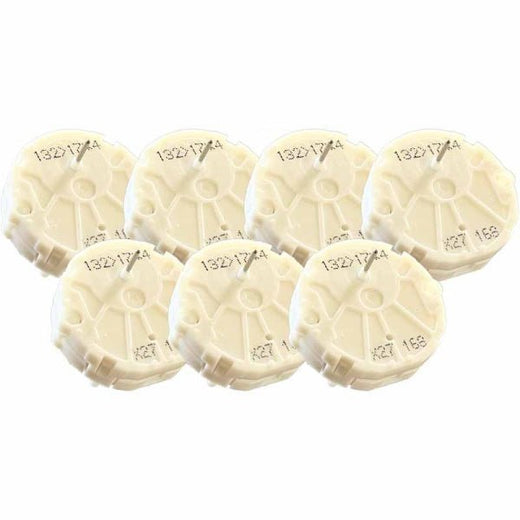

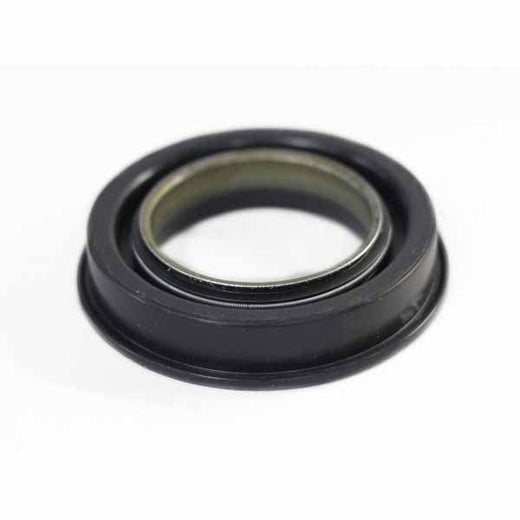

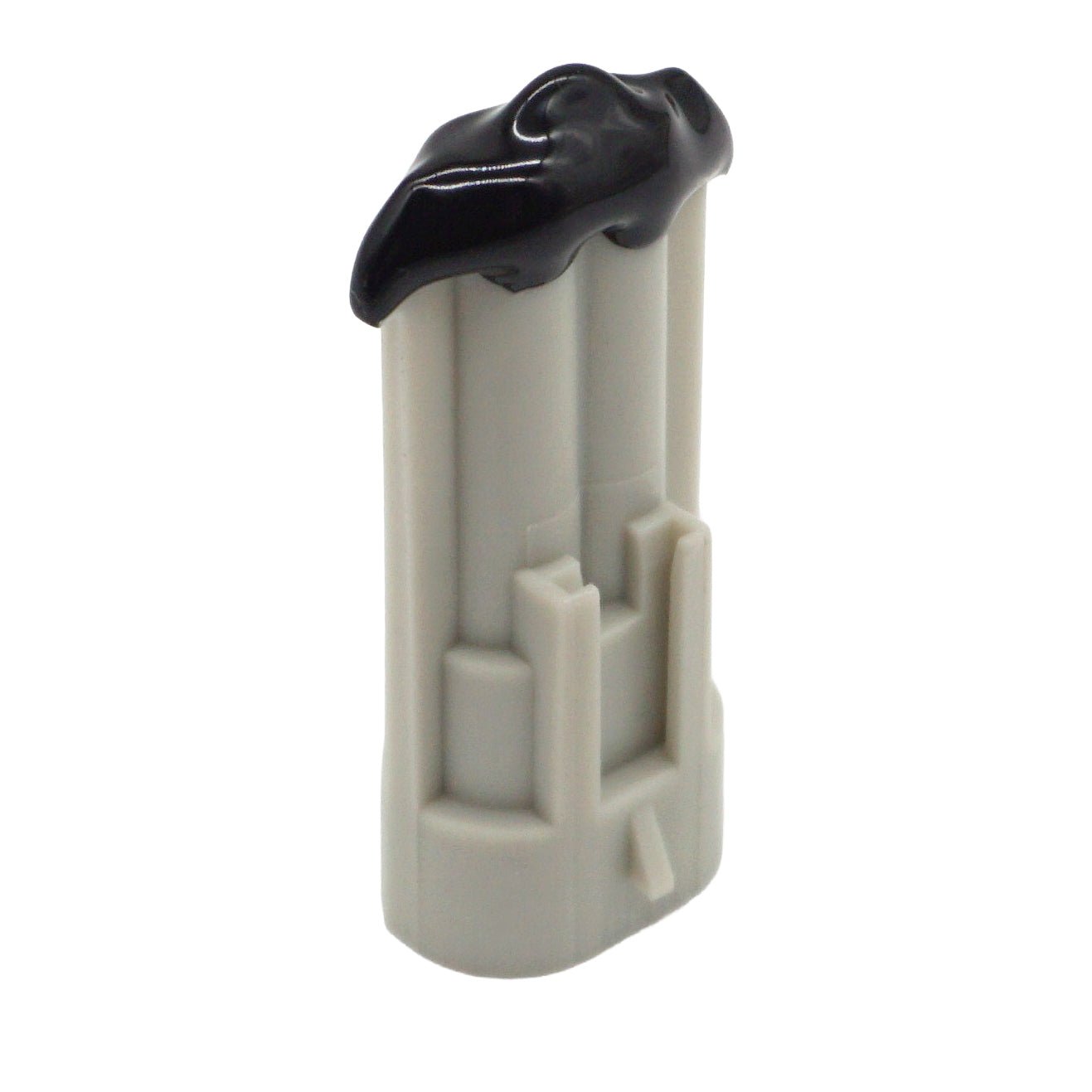

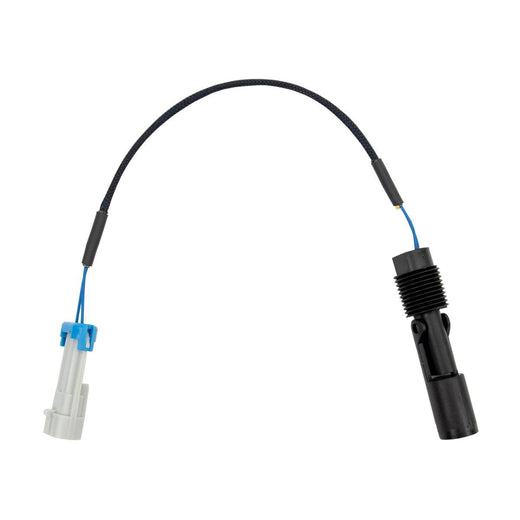

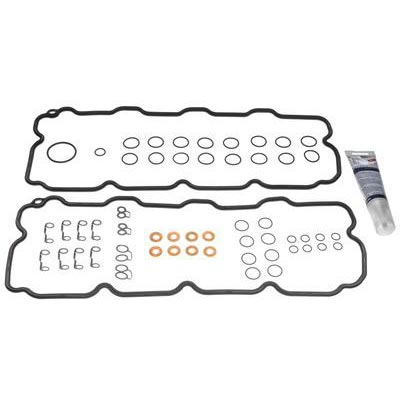

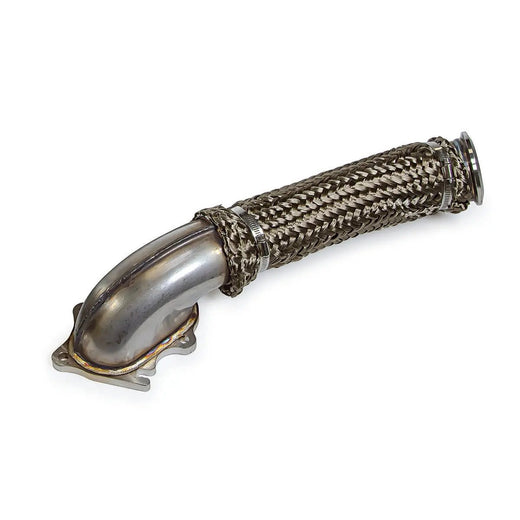

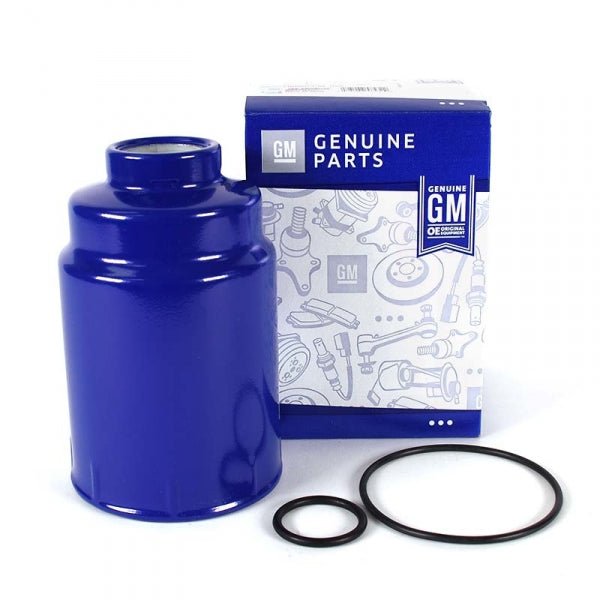

This collection is weighted toward keeping an LB7 alive. Merchant Automotive covers the small parts these jobs stall on: water-in-fuel sensor O-rings, coolant tank float switches, stepper motor sets, Allison reseal kits, transfer case output seals. PPE brings lift pumps, oil filters, PTO covers and stainless downpipes, and Mahle the gasket side, including valve cover and injector seal kits and water pump gaskets. Wehrli Custom Fabrication and XDP MFG add coolant level sensors, flex plate bolt kits and the fuel filter adapter wrench. FASS, Fleece Performance Engineering, S&B and ACDelco handle fuel supply and filtration, and replacement injectors are listed here as well. BD Diesel, MBRP, Mishimoto and Air Lift cover driveline, exhaust, cooling and rear air springs, while Hot Shot's Secret and Lucas Oil supply CK-4 engine oil and fuel additives, and Edge Products adds pressure sensors and EGT kits for towing.

Fitment notes

Start with the eighth VIN digit: 1 is the LB7 and 2 is the LLY that replaced it in January 2004, so a 2004 Silverado can be either, and valve covers, injectors, high-pressure lines, turbo and ECM-related parts do not cross that split. LLY injectors are a different length and mount outside the covers. Then read the RPO sticker in the glovebox. FE9 federal trucks and 2001 California trucks take one high-flow manifold and up-pipe kit; 2002-2004 California (YF5) trucks take the EGR-compatible version, and the downpipe gaskets differ between them. A YF5 truck keeps its catalytic converter, so choose a cat-back system there. The 2001 trucks use a different intake horn and intercooler boot than 2002-2004, which is why boot kits are listed 2002-2004 only. Exhaust routing is cab and bed specific across regular, extended and crew cab, 6.5-ft and 8-ft beds, and dual-rear-wheel 3500s. SRW wheels are ET28 and DRW ET125 on the 8x165.1 mm eight-lug pattern and do not interchange, Allison internals and converters split at 2006, the front and rear thermostats are different part numbers, head gaskets are side-specific and come in thickness grades chosen by measured piston protrusion, and in-tank lift pumps are listed for pickups only and will not fit aftermarket tanks. The LB7 was never offered in a 1500 or 1500HD, and the 2003-2004 Kodiak and TopKick C4500/C5500 used it with the LRY medium-duty option at 210 hp.

Frequently asked questions

How do I tell if my LB7 injectors are failing?

Watch for a gray haze at warm idle, a knock or stumble at idle, hard cold starts and falling economy, then confirm it with data. Balance rates outside roughly 4 mm3 in park point at specific cylinders, and a return-flow test during a 15-second crank should stay under 5 ml per injector, with anything over 18 ml condemned. A rising oil level or a diesel smell on the dipstick is the same problem leaking into the crankcase.

Does my 2004 Silverado 2500HD have an LB7 or an LLY?

Check the eighth character of the VIN: 1 is the LB7 and 2 is the LLY, which came in during January 2004. The truck body did not change at the swap, so the model year alone tells you nothing. Order injectors, valve covers, turbo parts and tuning by that digit rather than by year.

Do I need a lift pump on a stock LB7?

The factory never fitted one, and the CP3 draws fuel from the tank itself. Stock trucks generally live with that arrangement fine. Once a tune or added fueling asks more of the pump, rail pressure drops under acceleration, which is when a frame-mount or in-tank lift pump with filtration earns its place.

Why does my Silverado only run hot when I am towing?

The LB7 uses a smaller radiator and fan than GM fitted from 2006 on, so a tired cooling system only shows up under load. Check the fan clutch for engagement when hot and clean the radiator and intercooler stack before buying anything bigger. A failing water pump or a head gasket leak can also pressurize the system and push coolant out.

Should I use head studs when the head gaskets come off?

If the heads are coming off anyway, yes. The factory head bolts are single-use torque-to-yield fasteners, and ARP studs add clamping force against the head lift that starts the problem. Order side-specific gaskets in the correct thickness grade, measured off piston protrusion, and plan on new valve cover and injector seal kits while you are in there.

Not sure what fits? Call the shop at the number in the header, or use the fitment checker on any product page. We install everything we sell.
