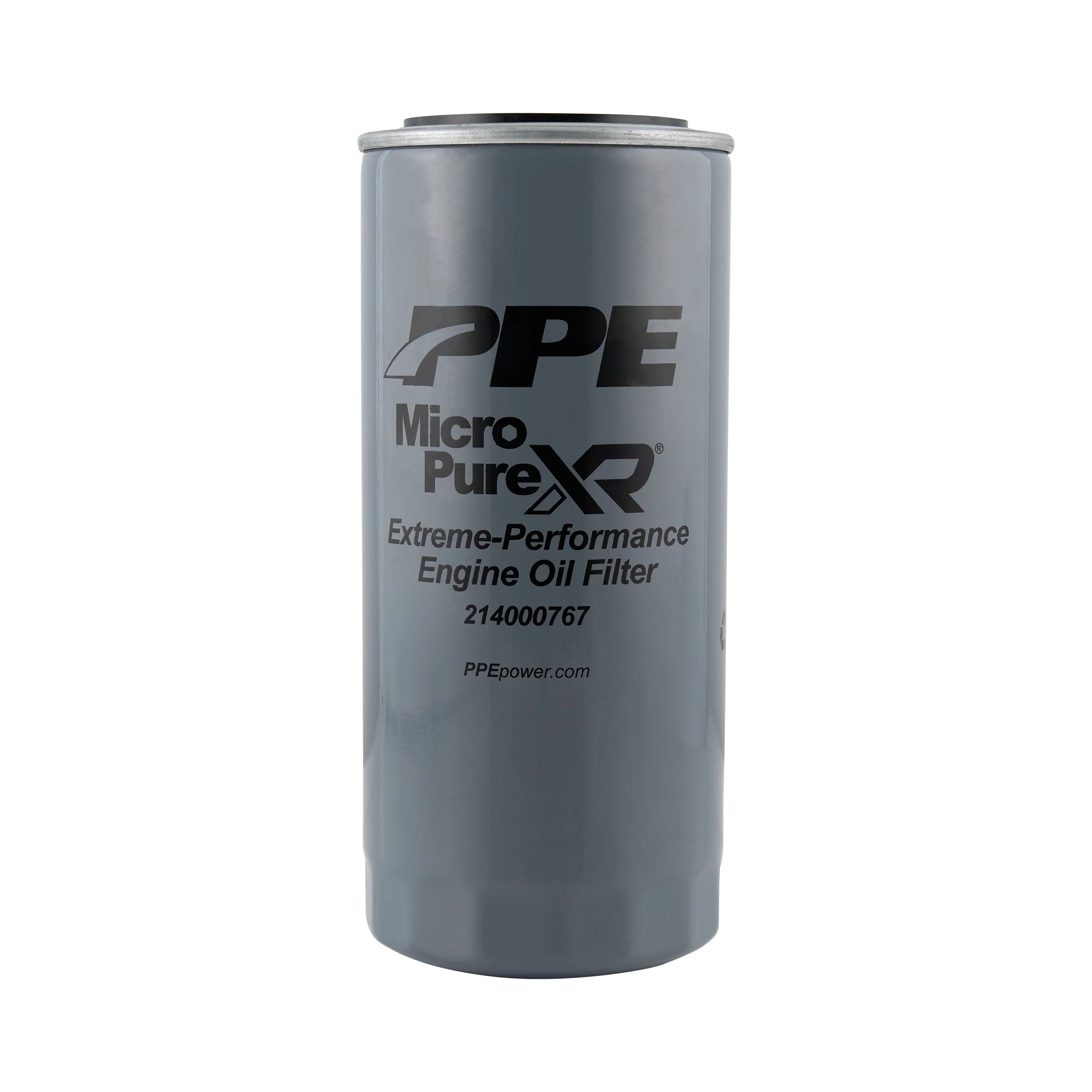

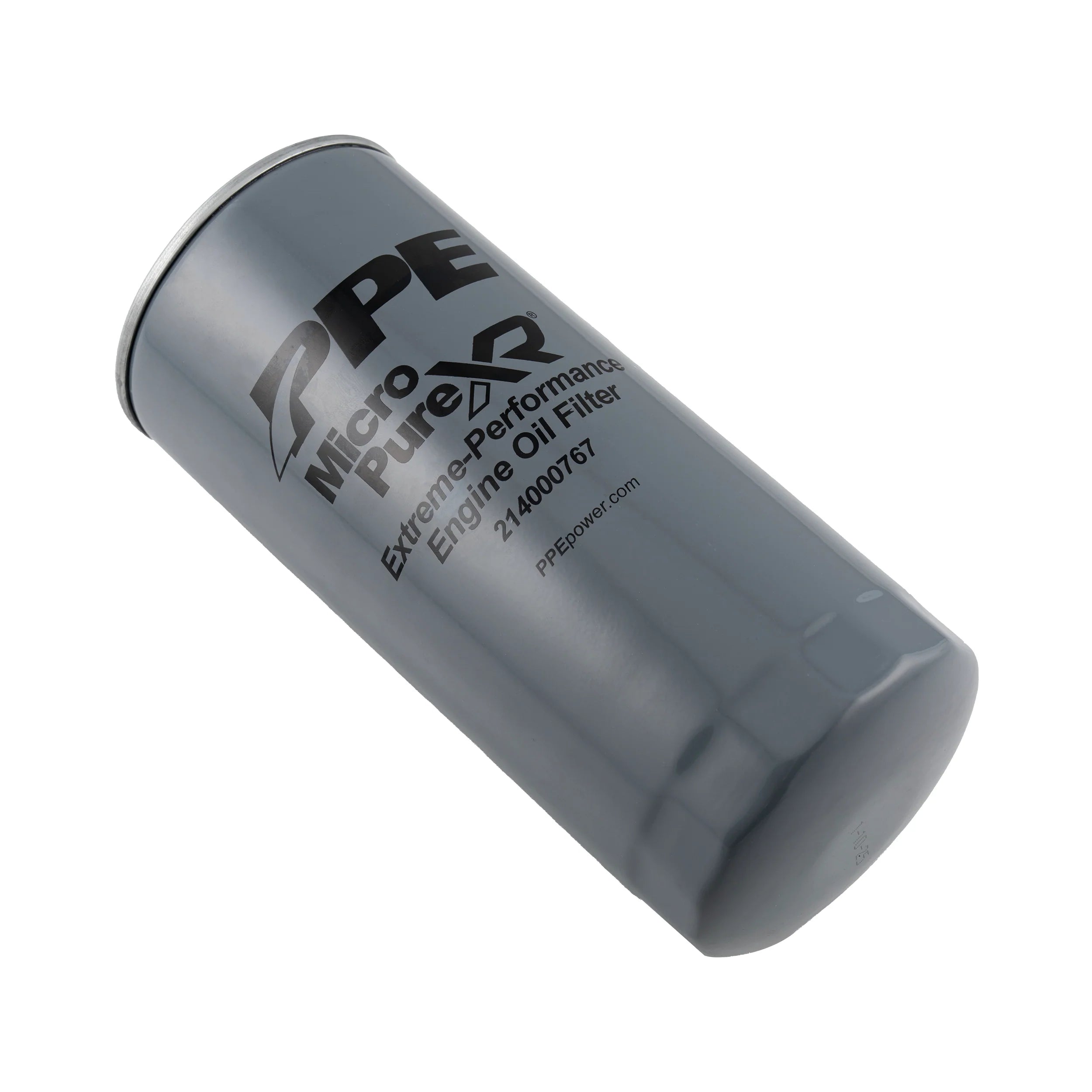

The PPE 214000767 MicroPure XR Engine Oil Filter is a direct replacement filter for Dodge and Ram trucks with the 5.9L and 6.7L Cummins, 1989 through 2024. It uses 5-micron synthetic microfiber media, 530 square inches of it, plus a built-in magnet. You buy it to catch more of the contaminants that wear an engine out than the stock filter does.

Fitment

The 214000767 is listed for 1989-2024 Cummins-powered Dodge and Ram pickups. By engine, that covers:

  • 5.9L 12-valve Cummins, 1989-1993 and 1994-1998
  • 5.9L 24-valve Cummins, 1998.5-2002
  • 5.9L common-rail Cummins, 2003-2007
  • 6.7L Cummins, 2007.5-2024

Our tag for the newest 6.7L reads 2019-current, but PPE titles the filter through 2024, so verify fitment by VIN on a 2025 or newer truck. The filter is a direct replacement for Mopar MO-285 and Fleetguard LF3972, LF3894 and LF16035, so if one of those is on your engine now, this one takes its place. Browse more Cummins parts.

Why this part

The oil filter is your engine's first line of defense against contaminants that degrade oil performance and reduce oil life. Poor filter performance and contaminants in the oil can lead to premature wear and potential failure of engine internals.

PPE's case against the OEM filter is specific. It offers only 460 square inches of media with 20-micron filtration capability. It uses a weak leaf spring, which reduces seal quality and lets dirty oil blow past the filter media.

The MicroPure XR filter answers each of those. You get 530 square inches of filtration area, a 15% increase over the OEM filter, in ultra-fine synthetic microfiber MicroPure XR® media with a 5-micron nominal rating. A heavy-duty coil spring holds a secure seal between the media end cap and the base plate. That eliminates dirty oil blow-by and keeps filtration performance where it should be.

An integrated high-temperature-rated neodymium magnet adds another layer. It captures ferrous particles before they can clog the media, which extends filter and oil life and gives the engine extra protection.

The valves are better too. Competitors use an unsealed bypass valve. PPE's built-in bypass valve uses a steel-NBR poppet and a precision coil spring for a proper seal and consistent performance. A heat-resistant silicone anti-drainback valve keeps oil in the filter after you shut the engine off, so you're protected against dry starts.

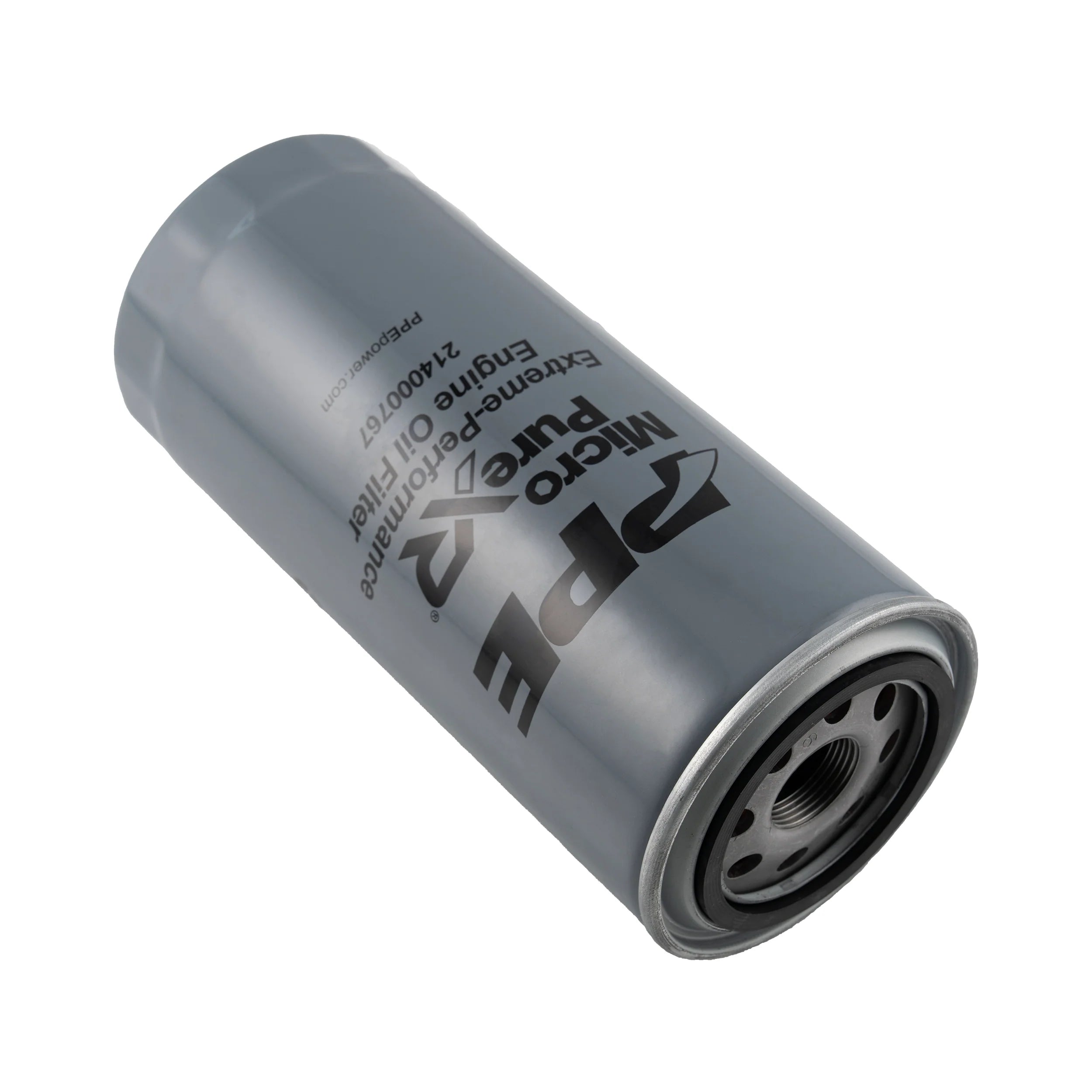

The rest of the filter is built heavy. A high-strength steel base plate with increased thread engagement and large oil passages, plus a durable metal center tube for rigid media support and pressure resistance, means you can run it with confidence in all conditions. An integrated pleat-locking spiral bead of adhesive keeps the media pleats secured and evenly spaced for consistent filtration. PPE's TorqSTOP™ Technology prevents over-tightening and reinforces the rubber gasket against high oil pressures, which gives the filter a burst pressure rating of 450PSI.

What you get

  • One PPE 214000767 MicroPure XR® engine oil filter
  • Built-in bypass valve and silicone anti-drainback valve
  • Integrated high-temperature-rated neodymium magnet

Specifications

Features as PPE lists them:

  • MicroPure XR® filtration with a 5-micron nominal rating
  • 530 Square inches of ultra-fine synthetic microfiber media, a 15% increase over the stock filter
  • Integrated high-temperature rated neodymium magnet captures ferrous particles, providing extra engine protection
  • Built-in bypass valve with precision coil spring and steel-NBR poppet
  • High-strength steel base plate with increased thread engagement and large oil passages
  • Durable metal center tube provides excellent media support and pressure resistance
  • TorqSTOP Technology prevents over-tightening and reinforces the gasket against high oil pressures
  • Silicone anti-drainback valve delivers superior protection during engine start-ups
  • Heavy-duty coil spring ensures a secure seal and prevents oil blow-by, maximizing filtration performance
  • Pleat-locking spiral bead keeps media pleats evenly spaced for consistent filtration performance
  • Direct replacement for Mopar MO-285, Fleetguard LF3972, LF3894, LF16035

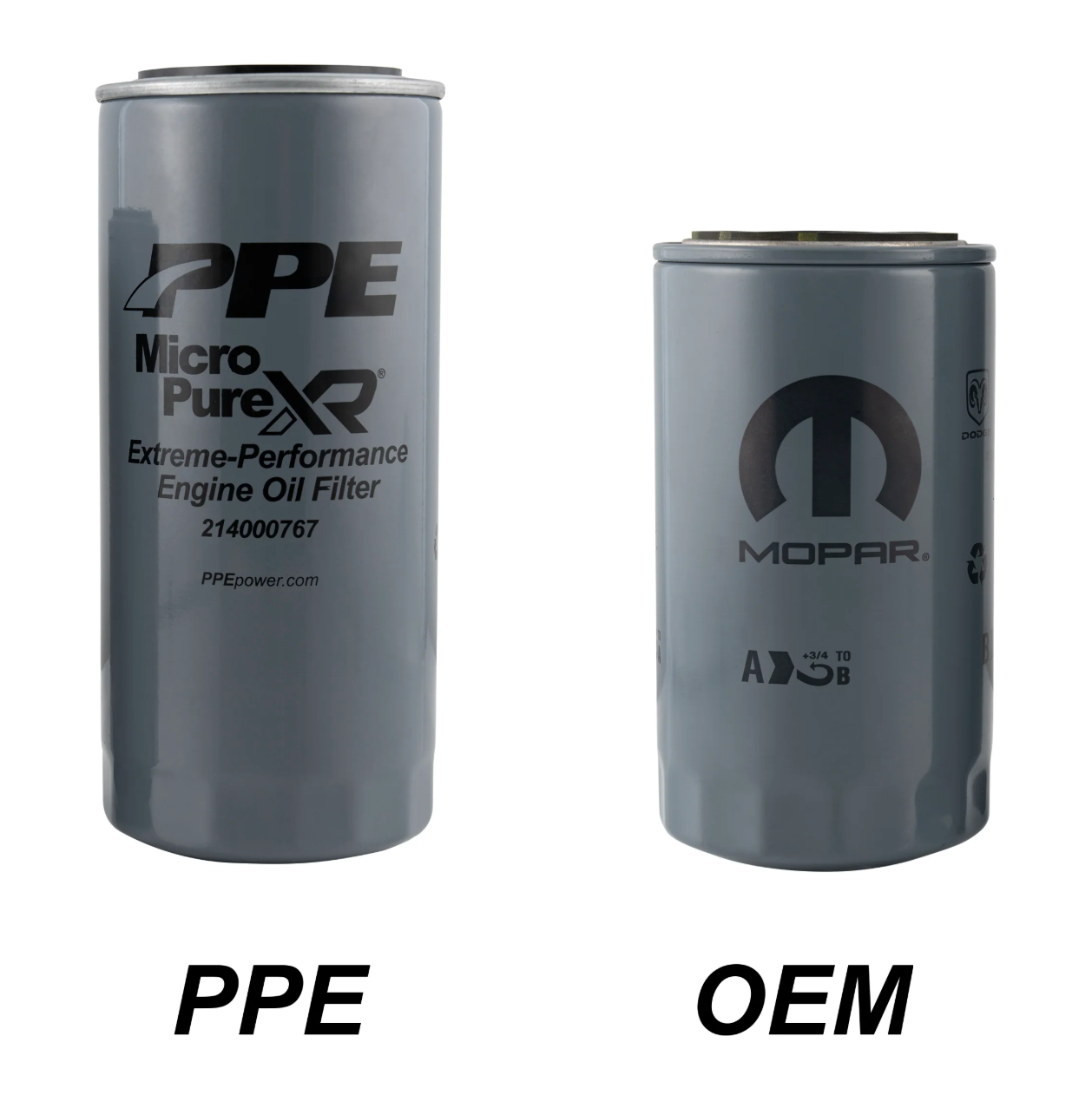

How it compares with the OEM filter, by PPE's numbers:

  • Filtration area: 530 square inches vs. 460 square inches
  • Media rating: 5-micron nominal vs. 20-micron
  • Seal spring: heavy-duty coil spring vs. a weak leaf spring
  • Burst pressure rating: 450PSI

About PPE

Pacific Performance Engineering was founded in 1985 and is based in North Las Vegas, Nevada. PPE is best known for 6.6L Duramax parts and later added coverage for Ram Cummins and Ford Powerstroke trucks. Its MicroPure XR engine oil filters sit in the same catalog as PPE's exhaust, transmission, fuel system and cooling parts.

Frequently asked questions

What filters does the 214000767 replace?

It's a direct replacement for Mopar MO-285 and Fleetguard LF3972, LF3894 and LF16035.

Will it fit my 12-valve?

Yes. PPE lists it for the 5.9L 12-valve from 1989 on, the 24-valve, the common-rail 5.9L and the 6.7L through 2024. If your engine has been swapped or the filter mount changed, call us to confirm.

What does TorqSTOP do?

It prevents over-tightening and reinforces the rubber gasket against high oil pressure. It's part of why PPE rates the filter at a 450PSI burst pressure.

Questions on fitment? Call the shop at the number in the header. We install everything we sell.
