2003-2004 Dodge 5.9L Cummins Fuel System Parts

Fuel System on the 2003-2004 RAM 5.9L Cummins

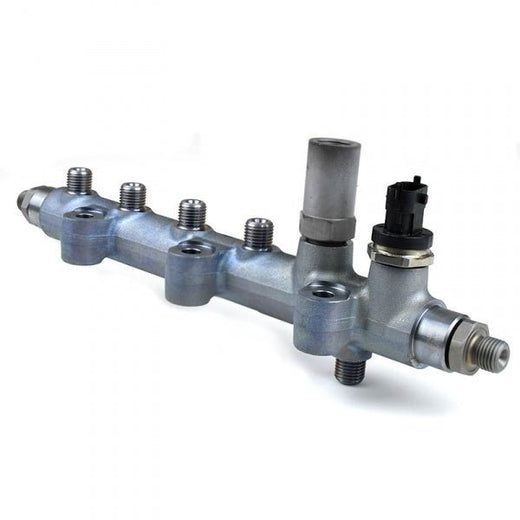

2003 is the year the 5.9L Cummins left the troublesome VP44 rotary pump behind for the more dependable Bosch CP3 and a common rail. Fuel starts at an electric lift pump bolted to the engine, which delivers only about 10 psi to the filter. The CP3's internal gear pump raises that to 80-180 psi, the fuel control actuator (FCA) on the back of the pump meters fuel into three radial pumping chambers, and the pump sends 300 to 1,600 bar to the rail. That is roughly 23,000 psi at the top end, with a rail relief valve set near 28,000 psi. Six Bosch injectors fire off the rail with two injection events per cycle.

The factory filter is a 7-micron Fleetguard FS19856 in the engine-mounted canister, changed every 15,000 miles or 12 months. TDR treats clean fuel as paramount to injector life on this engine, and that one idea drives almost every decision on this page.

What fails and why

Lift pump. The engine-mounted transfer pump has a life span of roughly 80,000-120,000 miles, and Dodge and Cummins parts networks no longer sell the external pump, only a kit that relocates it into the tank. A failing pump shows up as a no-start or won't-run, low fuel pressure under load, and hard hot starts. A dead lift pump will not harm the CP3 on these years, but the truck will not run.

Injectors. They wear out through solenoid failure, eroded return check balls and seats, sticking pintles, and cracked nozzles or bodies from high rail pressure and high EGT. Symptoms are long cranking, white smoke at idle, a rough idle or miss, fuel in the oil and falling mileage.

Water and rust. Water in the fuel system remains a major source of problems, and rust-pitted connector tubes send rust straight into the injectors. Repeat injector failures after a replacement are the classic sign.

FCA and relief valve. A sticking FCA causes surging, rough idle, stalling and hard starts, and it often gets misdiagnosed as injectors. The rail relief valve can pop after running elevated rail pressure and then never seal again, which means hard starts, low rail pressure and lost power until it is replaced.

Stock replacement vs. upgrade

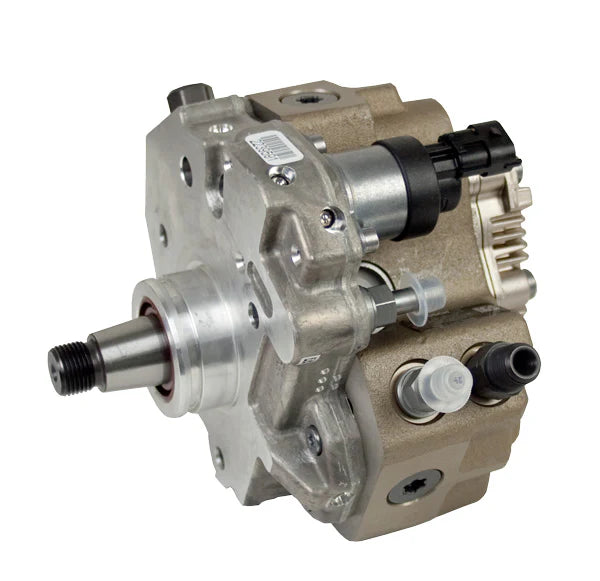

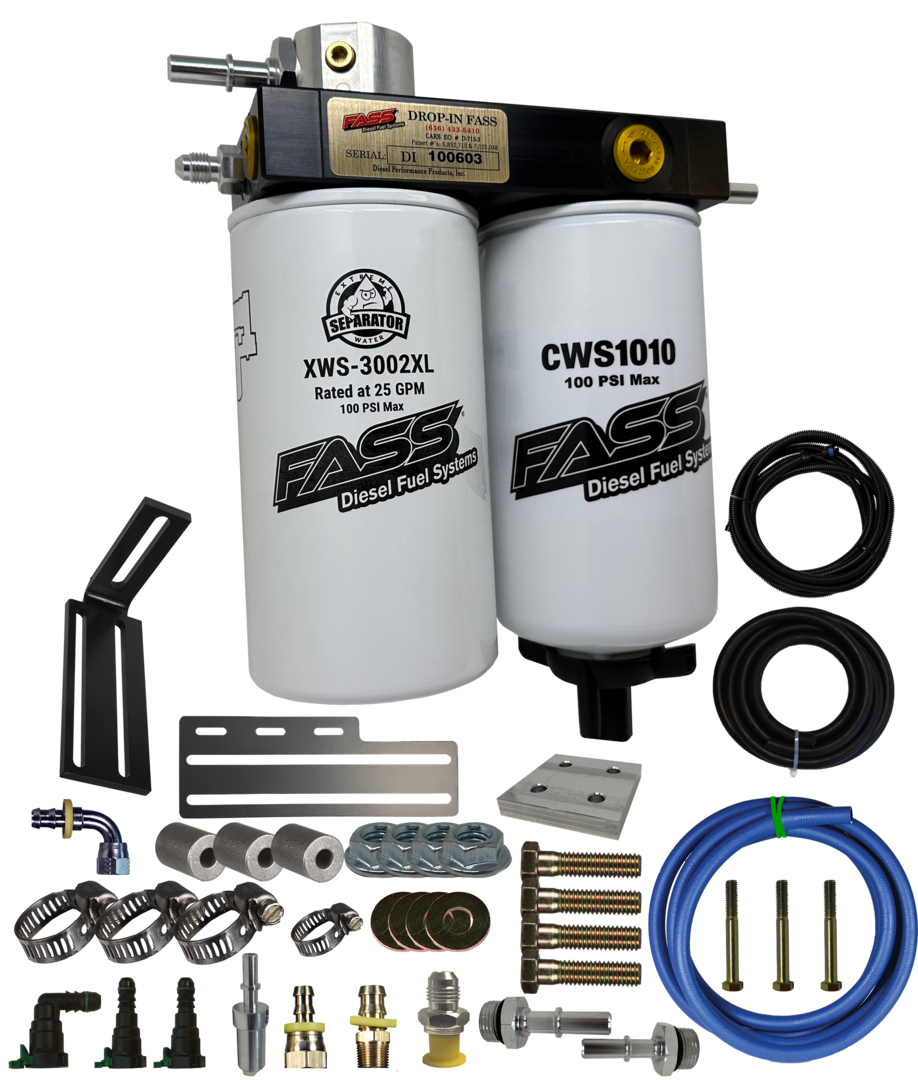

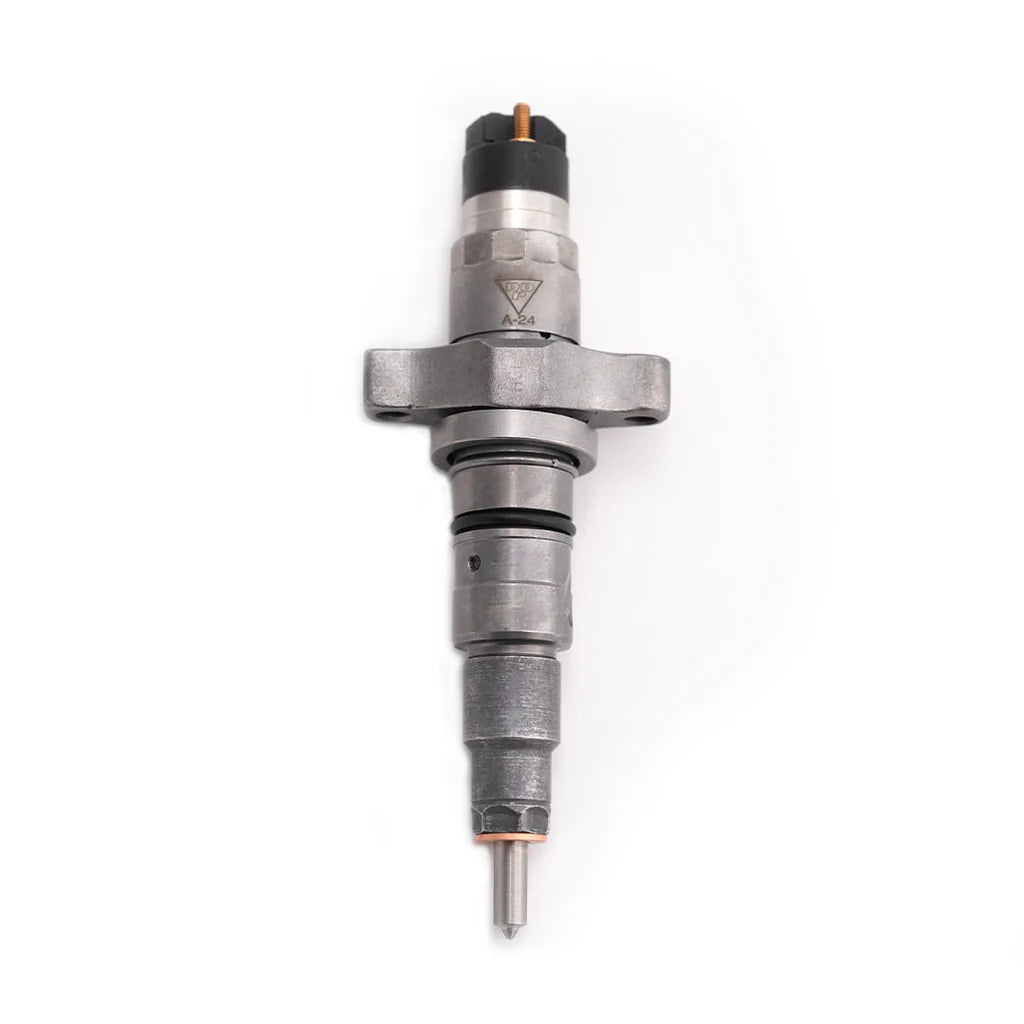

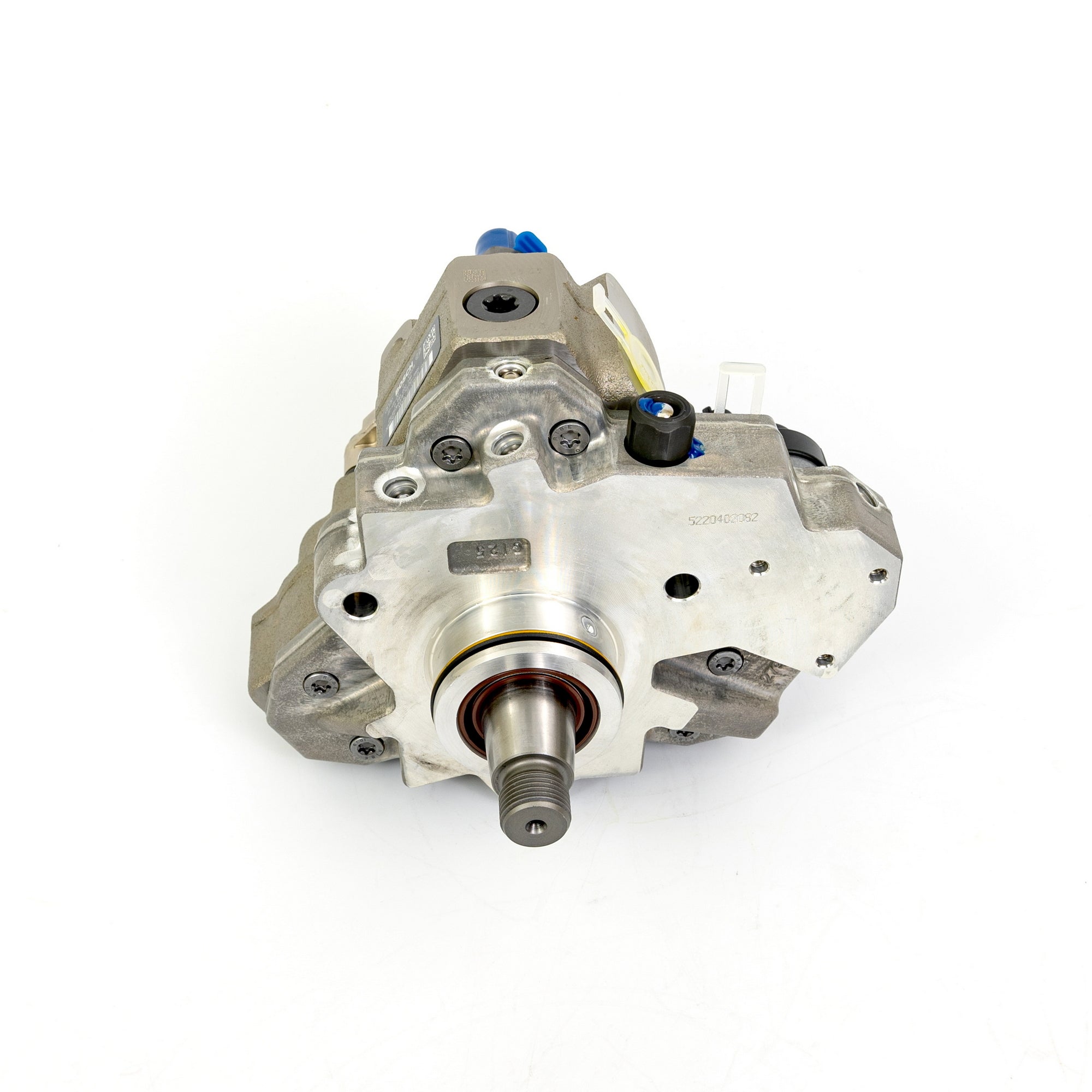

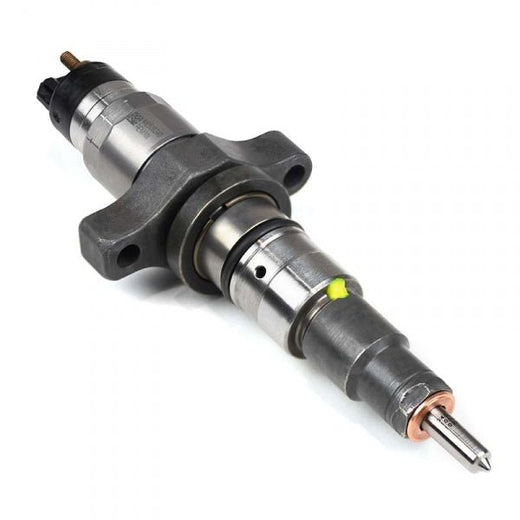

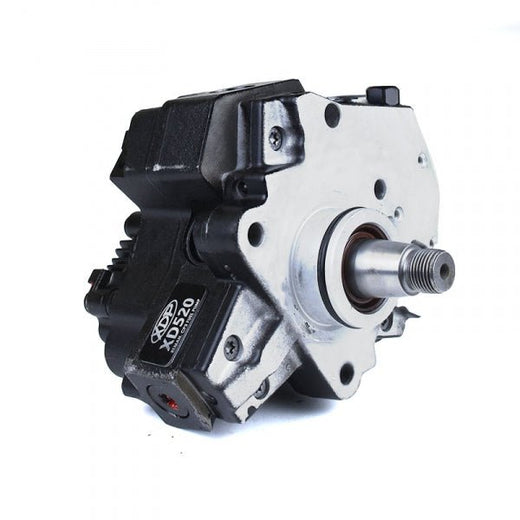

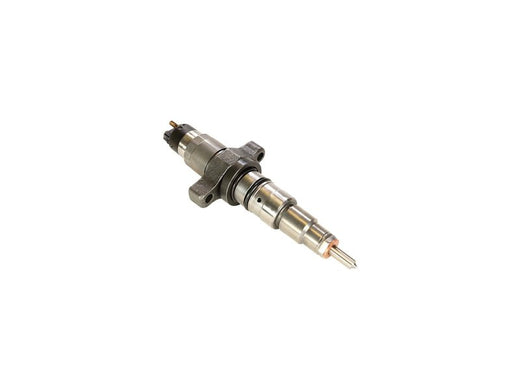

Most trucks need stock parts and better filtration, not more fuel. For repairs, that means reman Bosch injectors (0986435503 for 2003-2004) with new connector tubes every time, a stock reman CP3, and a direct external replacement lift pump so a roadside swap stays possible. The standard upgrade is a frame-mounted lift pump and filter system from FASS or AirDog. It pushes fuel from the back of the truck instead of pulling it, gets the pump off the engine, and adds 2-3 micron filtration with water and air separation. Add a fuel-pressure gauge on a 12 mm banjo snubber at the CP3 or filter housing so you see a weak pump before it strands you. Keep in mind that the lift pump and the CP3 do different jobs; upgrading one does not replace the other.

What we carry

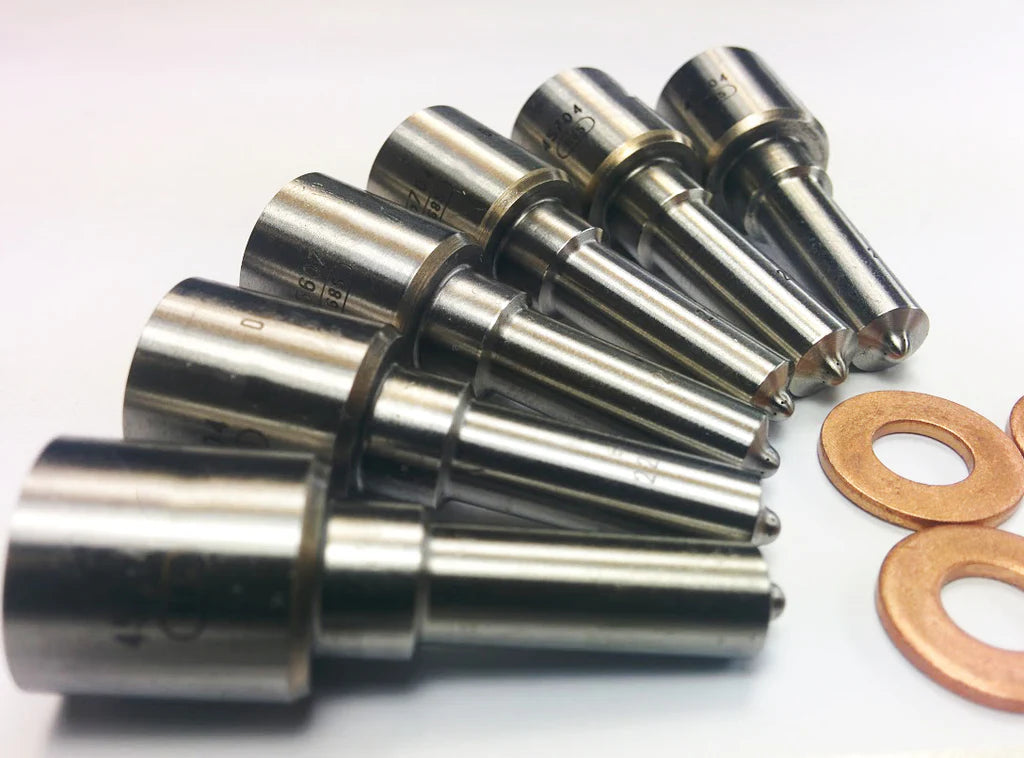

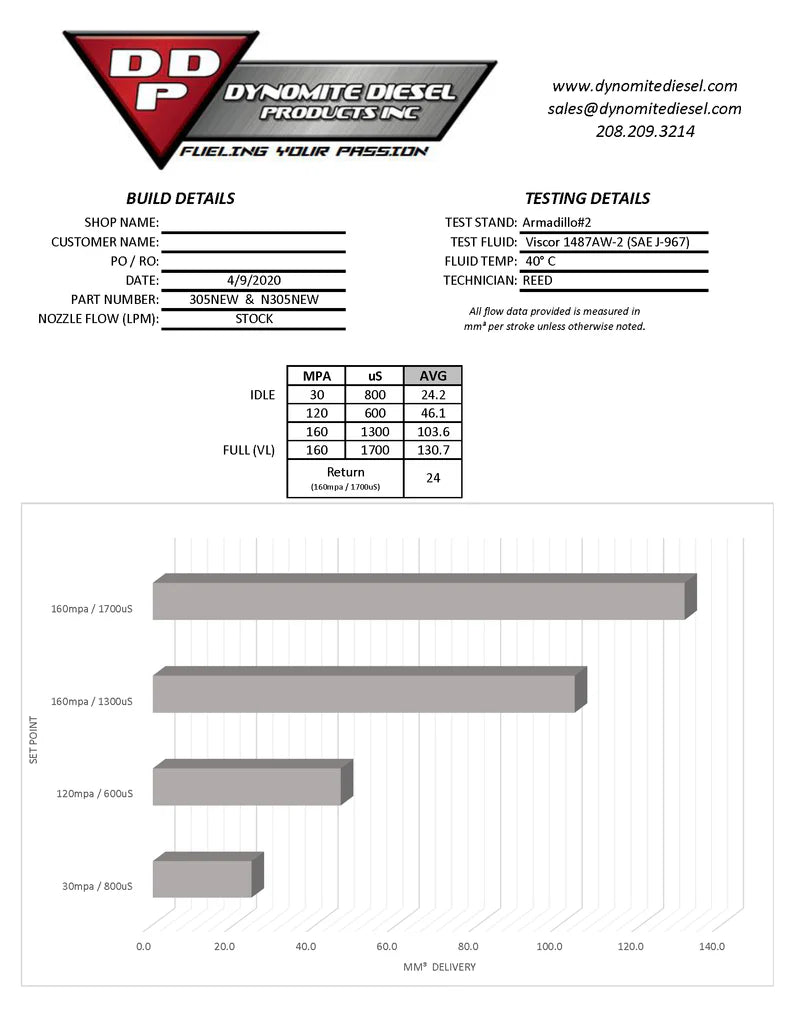

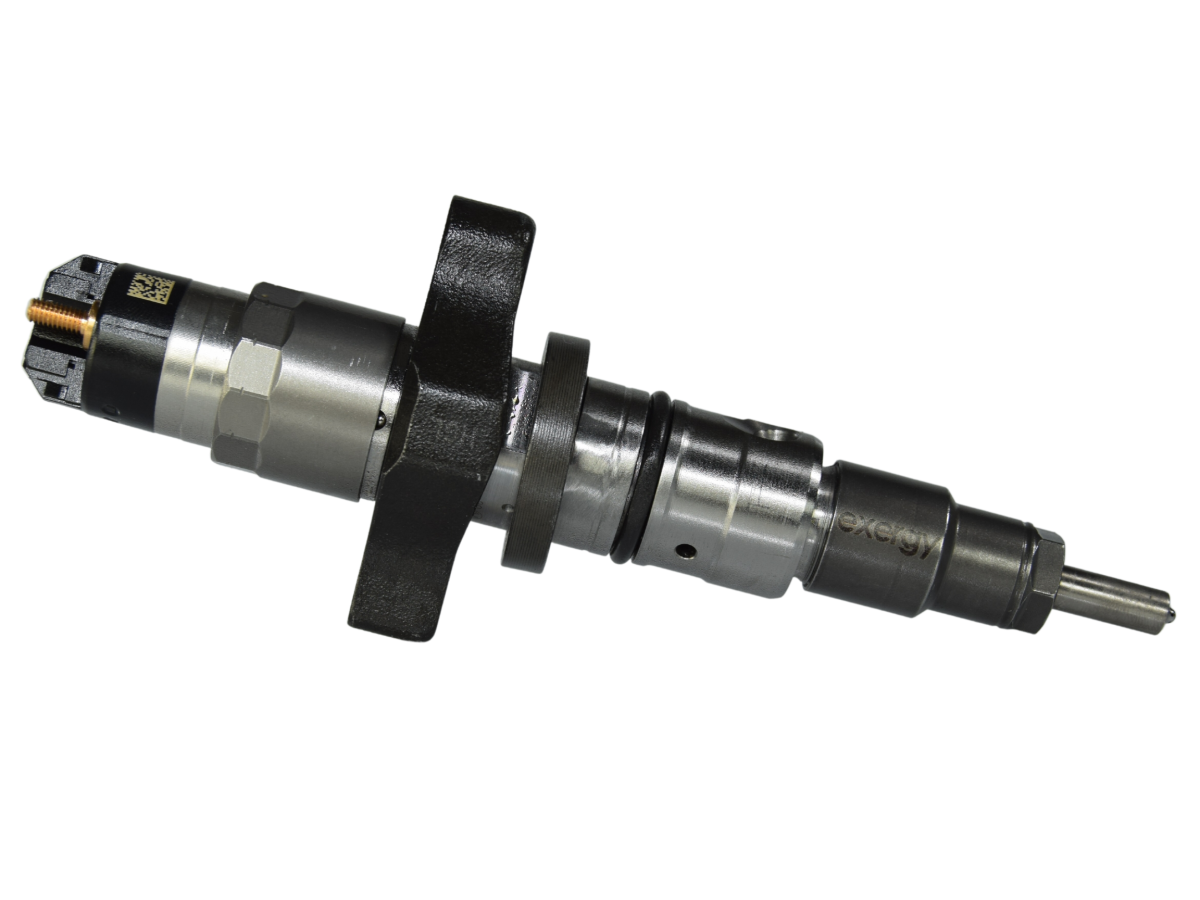

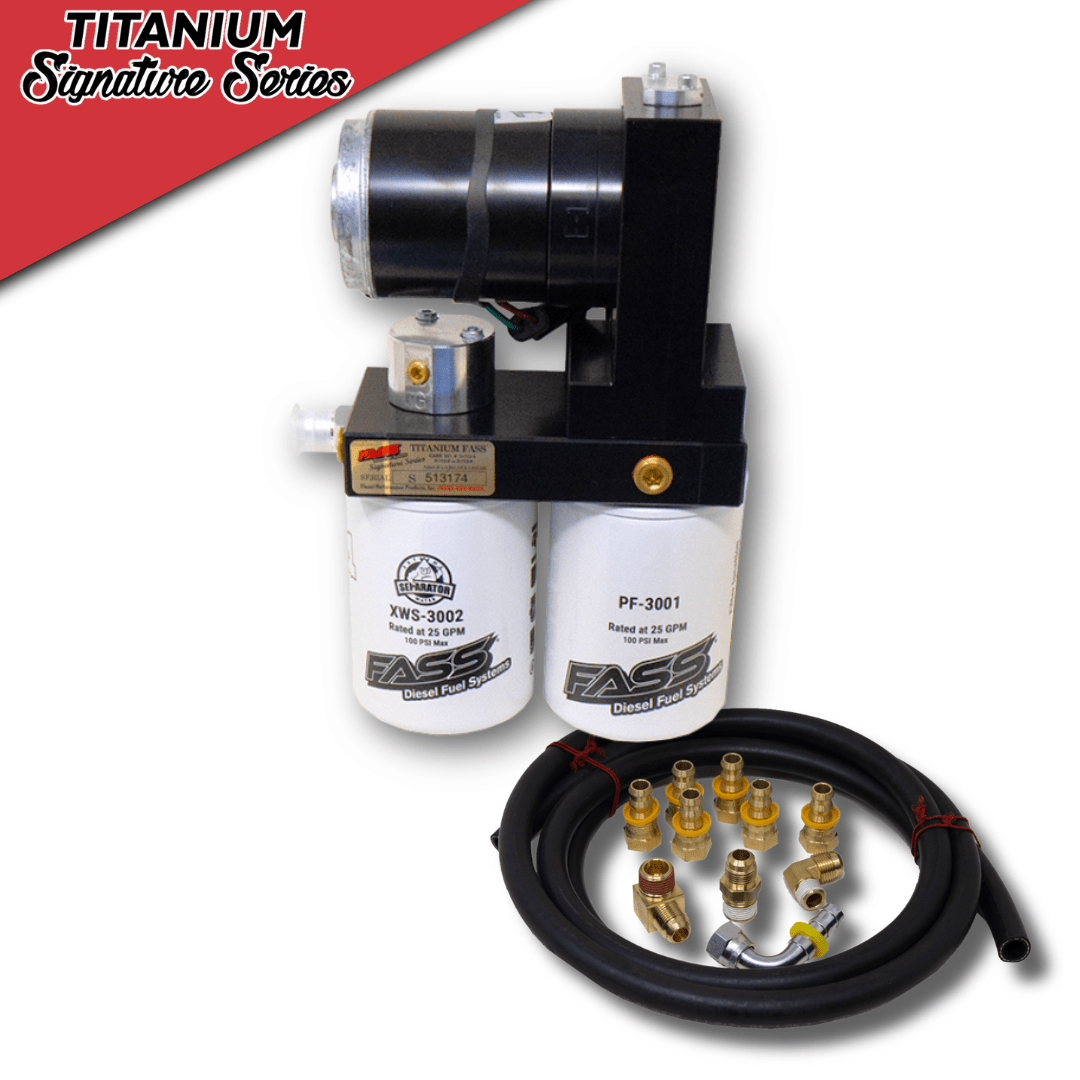

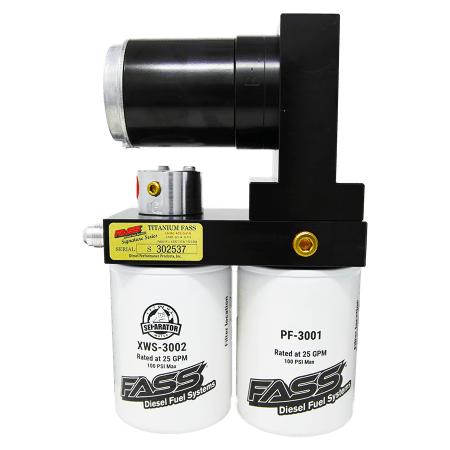

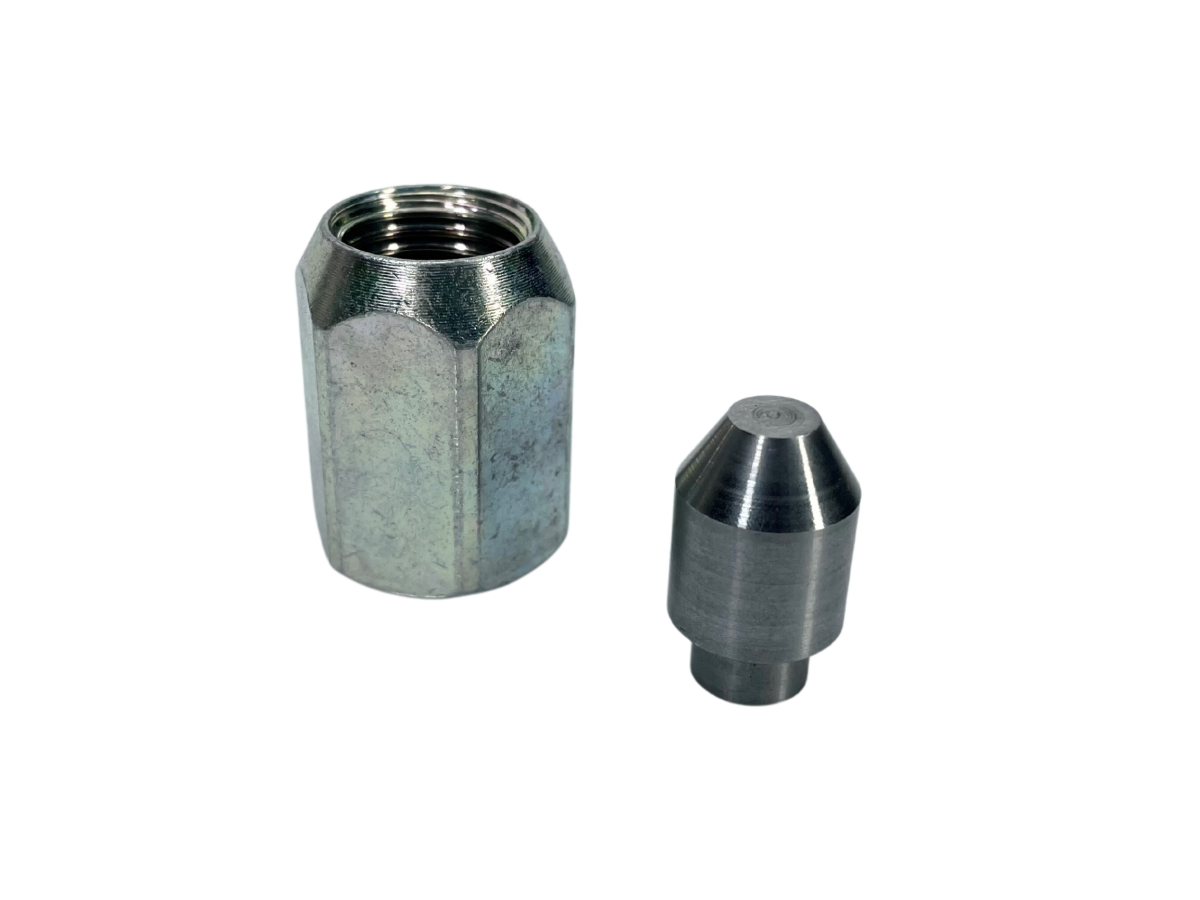

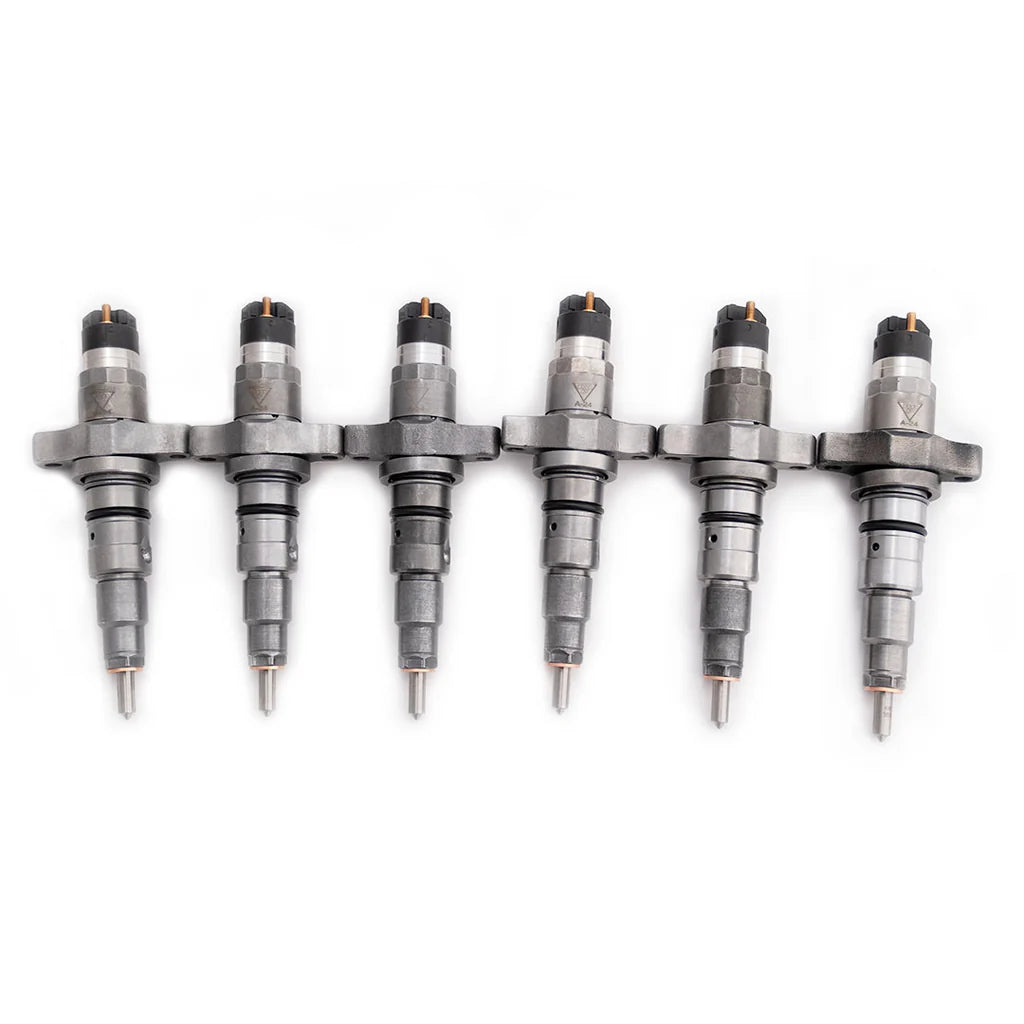

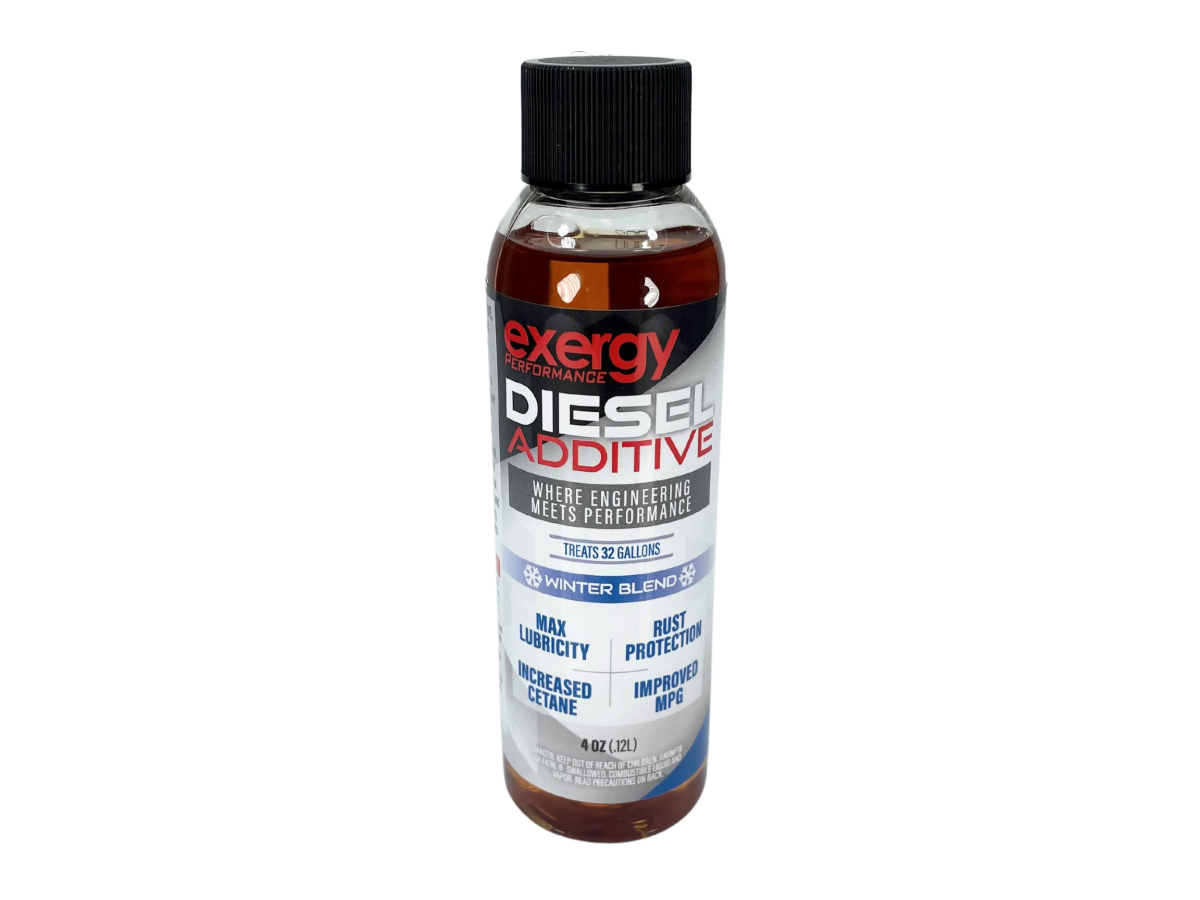

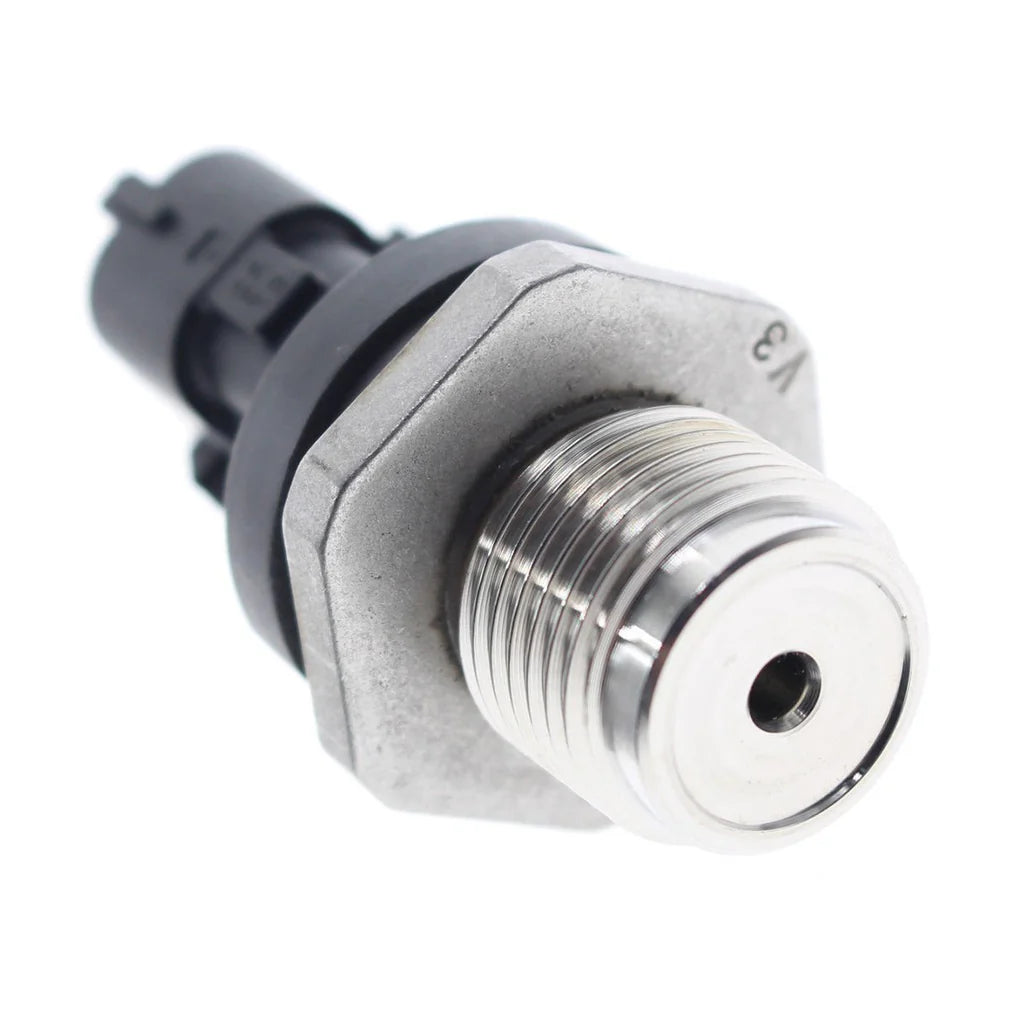

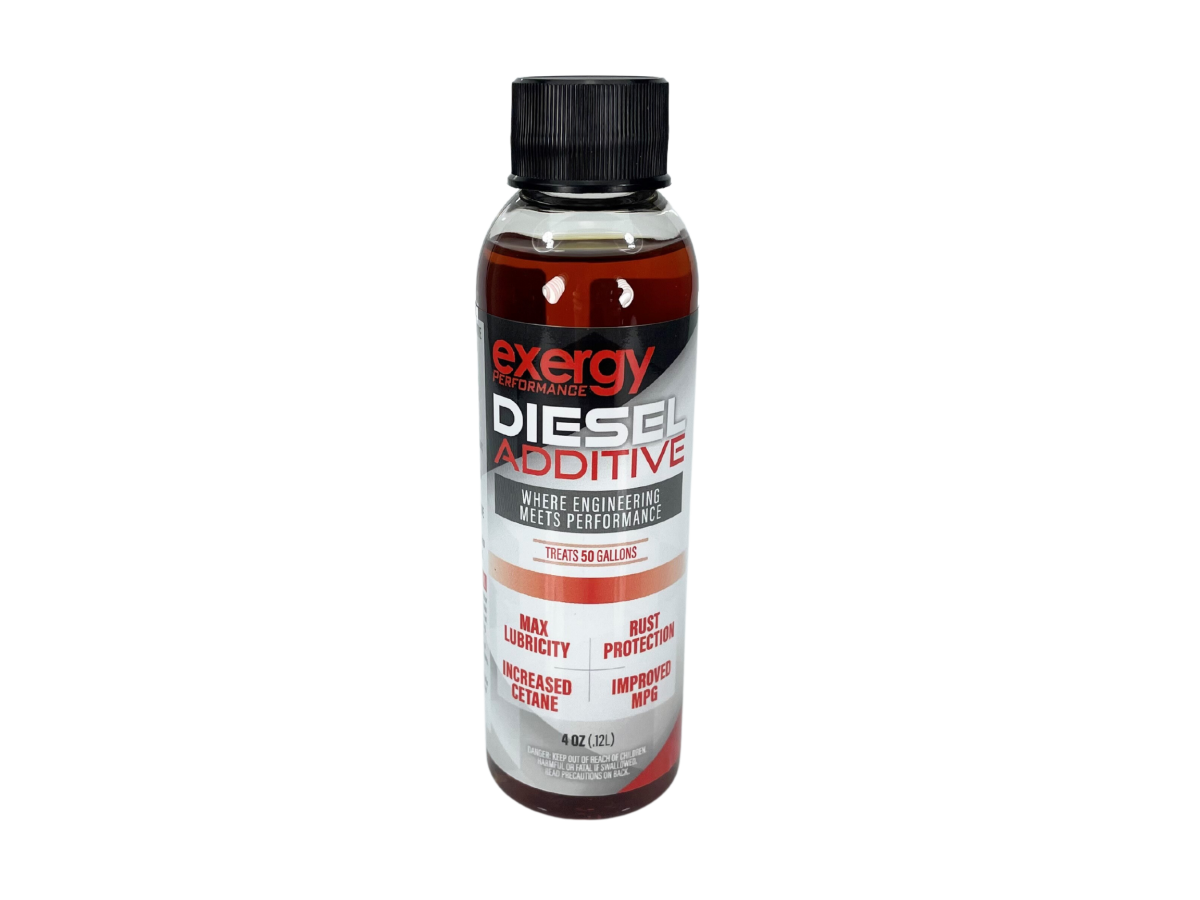

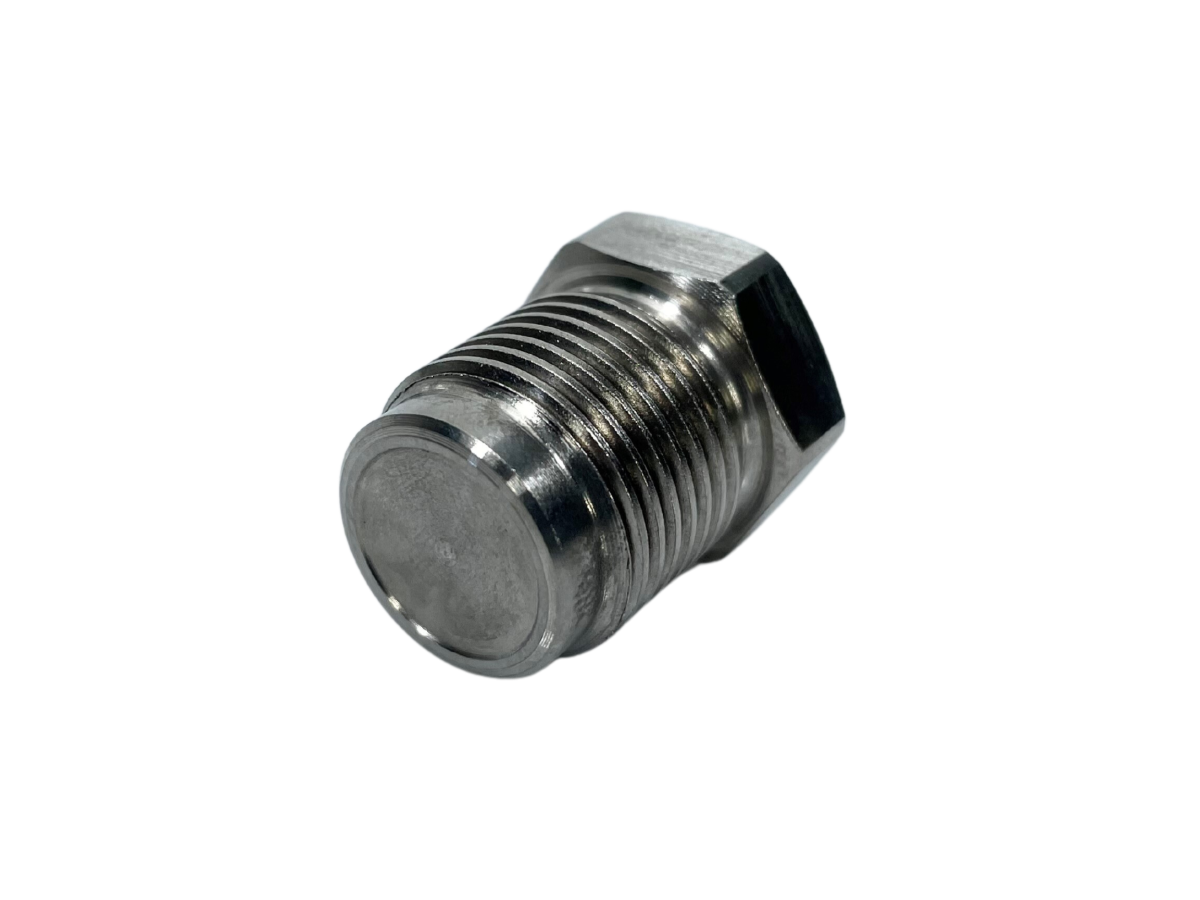

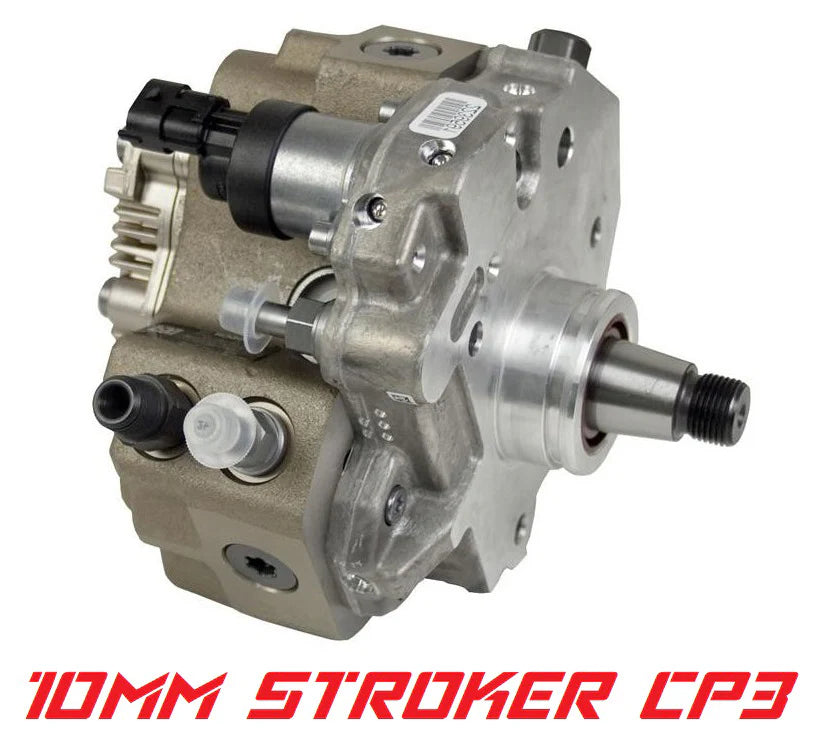

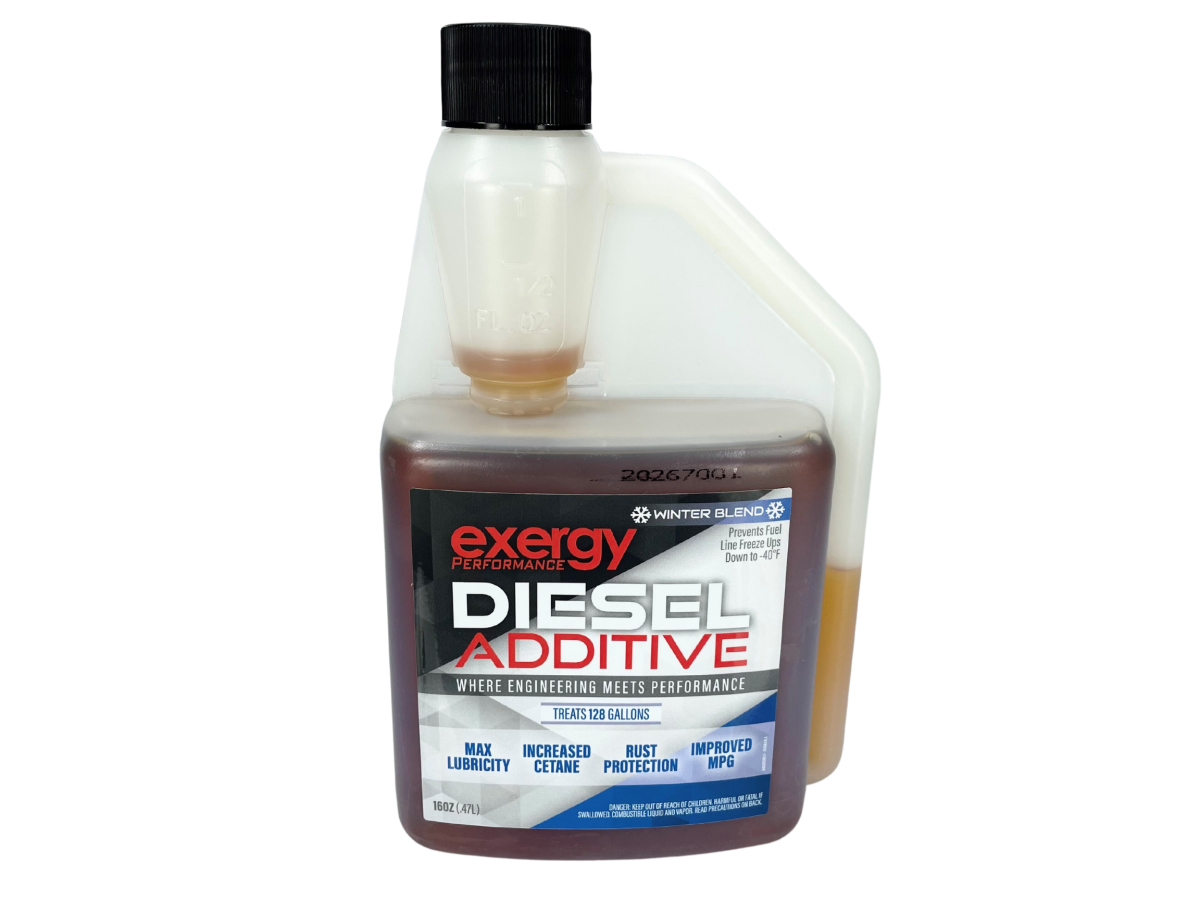

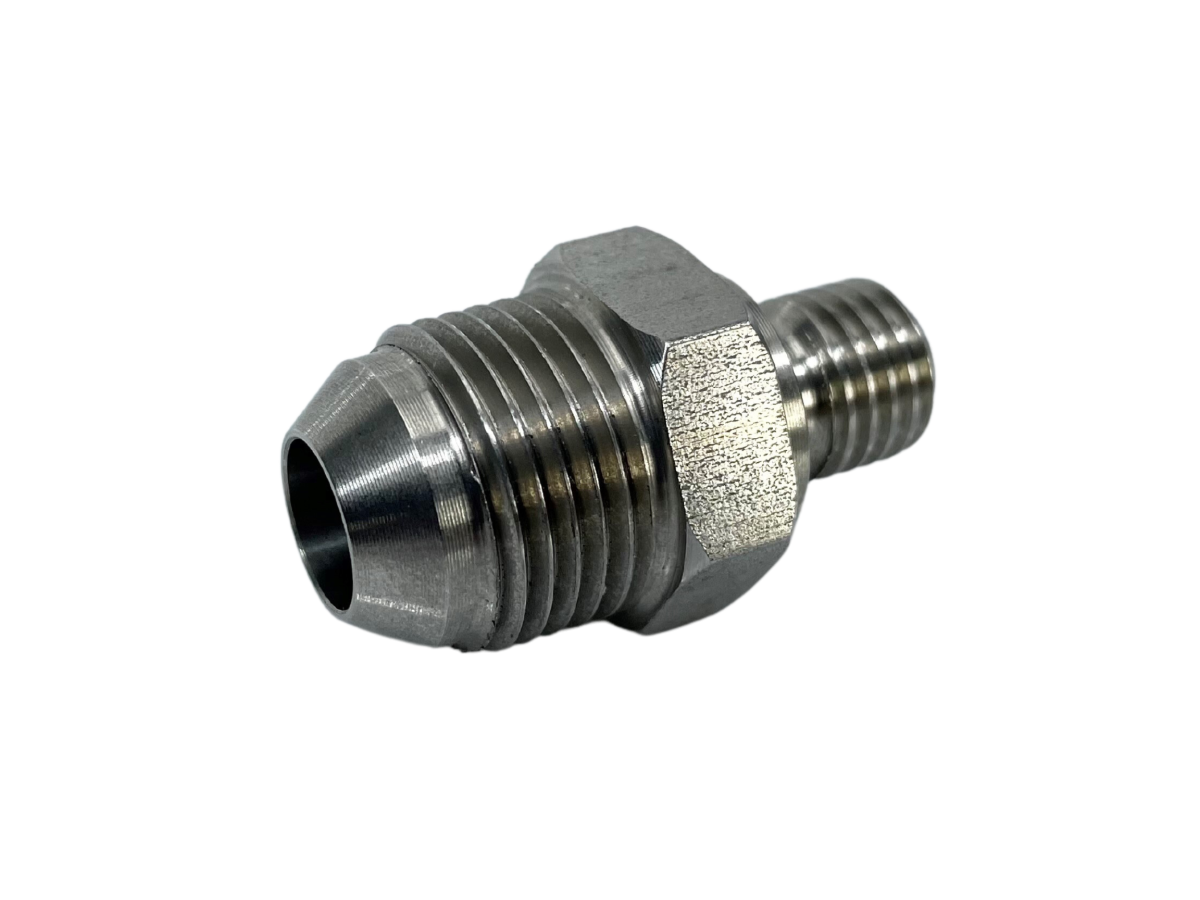

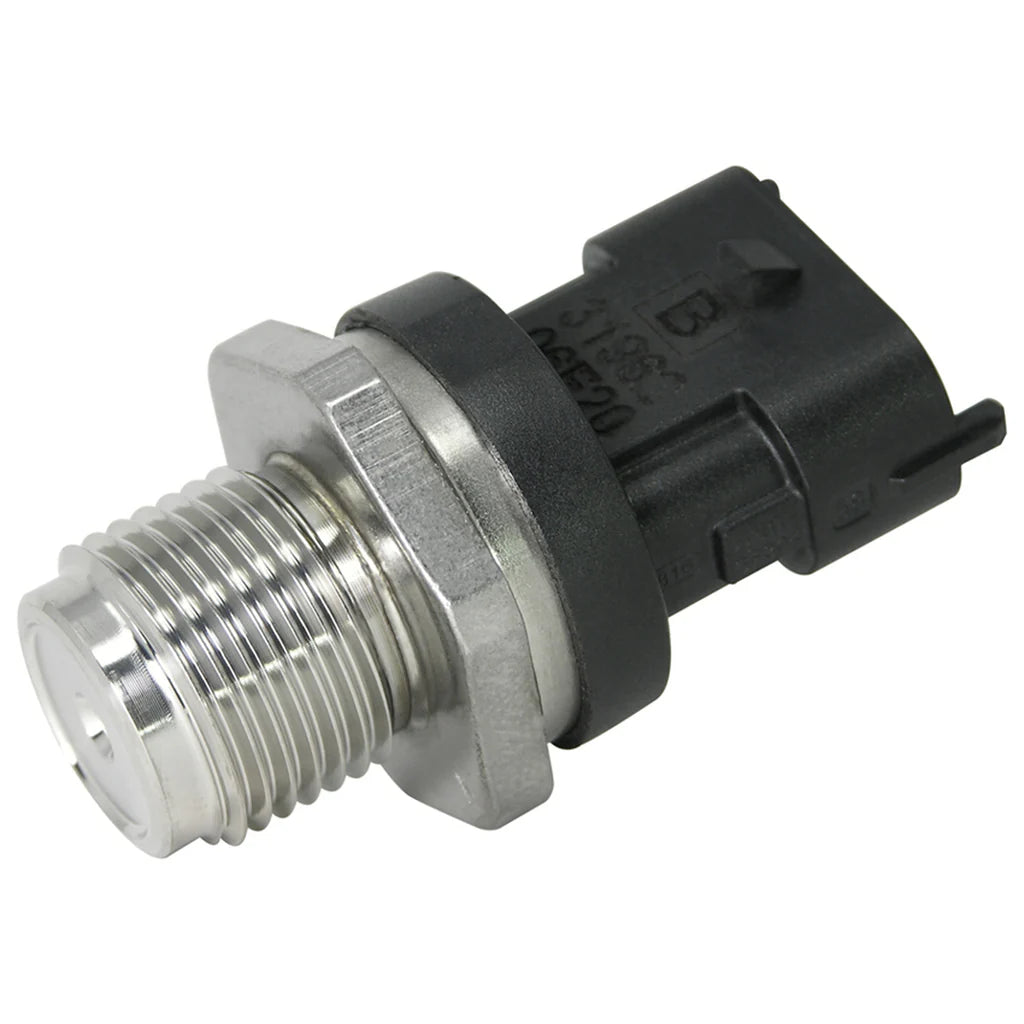

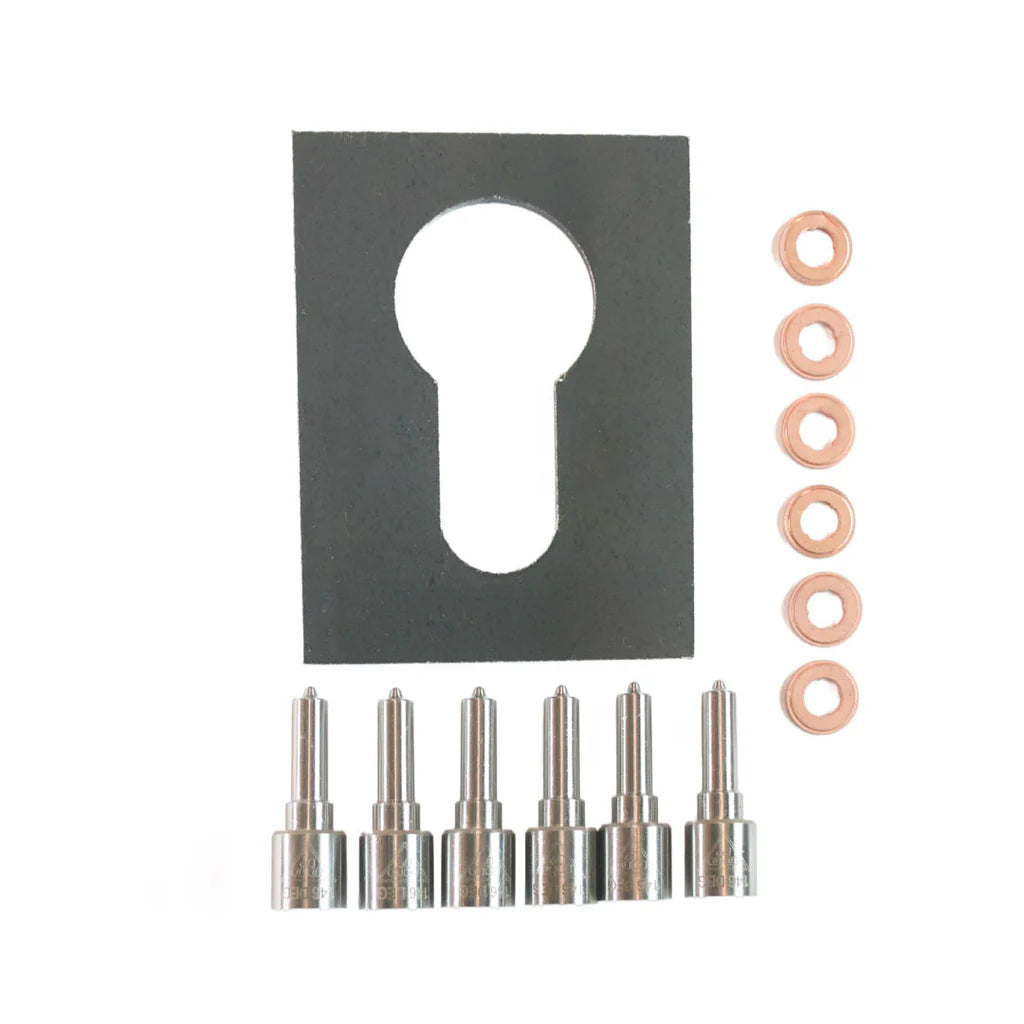

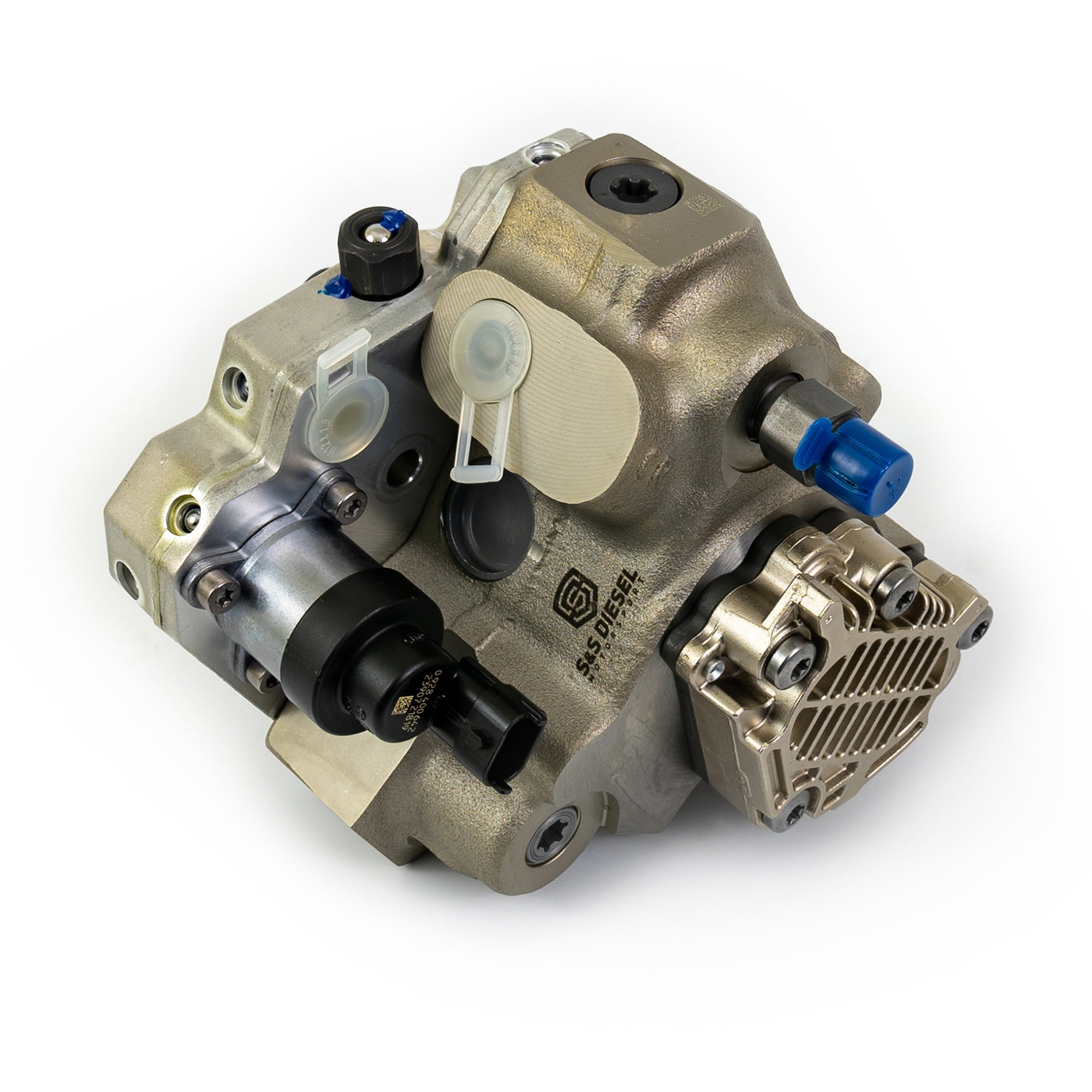

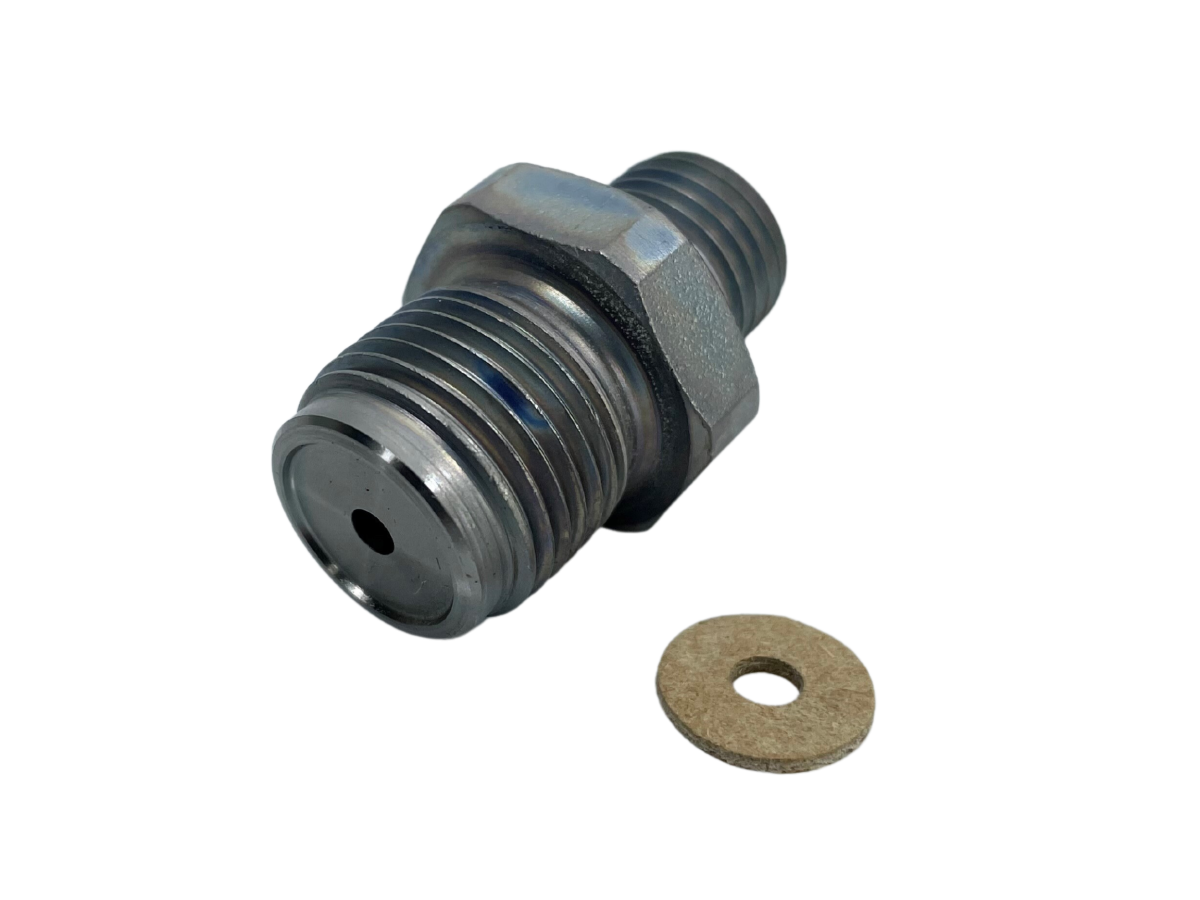

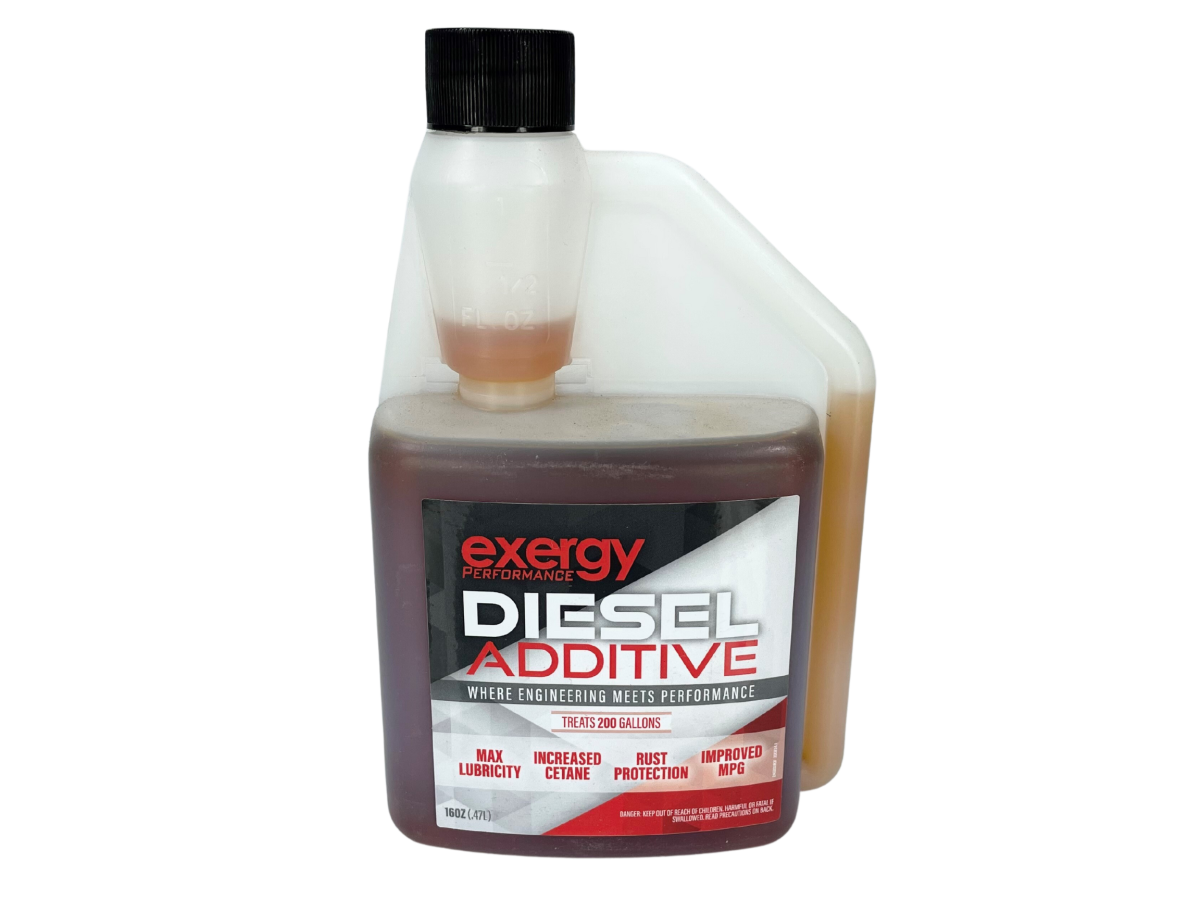

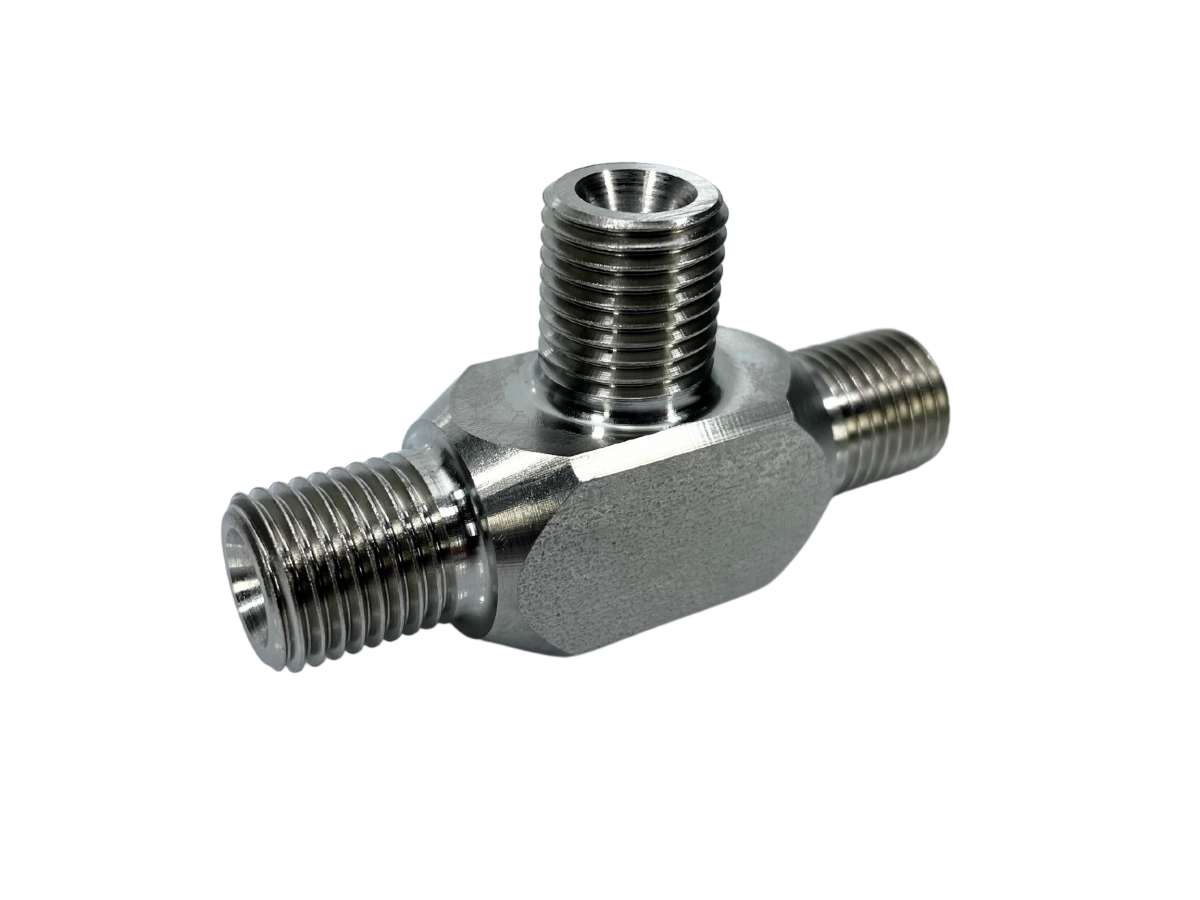

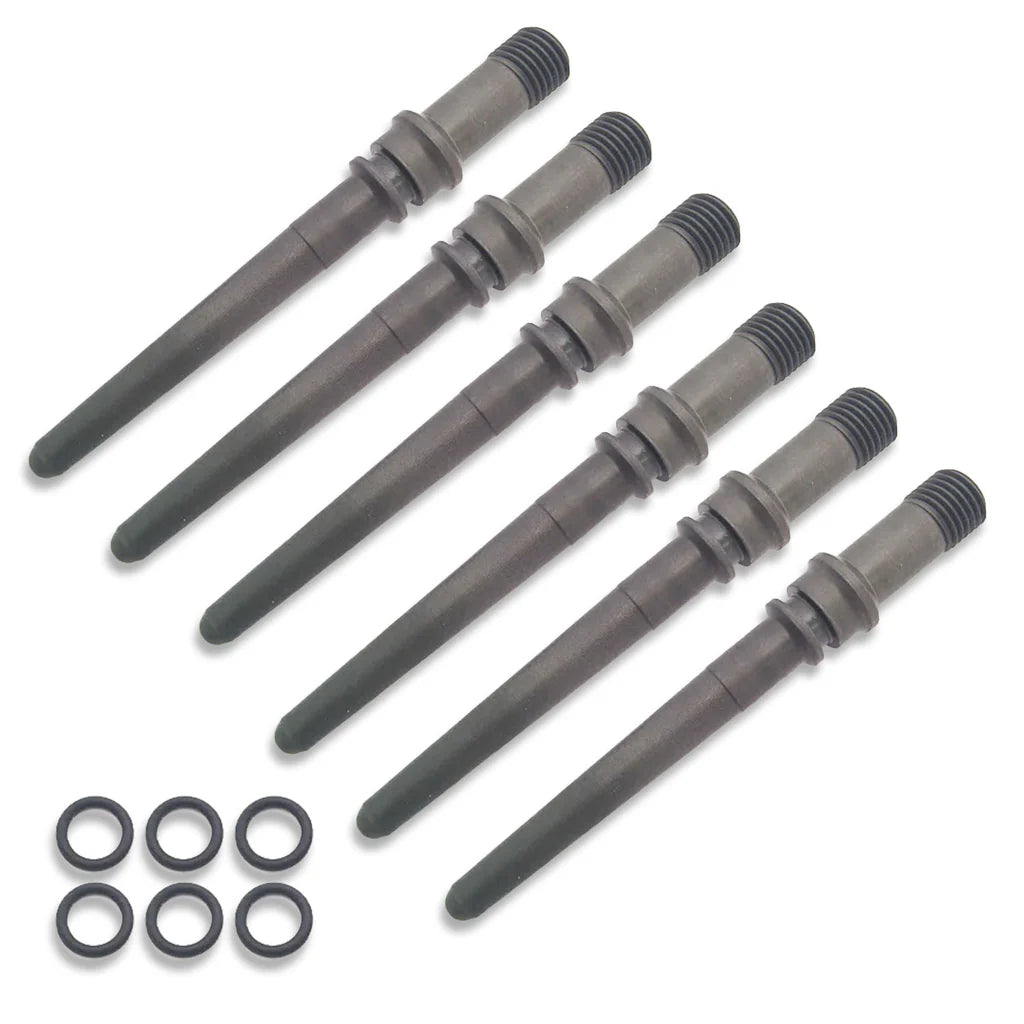

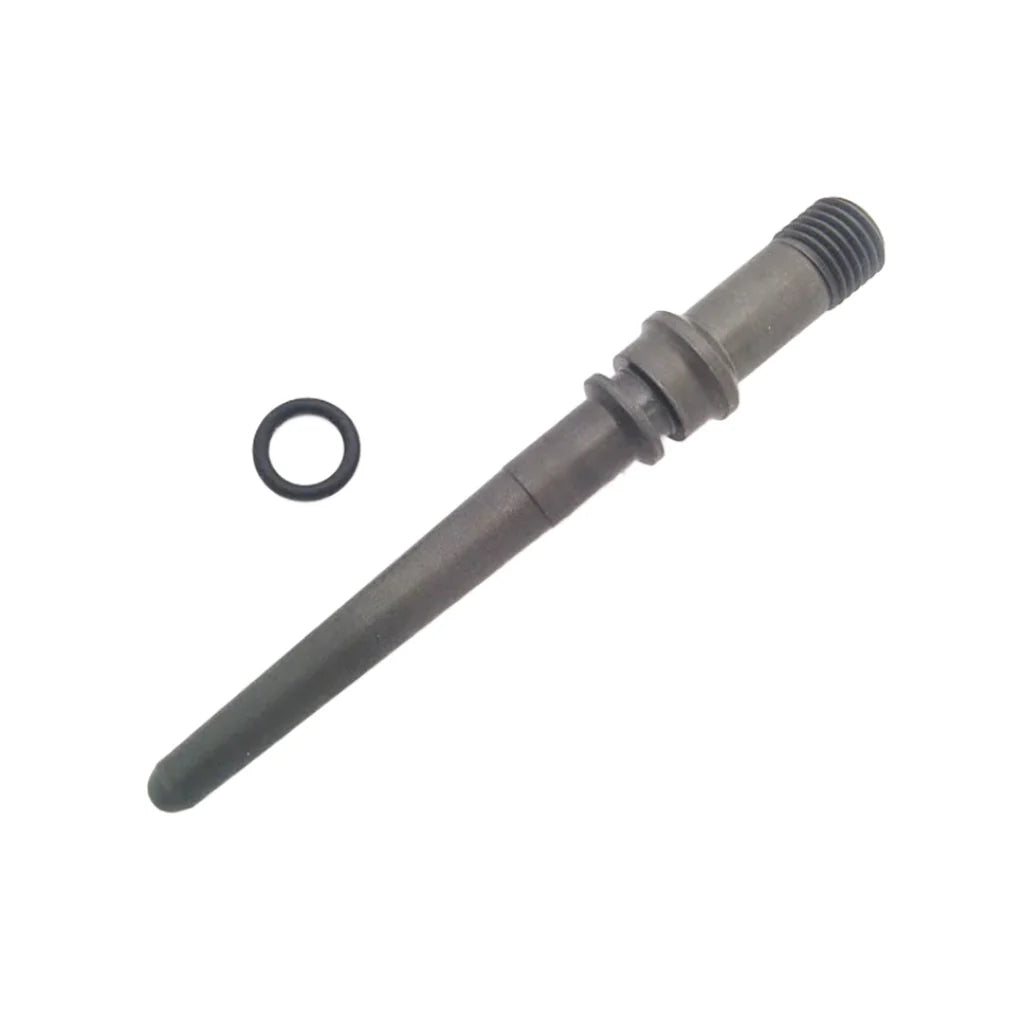

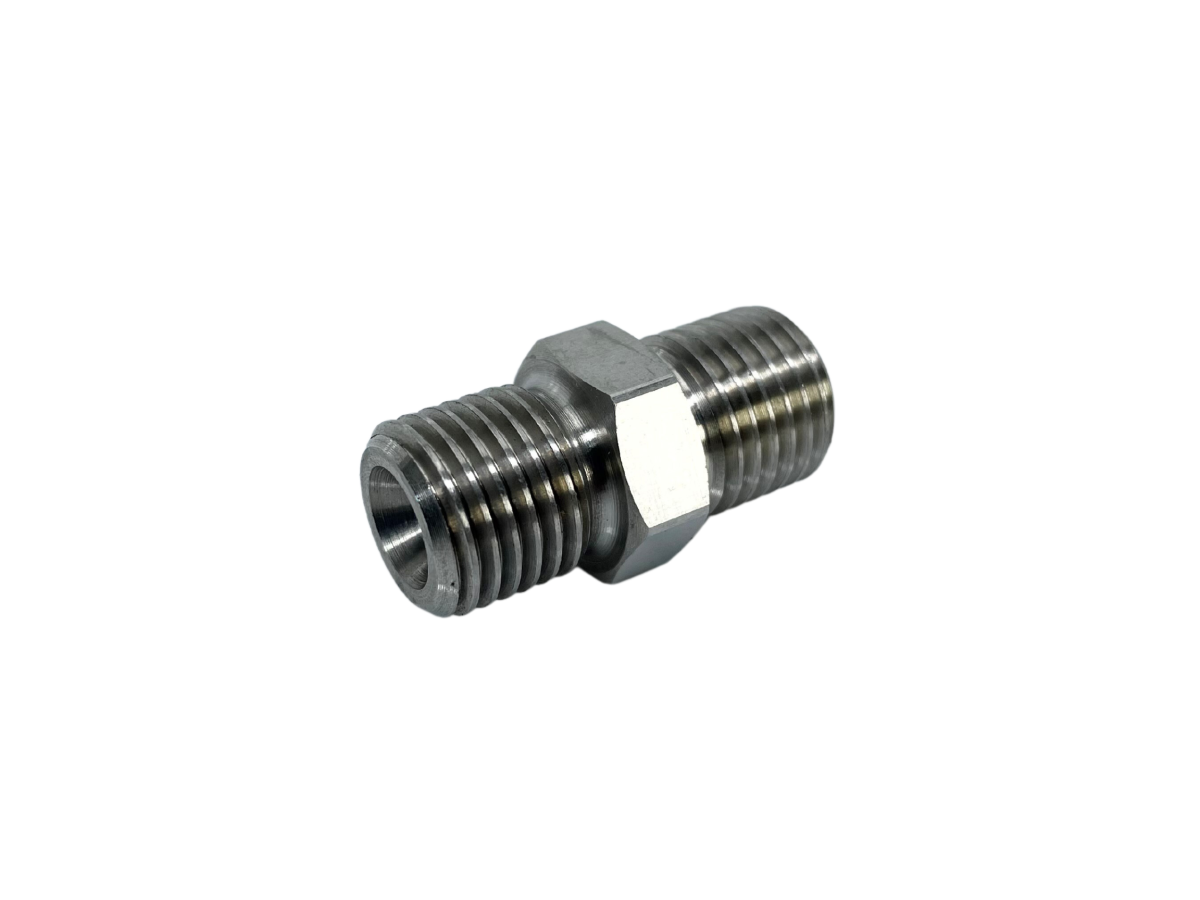

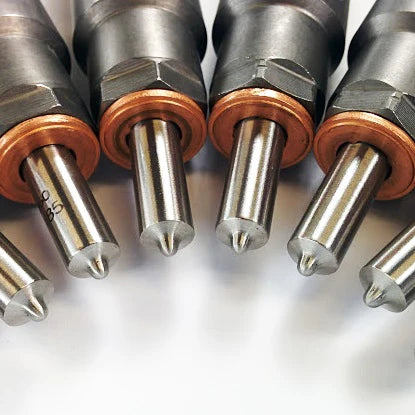

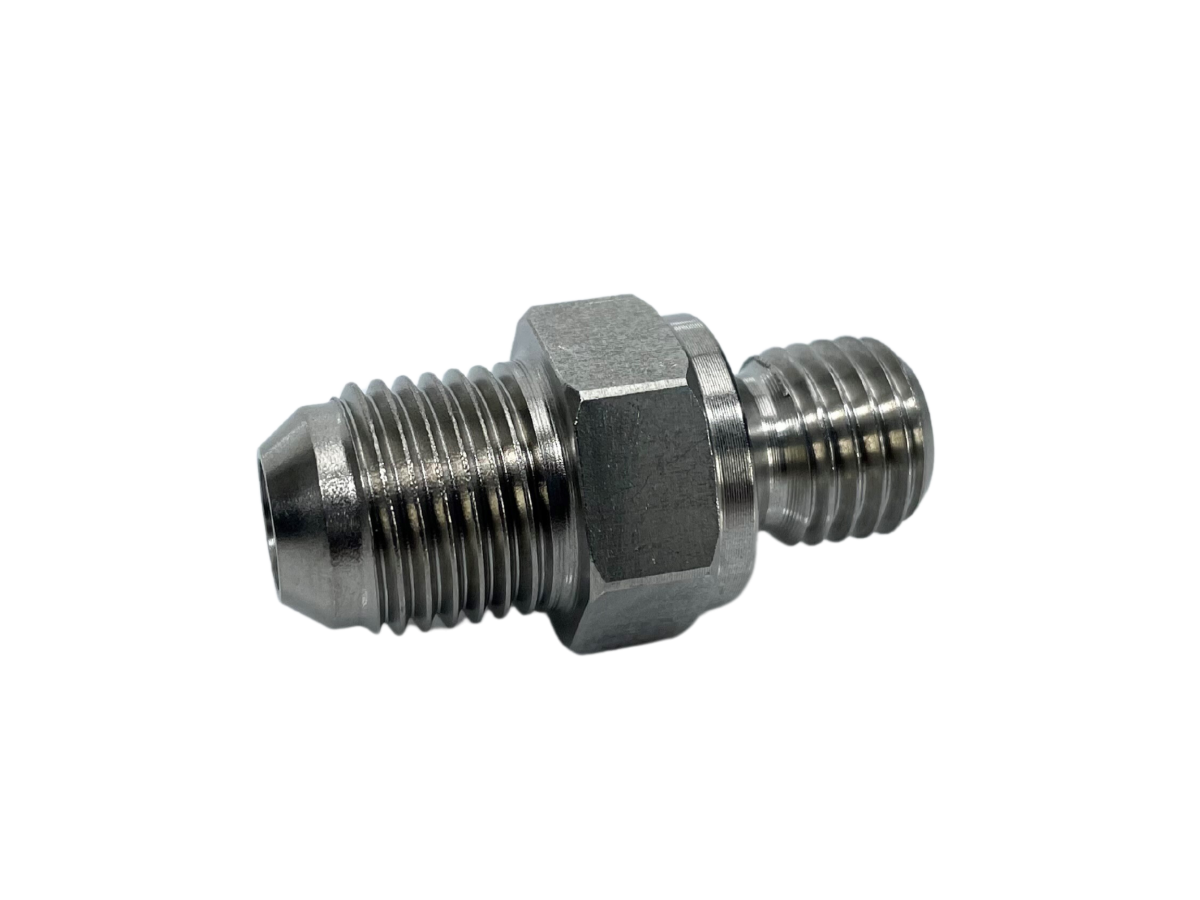

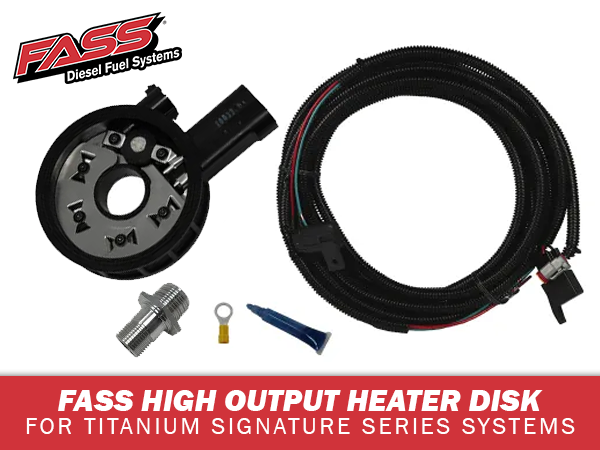

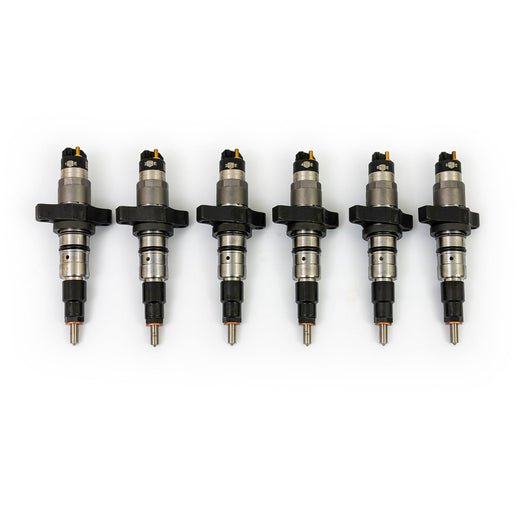

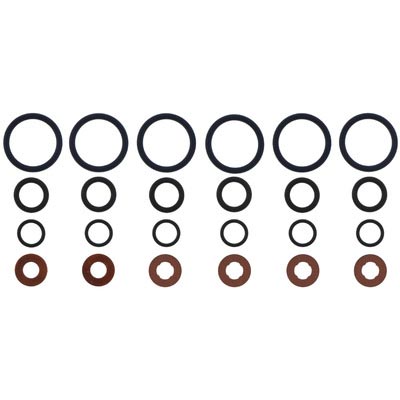

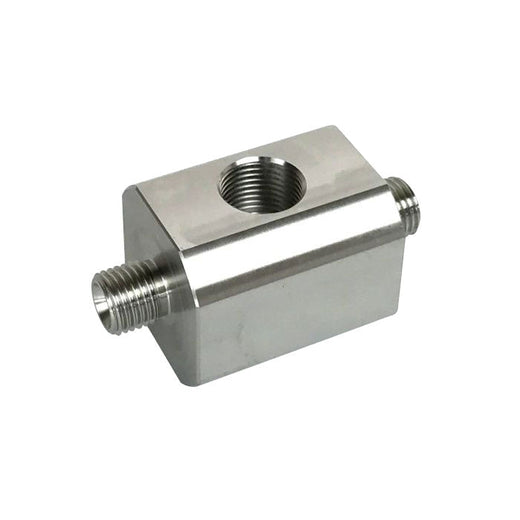

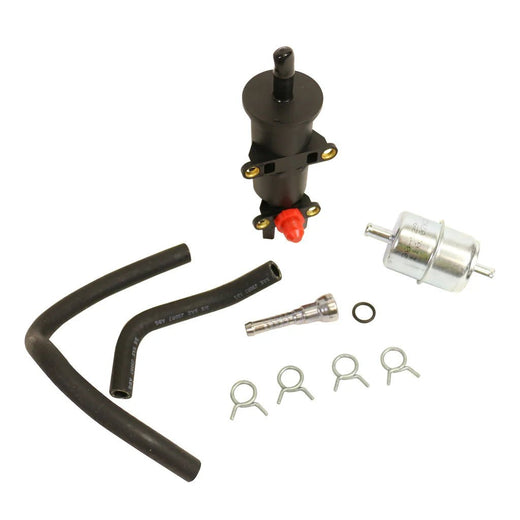

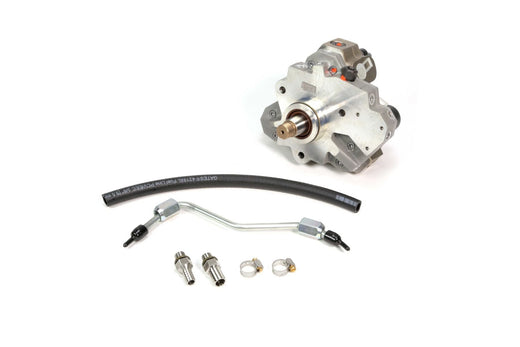

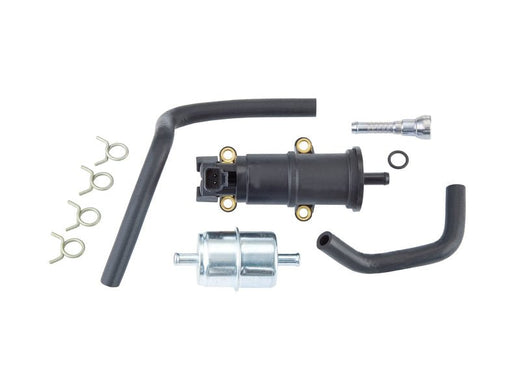

Frame-mounted pump and filter systems from FASS and AirDog, plus their replacement filters and water separators. Stock-replacement CP3 pumps, injectors and connector tubes from Alliant Power, XDP, Dynomite Diesel and BD Diesel, including the Alliant Power AP4089602 fuel transfer pump kit for 2003-2004. Genuine Cummins #1 through #6 injection lines and the 5297641 rail pressure sensor. Rail fittings and plugs from Exergy Performance, a heated auxiliary filter kit and fuel distribution blocks from Fleece Performance Engineering, injectors and high-pressure pumps from S&S Diesel Motorsport, the MAHLE injector seal kit, and XDP fuel tank sumps. For the tank itself there are treatments from Hot Shot's Secret, Lucas Oil, Exergy and Merchant Automotive. Shop by part in lift pumps, injectors and fuel additives.

Fitment notes

2003-2004 is its own fuel system. The lift pump lives on the engine here, while 2005-2007 trucks moved it into the tank, so pumps, kits, draw straws and sumps are year-specific. A 2003-2004 truck that already got the Mopar in-tank conversion needs 2005-style parts. Injectors split mid-2004 as well: 2003-2004 trucks use 8-hole, 143-degree, two-event injectors that do not interchange with the 2004.5-2007 parts. Check build date and engine serial, verify by VIN, and run the fitment checker on each product page. These trucks were sold as the Dodge Ram 2500 and 3500; the engine-specific parts here do not fit a Ram 1500.

Frequently asked questions

Will a dead lift pump take out the CP3 on a 2003-2004?

No. On these years a failed lift pump will not harm the CP3, but the truck will not run until it is replaced. The factory engine-mounted pump is good for roughly 80,000-120,000 miles. If yours is in that range, carry a direct replacement or move to a frame-mounted system.

How can I tell if my injectors are going bad?

Long cranking, white smoke at idle, a miss, fuel in the oil and dropping mileage all point to injectors. The definitive test is return flow: a healthy injector returns 2-6 ml in a 10-second crank, and 12-14 ml condemns it. Re-torque the connector-tube nuts to 37 ft-lb first, because loose tubes mimic bad injectors.

Should I replace one injector or the whole set?

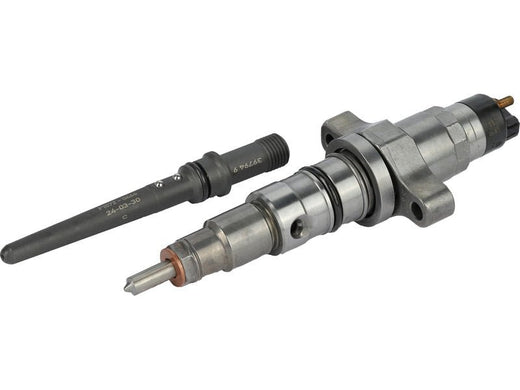

Pulling one injector means removing the intake plumbing, breather, wiring and lines, which is nearly the same job as all six. On a high-mileage engine, TDR recommends doing the full set. Install new connector tubes with every injector.

How often does the fuel filter need changing?

Every 15,000 miles or 12 months with the Fleetguard FS19856. TDR considers rigorously performed 15,000-mile changes the baseline for injector life. If rail pressure has been raised, TDR recommends 3-micron final filtration.

Can I add used motor oil or ATF to the fuel?

No. Injector clearances on this common-rail system are about 25 millionths of an inch. If it has been done, drain and flush the entire fuel system and replace every filter before new injectors go in.

Not sure what fits? Call the shop at the number in the header, or use the fitment checker on any product page. We install everything we sell.
