Call or Text (352) 722-5295Injectors on the 2003-2004 RAM 5.9L Cummins
The 2003-2004 5.9L Cummins uses Bosch electrically opened solenoid injectors with 8-hole, 143-degree nozzles and two injection events per cycle. The stock part numbers are Bosch 0986435503, Cummins ReCon 5254686RX and Mopar R8004082AB, the 305 hp injector. Each injector is fed through a steel connector tube that passes through the head, seals to the injector with an O-ring and indexes with peened balls. Bosch later supplied replacement injectors with coated steel bodies and internal changes to reduce cracking, sticking and return-seat erosion.
What fails and why
Injectors wear out when the solenoid fails, the return check ball and seat erode, the pintle sticks, or the nozzle or body cracks from high rail pressure and high EGT. Watch for long cranking (too much return flow to build the roughly 5,000 psi needed to fire), white smoke at idle, a rough idle or miss, fuel in the oil and lost mileage. Water and rust speed it all up: rust-pitted connector tubes push rust straight into the injectors, and repeat failures after replacement are a telltale sign. There is no reliable life figure; TDR's writer replaced his set preventively at about 100,000 miles, and life depends on fuel cleanliness and rail pressure.
Diagnose before you buy
The return-flow test is the definitive check. A good injector returns 2-6 ml in a 10-second crank, and 12-14 ml condemns it. Total return should be under about 30 ml in a 10-second crank and under 180 ml after a minute of idle. Re-torque the connector-tube nuts to 37 ft-lb first, because under-torqued tubes mimic bad injectors. On 2003-2005 engines, unplugging one of the three head connectors cuts out a cylinder pair to narrow the search.
Replacing injectors the right way
For most trucks the answer is stock reman Bosch-spec injectors with new connector tubes every time. Replacing one injector is nearly as much work as all six, since the intake plumbing, breather, wiring and lines all come off, so TDR recommends doing the full set on a high-mileage engine. You will need a lady-foot puller, a 24 mm (15/16) socket cut to 1 inch for the #3 and #6 tube nuts, and a way to vacuum 2-3 ml of fuel out of each piston bowl so the engine does not hydro-lock. Torque in sequence: snug the hold-downs, tube nut to 11 ft-lb, hold-downs to 89 in-lb, then the tube nut to 37 ft-lb.
What we carry

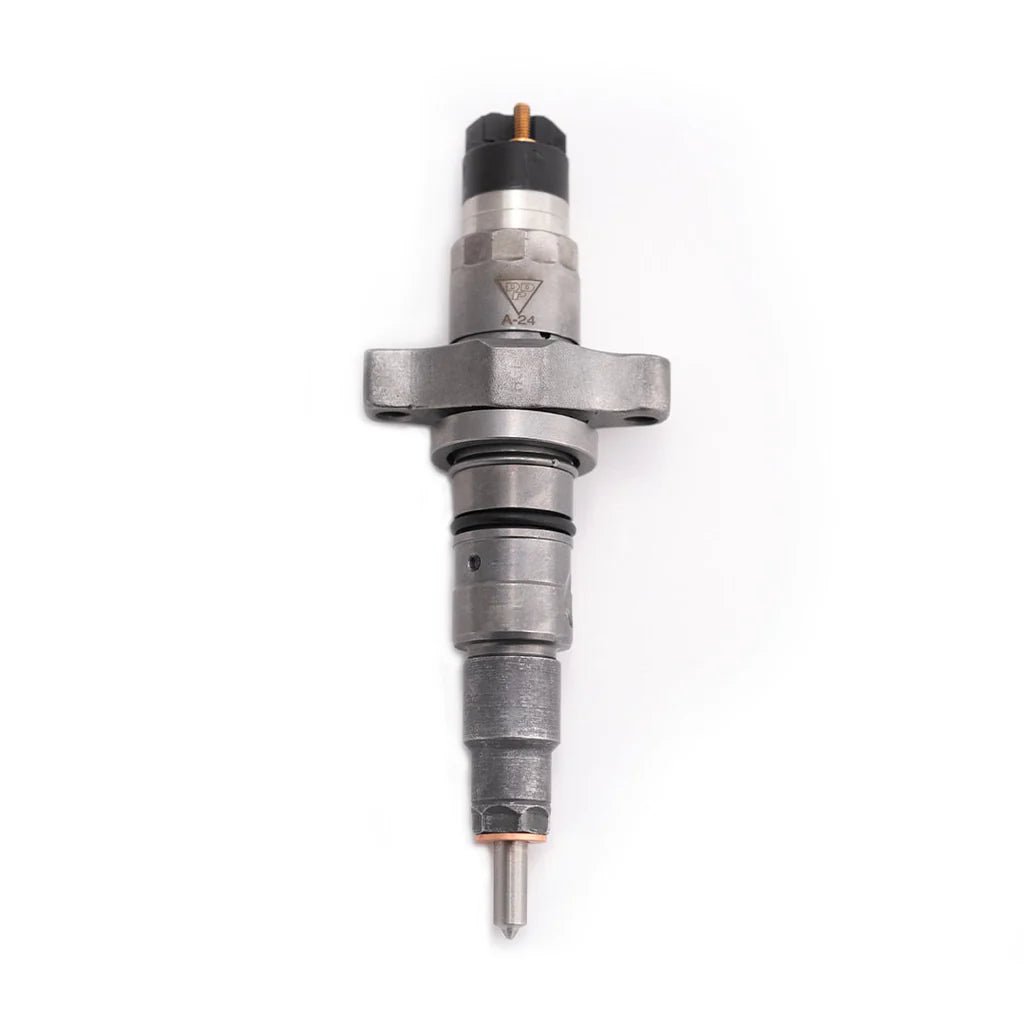

Reman and brand-new injectors, singles and sets, plus nozzle sets from Dynomite Diesel. Alliant Power AP55503 reman injectors and the AP55118 reman injector with connector tube. BD Diesel 1715503 reman injectors and the 1050181 reman set with installation kit. The XDP XD480 stock-HP reman injector, Exergy Performance reman injector sets and injectors from S&S Diesel Motorsport. For the install: Dynomite connector tubes, single or as a set, the XDP XD526 connector tube, XDP XD536 hold-down bolts, the MAHLE GS33484 injector seal kit, the BD 1050155 installation kit and the Fleece Performance Engineering valve cover conversion harness for 2003-2005 engines. Shop all injectors.
Fitment notes
2003-2004 injectors are not the same as 2004.5-2007 injectors, which use 5-hole, 124-degree nozzles and three injection events; part numbers and spray pattern differ, so check the build date and engine serial, not just the model year. Connector tubes and the seal kit are listed for 2003-2007, and the hold-down bolts for 1998.5-2024 5.9L and 6.7L. If anyone has run used oil or ATF through the fuel, drain and flush the whole system and replace all filters before new injectors go in. Verify by VIN or with the fitment checker.
Frequently asked questions
Will 2004.5-2007 injectors work in my 2003 or early 2004 truck?
No. 2003-2004 injectors use 8-hole, 143-degree nozzles with two injection events, while 2004.5-2007 injectors use 5-hole, 124-degree nozzles with three. Part numbers and spray pattern differ. Check the build date and engine serial number before ordering.
Do I really need new connector tubes?
Yes, every time. The most common failure of new injector installations is contamination from the connector tubes, and rust-pitted tubes push rust straight into the injectors. Put in new tubes whenever the injectors go in.
How do I find the bad injector?
Run a return-flow test: each injector should return 2-6 ml in a 10-second crank, and 12-14 ml condemns it. On 2003-2005 engines, unplugging one of the three head connectors cuts out a cylinder pair to narrow it down. Re-torque the tube nuts to 37 ft-lb first to rule out a loose tube.
How long does an injector job take?
Budget about 8 hours the first time. One injector takes nearly as long as all six, so TDR recommends the full set on a high-mileage engine. If you would rather not tackle it, our shop in Wildwood, FL installs what we sell.
