2007.5-2009 Dodge 6.7L Cummins Air Intake Accessories

Intake accessories on the 2007.5-2009 RAM 6.7L Cummins

The intake on this engine is more than a filter and a tube. Sensors read the air coming in, gaskets seal the horn and manifold, and clamps hold the boots between the turbo, the intercooler and the intake horn. T-bolt clamps, pre-filters and filter wraps all play a supporting role. The grid heater plate in the intake horn is the only cold-start aid, since this engine has no glow plugs, and it is wired through a relay and fusible link.

What fails and why

The grid heater stud and nut can loosen with age and heat and drop into the intake. The engine sits at a 5-degree rake, so the hardware rolls back to cylinder #6, with results that run from a misfire to a destroyed engine. Factory intercooler boots crack and blow off under boost, and the cold-side boots are held by crimped bands that must be cut to replace. On the filter side, a neglected or poorly sealed filter lets dust reach the VGT compressor wheel.

What we carry

• BD Diesel: Killer Grid Heater Upgrade Kit, high-torque hose clamps, positive air shutdowns in 3-inch and 3.5-inch sizes, and the E-PAS emergency engine shutdown for 2007.5-2009 Cummins.
• MAHLE: intake manifold gaskets and gasket sets, the master intake manifold set, throttle valve and EGR valve gaskets, and head gasket sets.
• Genuine Cummins: IAT sensor, MAP sensor harness pigtail and upper engine gasket kit.
• XDP: MAF sensor, temperature/MAP sensor, ambient air temperature sensor and heavy-duty grid heater relay fusible link wire.
• Alliant Power: MAF sensor.

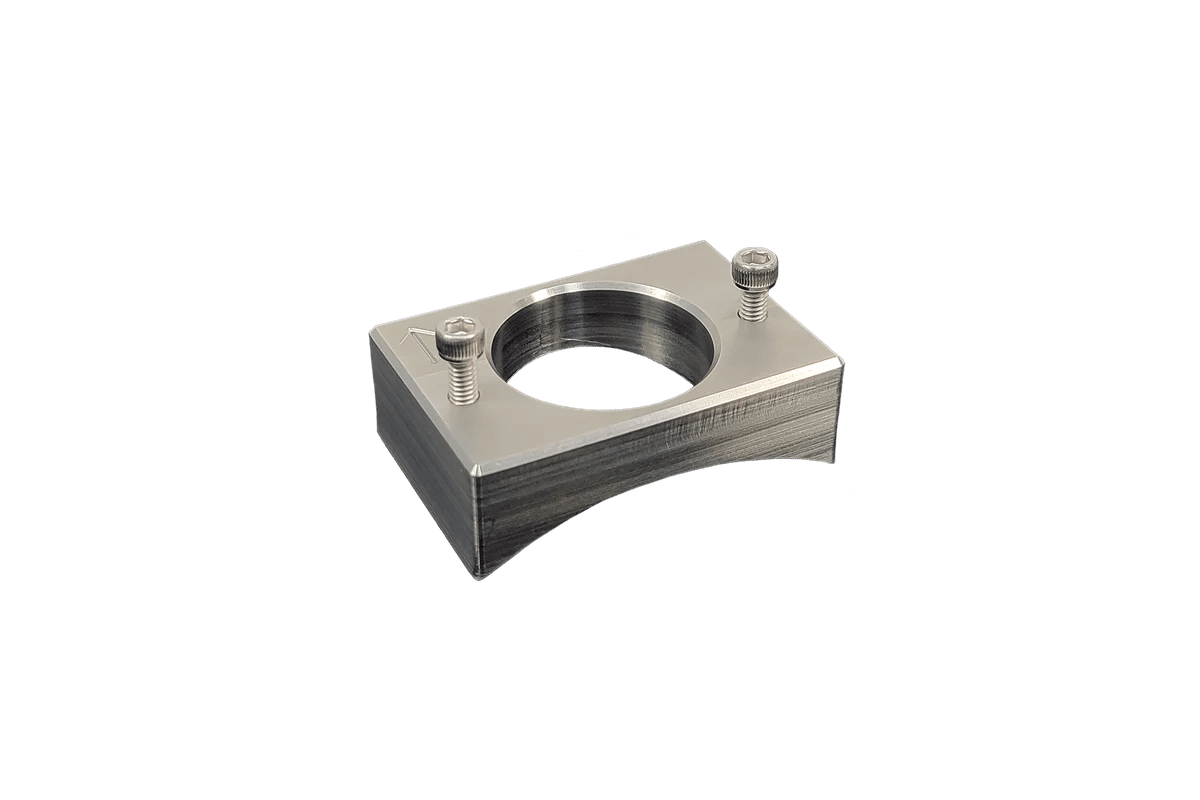

• G&R Diesel: MAF and IAT sensor bungs, single or as a set.
• S&B: Precision II filter cleaning and oil kit, 4-inch silicone coupler with clamps, and filter wrap.
• Mishimoto factory-fit boot kit, PPE MAP sensor relocation spacer, Banks Power pre-filter wrap and Fleece Performance Engineering water-resistant pre-filter.

Everything else for this engine lives on the Cummins hub.

Fitment notes

Most sensors and gaskets here are listed for 2007.5-2018 6.7L, and a few span 2002-2010 or 2003-2018 5.9 and 6.7L, so read the range in each title. The Mishimoto boot kit fits 2007-2009 6.7L only. The Banks pre-filter wrap is made for Banks Ram-Air filters 42148 and 42178, and the Fleece pre-filter is made for the Fleece 2nd Gen swap filter, so match a wrap to the filter you actually run. Shutdown valves come in more than one size; match the valve to your intake tube. Verify by VIN when in doubt.

Frequently asked questions

Which intake sensors can I replace from this page?

Mass air flow sensors from XDP and Alliant Power, an intake air temperature sensor from Cummins, and XDP temperature/MAP and ambient air temperature sensors. Cummins also sells the MAP sensor harness pigtail, so you can replace the connector without buying a whole harness. Check the year range on each listing before you order.

What is a positive air shutdown?

It is a valve in the intake tract that closes off air so the engine can be stopped. BD Diesel offers them in 3-inch and 3.5-inch sizes, and the E-PAS emergency engine shutdown is listed for 2007.5-2009 Cummins trucks. Call us and we will help match the size to your intake.

What gaskets do I need when I pull the intake horn?

Plan on new gaskets for anything you unbolt. MAHLE offers the intake manifold gasket, the intake manifold gasket set and the master set, all listed for 2007.5-2018 6.7L, and Cummins offers a genuine upper engine gasket kit. Check each listing to see what it includes.

Why does the Mishimoto boot kit come with its own clamps?

The factory cold-side boots are held by crimped metal bands that have to be cut off to remove the boots, so they do not go back on. Mishimoto's factory-fit boot kit includes eight constant-tension T-bolt clamps. BD Diesel high-torque hose clamps and the S&B silicone coupler with clamps cover other joints.

Not sure what fits? Call the shop at the number in the header, or use the fitment checker on any product page. We install everything we sell.
