2004.5-2005 Chevy Duramax LLY Parts & Upgrades

What the LLY brought to the Silverado 2500HD and 3500

Mid-year 2004, GM dropped the LLY into the same GMT800 heavy-duty truck the LB7 had been in — the body did not change, the engine did. You get the 2003-2007 Classic front clip, Work Truck, LS or LT trim, and an eighth VIN digit of 2 that tells you it is an LLY rather than an LB7. Underneath is a cast-iron deep-skirt block with aluminum four-valve heads, six 14 mm head bolts per cylinder, a forged crank, forged cracked-cap rods and cast pistons at 17.5:1 compression. A Bosch CP3 feeds two rails at up to 23,000 psi, and the injectors sit outside the valve covers, which is the single biggest service improvement over the LB7. Air comes in through a water-cooled Garrett GT3788VA variable-geometry turbo with a 62 mm eleven-blade compressor — the largest ever fitted to a factory Duramax — its vanes moved by an ECM-commanded oil-pressure solenoid with a vane position sensor reporting back, then through an air-to-air intercooler stacked with the radiator and A/C condenser. Factory hardware in the valley includes an EGR valve with a coolant-cooled cooler, and a diesel oxidation catalyst sits behind the turbine. Rated output is 310 hp and up to 605 lb-ft behind the Allison 1000 five-speed; the rare ZF S6-650 manual trucks were detuned to 300 hp and 520 lb-ft. Other generations live on the Duramax hub.

Heat is the root of the trouble list

Almost everything owners complain about on an LLY traces back to one place. The factory turbo inlet manifold necks down hard and chokes that big compressor, so drive pressure, intake temperature and exhaust gas temperature all climb together; coolant can exceed 230 F while towing in warm weather. Debris packed between the A/C condenser, intercooler and radiator cuts airflow through all three at once. The pressed-on impeller in the 2001-2005 water pump can walk on its shaft and under-circulate while still turning, and seal or bearing failure shows up as weeping at the weep hole somewhere around 80,000 to 100,000 miles. A fan clutch that has gone soft quietly stops pulling air when hot. Stack enough heat cycles under load on top of all that and a head gasket lets combustion gas into the coolant, usually starting at the rear cylinders where cooling is weakest: coolant pushed out of the overflow after a hard pull, white smoke under load, coolant loss with no external leak. There is no reliable mileage for it. Heat history does it, not the odometer.

The fuel side is a shorter list and just as worth knowing. Because the pickups have no factory lift pump, the CP3 pulls fuel from the tank under vacuum, so any air leak on the suction side imitates a failing pump. Aged O-rings at the filter head bleeder, the water-in-fuel sensor and the hand primer let air in and give you long cranks after sitting, a start-then-stall, or a primer that goes soft; supply pressure dropping under about 4 psi sets P0087 under load. A fuel pressure relief valve whose spring has weakened vents early and drops peak rail pressure, which reads as power loss at full throttle with P0087 or P1093. Well-maintained injectors go 150,000 to 200,000 miles, and rough idle, a hard hot start and a fuel economy drop are the cues — confirm with return-rate and cylinder-balance testing rather than guessing. Remember too that the injector wiring harness chafes near cylinders 7 and 2 and throws injector circuit codes such as P0207 that look exactly like a fuel fault.

On the turbo, carbon builds on the vanes, pivots and unison ring, worst on trucks that idle for long stretches or cruise light. Stuck closed spools quickly but builds backpressure; stuck open simply lags. Either way you get boost that swings, higher exhaust gas temperature and a P0299 underboost code. A failed vane position sensor sets P2563, and the oil-metering vane solenoid should measure 3.4 to 4.2 ohms at 73 F before you condemn the turbo itself. Crankcase vapor routed into the intake also leaves oil sludge through the intake tract and Y-bridge over the years.

Put it back to stock, or fix the factory limit

If the Silverado works for a living and nothing has been added to it, replacing to factory spec is usually the right call. A correct water pump — a welded-impeller unit removes the impeller-walk failure mode outright — plus a fresh fan clutch, 180 or 185 F thermostats and a replacement EGR cooler put the cooling system back where GM meant it to be. Upgrade where the factory part is the actual limit, and do it in the order this platform demands.

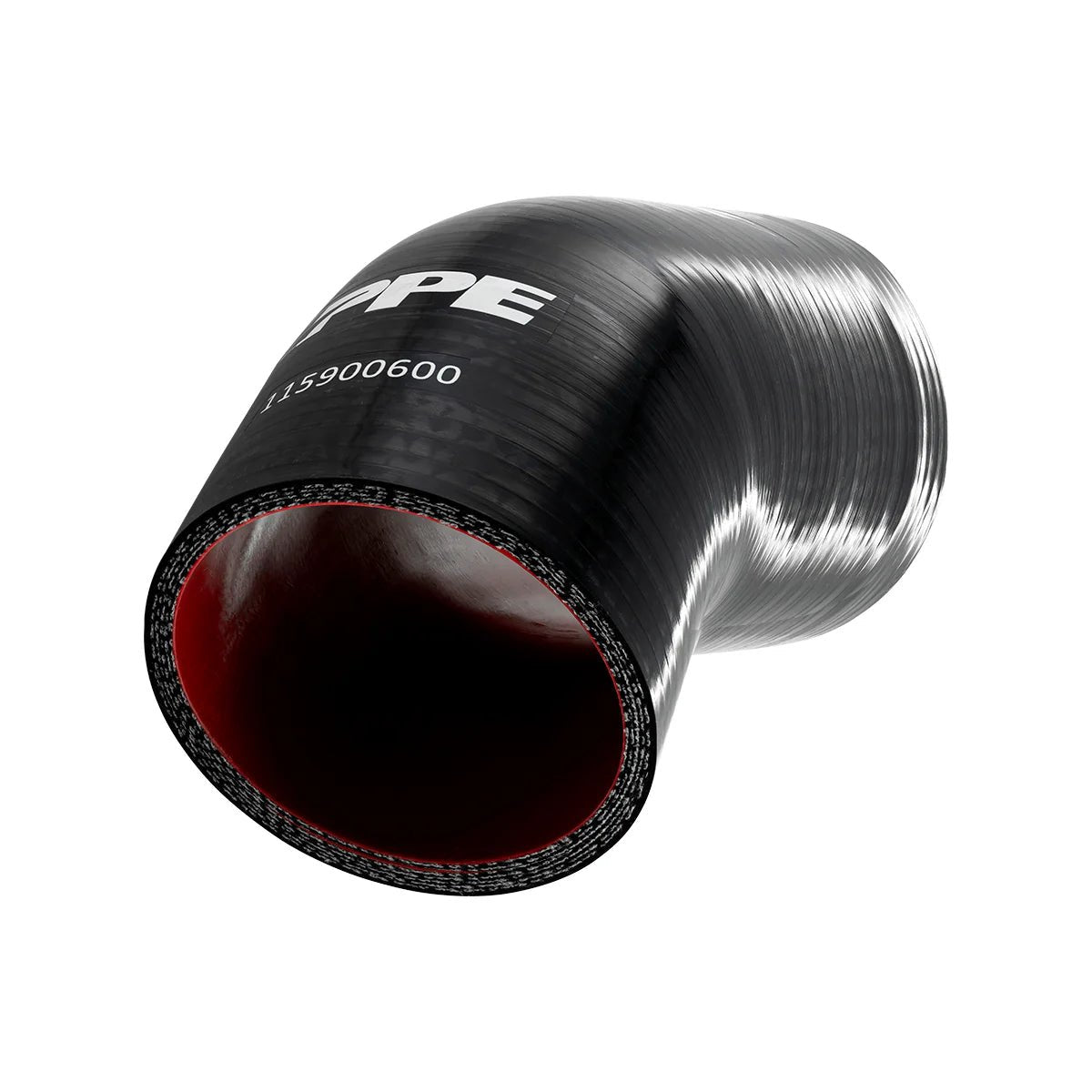

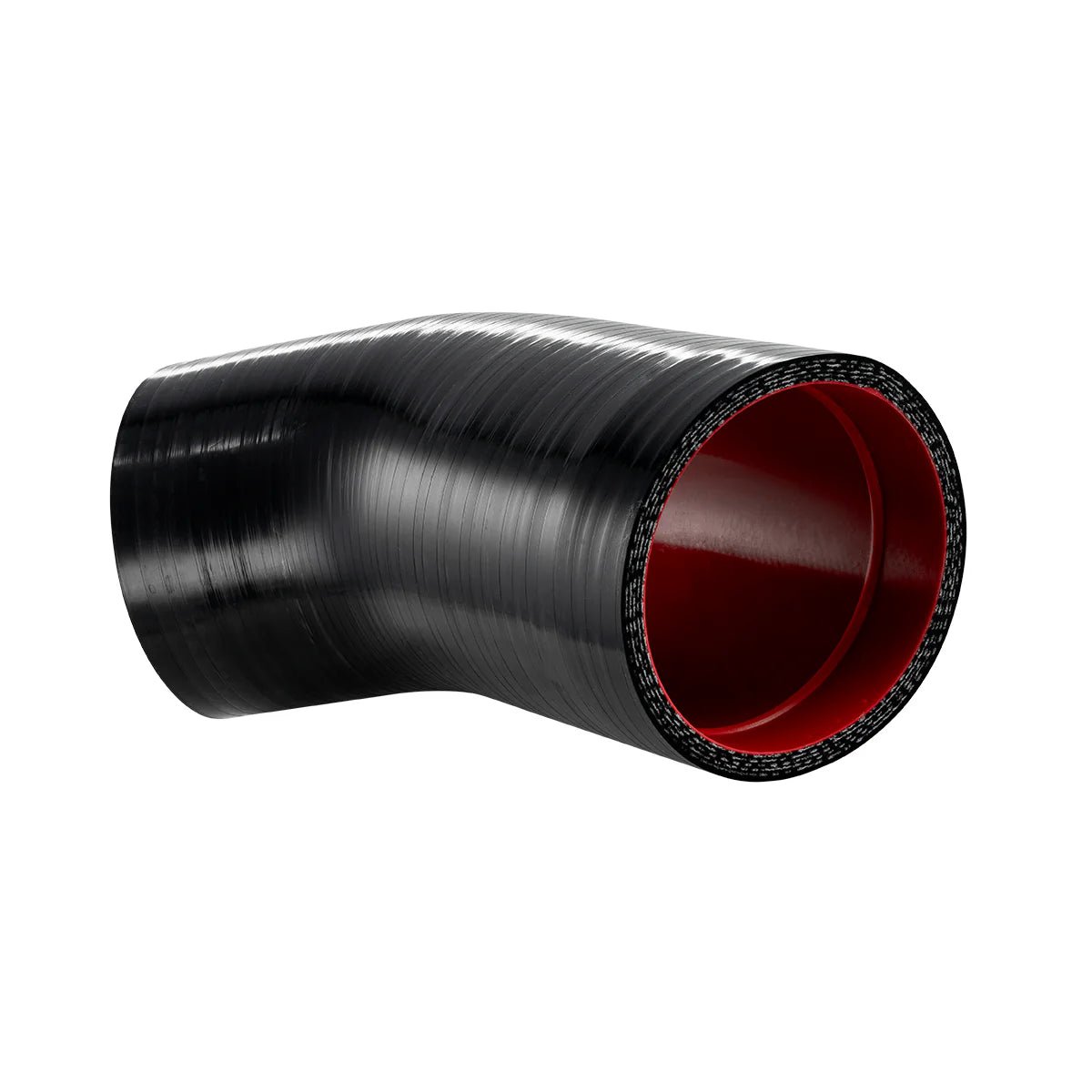

• Airflow first. An aftermarket turbo inlet manifold is the most-recommended LLY fix there is: S&B publishes a 78.6% flow gain for its cast piece under ISO 5011, and Diesel Resource measured roughly 23 hp and 57 lb-ft with lower exhaust gas temperature and quicker spool from inlets of that type. A one-piece three-inch Y-bridge is worth up to 30 hp and lowers intake air temperature. On the other side of the engine, a three-inch downpipe with the catalyst retained drops exhaust gas temperature by as much as 150 F and cuts backpressure around 40%, and a four-inch cat-back keeps the catalyst in place. A larger intercooler core and aluminum charge pipes with better couplers stop the repeat boot blow-off that follows any boost increase.
• Fuel supply second. An aftermarket lift pump with added filtration and water separation takes the suction load off the CP3; a filter head rebuild kit cures the air intrusion above in about an hour and replaces fragile plastic parts with billet; the updated injector harness, GM 98017958, keeps the chafe from coming back.
• Protection alongside power. ARP 230-4201 head studs raise clamp load about 25% and belong in any head gasket job and in any truck that tows heavy. The Allison five-speed tolerates roughly 90 hp over stock and about 650 lb-ft at the wheels before you find limp mode, a cracked converter stator or C2 clutch damage, so respect that ceiling and refresh a tired relief valve before adding anything. Head gaskets also fail sooner on trucks making more power than stock, which is the reason the studs are not optional on them.
• Towing hardware. An exhaust brake built for the variable-vane Duramax takes heat out of the service brakes on grades and keeps the vanes cycling, which fights soot lock-up at the same time. An external transmission cooler with braided lines replaces factory crimp fittings that seep with age, and rear air springs level the leaf-spring rear under pin weight without touching the spring pack.

Brands and parts in this collection

The deep bench here is the unglamorous stuff that keeps a twenty-year-old Silverado on the road. Merchant Automotive supplies injection pump inlet hoses, intake tube seals, water-in-fuel sensor O-rings, LLY ECM terminal ends, coolant tank float switches, starter solenoids, Allison converter housing reseal kits, pass-through transmission connector seals, transfer case front output seals, rear engine cover installation kits and instrument cluster stepper motor sets. PPE covers engine oil filters, billet oil filler caps, heavy-duty PTO side plate covers, injector harness pigtails and diesel lift pumps, with Allison Transmission PTO cover gaskets and XDP flex plate bolt kits and fuel filter adapter wrenches beside them. Sealing and cooling run through Mahle gaskets, Wehrli Custom Fabrication low coolant level sensors, Mishimoto cooling hardware and Fleece Performance Engineering billet coolant block-off plates. Fuel work is covered by FASS fuel systems and extreme water separator filters, ACDelco spin-on filters, S&B replacement elements, Exergy Performance fuel-system parts and Alliant Power injector, VGT and IPR pigtails. BD Diesel brings towing control and turbo hardware, G&R Diesel turbo drain kits, MBRP mufflers and resonators, Air Lift air springs, and Edge Products EAS pressure sensors and EGT kits so you can watch temperature while you pull. Hot Shot's Secret and Lucas Oil handle engine oil and fuel additives.

Fitment notes for a Silverado 2500HD or 3500

Check the eighth VIN digit before you buy engine parts: 2 is LLY, 1 is LB7. An early-2006 truck can still carry the LLY code while running 2006 hardware — 16.8:1 compression, revised pistons, 26,000 psi injection, seven-hole nozzles, fast-heat glow plugs, a larger EGR cooler — so treat a 2006 LLY as a separate fitment and verify by VIN and model year. LB7 parts from under the valve cover do not cross over at all, and LLY injectors are not the seven-hole LBZ injector. Turbos, downpipes, inlet manifolds and oil and coolant lines do not cross between the LB7 IHI unit and this Garrett VGT either; stock-replacement GT3788VA turbos are listed 2004.5-2010, but an LLY truck needs the 771864-0001 vane position sensor adapter and the correct inlet. Water pumps split 2001-2005 from 2006-2016, and the EGR valve for a 2004-2005 6.6L is GM 97303761 while 2006-2010 takes GM 98025695. Intake-side parts are 2004.5-2005 specific because the Y-bridge and inlet connections changed with the LBZ, and some of them carry state-specific sale restrictions, so read the listing before ordering for a California-registered truck. Exhaust kits are cab and bed specific across the five wheelbases. Wheel, hub and rear fender parts split 2500HD and 3500 single-rear-wheel from 3500 dually, and two-wheel-drive trucks have no front differential, so 9.25 IFS parts and CV axles are four-wheel-drive only. The 2004.5-2005 Allison is the five-speed, and 2006 is the six-speed with a different TCM and valve body, so converters, NSBU switches, internal filters and complete units do not cross that line. Glow plug control modules are year-specific (GM 8973796350 for 2004.5-2005) and must be programmed to the truck with a Tech 2 or equivalent. Cross-reference tow ratings to the door-jamb label and the RPO codes in the glovebox — axle ratio GT4 or GT5, cab, drivetrain, single or dual rear wheel — and remember fifth-wheel rails are bed-length and dually specific.

Frequently asked questions

Why does my Silverado run hot as soon as I hook up a trailer?

Start with airflow rather than the thermostat. The factory turbo inlet manifold restricts the one component that moves the most air on this engine, and coolant can exceed 230 F pulling a load in heat. Clean the debris out from between the condenser, intercooler and radiator, test the fan clutch, check the water pump for weeping, then fix the inlet restriction. That is the cheapest change that lowers drive pressure and heat at the source instead of chasing the symptom.

How do I know whether the head gasket is going?

The pattern is coolant pushed out of the overflow after a hard pull or a hot shutdown, unexplained coolant loss with no puddle, white smoke under load and temperatures that creep up while towing. Rear cylinders are where cooling is weakest and where it usually starts. Confirm with a combustion-gas test before tearing anything down, and if the heads come off, put ARP studs in while you are there.

It cranks a long time after sitting and then stalls. Where do I start?

At the fuel filter head, not the injectors. The CP3 has no lift pump helping it, so it pulls fuel under vacuum and any air leak on the suction side acts like a dying pump. The bleeder screw, water-in-fuel sensor and primer O-rings age and let air in; a rebuild kit addresses all of them in about an hour and replaces the fragile plastic parts with billet.

Is there a mileage where LLY injectors should just be replaced?

No set number. Well-maintained injectors commonly run 150,000 to 200,000 miles, so go by evidence: rough idle, hard hot starts, haze at idle and a fuel economy drop, verified with return-rate and cylinder-balance testing. The good news on this engine is that the injectors sit outside the valve covers, so the job is far less invasive than the same work on an LB7. Order by engine code, since the 2006 and LBZ seven-hole injector does not interchange.

I want more power. What order should I do things in?

Airflow first, fuel supply second, calibration last. Inlet manifold, Y-bridge, downpipe with the catalyst retained and a cat-back address the restriction on both sides of the turbo and lower temperatures while you are at it; a lift pump and a healthy relief valve keep rail pressure where it belongs. Then keep the numbers inside what the driveline takes: the five-speed Allison tolerates about 90 hp over stock and roughly 650 lb-ft at the wheels before limp mode or converter damage, and head gaskets fail sooner on trucks making more than stock, so head studs and temperature monitoring go with any added power.
