WCFab WCF100363 Duramax Billet Exhaust Manifolds (2001-2016 6.6L Duramax)
Fits: Chevrolet • GMC
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the WCFab WCF100363 Duramax Billet Exhaust Manifolds (2001-2016 6.6L Duramax) you will earn 1410 DIESEL DOLLARS in your SDS Fuel Tank!

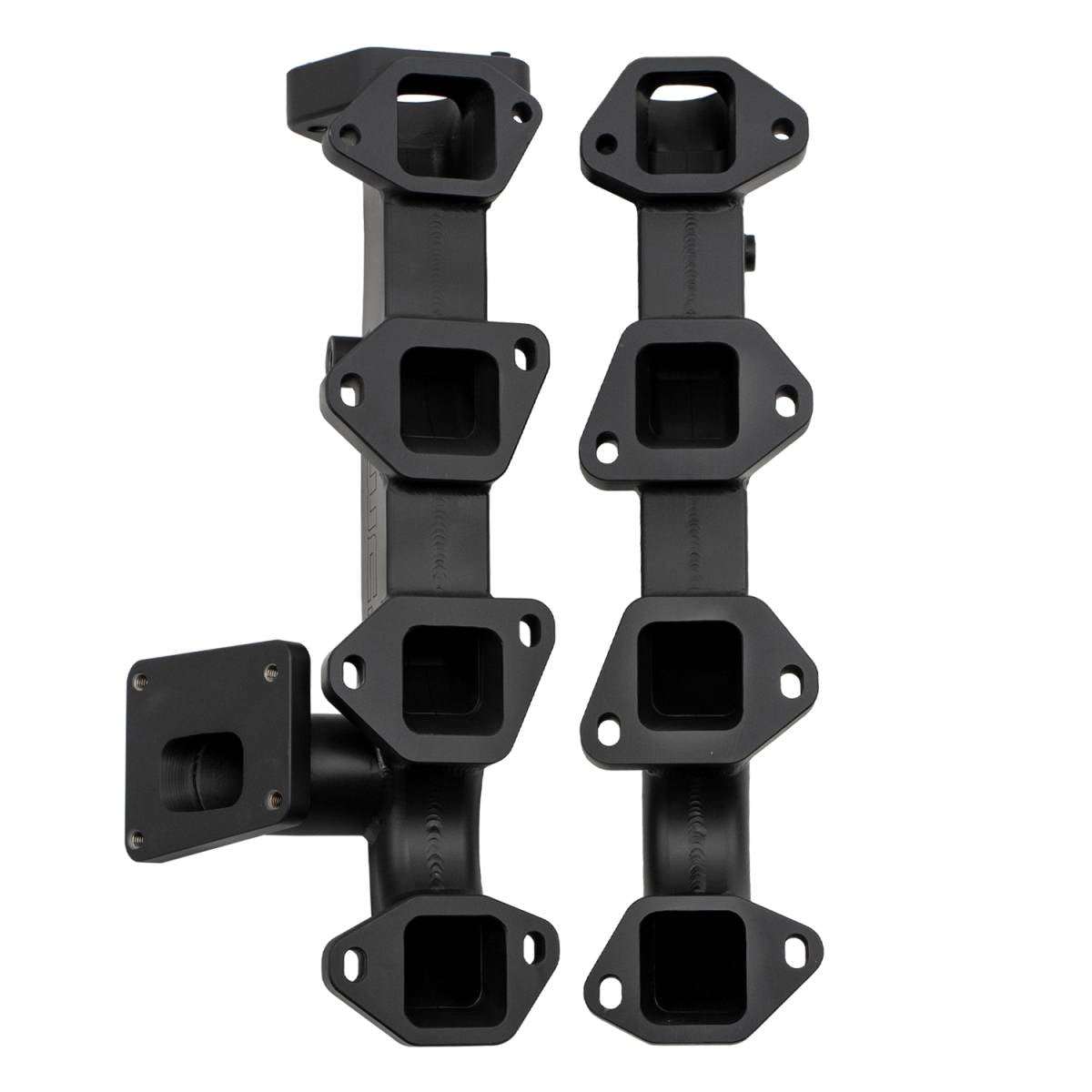

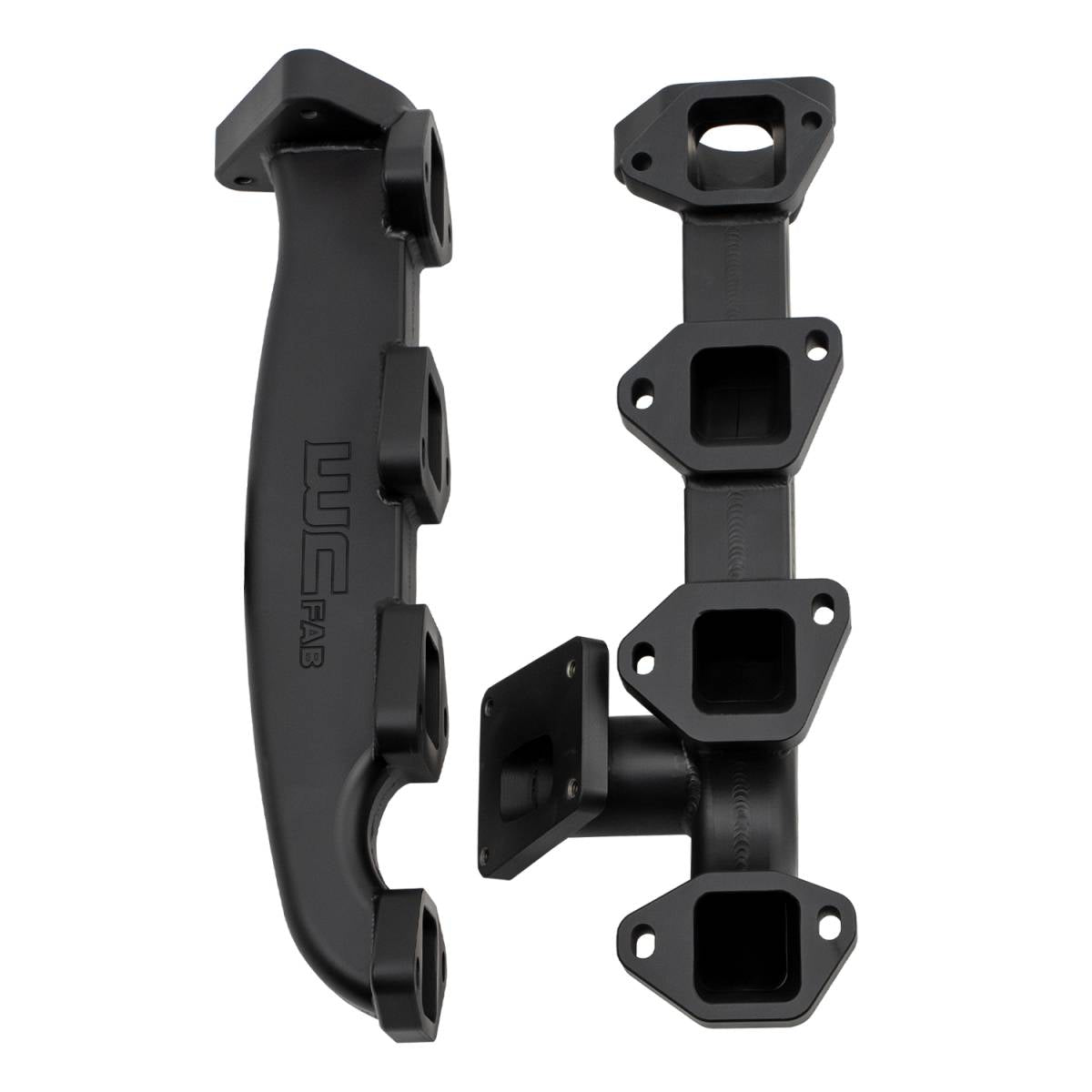

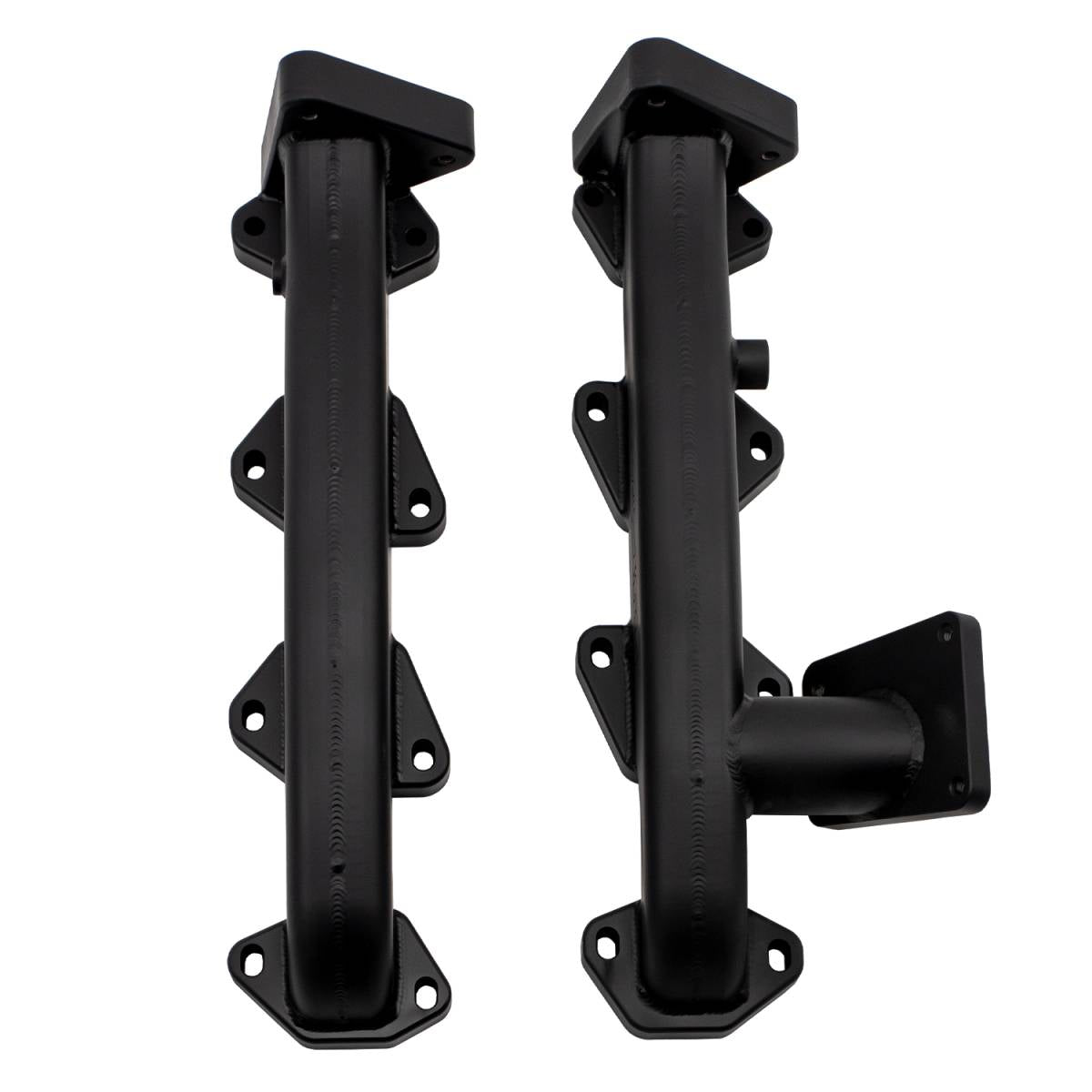

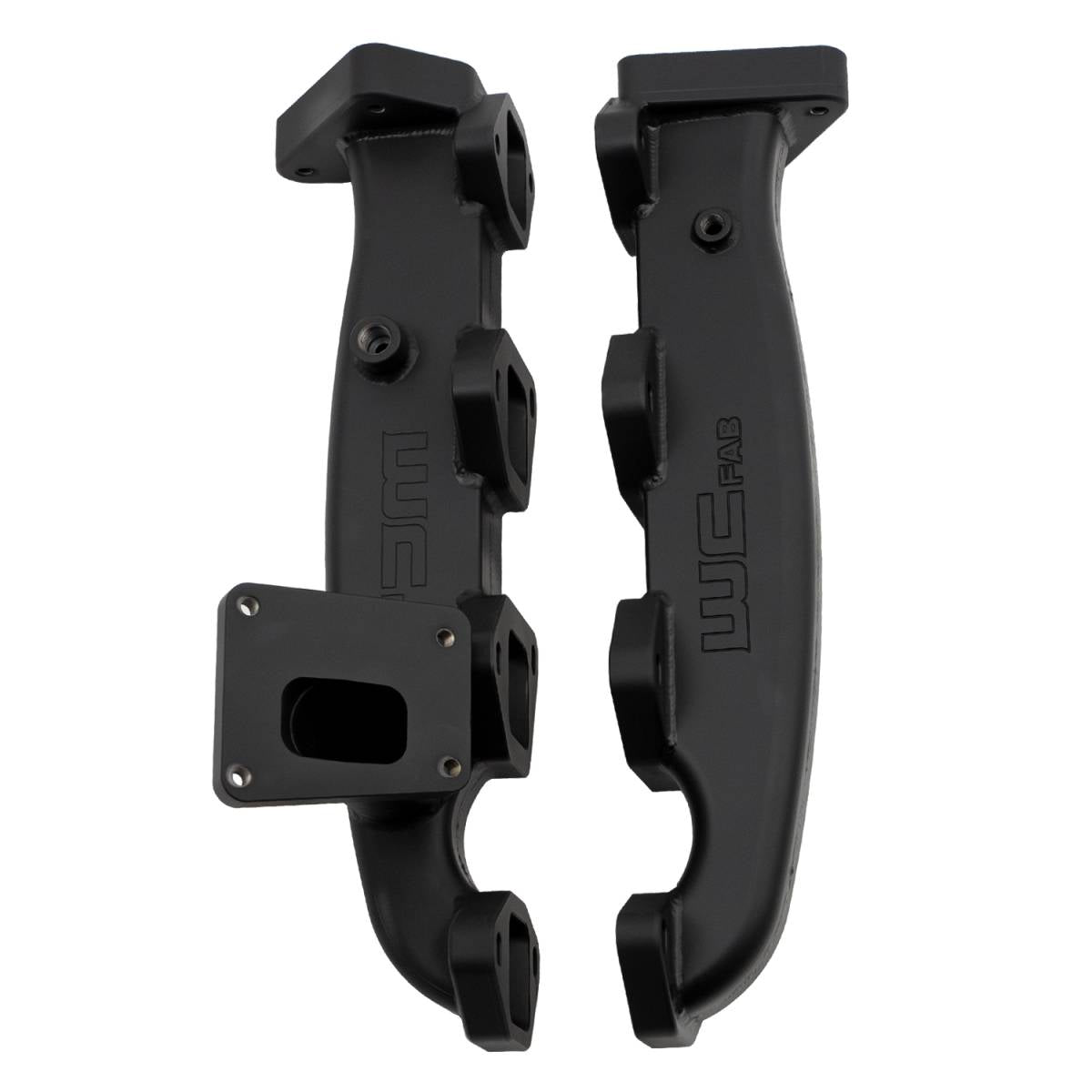

The WCFab WCF100363 Duramax Billet Exhaust Manifolds replace the restrictive factory cast manifolds on 2001-2016 6.6L Duramax trucks, LB7 through LML. They are TIG-welded billet steel with a black ceramic coat, built to improve exhaust flow for quicker turbo spool up, lower EGTs and better power and economy.
Fitment
Fits trucks with these 6.6L Duramax engines:
- LB7: 2001-2004
- LLY: 2004.5-2005
- LBZ: 2006-2007
- LMM: 2007.5-2010
- LML: 2011-2016
The outlet locations are fully compatible with OEM style up pipes, and the manifolds work with OEM or ported cylinder heads. No tuning is required. Verify fitment by VIN, or call the shop. More parts for your truck are in our Duramax collection.
Why this part
The factory exhaust manifolds on 2001-2016 Duramax trucks are cast parts, and WCFab calls them restrictive. These billet manifolds replace them with high-strength, TIG-welded, high-flow billet steel components designed to improve exhaust flow characteristics. WCFab says the result is better turbo spool up, lower EGTs and more power and economy.
Each manifold is exhaust port gasket matched and internally divided for optimal flow with OEM or ported cylinder heads. The outlet locations allow full compatibility with OEM style up pipes, so you can keep your factory-style up pipes. WCFab designed the manifolds to pair with its 2” Stainless High-Flow Up Pipes, sold separately, if you want to upgrade the up pipes at the same time.
Both the driver and passenger side manifold have 1/8 NPT ports, with optional plugs included, for installing an EGT probe or a drive pressure sensor. If you want to monitor EGT or drive pressure, the port is already there; if not, plug it.
What you get

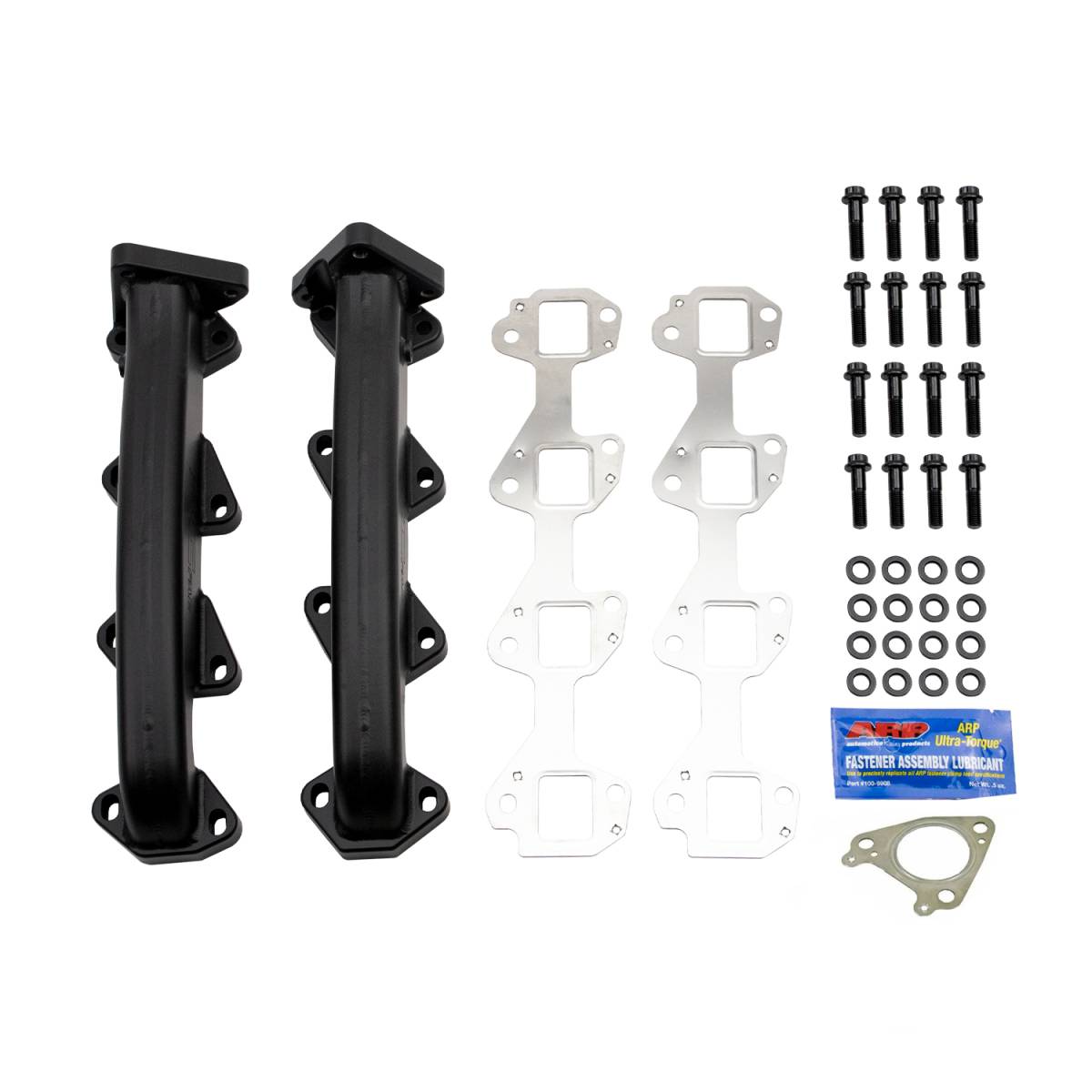

A driver side and passenger side billet manifold with new gaskets, ARP 12PT fasteners and washers, and assembly lube. WCFab's feature list:
- Fully TIG Welded, CNC machined billet steel exhaust manifolds
- Finished in Black Ceramic Coat rated for 1800ºF
- Includes new gaskets for manifold to cylinder head and manifold to up pipe
- Includes ARP 12PT Fasteners and washers for installation to cylinder head. Up pipe fastener kits sold separately as part WCF100240.
- 1/8 NPT ports (and optional plugs) included in driver and passenger side manifold for installation of EGT or drive pressure sensors
- No tuning required.
Specifications
- Part number: WCF100363
- Construction: high-strength, fully TIG welded, CNC machined billet steel
- Finish: Black Ceramic Coat rated for 1800ºF
- Design: exhaust port gasket matched, internally divided
- Sensor ports: 1/8 NPT on driver and passenger side, optional plugs included
- Up pipe compatibility: OEM style up pipes; designed to pair with WCFab 2” Stainless High-Flow Up Pipes (sold separately)
- Up pipe fastener kit: WCF100240, sold separately
- Tuning: none required
Installation notes
The kit includes new gaskets for the manifold to cylinder head and manifold to up pipe joints, ARP 12PT fasteners and washers for installation to the cylinder head, and assembly lube for an easier install. The up pipe fastener kit is not included; order it separately as WCF100240. If you are adding an EGT probe or drive pressure sensor, it goes in a 1/8 NPT port; if not, use the included plugs. No tuning is required after install.
About Wehrli Custom Fabrication
Wehrli Custom Fabrication (WCFab) is a DeKalb, Illinois shop that has been building diesel pickup parts since 2010. Beyond intakes, intercooler piping, cooling and traction parts, it makes exhaust and turbo accessories such as down pipes, up pipe kits, bolt kits and fittings. Most of its range is built for the 6.6L Duramax.
Frequently asked questions
Do I need new up pipes to run these manifolds?
No. The outlet locations are fully compatible with OEM style up pipes. WCFab designed the manifolds to pair with its 2” Stainless High-Flow Up Pipes, sold separately, if you want to upgrade both.
What hardware comes in the box?
New gaskets for manifold to cylinder head and manifold to up pipe, ARP 12PT fasteners and washers for the cylinder head, and assembly lube. The up pipe fastener kit is not included; it is WCF100240, sold separately.
Will they work with ported cylinder heads?
Yes. They are exhaust port gasket matched and internally divided for flow with OEM or ported cylinder heads.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
