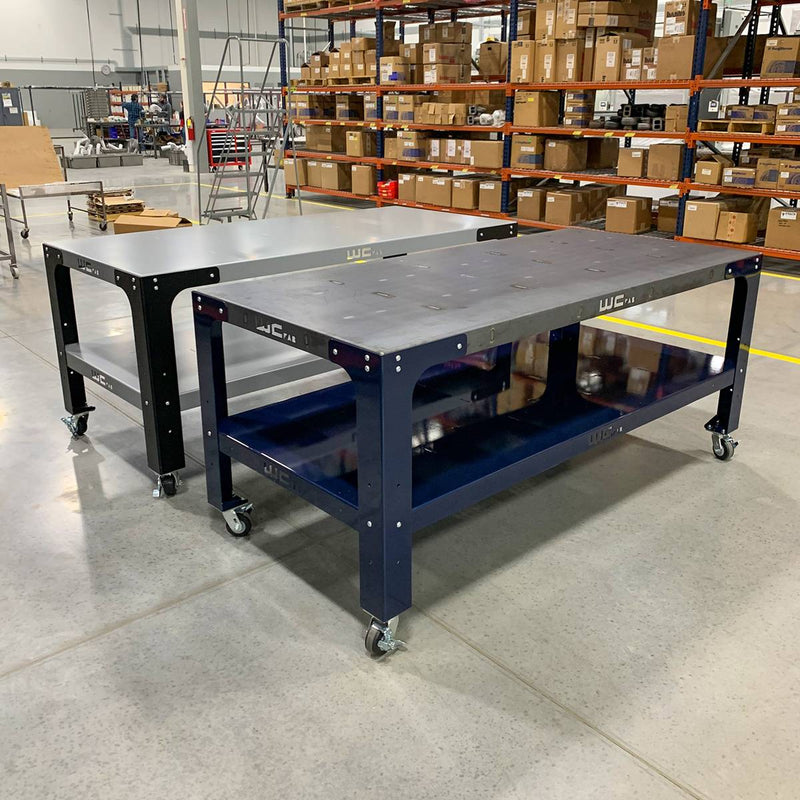

WCFab WCF25-3290-120 32 In. X 90 In. Modular Steel Work Bench

Fitment

This bench does not bolt to a truck, so fitment here means floor space and working height. The top measures 90 inches wide by 32 inches deep. Height ranges from 34 inches (2 ft. 10 in.) to 46 inches (3 ft. 10 in.) depending on the leg and foot/caster options selected. The 11 gauge steel legs come in 34 or 40-inch heights. Leveling pads give an additional 1.5 inches of height adjustment, and the casters add 5.5 inches of overall work surface height. Measure the bay or wall where it will live, leave room to walk around it, and call us if you are not sure which height suits the work you do.

Why this part

Diesel work eats bench space. Teardowns, parts staging and assembly all need a long, solid surface you can load up and leave loaded. WCFab builds this bench with a fully gusseted top and shelf that use interlocking ribbed construction for rigidity and support. The top and shelf are MIG welded, with TIG welding on stainless steel tops. The design balances strength and durability against overall weight, so the bench still works as a rolling workstation on the optional casters.

How tough is it? WCFab rates it for 3,000 lb max capacity (evenly distributed) on the optional leveling feet, or 1,500 lbs (evenly distributed) when fitted with the full swivel or combination swivel and solid caster options. WCFab uses these benches in every department of its own shop, from machining to fabrication, powder coating prep to automotive performance and repair, and right down to final assembly and shipping. The top and shelf are interchangeable, and the shelf height is adjustable, so you can set it up around the tools and parts you keep underneath.

WCFab builds these benches for:

• Home Work Shops & Garages
• Hobbyist Work Shops
• Production Level Manufacturing
• Repair Shop Facilities

What you get

• One 90" x 32" modular steel fabricated work bench, part number WCF25-3290-120
• 11 gauge steel top, CAD designed, precision laser cut, CNC bent and welded
• High-strength, full-size storage shelf with adjustable-height mounting
• 11 gauge steel legs in a 34 or 40-inch height
• TIG welded leg feet, pre-drilled for leveling pads, casters or bolting to the floor

Leveling feet and the swivel and solid caster kits are options, not standard. Top material and finish are options too: raw carbon steel, standard powder coat, a custom powder coat color, or raw stainless steel. Call the shop to confirm the top, finish, leg height and foot or caster setup before you order. Assembly is required.

Shipping is not included. This bench ships LTL truck freight. You will be contacted with a shipping quote after your order is received and charged separately for shipping.

Specifications

Features, as listed by WCFab:

• 90" x 32" Modular Steel Fabricated Work Bench
• CAD Designed, Precision Laser Cut, CNC Bent, MIG Welded (TIG Welding on Stainless Steel Tops) 11G Steel Work Bench Assembly

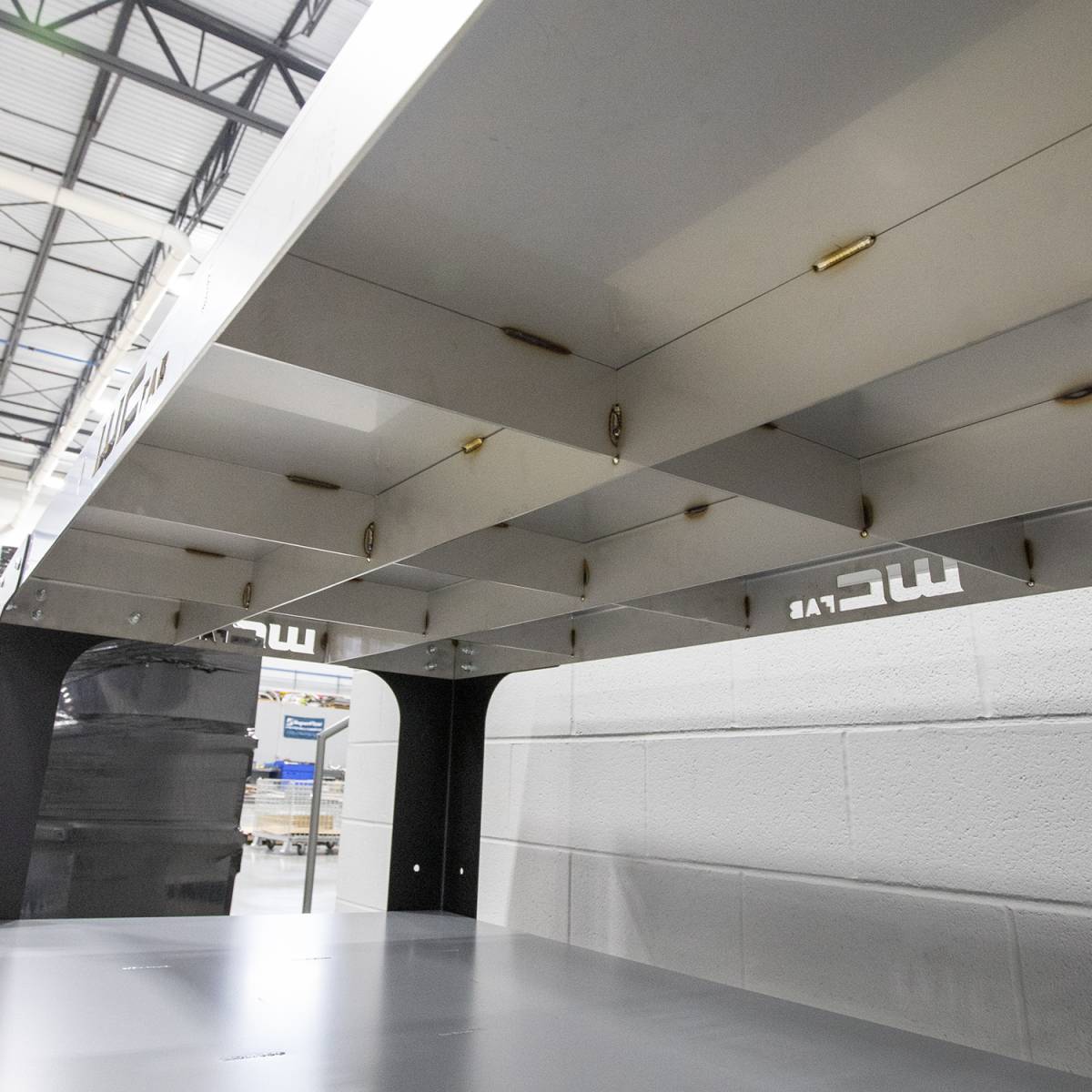

• Fully Gusseted - Interlocking Ribbed Construction Top and Shelf for Rigidity and Support
• Carbon Steel or Stainless Steel Top Options
• Interchangeable Top and Shelf
• Adjustable Height Shelf
• Available Heights 34-46"
• Leveling Feet or Heavy Duty Caster Wheel Kits (Swivel and Solid) Available
• Raw Steel or Custom Powder Coat Finishes Available
• Made in USA
• Assembly Required

Available work surface and shelf options include:

• Raw Carbon Steel - Ideal if you are adding additional customization or tool mounts before final finishing
• Durable standard Grey powder coat
• Custom powder coat color of your choice
• Raw Stainless Steel

11 Gauge Steel Legs available in 34 or 40-inch heights in the following finish options:

• Raw Carbon Steel - Ideal if you are adding additional customization or tool mounts before final finishing
• Durable standard Flat Black powder coat
• Custom powder coat color of your choice

Each leg foot is TIG welded and comes pre-drilled to accept your choice of:

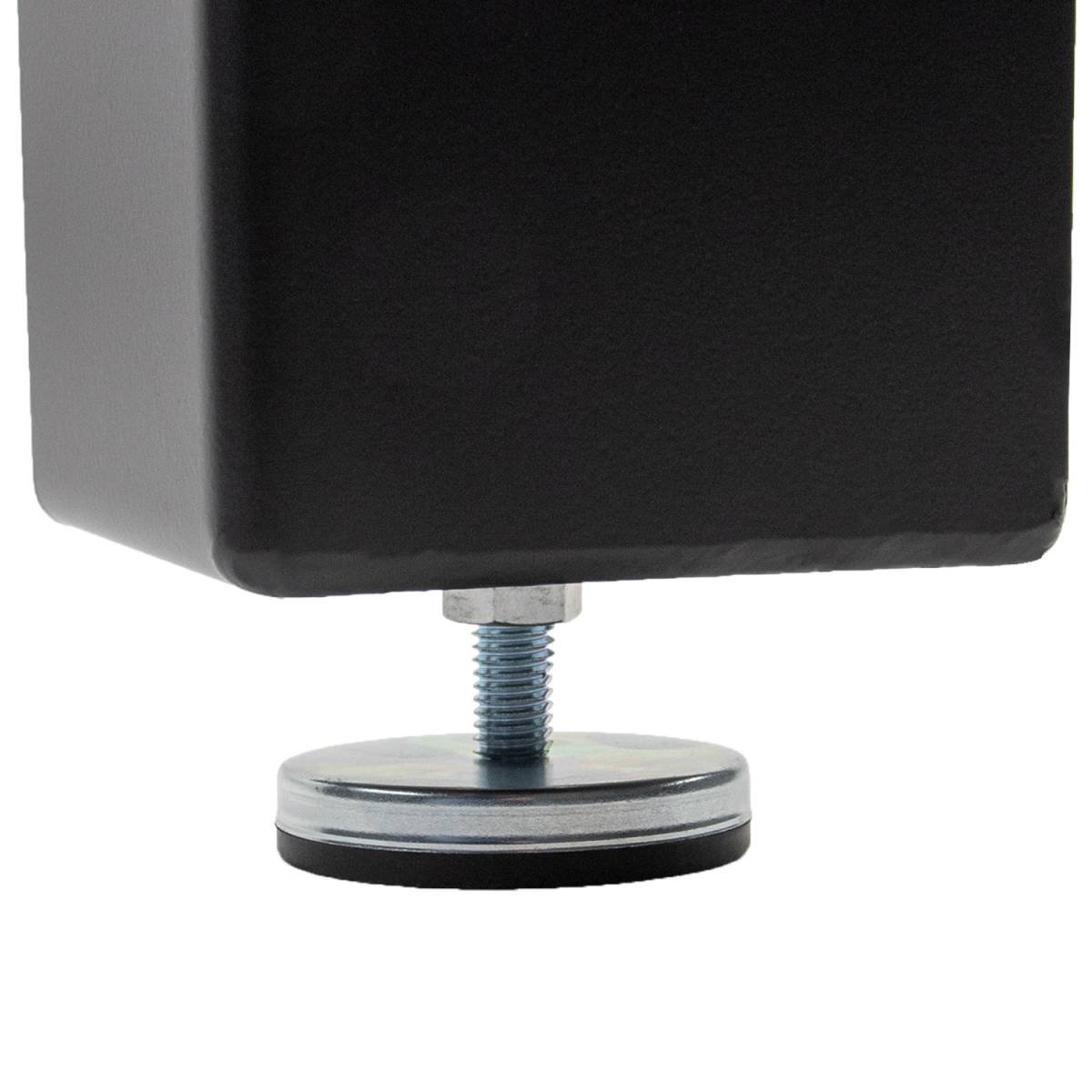

• Leveling pads (providing an additional 1.5 inch of height adjustment and corner-to-corner adjustment for uneven flooring)

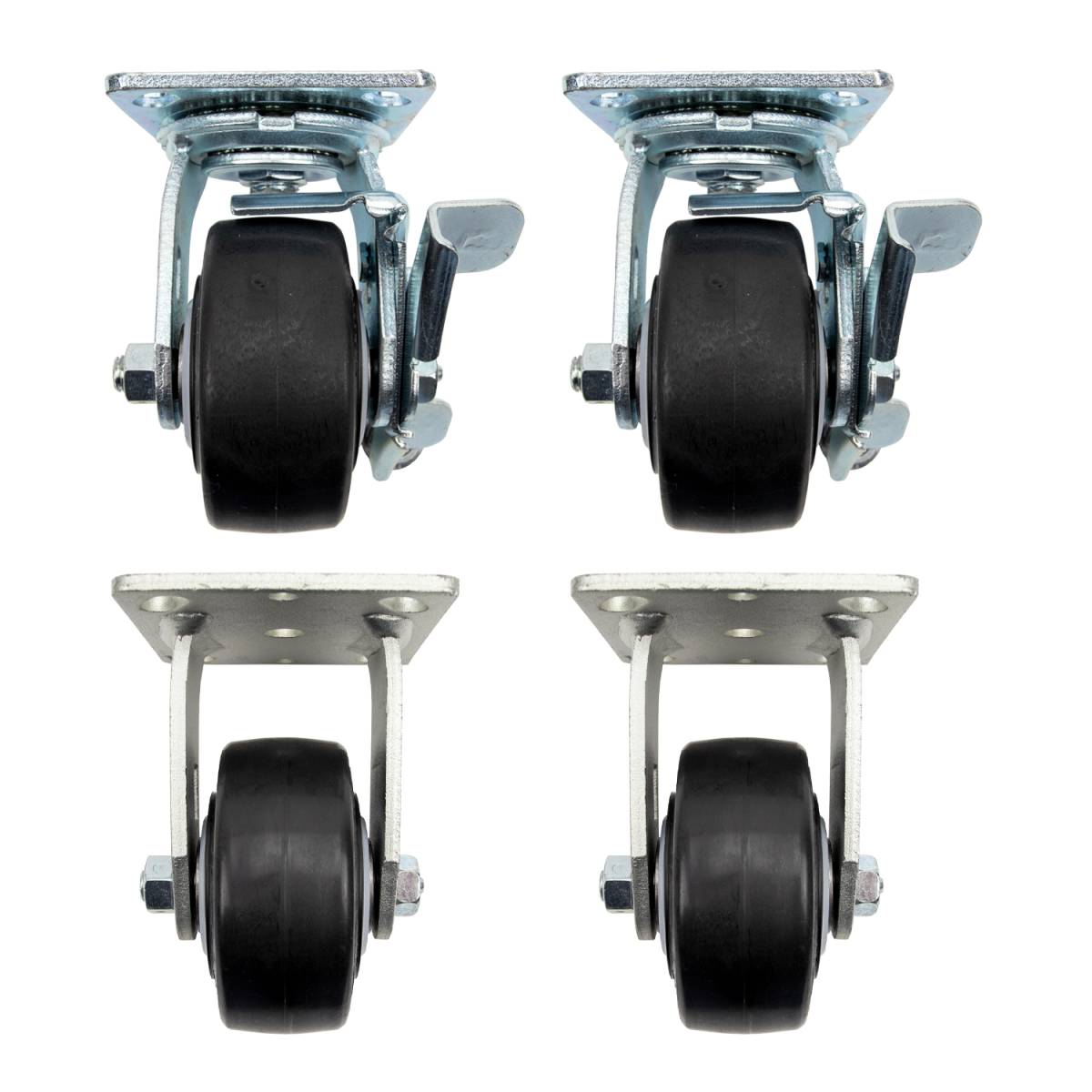

• Precision ball bearing casters for mobility (adds 5.5 inches of overall work surface height)
• Ready to be bolted down directly to your shop floor to ensure a solid foundation for your project

Installation notes

The bench requires assembly. The storage shelf mounts at an adjustable height: the legs give three levels of coarse adjustment in 5-inch increments, and you can fine-tune that by an additional 1.25 inches using the adjustment points on the shelf. Set the shelf height before you load it.

If your floor is uneven, the leveling pads give corner-to-corner adjustment. If the bench will stay put, the pre-drilled feet are ready to be bolted down directly to your shop floor. If you want it mobile, use the caster option and keep in mind the rating drops to 1,500 lbs evenly distributed on casters.

Note: raw steel finish option components must receive additional finishing and preventative maintenance to help protect the parts from corrosion. If you pick raw carbon steel so you can add tool mounts or other custom work first, plan to finish it once that work is done.

About Wehrli Custom Fabrication

Wehrli Custom Fabrication (WCFab) started in 2010 and is based in DeKalb, Illinois. The brand is known for fabricated intake, intercooler, cooling and traction parts for diesel pickups, with most of the line built for the 6.6L Duramax and more for Cummins and the 6.7L Power Stroke. If you already run WCFab parts on your truck, this bench comes from the same fabricator.

Frequently asked questions

How much weight will this bench hold?

WCFab rates it for 3,000 lb max capacity, evenly distributed, on the optional leveling feet. On the full swivel or combination swivel and solid casters, the rating is 1,500 lbs evenly distributed. Spread heavy parts out rather than piling them in one spot.

How tall is the work surface?

Between 34 inches and 46 inches, depending on setup. The legs come in 34 or 40-inch heights, leveling pads give an additional 1.5 inches of adjustment, and casters add 5.5 inches of overall work surface height.

Does it come assembled, and how is shipping handled?

Assembly is required. The bench ships LTL truck freight, so you will be contacted with a shipping quote after your order is received, and shipping is charged separately.

Questions on size, finish or caster options? Call the shop at the number in the header.
