2007.5-2010 GMC Duramax LMM Air Intake Parts

How the LMM charge-air system is laid out on a Sierra HD

The Sierra 2500HD and 3500HD left the factory with a high-capacity air cleaner as standard equipment. From that box the air goes through the turbo mouthpiece into the GT3788VA variable-vane turbo, out the hot-side pipe on the driver side, forward into the air-to-air intercooler mounted at the front of the truck, and back along the passenger side to the cast Y-bridge. The Y-bridge is the piece that sets an LMM apart: it splits charge air to both heads while also carrying EGR flow and the grid heater, so anything that bolts to it has to keep all of those ports live. Crankcase vapor is routed into the intake too, which coats the inside of the whole system in oil.

What fails and why

Start with the joints. The oil film from the closed-crankcase design is slippery enough to let a clamp lose its grip, and a bead or alignment problem at the pipe makes it worse. Two different symptoms come from the same cause: a bang followed by the truck going flat means a coupler came all the way off, while a steady hiss with oily dust on the outside of a joint means it is only leaking. Both can log P0299. BD puts charge-air leaks on its list of ten common LMM issues, with low boost, white or blue smoke and lost power as the complaint, and warns that the turbo gets blamed instead. Heat under a heavy trailer speeds all of it along, and the crankcase oil slowly breaks the boot material down so the repair does not hold. Separately, EGR soot coats the intake tract and the Y-bridge. That is a slow, mileage-driven thing, worse on short trips and long idling, and many owners past 100,000 miles notice a rough idle or a hesitation.

Stock replacement vs. upgrade

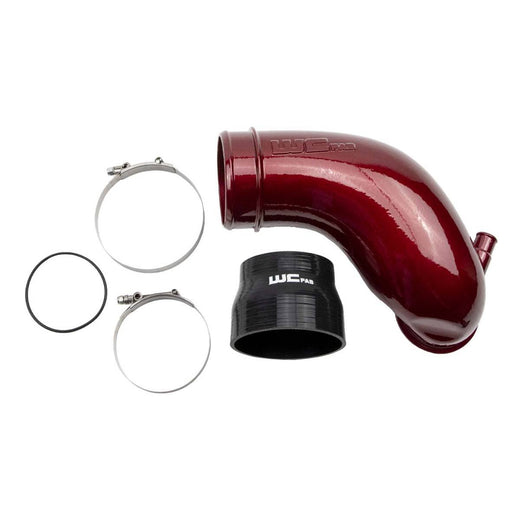

A one-off clamp failure is a one-off repair. Fit a constant-tension high-torque clamp, sized anywhere from 2.75 to 4 inches for this system, or the BD driver-side intercooler hose and clamp kit listed for 2006-2010 trucks, and get back to work. A truck that has pushed the same boot off twice needs different hardware. The 3 inch Y-bridge and cold-side pipe kits use aramid-reinforced silicone boots with T-bolt clamps for exactly that reason, they re-use the EGR and grid-heater o-rings so nothing is left disconnected, and no tuning is involved. Intercoolers come later in the sequence rather than first: pipe or Y-bridge, then the intercooler only if intake temperatures stay up when you are loaded. At the air-cleaner end, an LMM-specific intake kit or a cast horn in place of the factory mouthpiece is the straightforward change, and the dry-filter versions suit anyone who would rather not re-oil an element.

What we carry

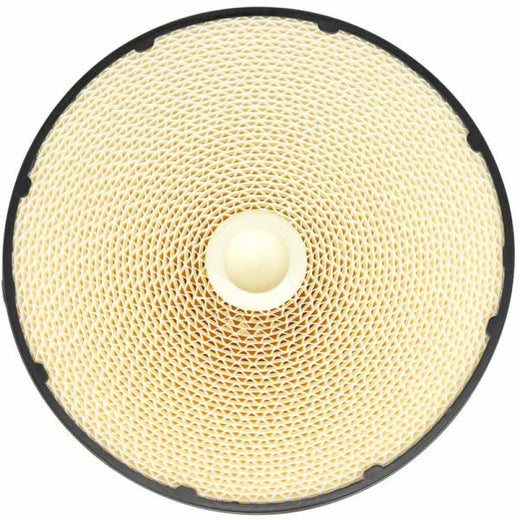

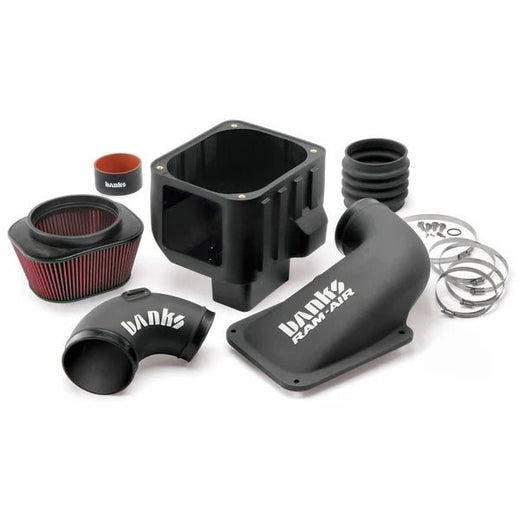

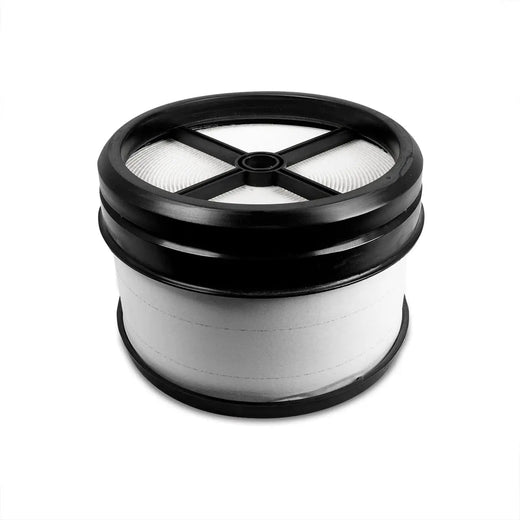

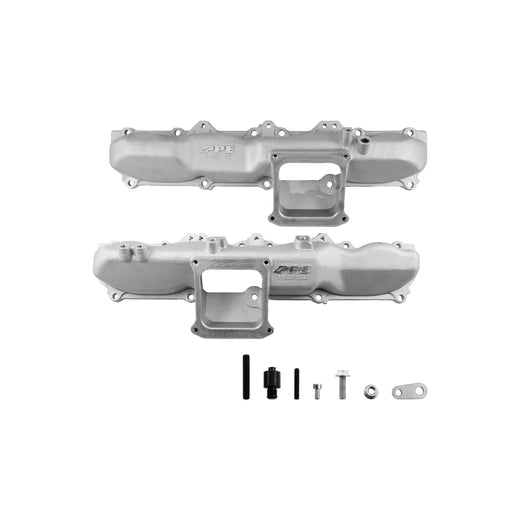

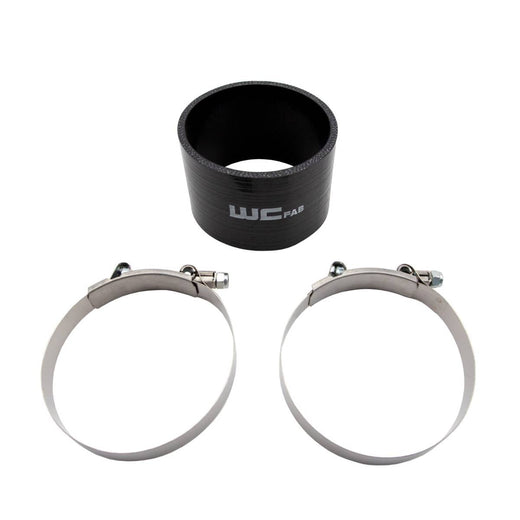

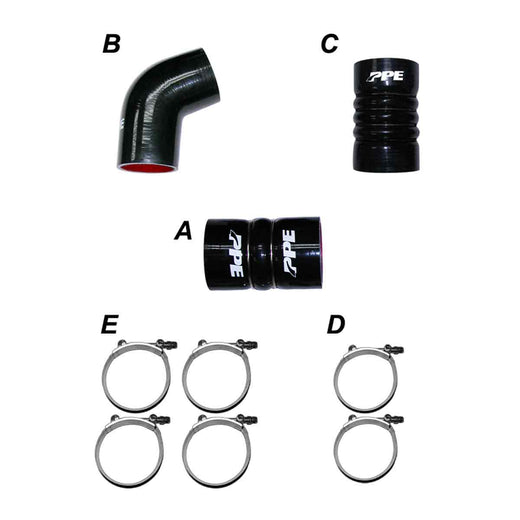

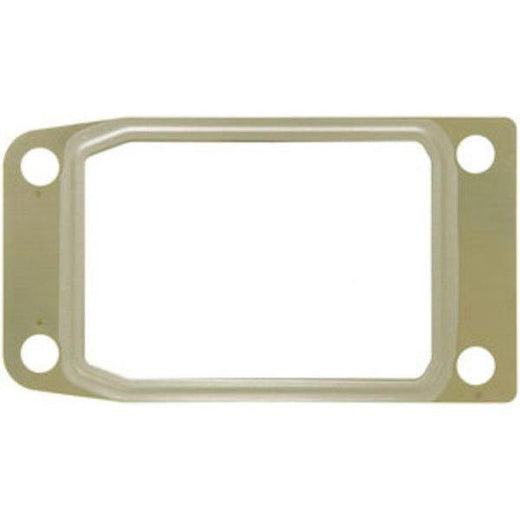

Mishimoto and PPE cover most of the piping: hot-side and cold-side pipe and boot kits, a factory-fit boot kit, direct-fit and performance intercoolers, a 3 inch hot-side pipe, silicone couplers, hose and clamp kits, and cylinder-head bank manifolds. CSF stocks OEM+ and heavy-duty intercoolers for the 2006-2010 trucks. On the intake side there are S&B cold air intake kits, replacement elements, couplers and filter wraps, Wehrli Custom Fabrication dry filters, boot and clamp kits and an Outerwears filter cover, Banks Power elements and pre-filter wraps, and a PPE element filter. BD Diesel brings high-torque clamps and positive air shutdowns, Mahle and Merchant Automotive the intake gaskets, seal kits and tube seals, Alliant Power and XDP the mass airflow sensors, and G&R Diesel the weld-in sensor bungs that let fabricated piping keep the factory sensors. The wider intake and Duramax sections hold parts for the other engines.

Fitment notes

Two Sierra HD bodies were sold in 2007. The 2007 Classic is the GMT800 truck with the LBZ engine; the LMM arrived only in the GMT900 HD body, which is why these pages begin at 2007.5. Because LBZ and LMM share much of the cold-side layout, vendors label kits by engine and body, LBZ or LMM and classic or new, and that label matters more than the year in the title. If you are pairing a CSF intercooler with a WCFab or Duramax Tuner 3.5 inch cold-side pipe, the intercooler outlet lip has to be ground for clearance. A billet Y-bridge is a weekend job rather than an evening one and sits close to the fuel return lines. Nothing here crosses the 2010-to-2011 line, since 2011 brought the LML. Work Truck, SLE and SLT all take the same charge-air hardware; engine code and body are what we go by. When in doubt, check the VIN or run the fitment checker.

Frequently asked questions

What is the Y-bridge, and why does everyone talk about it?

It is the cast junction on top of the engine that takes charge air from the cold-side pipe and splits it to both cylinder heads. On the LMM it also handles EGR flow and the grid heater, so it is a crossroads for more than one system. That is why replacement parts are usually sold as Y-bridge and cold-side pipe packages rather than as a single pipe.

Is a cold air intake worth it on a Sierra HD that already has the high-capacity air cleaner?

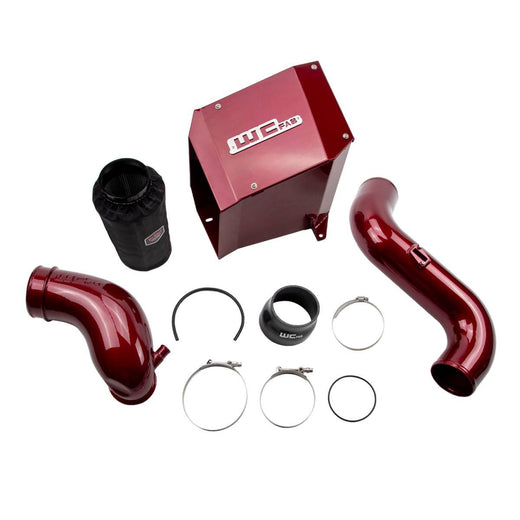

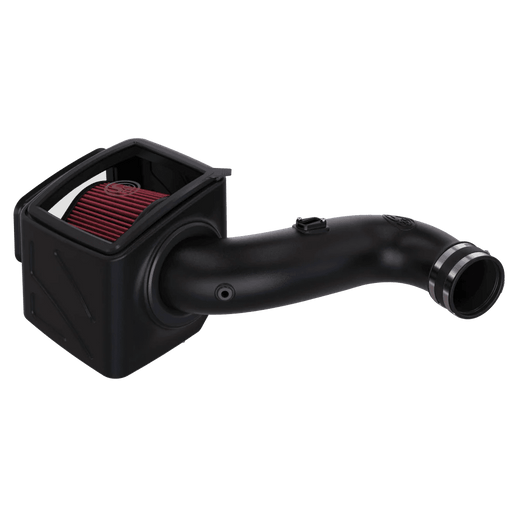

The high-capacity air cleaner was standard on these trucks, so an intake kit is an upgrade rather than a repair. S&B catalogs its 75-5091 specifically for the 2007.5-2010 LMM in oiled and dry versions, and WCFab builds LMM-specific 4 inch kits with their own air box. If all you want is fresh filtration, a replacement element in the stock housing does that.

Will parts off an LBZ truck fit my 2008 Sierra?

Sometimes, but do not assume it. LBZ and LMM share most of the cold-side architecture, and vendors still split their listings by engine and body for good reason. Go by the engine code and the body rather than the year, or send us the VIN and we will look it up.

Can soot in the intake really change how the truck drives?

EGR routes cooled exhaust back into the intake to cut NOx, and the soot that comes with it accumulates in the tract and in the Y-bridge. The buildup is progressive and tends to be worse on short-trip and idling duty, and rough idle, hesitation or haze past 100,000 miles is a commonly reported pattern. Cleaning the intake is part of the job whenever the Y-bridge is off anyway.

Not sure what fits? Call the shop at the number in the header, or use the fitment checker on any product page. We install everything we sell.
