Call or Text (352) 722-5295The oil system on the 2003-2007 Ford 6.0L Powerstroke
A crank-driven gerotor pump in the front cover, with a relief valve near 75 psi, feeds both the engine and the high-pressure oil pump (HPOP). Oil passes through a water-to-oil cooler in the engine valley, a stacked-plate exchanger whose coolant passages are under 0.5 mm in places. The HPOP at the rear of the valley raises injection control pressure (ICP) to roughly 500 to 4,000 psi, and each injector multiplies that about 7.1 to 1 into fuel pressure. Capacity is 15 quarts with the filter, and Ford's severe-duty interval is 5,000 miles. Ford calls for 15W-40 or 10W-30, and 5W-40 synthetic is widely used.
What fails and why
Two known problems explain most of the parts in this section. The first is oil cooler restriction. Casting sand, rust and silicate gel from degraded Ford Gold coolant plug the coolant side of the cooler, the oil runs hot, and the EGR cooler downstream is starved of coolant. Original coolers commonly restrict between 100,000 and 175,000 miles. The second is high-pressure oil leaks. On 2005-2007 engines, the Snap-To-Connect (STC) fitting at the HPOP outlet is a known leak point. On 2004.5-2007 engines, the O-rings on the rail standpipes and dummy plugs flatten or tear and bleed off ICP. Both cause hot no-starts.
- Restricted oil cooler: EOT 15 F or more above ECT at highway speed, EOT over 240 F, and defueling once EOT nears 255 F.
- High-pressure oil leak: a hot no-start, or a high IPR duty cycle with low ICP.
- Worn lube pump or neglected oil: low oil pressure at hot idle and ICP that will not build. Worn oil degrades injector operation before it hurts bearings.
Stock replacement vs. upgrade
For the oil cooler, an OEM-style replacement restores factory function, and PPE also offers a heavy-duty oil cooler and gasket kit. If the EGR cooler has failed, replace the oil cooler with it; a restricted oil cooler can kill a new EGR cooler within 30,000 to 50,000 miles. For leaks, the repair is fresh seals at the leak point: HPOP O-ring kits, rail seal kits, standpipe and dummy plug kits, and HPOP install kits, including one with a new STC fitting. For prevention, a bypass coolant filter strips casting sand and silicate out of the coolant, and many owners switch to EC-1 extended-life coolant after a full flush. For oil, the common recommendation is 5W-40 synthetic with stiction-fighting additives to protect the injector spool valves.
What we carry
- Oil and additives: Hot Shot's Secret Green Diamond CK-4 oils in 10W-30 full synthetic and 15W-40 semi-synthetic, Lucas Oil heavy duty and synthetic oil stabilizers and TB Zinc Plus break-in additive, and XDP X-Factor oil additive.
- Filter and drain: the Mahle OX783D oil filter and a Mishimoto magnetic drain plug.
- Oil cooler: coolers and cooler kits from Dorman, Mishimoto, Alliant Power and Pacific Performance Engineering, plus screens and gasket sets from Mahle, PPE and Alliant Power.
- High-pressure oil: Alliant Power remanufactured HPOPs and install kits, Mahle HPOP O-ring seal kits, Alliant Power standpipe and rail seal kits, the PPE standpipe and rail plug kit, the Dorman rail plug, and rail ball tubes from Dorman, Mishimoto and PPE.

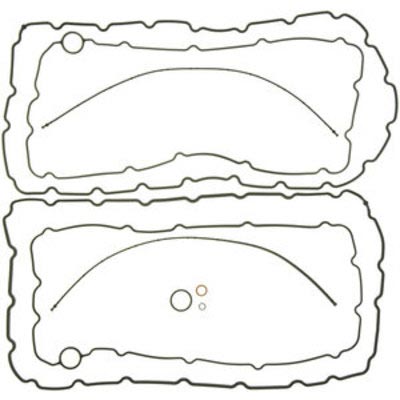

- Pan and breather: the Dorman oil pan, Mahle oil pan and crankcase breather gaskets, and an XDP oil pan bolt kit.
- Also in this section: parts from G&R Diesel and ATS Diesel Performance.
Fitment notes
The high-pressure oil system changed in both 2004 and 2005. The 2004 engine got wavy rails and a relocated ICP sensor, and 2005 brought the cast-iron V-4 HPOP with a relocated IPR and longer-ball-tube rails. The 2003-2004 and 2005-2007 pumps do not interchange without the matching branch tube and fittings, and several install kits and ball tubes here are listed for 2004.5-2007 only. Identify by engine build date and HPOP type, not just model year; a 2005 Excursion can carry a 2004-type pump. Verify by VIN with the fitment checker, or call the shop. All our Ford diesel parts are on the Powerstroke page.
Frequently asked questions
What oil should I run in a 6.0L Powerstroke?
Ford calls for 15W-40 or 10W-30 Super Duty oil, and 5W-40 synthetic is widely used. Because this oil also drives the injectors, the common recommendation is a synthetic with stiction-fighting additives to protect the injector spool valves. Change it at Ford's 5,000-mile severe-duty interval: 15 quarts and a fresh filter.
How do I test a 6.0L oil cooler without pulling it?
Read EOT and ECT on a monitor with the truck warmed up at 65 to 70 mph. A gap under 10 F is healthy, 10 to 15 F is a warning, over 15 F means the cooler is restricted, and over 20 F means replacement is overdue. If EOT climbs past 240 F, replace it now.
Why will my 6.0L not restart when it is hot?
One known cause is a high-pressure oil leak that bleeds off ICP. On 2005-2007 engines, look at the STC fitting on the HPOP; on 2004.5-2007 engines, the standpipe and dummy plug O-rings. The engine needs roughly 500 psi of ICP while cranking to start, and a high IPR duty cycle with low ICP points to a leak or a weak pump.
Do I have to replace the oil cooler with the EGR cooler?
You should. A restricted oil cooler is usually what starved the EGR cooler in the first place, and skipping it commonly leads to a repeat EGR cooler failure within 30,000 to 50,000 miles. Do the cooler, screen and gaskets in the same trip into the valley.
