2003-2007 Ford 6.0L Powerstroke Engine Parts

The engine on the 2003-2007 Ford 6.0L Powerstroke

The 6.0L is a cast-iron 90-degree V8 with a bedplate bottom end, a gear-driven cam in the block, hydraulic roller lifters and four valves per cylinder. Bore and stroke are 95 mm by 105 mm, compression is 18.0:1, and the engine weighs about 966 lb with oil. Ford put it in the F-250 and F-350 Super Duty, the F-450 and F-550 chassis cabs, and the Excursion through 2005. The valley under the intake and turbo holds the oil cooler up front and the high-pressure oil pump (HPOP) at the rear, so most repairs here start with pulling the turbo and intake. A crank-driven gerotor pump with a relief valve near 75 psi feeds the engine and the HPOP, and the HPOP pressurizes that same oil to fire the HEUI injectors.

What fails and why

Most 6.0L engine trouble is one chain of events. Casting sand, rust and silicate gel from degraded Ford Gold coolant restrict the oil cooler, whose coolant passages are under 0.5 mm in places. Original coolers commonly restrict between 100,000 and 175,000 miles, sooner on trucks that tow or run old coolant. A restricted oil cooler starves the EGR cooler of coolant, and EGR cooler failure usually follows. A ruptured EGR cooler pushes coolant and steam into the intake, cylinder pressure spikes, and the head bolts stretch. There are only four 14 mm torque-to-yield bolts per cylinder, and once they yield they lose clamping force for good. The head gasket lifts and pushes combustion gas into the cooling system.

Symptoms to watch for:

• Oil cooler: engine oil temperature 15 F or more above coolant temperature on the highway, or EOT over 240 F. The PCM defuels around 255 F.
• EGR cooler: the same signs as a head gasket, plus white, sweet-smelling exhaust and unexplained coolant loss.
• Head gasket: coolant pushed out of the degas bottle, bubbles in the bottle, a heater that blows cold once warm, overheating under load and white smoke.
• Cylinder heads: cracking is reported alongside gasket failures, usually after repeated overheating.
• Glow plugs: 2004 and later plugs are 1.2 mm shorter, and a longer 2003-style plug in a later engine risks piston contact.

Stock replacement vs. upgrade

If the oil cooler is the problem, an OEM-style cooler with new gaskets and screen fixes it. If the EGR cooler has already failed, replace the oil cooler in the same job; a restricted oil cooler can kill a new EGR cooler within 30,000 to 50,000 miles. Head bolts are the one place where the upgrade is the repair. Torque-to-yield bolts cannot be reused, and head studs are the standard fix when the heads come off. Studs make the most sense before you add power, because head gasket risk starts barely beyond stock power on factory bolts. The rest of the long block is strong; stock heads and rods support roughly 700 rwhp. For prevention, a bypass coolant filter strips casting sand and silicate out of the coolant, and many owners switch to EC-1 extended-life coolant after a full flush.

What we carry

The engine-side parts we list for the 6.0L land here, and it breaks down into the Accessory Drive, Components, Heads & Studs, Oil System, Short/Long Blocks and Valve Cover sections.

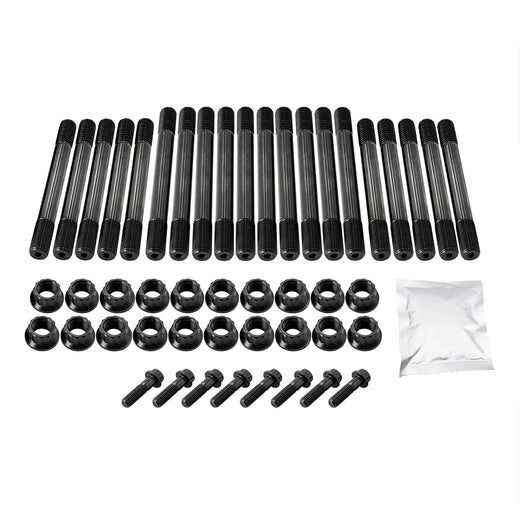

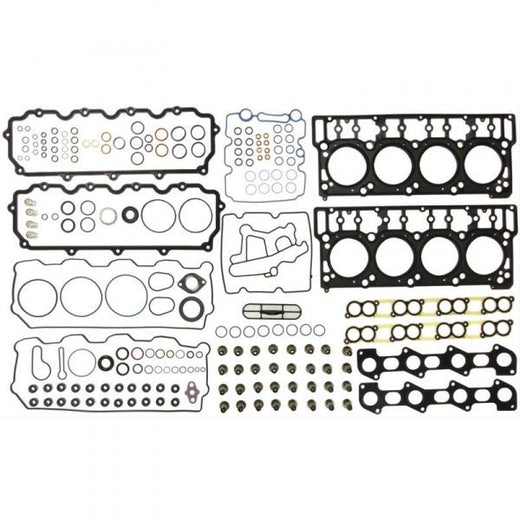

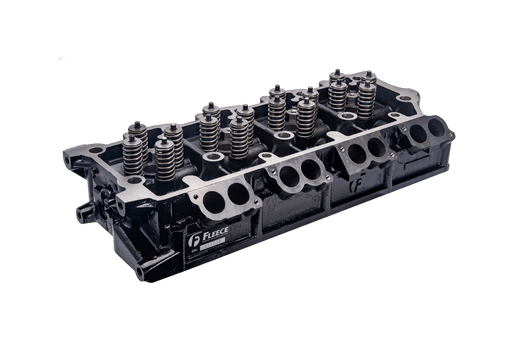

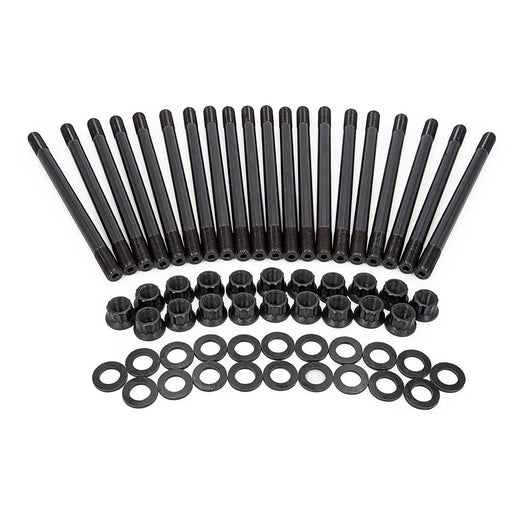

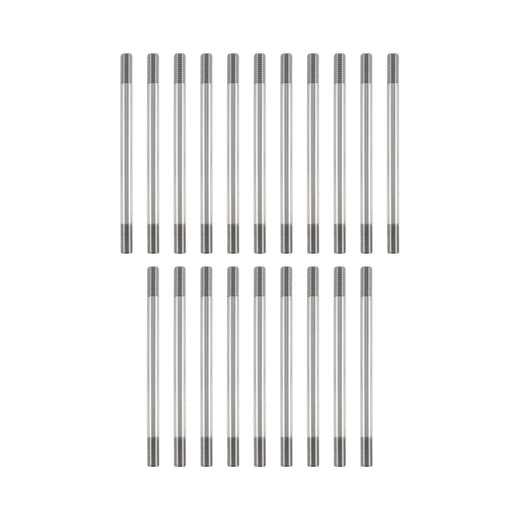

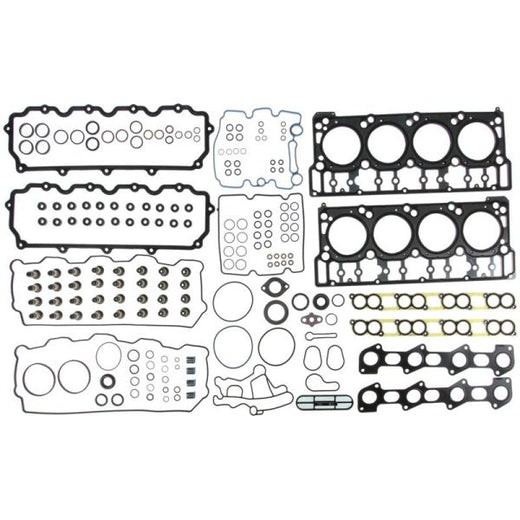

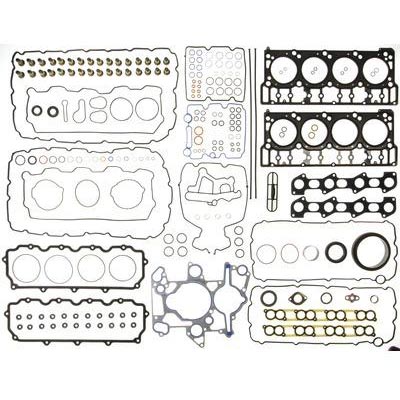

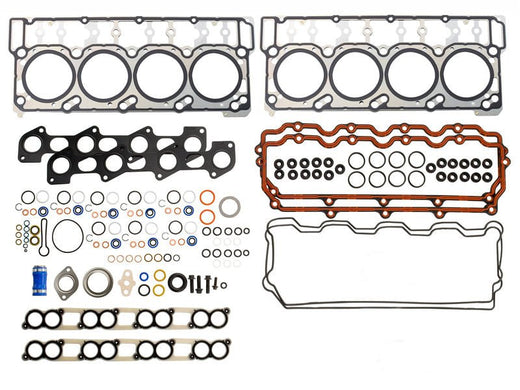

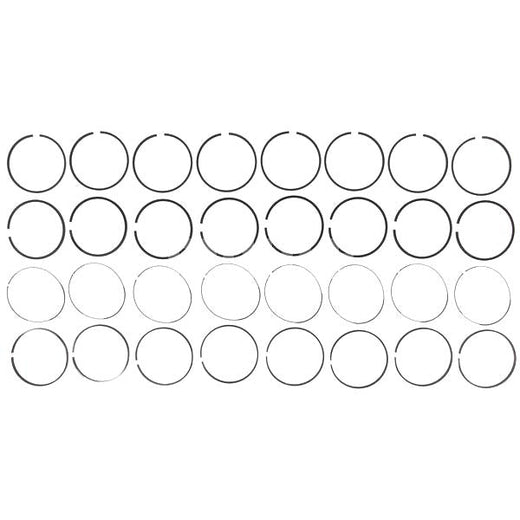

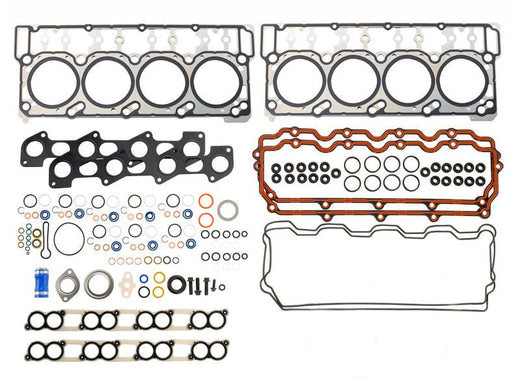

• Heads and bottom end: head stud kits from Pacific Performance Engineering and XDP, a PPE main stud kit, Alliant Power and Mahle head gasket kits, Mahle dowel pins, pistons, and Fleece Performance Engineering Freedom Series HD cylinder heads.

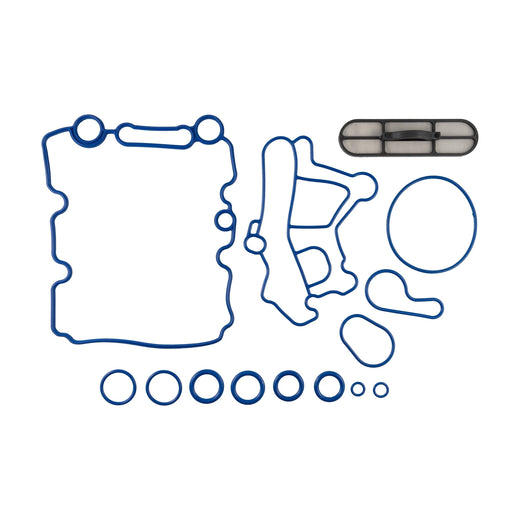

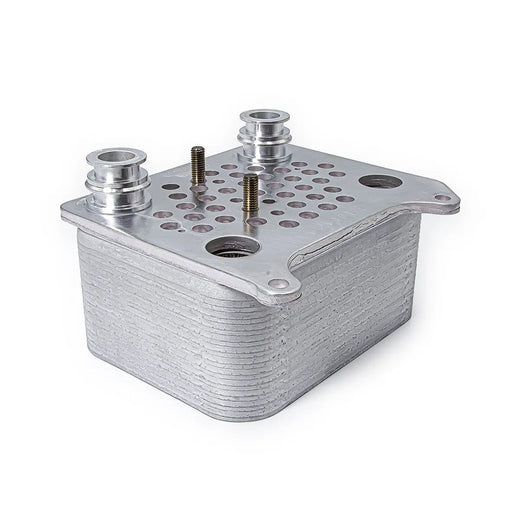

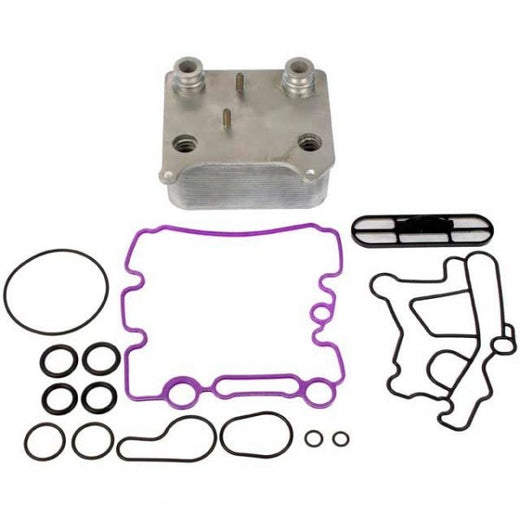

• Oil system: Hot Shot's Secret Green Diamond engine oils, Lucas Oil stabilizers, the Mahle OX783D filter, oil coolers and kits from Dorman, Mishimoto, Alliant Power and PPE, and remanufactured Alliant Power HPOPs with install and seal kits.

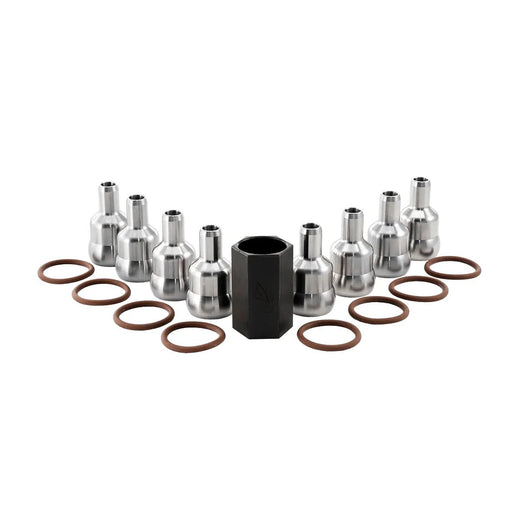

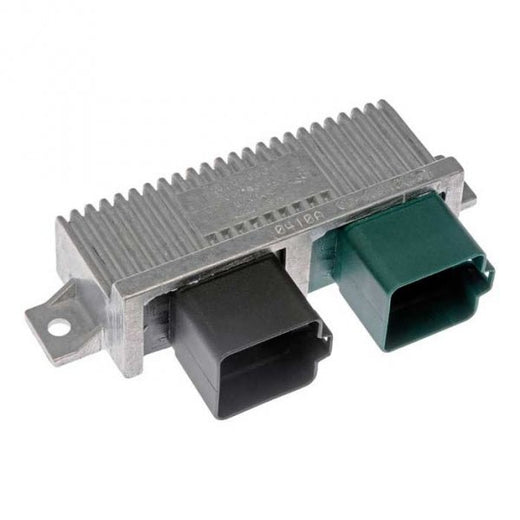

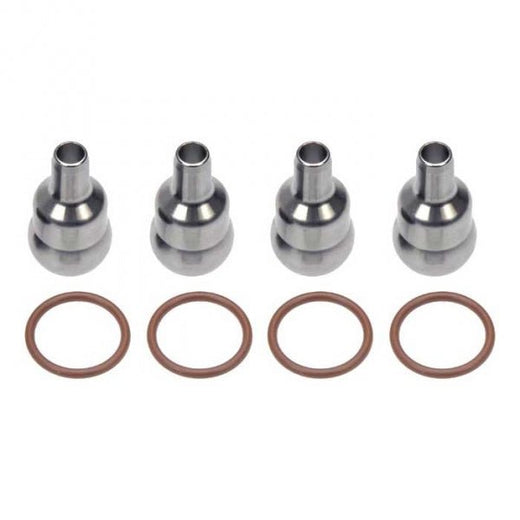

• High-pressure oil and electrical: rail ball tubes and plugs, standpipe kits, glow plug harnesses from Dorman and Mishimoto, the Alliant Power glow plug control module, oil pressure and EOT/ECT sensors, and electric vacuum pumps.

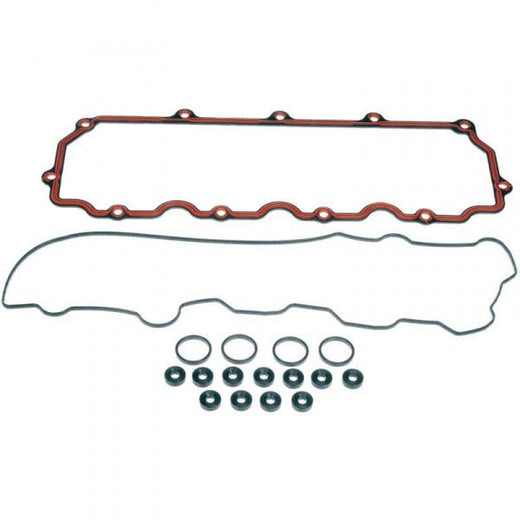

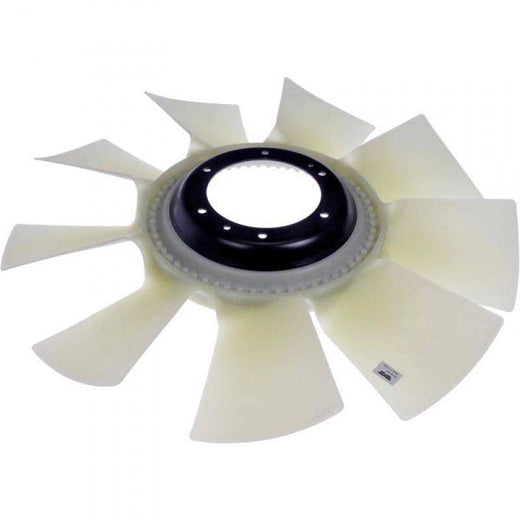

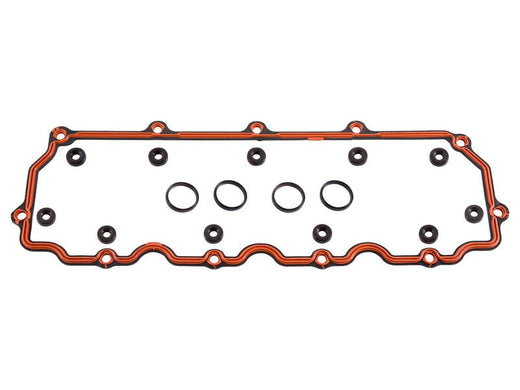

• Accessory drive and top end: Dayco belts, Dayco and Dorman tensioners and idler pulleys, a Dorman harmonic balancer and fan clutch, and valve cover and rocker carrier gasket sets.
• Also in the mix: hardware from Gator Fasteners and parts from BD Diesel.

Fitment notes

Model year alone is not enough on a 6.0L. Early 2003 Super Dutys were still built with the 7.3L, so a 2003 can be either engine. Injectors from engines built before 9/22/2003 do not interchange with later ones, and the 2003-2004 aluminum swash-plate HPOP does not swap with the 2005-2007 cast-iron V-4 pump without the matching branch tube and fittings. Glow plug length changed for 2004, and the early 90 mm water pump must never go into the updated front cover. A 2005 Excursion can carry a 2004-type engine. Identify parts by engine build date and HPOP type, and verify by VIN before you order. Belt and tensioner listings also split by single or dual alternator. The rest of our Ford diesel catalog is on the Powerstroke page.

Frequently asked questions

How often should I change the oil on a 6.0L Powerstroke?

Ford's severe-duty interval is 5,000 miles. Capacity is 15 quarts with a Motorcraft FL-2016 filter, and Ford calls for 15W-40 or 10W-30, with 5W-40 synthetic widely used. Because the same oil drives the injectors, worn oil degrades injector operation before it hurts the bearings.

Should I replace the oil cooler when the EGR cooler fails?

Yes. A restricted oil cooler is what starves the EGR cooler of coolant, and doing only the EGR cooler commonly leads to a repeat failure within 30,000 to 50,000 miles. Treat them as one job. Afterward, check the EOT/ECT delta on a warmed-up truck at steady highway load; under 10 F is healthy.

How do I know if my 6.0L head gaskets are failing?

The classic signs are coolant pushed out of the degas bottle or bubbles in it under load, a heater that blows cold once the engine is hot, overheating while towing, and white smoke. A failed EGR cooler shows the same signs plus white, sweet-smelling exhaust and unexplained coolant loss. Get a diagnosis before you order, because the two repairs need different parts.

Is the 6.0L bottom end strong enough for more power?

Yes, within reason. The bedplate main cap design prevents main cap walk, and the stock heads and rods support roughly 700 rwhp. The weak link is the head bolts, so head studs are highly recommended before you add power.

Do 2003 and 2005 6.0L engine parts interchange?

Many do not. The 2004 model-year engine got a new piston bowl, shorter glow plugs, a 100 mm water pump impeller, wavy high-pressure oil rails and a relocated ICP sensor. For 2005 came the V-4 HPOP with a relocated IPR and longer-ball-tube oil rails. Match parts to your engine build date, not just the model year.

Not sure what fits? Call the shop at the number in the header, or use the fitment checker on any product page. We install everything we sell.
