Turbosmart Constant Tension Clamps 1.625-2.375
Want this installed at our shop?
Fill out the form below and we'll reach out to schedule your installation.
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Turbosmart Constant Tension Clamps 1.625-2.375 you will earn 39 DIESEL DOLLARS in your SDS Fuel Tank!

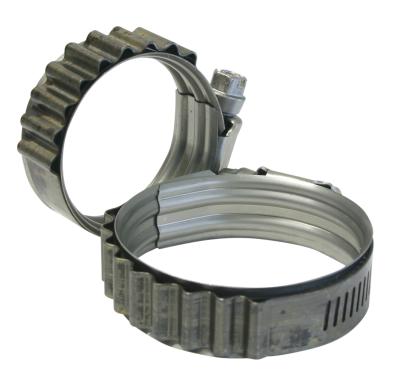

Constant Tension clamps from Turbosmart are designed to compensate for hoses’ thermal cycling and deformation, such as silicon hose and rubber. As components like couplers, pipes and hoses heat cycle within an engine bay, they expand and contract in size. Our Constant Tension clamps outer ‘Spring Action Band’ works to maintain consistent force & load for maximum reliability, including against deformation and ‘Compression Set’.
No more cut or bruised silicon hose thanks to this unique design that allows the hose to expand and contract through heat cycles while maintaining perfect tension.
Includes 2 Clamps
Available In
28-38mm (1.125-1.500”) –TS-HCT-M033
35-48mm (1.375-1.875”) –TS-HCT-M042
41-60mm (1.625-2.375”) –TS-HCT-M050
50-73mm (1.970-2.875”) –TS-HCT-M062
64-86mm (2.500-3.375”) –TS-HCT-M075
70-92mm (2.750-3.625”) –TS-HCT-M081
95-117.5mm (3.750-4.625”) –TS-HCT-M100
Features
Dual Spring Action through convoluted Spring Action Band
Dual Bead Inner shell for concentrated sealing force
Flanged Edges for protection of soft hose compounds
Reduced Stress & Distress to the hose, increasing service life
Recommended Installation Tips
Tool(s) Required: Flat Head Screwdriver or 5/16” Socket
Installation Torque: 5.6Nm / 50in.lbs
