2004.5-2005 GMC Duramax LLY Air Intake Parts

How the intake tract works on the 2004.5-2005 GMC LLY

Think of the LLY intake as two halves split by the turbo. The low-pressure half is the fender airbox, the filter, a resonator and the intake tube leading to the turbo inlet manifold on the compressor side of the Garrett GT3788VA. The high-pressure half is everything after the compressor wheel: the hot-side pipe, the air-to-air intercooler sandwiched between the radiator and the A/C condenser, the cold-side pipe, and the two-piece Y-bridge that feeds both banks. The EGR valve meters cooled exhaust into the charge, and the crankcase vents into the intake. That compressor wheel is 62 mm with 11 blades, bigger than anything on an LB7, LBZ or LMM, and it is bolted behind a factory inlet that necks down and will not let it breathe. The mouthpiece and the Y-bridge are the two restrictions that define this engine's reputation. Everything else on this page is either feeding those two points or cleaning up after them.

What goes wrong on a working Sierra

The pattern is heat. A Sierra 3500 dually pulling a fifth-wheel up an overpass into a headwind is the classic case: coolant temperature climbs, EGT runs higher than the load should produce, and the fan clutch locks up and stays loud. The choked inlet drives up drive pressure and intake temperature, and that heat goes into the smallest radiator ever fitted to a Duramax while the EGR cooler adds its share. For 2006 GM answered with a redesigned turbo inlet, a larger radiator and a better fan. The LBZ-style horn measures about 8-10 inHg of restriction at peak flow where the LLY piece shows 15-20 inHg, which is the whole story in two numbers. Separately, the charge-air side ages. Plastic factory intercooler pipes crack, boots seep oil, clamps back off, and a boot that pops under load leaves the truck soft while the ECM chases the missing boost with fuel. Debris packed into the cooling stack robs airflow from the intercooler and radiator at the same time. EGR soot and PCV oil gradually coat the Y-bridge and runners, and a clogged filter will throw symptoms that look exactly like a sticking VGT.

When to replace and when to upgrade

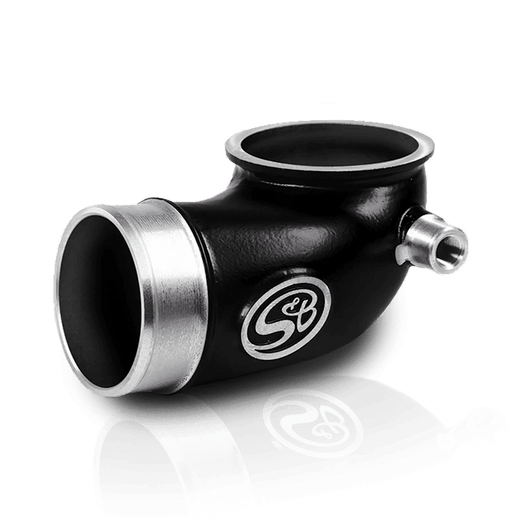

If your Sierra is stock and the complaint is a soft feel or a hiss, replace: intake tube seals, a boot and clamp kit, or an aluminum charge pipe where the plastic one split. Those are maintenance, not modifications. If the complaint is temperature under load, upgrade the inlet. S&B's 76-1006B turbo inlet manifold claims a 78.6 percent flow gain over stock on the ISO 5011 bench, and Diesel Resource cites inlets in that class at 73-76 percent more airflow with lower EGT and quicker spool. An intercooler with more core, such as the Banks Techni-Cooler at 25 percent more volume than stock, keeps charge temperature down on long pulls. For tuned trucks, a one-piece 3-inch Y-bridge removes the second restriction and is worth up to 30 hp while lowering intake air temperature. A cold air intake is the last step rather than the first on this engine; the shop featured in Diesel World's LLY head-gasket story recommends an intake upgrade on every LLY it works on because the factory intake chokes the turbo under high load, but the mouthpiece is where the restriction lives.

What is in this collection

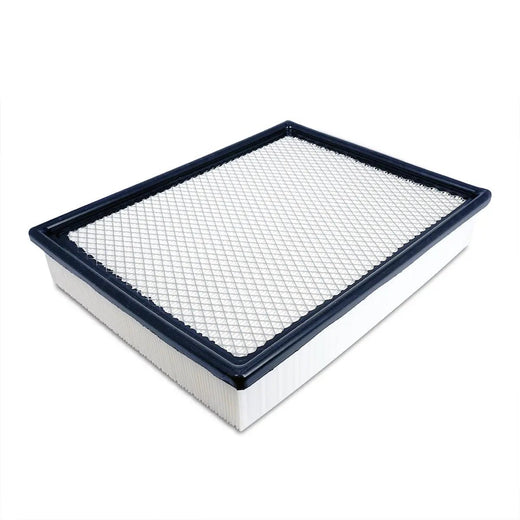

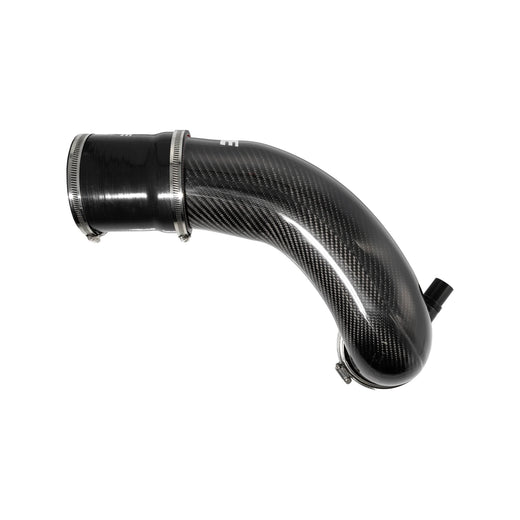

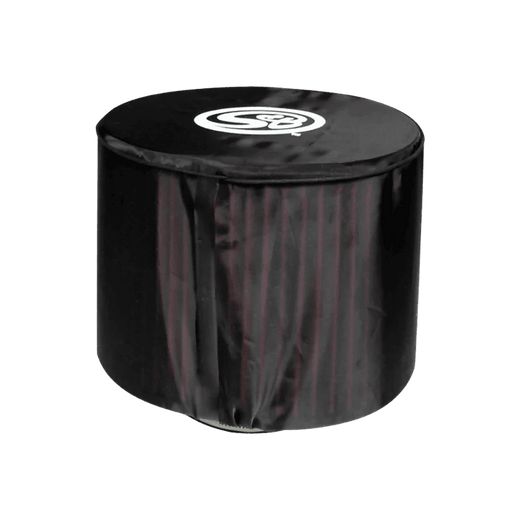

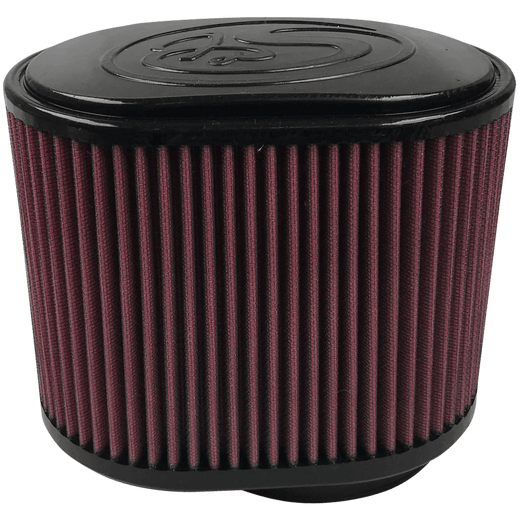

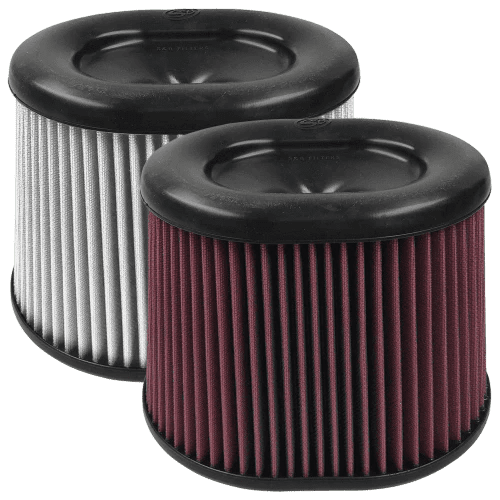

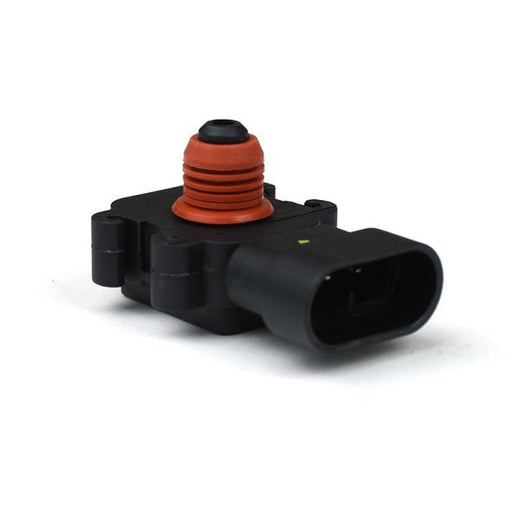

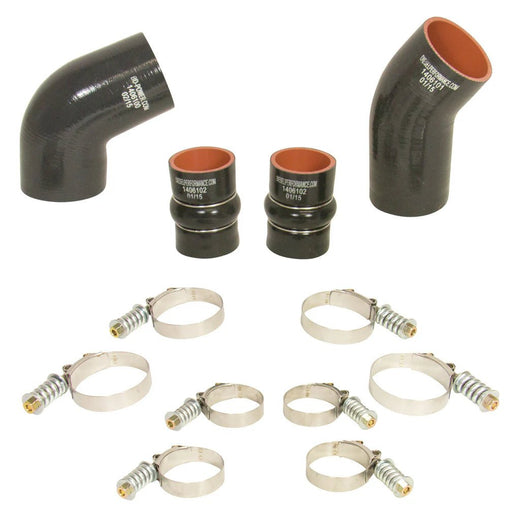

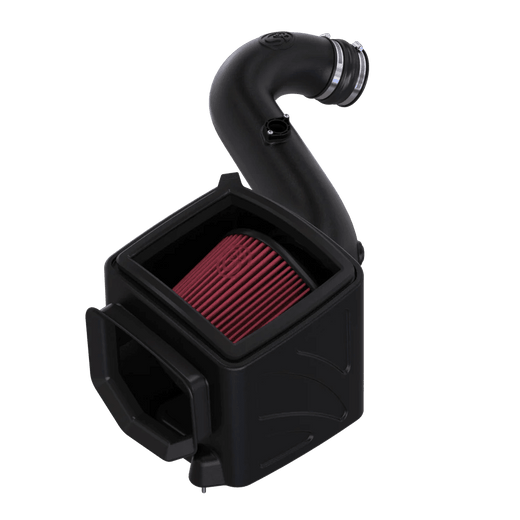

The heavy hitters are PPE (silicone elbow couplings, a hose and clamp kit, a 3-inch hot-side pipe, a hump coupler, Y-bridge and throttle-body gaskets, an air filter element, a MAF block and the Zilla carbon fiber turbo inlet), Wehrli Custom Fabrication (4-inch inlet dry filters and Outerwears covers among them), and S&B with the 75-5102 cold air intake, the 76-1006B turbo inlet manifold, hot and cold side boot kit, silicone couplers, replacement filters, a filter wrap and a cleaning kit. BD Diesel adds the 1046276 intake hose and clamp kit, high-torque clamps and Positive Air Shutdown valves. Mahle contributes the LX2562 filter plus intake manifold and engine gasket sets for when the Y-bridge comes off. Banks Power lists the 42138 element and 42643 pre-filter wrap. Mishimoto has the MMINT-DMAX-01 intercooler, a factory-fit boot kit and a hot-side pipe kit; CSF has an OEM-plus and a heavy-duty intercooler. Sensors and small parts come from XDP (MAF and barometric pressure sensors), Alliant Power (MAF), G&R Diesel (MAP and MAF bungs) and Merchant Automotive (intake tube seals). Browse all intakes or the Duramax hub for other years.

Fitment notes for the Sierra

Work Truck, SLE and SLT Sierras all share the same intake hardware; there was no HD Denali in this era. The parts are the same for the 2500HD and the 3500, single or dual rear wheel, regular, extended or crew cab, 2WD or 4WD. What matters is the engine code: the eighth VIN character is 2 for an LLY and 1 for an LB7, and a truck built early in the 2006 run can be coded LLY while carrying 2006 hardware, so treat 2006 as a separate fitment. The mouthpiece connection and the Y-bridge changed for the LBZ, which is why charge-pipe and intercooler kits are listed 2004.5-2005 on their own. California owners: S&B publishes the 76-1006B as not shippable to California and not street legal there. Check the CARB EO status on the product page for any intake kit before ordering for a California-registered truck.

Frequently asked questions

How do I tell whether my Sierra has an LLY or an LB7?

Read the eighth character of the VIN. A 2 is an LLY; a 1 is an LB7. The LLY also has its injectors and return lines outside the valve covers, where an LB7 hides them underneath, and it wears an EGR valve and cooler in the engine valley. The front clip is the same 2003-2007 cat-eye design either way, so the body will not tell you.

What is the first intake upgrade for a Sierra that tows?

The turbo inlet manifold. It is the restriction that raises drive pressure and heat on this engine, and DrivingLine calls it the most affordable and effective overheating fix. Pair it with a clean cooling stack and sound boots. Add intercooler capacity or a one-piece Y-bridge after that if the truck is tuned or works hard in summer.

Can a dirty air filter really look like a bad turbo?

Yes. A restricted filter starves the compressor and produces the same lazy spool and high EGT that owners blame on sticking vanes. BD Diesel's diagnostic order starts with boost leaks and intake restriction before anything is done to the turbo. On sand roads and job sites, check the element more often than the manual suggests and run a pre-filter wrap.

Do I need new gaskets when I pull the Y-bridge to clean it?

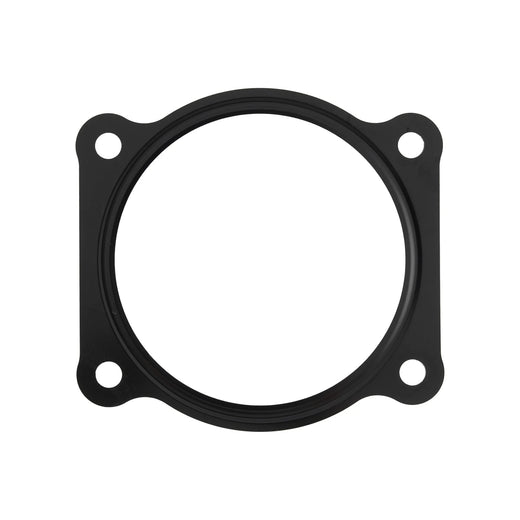

Plan on it. EGR soot and PCV oil coat the Y-bridge and runners over time, and once the two-piece bridge is apart the gasket surfaces should get fresh parts. This collection has the Y-bridge to upper intake pipe gasket, the throttle body to grid heater gasket and Mahle intake manifold gasket sets for the job.

Not sure what fits? Call the shop at the number in the header, or use the fitment checker on any product page. We install everything we sell.
