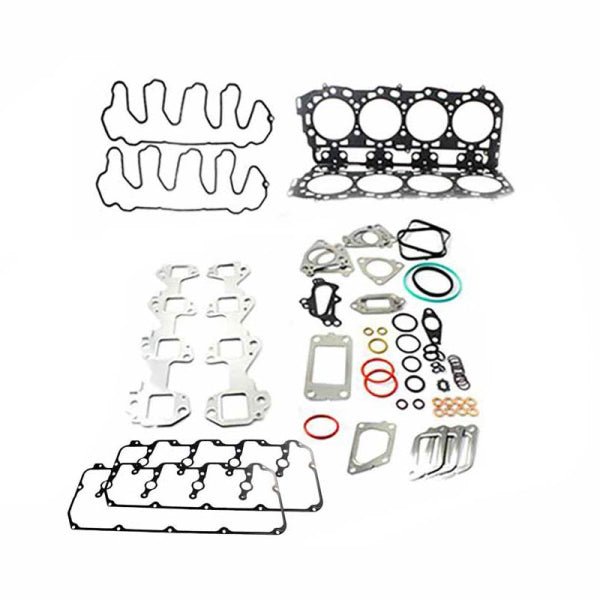

Merchant Automotive 450400C Engine Gasket Set (With Head Gaskets) (2011-2016 6.6L Duramax)
Fits: Chevrolet • GMC
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Merchant Automotive 450400C Engine Gasket Set (With Head Gaskets) (2011-2016 6.6L Duramax) you will earn 500 DIESEL DOLLARS in your SDS Fuel Tank!
The Merchant Automotive 450400C is a complete engine gasket set with Grade C head gaskets for 2011-2016 Chevrolet Silverado and GMC Sierra 2500HD and 3500HD trucks with the 6.6L LML Duramax. It is built for a head gasket job or a full rebuild, where you need a large variety of gaskets and seals at once and would rather order one part number.
Fitment
Built for 2011-2016 Chevrolet Silverado 2500HD and 3500HD and GMC Sierra 2500HD and 3500HD with the LML 6.6L Duramax. Several seals in the set are also used on other Duramax engines, as the item list shows, but the set as a whole is assembled for the LML. Head gaskets are included; head bolts are NOT included. Verify fitment by VIN or call us.
Why this part
When you are replacing blown head gaskets or rebuilding an LML Duramax, you need a large variety of gaskets and seals to get the job done. Merchant Automotive put this kit together with OE-style and upgraded parts to help make sure your LML gaskets perform to OE spec. It runs to more than 30 line items, from the injector coppers, injector body seals and return line seals to the upper and lower valve cover gaskets, the turbo and up pipe gaskets, the intake Y bridge seals, the PCV seals and the EGR valve and cooler gaskets, so the EGR system goes back together sealed.
Head gasket grade is the detail to get right before you order. GM head gaskets for the 2001-2016 6.6L Duramax are side-specific and come in thickness grades (A, B and C) selected by measured piston protrusion. This set ships with Grade C head gaskets, so measure protrusion first and confirm Grade C is right for your engine. If you need a different grade, Merchant also sells this gasket set without head gaskets or bolts as part number 4504000.
Head bolts are not in the box, so have head bolts or head studs ready before the heads go back on. ARP 230-4201 head studs fit 2001-2016 6.6L Duramax, raise clamp load about 25%, and are recommended whenever head gaskets are replaced, especially on trucks that tow heavy or are tuned.
What you get
Kit Includes:
- Grade C Head Gaskets
- (1) - Injector Copper, LLY LBZ LMM LML, 2004.5+, Pack of 8
- (1) - LML Injector Body Seal, 2011+, 8 Pack, Duramax
- (1) - LML Injector Fuel Return Line Seal, 2011-2016, 8 Pack, Duramax
- (1) - EGR Coolant Pipe Drain Seal, LML LGH, 2011-2016 Duramax
- (2) - Upper Valve Cover Gasket, LML LGH, 2011-2016 Duramax
- (1) - PCV Valve Seal, LML, 2011 Duramax
- (1) - Upper Bypass Pipe Seal at Thermostat Housing, LB7 LLY LBZ LMM LML LGH, 2001-2016 Duramax
- (1) - Bypass Pipe Seal, LB7 LLY LBZ LMM LML, 2001-2016 Duramax
- (2) - Oil Level Indicator Tube Seal, LB7 LLY LBZ LMM LML LGH, 2001-2016 Duramax
- (2) - Gasket - Exhaust Manifold To Up Pipe, LB7 LLY LBZ LMM LML LGH, 2001-2016 Duramax
- (2) - Gasket - Turbo To Up Pipe, LB7 LLY LBZ LMM LML LGH, 2001-2016 Duramax
- (2) - Intake Y Bridge Gasket, LBZ LMM LML LGH, 2006-2016 Duramax
- (1) - RTV Sealant, High Temp, Aluminum, 2.8oz LB7 LLY LBZ LMM LML, L5P 2001-2019 Duramax
- (1) - Fuel Feed Pipe Gasket, LML LGH, 2011-2016 Duramax
- (2) - Thermostat Housing Crossover At Head Gasket, LB7 LLY LBZ LMM LML LGH, 2001-2016 Duramax
- (1) - Turbo Oil Feed Pipe Gasket, At Engine, LML LGH, 2011-2016 Duramax
- (1) - Upper Intake Y Bridge Seal, LML, 2011-2016 Duramax
- (1) - Turbo Mouthpiece Inlet Seal, LML LGH, 2011-2016 Duramax
- (2) - EGR To Y Bridge Gasket, LML LGH, 2011-2016 Duramax
- (1) - Oil Fill Tube Seal, LB7 LLY LBZ LMM LML, 2001-2016 Duramax
- (2) - EGR Valve Gasket, LML LGH, 2011-2016 Duramax
- (1) - Up Pipe To EGR Gasket, Cooler Bypass, LML, 2011-2016 Duramax
- (1) - EGR Valve Cooler Gasket, LML, 2011-2016 Duramax
- (1) - EGR Valve Gasket, Between EGR Cooler Assembly, LML, 2011-2016 Duramax
- (1) - EGR Recirculation Pipe Gasket, LML, 2011-2016 Duramax
- (2) - Exhaust Manifold Gasket, LB7 LLY LBZ LMM LML LGH, 2001-2016 Duramax
- (2) - PCV Drain Ventilation Hose Fitting Seal, Hose Side And Block Side, LML LGH, 2011-2016 Duramax
- (1) - Turbo Oil Return Pipe Gasket At Engine, LML LGH, 2011-2016 Duramax
- (1) - PCV Oil Separator Seal, LML LGH, 2011-2016 Duramax
- (2) - PCV Valve Seal, LML, 2012-2016, Turbo Resonator, LML, 2011-2016 Duramax
- (2) - Lower Valve Cover Gasket LLY LBZ LMM LML
Note: Head Gaskets Included & Head Bolts NOT Included
Manufacturer warranty: 1 Year Limited.
About Merchant Automotive
Merchant Automotive started in Holland, Michigan, in 2004 and has kept its focus narrow: the 6.6L Duramax and the Allison transmission behind it. That focus shows in the catalog, which leans toward fixes for known weak spots on these trucks rather than parts for every make on the road.
Frequently asked questions
Are head bolts included with the 450400C?
No. The set includes Grade C head gaskets, but head bolts are not included. Plan on new head bolts or a set of ARP 230-4201 head studs, which fit 2001-2016 6.6L Duramax engines.
How do I know Grade C head gaskets are right for my LML?
Measure piston protrusion. GM head gaskets for the 6.6L Duramax come in A, B and C thickness grades, and that measurement decides which one you need. If your engine calls for a grade other than C, order the 4504000 set and source the head gaskets separately.
Does the kit come with sealant?
Yes. It includes one tube of RTV Sealant, High Temp, Aluminum, 2.8oz.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
