Mag-Hytec AA14-9.25-A Front Differential Cover (2003-13/12 5.9/6.7L Cummins)
Fits: Cummins CR (2003-2007 5.9L Cummins)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Mag-Hytec AA14-9.25-A Front Differential Cover (2003-13/12 5.9/6.7L Cummins) you will earn 360 DIESEL DOLLARS in your SDS Fuel Tank!

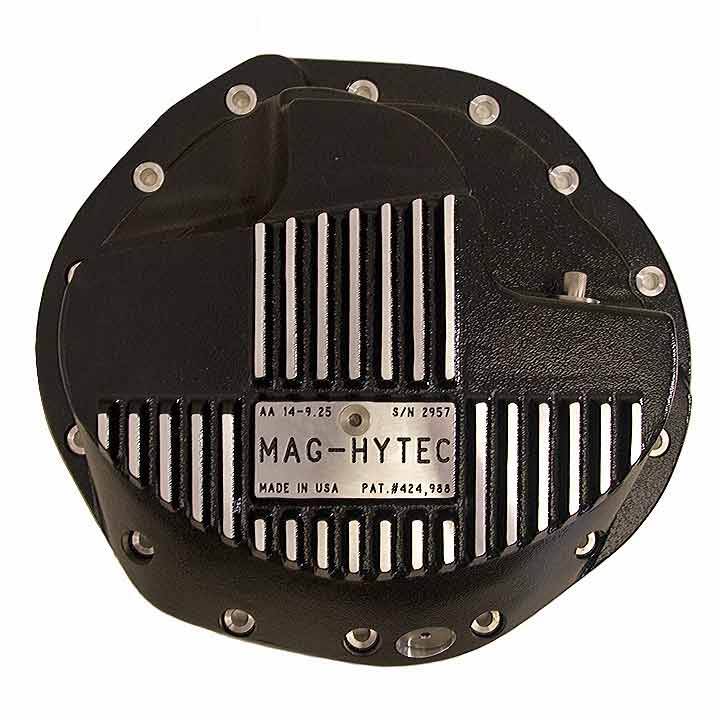

The Mag-Hytec AA14-9.25-A is an aluminum front differential cover for the AAM 9.25 front axle on 4x4 Dodge Ram 2500 and 3500 trucks with the 5.9L Cummins. It holds 4 quarts, has a magnetic drain plug and a dipstick, and gives you a 1/8" NPT port for a temperature sender. Owners buy it for easier front diff service and a way to watch the gear oil.
Fitment
We list this cover for 2003-2007 Dodge Ram 2500 and 3500 4x4 trucks with the 5.9L common-rail Cummins, Standard and High Output. Mag-Hytec's own application line is wider: Dodge Front 2003-2013 2500 & 2003-2012 3500 Standard & High Output Diesel. That range runs into the 6.7L years, which our catalog does not tag for this part, so verify fitment by VIN or call before ordering for a 6.7L truck.
Mag-Hytec notes that this re-designed cover works on 90% of Dodge trucks. Stack tolerances differ from one truck to the next, so some modification could be required to clear all steering components. Be extra attentive to fitment and clearance before you install it.
Why this part
A front cover with a drain plug and a dipstick changes how you service the axle. Check the gear oil level with the anodized, magnetized aluminum dipstick, and drain through the magnetic drain plug instead of pulling the cover. The magnet holds the fine wear metal the axle sheds so it stays out of the oil between services. Capacity is 4 quarts.
The 1/8" NPT temperature port lets you add a sender and watch front diff temperature on a gauge. The cover seals with a Lube Locker gasket and bolts on with 303 stainless steel hardware.
What you get
- Mag-Hytec AA14-9.25-A front differential cover
- Lube Locker gasket
- Magnetic drain plug
- Anodized, magnetized aluminum dipstick
- 303 stainless steel hardware
Specifications
Part number: AA14-9.25-A. Mag-Hytec's feature list:
- 4 Quart Capacity
- Overall height 3 5/8"
- Lube Locker Gasket
- Magnetic Drain Plug
- 1/8" NPT Temperature Port
- 303 Stainless Steel Hardware
- Anodized, Magnetized Aluminum Dipstick
Installation notes
Because stack tolerances vary, set the cover in place and check clearance to the steering components before you bolt it down and fill it. The overall height is 3 5/8", so that is the number to measure against your steering parts. Most Dodge trucks take it as designed; Mag-Hytec says some may need modification to clear all steering components.
About Mag-Hytec
Mag-Hytec is based in Van Nuys, California. The name comes from the magnetic drain plug in every unit, which holds the fine wear metal a transmission or axle sheds. The company builds cast aluminum differential covers and transmission pans for Cummins, Duramax and Power Stroke trucks, each with a port for a temperature sender.
Frequently asked questions
Does this cover fit my 6.7L Ram?
Mag-Hytec lists it for 2003-2013 Ram 2500 and 2003-2012 Ram 3500 front axles, Standard and High Output. Our catalog tags it for the 2003-2007 5.9L, so send us your VIN and we will confirm it for a 6.7L truck before you order.
Will it hit my steering parts?
It clears on about 90% of Dodge trucks. Stack tolerances differ from truck to truck, so some trucks need modification to clear all steering components. Check clearance before you install.
How much gear oil does it hold?
The cover is rated at 4 quarts capacity. Check the level with the included aluminum dipstick.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
