Mag-Hytec 727-DD Extra Deep Transmission Pan (1989-2007 5.9L Cummins)
Fits: Cummins 12V (1989-1993 5.9L Cummins) • Cummins 12V (1994-1998 5.9L Cummins) • Cummins 24V (1998.5-2002 5.9L Cummins) • Cummins CR (2003-2007 5.9L Cummins)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Mag-Hytec 727-DD Extra Deep Transmission Pan (1989-2007 5.9L Cummins) you will earn 360 DIESEL DOLLARS in your SDS Fuel Tank!

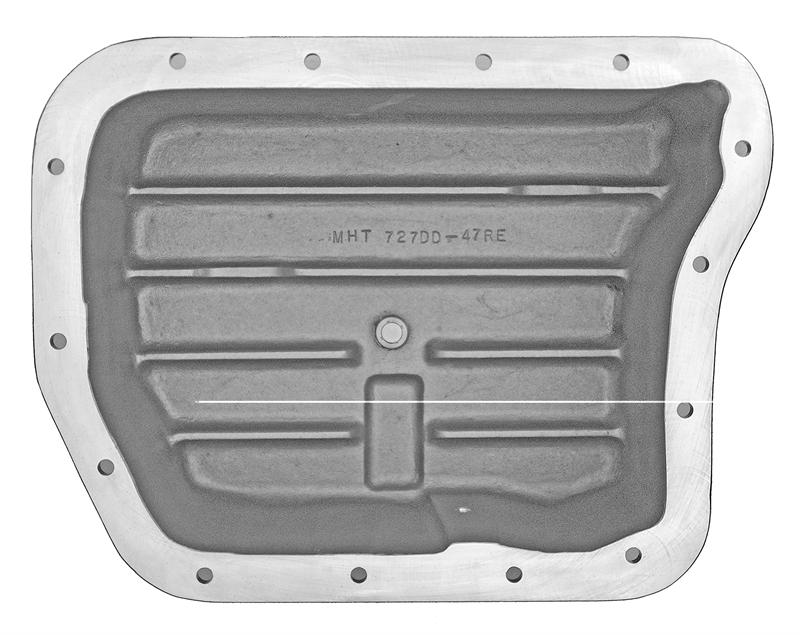

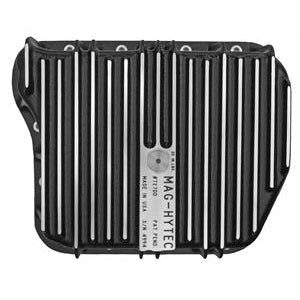

The Mag-Hytec 727-DD extra deep transmission pan fits the 727-family automatics behind the 5.9L Cummins in 1989-2007 Dodge D/W and Ram trucks. It is finned aircraft grade aluminum, holds 4 quarts more than stock and comes with a magnetic drain plug, a Transtar gasket and a 1/8 NPT temperature sender port. You buy it for the extra fluid and cooling of a deep sump.
Fitment
Listed for 1989-2007 Dodge trucks with the 5.9L Cummins and an automatic transmission from Mag-Hytec's application list: the 1989-1993 Dodge Ram D250/D350 and Power Ram W250/W350 (12-valve), 1994-1998 12-valve and 1998.5-2002 24-valve Dodge Ram 2500/3500, and 2003-2007 common-rail Dodge Ram 2500/3500. The application list runs the 46RE/47RE from 1996 to 2001 and the 48RE from 2003 to 2007, so it does not name 2002. If you have a 2002 truck, verify fitment by VIN or call us before you order. Manual-transmission trucks do not use this pan. Mag-Hytec says you must check for clearance, since an extra deep pan sits lower than stock. Shop more parts for these trucks on our Cummins page.
Why this part
The deep sump is the point of this pan. Holding 4 quarts more than the stock pan puts more fluid in the transmission to carry heat, and the finned aluminum bottom gives that heat more surface to leave through. Because the pan is extra deep, Mag-Hytec includes a filter spacer block for the overdrive 727 transmission bodies. The magnetic drain plug collects fine wear metal so it stays out of the fluid between services. The built-in 1/8" temperature port gives you an easy location to install a sender for a transmission temperature gauge, so you can see what the fluid is doing on a long pull with a trailer behind you. On a transmission that has been working behind a Cummins for years, that kind of information is worth having.
What you get
- Mag-Hytec 727-DD extra deep transmission pan, finned aircraft grade aluminum
- Magnetic drain plug
- Transtar gasket
- Filter spacer block for the overdrive 727 transmission bodies
- Three Allen key wrenches for installation and service
- Transmission filter not included
Specifications
- Magnetic Drain Plug
- Includes Transtar Gasket
- Holds 4 Quarts More Than Stock
- 1/8 NPT Temperature Sender Port
- Finned Aircraft Aluminum Construction
- Deep High-Capacity Sump For Maximum Cooling
- 303 Hardware Except Allen Head Cap Screws Are Zinc Plated
- Requires Only Three Allen Key Wrenches (Included) For Installation And Service
- Extra Deep - Includes Filter Spacer Block For The Overdrive 727 Transmission Bodies
Applications:
- 36RH/37RH - 1966 to 1989
- 46RH/47RH - 1989 to 1995 and is also called the A-518
- 46RE/47RE - 1996 to 2001
- 48RE - 2003 to 2007
Note: Transmission Filter Not Included. Must Check For Clearance.
Installation notes
Mag-Hytec says the pan requires only three Allen key wrenches for installation and service, and all three are in the box. Before you install, check for clearance under the transmission: this is an extra deep pan and Mag-Hytec says clearance must be checked. On the overdrive 727 transmission bodies, use the included filter spacer block. Order a filter separately, and plan on about 4 more quarts of fluid than a stock pan change.
About Mag-Hytec
Mag-Hytec, out of Van Nuys, California, takes its name from the magnetic drain plug it puts in every cover and pan. The parts are cast aluminum with machined fins to shed heat, and each one holds more fluid than stock. Alongside its deep transmission pans for 68RFE and 727-D applications, Mag-Hytec makes front and rear differential covers for Cummins, Duramax and Power Stroke trucks. Browse them on our Mag-Hytec page.
Frequently asked questions
Which transmissions does the 727-DD fit?
Mag-Hytec lists the 36RH/37RH, the 46RH/47RH (also called the A-518), the 46RE/47RE and the 48RE. Behind the 5.9L Cummins, that covers 1989-2007 trucks. The list does not name the 2002 model year, so 2002 owners should verify by VIN or call us.
What comes in the box?
The pan, a magnetic drain plug, a Transtar gasket, the filter spacer block for overdrive 727 bodies and the three Allen key wrenches you need to install and service it. The transmission filter is not included.
Will an extra deep pan hit anything?
Mag-Hytec says you must check for clearance. Look at the space under your current pan before you install, or call us and we will talk through your truck.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
