Mag-Hytec 68RFE Transmission Pan (2007.5-2024 6.7L Cummins)
Fits: Cummins 6.7L (2007.5-2012 Cummins) • Cummins 6.7L (2013-2018 Cummins) • Cummins 6.7L (2019-Current Cummins)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Mag-Hytec 68RFE Transmission Pan (2007.5-2024 6.7L Cummins) you will earn 370 DIESEL DOLLARS in your SDS Fuel Tank!

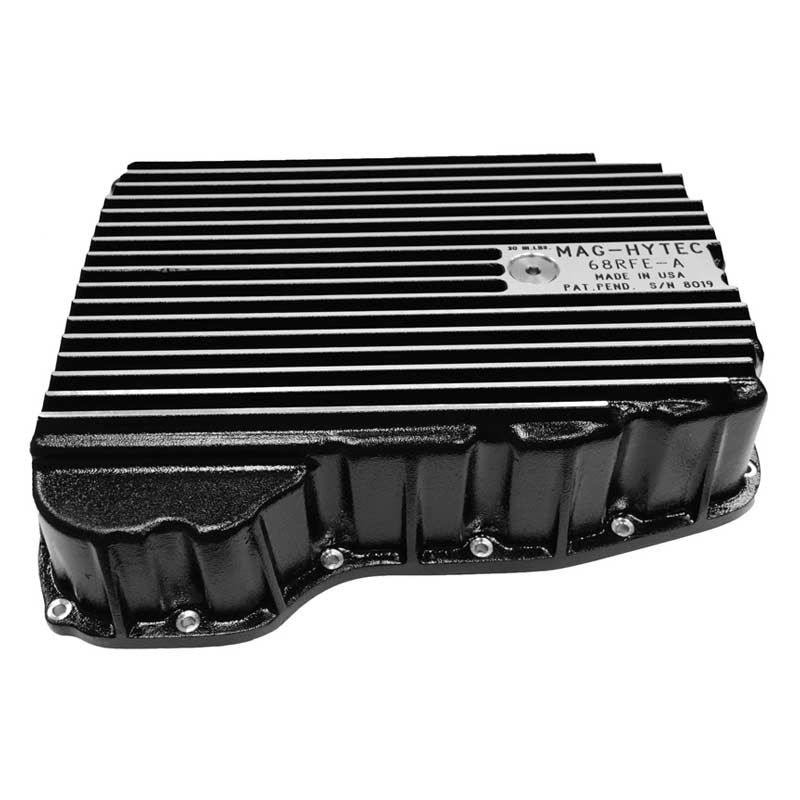

The Mag-Hytec 68RFE transmission pan, part number 68RFE-A, replaces the factory pan on 2007.5-2024 Dodge Ram and Ram 2500/3500 pickups with the 6.7L Cummins and the 68RFE automatic. It is finned aircraft grade aluminum, holds 3 quarts more than stock and adds a magnetic drain plug and a 1/8" NPT temperature sender port. You buy it for more fluid and more cooling.
Fitment
This pan fits the 68RFE automatic behind the 6.7L Cummins in 2007.5-2024 Dodge Ram and Ram 2500/3500 pickups. That covers all three generations of the engine in that span: 2007.5-2012, 2013-2018 and 2019-2024. It is not listed for 2025-and-newer trucks, which use the TorqueFlite HD 8-speed automatic instead of the 68RFE. Trucks with a manual transmission, and chassis cabs built with the Aisin automatic, are not 68RFE trucks and need a different pan. Verify fitment by VIN or call us before you order. More parts for your truck are on our Cummins page.
Why this part
Mag-Hytec built this pan to protect the transmission with extra depth and fluid capacity for maximum cooling. Three more quarts in the sump means more fluid sharing the heat load, and the fins on the bottom give that heat more surface to leave through. The magnetic drain plug holds the fine wear metal a transmission sheds so it stays out of the fluid between services, and every drain shows you what has collected on it. The built-in 1/8" temperature port gives you an easy place to install a sender for a transmission temperature gauge, so you can watch fluid temperature when you tow instead of guessing.
What you get
- Mag-Hytec 68RFE transmission pan (68RFE-A), finned aircraft grade aluminum
- Magnetic drain plug
- Built-in 1/8" NPT temperature sender port
- Transmission filters not included
Specifications
- Magnetic Drain Plug
- Holds 3 Quarts Over Stock
- 1/8" NPT Temp Sender Port
- Finned Aircraft Aluminum Construction
Application notes: Transmission filters not included.
About Mag-Hytec
Mag-Hytec is based in Van Nuys, California. The name comes from the magnetic drain plug in each unit, there to hold wear metal out of the fluid. Its covers and pans are cast aluminum with machined cooling fins, hold more fluid than stock and carry a port for a temperature sender. See the full line, including differential covers, on our Mag-Hytec page.
Frequently asked questions
Does the pan come with a transmission filter?
No. Transmission filters are not included, so order one with the pan. Since the pan holds 3 quarts more than stock, plan on about 3 extra quarts of fluid at the first fill.
What goes in the temperature port?
The 1/8" NPT port takes a temperature sender for a transmission temperature gauge. The sender and gauge are not part of this listing.
Will it fit my 2025 Ram?
No. This pan is for 2007.5-2024 trucks with the 68RFE. 2025-and-newer Ram pickups use the TorqueFlite HD 8-speed. If you are not sure which transmission your truck has, verify by VIN or call us.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
