2011-2014 Ford 6.7L Powerstroke Charging & Starting Parts

Charging and starting on the 2011-2014 Ford 6.7L Powerstroke

Your Super Duty runs two Group 65 batteries wired in parallel, fed by a belt-driven alternator. Single-alternator trucks carry a heavy-duty unit rated around 150-157 amps. Ford also offered a dual-alternator option that adds a second, lower alternator under the upper one, and the two are different part numbers and different amperages. The serpentine belt is different between the single and dual setups too. That matters the minute you shop, so look under the hood before you order. The 6.7L Powerstroke is a 16.2:1 compression V8, and it needs strong cranking and working glow plugs to start cold, so the whole circuit, from the battery posts to the starter and back through the grounds, has to be healthy.

What fails and why

Start with the batteries. Weak or mismatched batteries, and voltage drop across tired cables and grounds, cause slow cranks, extended cranks and no-starts, especially when the truck will not light on the first try in the cold. Batteries typically last three to five years, and the fix is to replace them as a pair and load-test them once a year. A bad battery also overworks the alternator and leads to early alternator failure.

Alternators on these trucks fail at the bearings or diodes, usually at high mileage. You hear a whine that rises with rpm, the lights dim or flicker, and the dash shows a Check Charging System message. Be careful here: faults in the wiring or the PCM command circuit look the same, so pinpoint-test before you buy. One quick check: with the key on and the engine off, the battery light should come on. If it does not, suspect the command circuit, not the alternator.

Glow plugs and the glow plug control module are the other cold-start culprit, and plug failures tend to show up past 100,000 miles. Early 2011 trucks used two-piece glow plugs, a known early-build issue. The starter is seldom the first suspect: our research turned up no platform-specific starter failure pattern on this engine.

Stock replacement vs. upgrade

If your truck and its electrical load are stock, an alternator matched by Ford part number and amperage is all you need. A high-output alternator makes sense when you run a plow, a winch, an inverter or other high-draw gear. For batteries, AGM Group 65 pairs suit high-draw and cold-climate trucks, and 750 CCA is the common OE-equivalent rating. A heavy-duty gear-reduction starter is a sensible replacement once you have proven the batteries, cables and glow plugs are good and the starter is the part that quit.

What we carry

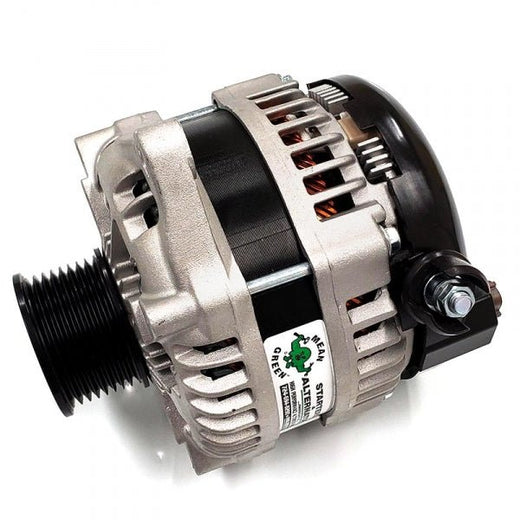

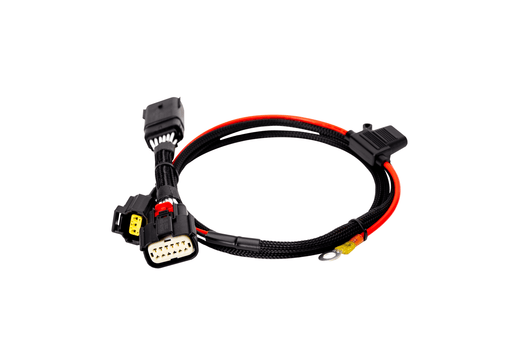

Mean Green builds the MG1627 300-amp high-output alternator and a gear-reduction starter for the 2011-2022 6.7L. XDP MFG supplies an HD high-output alternator, an HD gear-reduction starter and an HD replacement battery cable set. Fleece Performance Engineering makes a charging circuit harness for 2011-2016 trucks. For the battery trays, choose from billet hold-downs by S&B, SPE Motorsport and No Limit Fabrication. Lucas Oil Sure Start starting fluid rounds it out; read the directions on the can before you use it.

Fitment notes

Check whether your truck has the single or dual alternator setup before you order an alternator, and match the upper or lower position by part number. Read the year range on each product: some parts here are listed for 2011-2016, others for 2011-2022 or later, and a 2011-2014 truck falls inside all of them. Chassis cab F-350, F-450 and F-550 trucks share the engine but run their own calibration, so confirm fitment by VIN on those. When in doubt, verify by VIN with the fitment checker on the product page.

Frequently asked questions

My 6.7L cranks long on cold mornings. Is it the starter?

Usually not. On 2011-2014 trucks, long cold cranks trace first to weak or mismatched batteries, voltage drop in the cables and grounds, or the glow plugs and glow plug module. Load-test both batteries and check the cables before you buy a starter.

Do I have to replace both batteries at the same time?

Yes. The two Group 65 batteries work in parallel, and a bad one overworks the alternator and shortens its life. Replace them as a pair and load-test them every year so a weak one does not catch you in the cold.

How can I tell if my truck has dual alternators?

Look at the front of the engine. Dual-alternator trucks have a second, lower alternator mounted under the upper unit, and they use a different serpentine belt from single-alternator trucks. The upper and lower units are different part numbers and amperages, so order by position.

When is a high-output alternator worth it?

When you add load the factory did not plan for, like a plow, a winch or an inverter. If your truck is stock and just needs a replacement, an alternator matched to the factory amperage does the job. Test the wiring first, because charging circuit faults can look exactly like a dead alternator.

Not sure what fits? Call the shop at the number in the header, or use the fitment checker on any product page. We install everything we sell.
