2008-2010 Ford 6.4L Powerstroke Charging & Starting Parts

Charging and starting on the 2008-2010 Ford 6.4L Powerstroke

The 6.4L Powerstroke runs dual batteries and either a single alternator or the optional factory dual-alternator setup. Cold starts lean on one glow plug per cylinder, sitting in the combustion chamber and run by a glow plug control module (GPCM). Motorcraft ZD15 is the listed plug. When the engine is cold, the variable-geometry turbo closes its vanes to build back pressure and bring the engine up to temperature faster, and diesel trucks with the automatic got a Rapid-Heat supplemental cab heater. Ford also requires the block heater below -10 F, no matter what oil viscosity you run. Put together, a healthy start on this engine depends on two good batteries, clean cables and grounds, working glow plugs and a starter that spins it fast enough to fire.

What fails and why

Batteries come first. Weak or sulfated batteries and poor grounds cause hard starts, random module faults and erratic electrical behavior on this truck. Watch for a slow crank, odd electrical faults and alternators that keep failing. It gets worse in cold climates, and batteries age out at four to six years. With two of them on board, each battery has to be load-tested on its own. Glow plugs and the GPCM are the other common cause. A long crank when cold, white smoke at start-up and glow plug codes point there, and when it shows up varies from truck to truck. Glow plugs, glow plug sleeves, the GPCM, batteries, cables and grounds are the service items behind most 6.4L hard-start and charging complaints.

Stock replacement vs. upgrade

Before you replace an alternator, load-test both batteries, clean the grounds and check charging voltage under towing load. That sequence catches the simple fixes first. If the alternator or starter really is done, you have two paths. A stock-style replacement, like the Alliant Power starter, puts the truck back the way Ford built it. A high-output alternator makes sense if you have added electrical load or want more margin than stock, and the aftermarket gear-reduction starters from XDP and Mean Green are the alternative to a stock-style unit. Either way, new cables and fresh mounting hardware are worth doing while the old parts are out.

What we carry

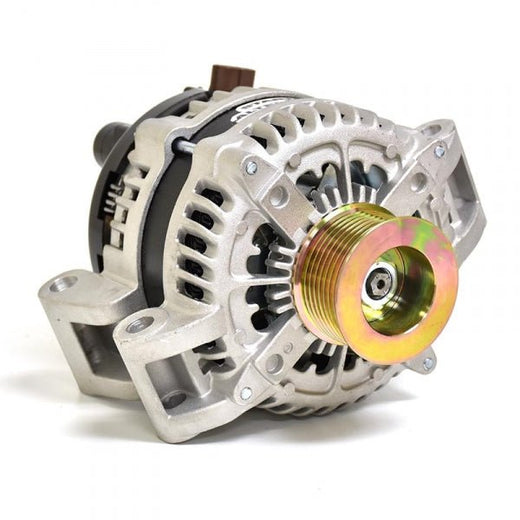

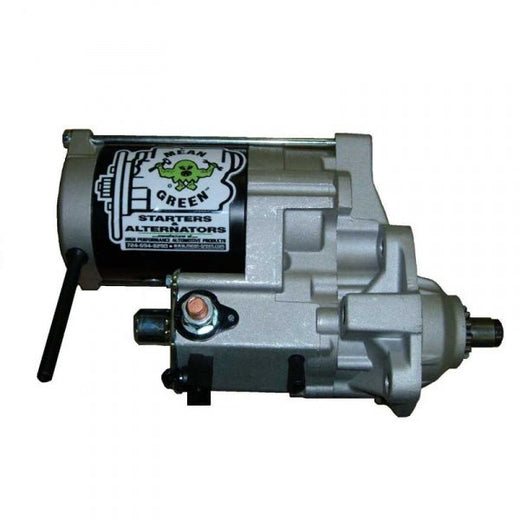

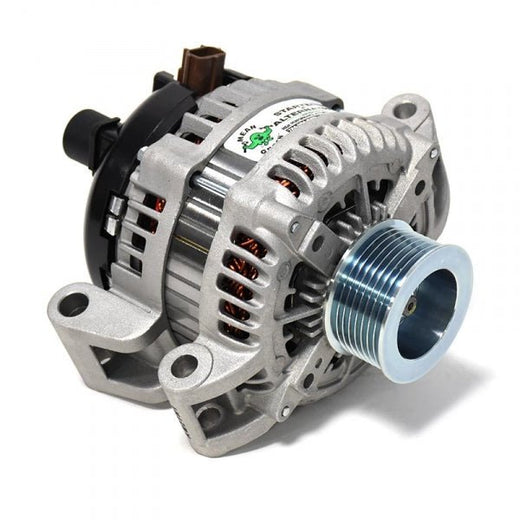

This collection carries alternators, starters and starting-system parts for the 6.4L. From XDP there are the XD353 HD high-output alternator in wrinkle black, the XD363 high-output alternator, the XD256 HD gear-reduction starter, the XD429 HD battery cable set and the XD532 starter bolt kit. Mean Green offers the 1290 high-output alternator, the MG1290HD 300-amp high-output alternator and the 6675 gear-reduction starter. Alliant Power has the AP83007 replacement starter, and Lucas Oil rounds it out with Sure Start starting fluid.

Fitment notes

Single- and dual-alternator trucks use different brackets, belts and harnesses, so confirm which setup your truck has before ordering an alternator. The truck-specific parts here are listed for 2008-2010 6.4L trucks, and the XD532 bolt kit is listed for 2003-2010 6.0L and 6.4L trucks. The 2011 Super Duty was all-new with the 6.7L Powerstroke, so do not assume a part listed for 2011-up trucks carries back to the 6.4L. The 6.4L went into F-250, F-350 and F-450 pickups and F-450/F-550 chassis cabs, so verify by VIN before you order.

Frequently asked questions

Why does my 6.4L crank slow on cold mornings?

Start with the batteries. Weak or sulfated batteries and poor grounds are a known cause of slow cranking and odd electrical faults on this truck, and it gets worse in the cold. Load-test each of the two batteries separately and clean the grounds before you buy a starter.

Is a long cold crank on the 6.4L a starter problem?

Probably not. A long crank when cold, white smoke at start-up and glow plug codes point to the glow plugs or the glow plug control module. The 6.4L uses one glow plug per cylinder, and Motorcraft ZD15 is the listed plug. In real cold, use the block heater; Ford requires it below -10 F.

How do I know my alternator is actually bad?

Load-test both batteries, clean the grounds and check charging voltage under towing load before you replace it. Weak batteries and bad grounds can lead to repeated alternator failures on this truck, so a new alternator on top of a bad battery may not last. If voltage is still low with good batteries and clean grounds, the alternator is the next suspect.

Do I need to know if my truck has one alternator or two?

Yes. The 6.4L came with a single alternator or an optional factory dual-alternator setup, and the two layouts use different brackets, belts and harnesses. Look under the hood and count, or call the shop with your VIN for free fitment help.

Not sure what fits? Call the shop at the number in the header, or use the fitment checker on any product page. We install everything we sell.
