Part #: WCF100831

WCFab WCF100831 Traction Bar Brackets & Hardware Install Kit (2020-2026 6.6L Duramax)

Sale price$279.99 Regular price$289.99

Fits: Chevrolet • GMC

Get It Installed at Our Shop
Skip the Driveway — Our 9-Bay Diesel Shop in Wildwood, FL can Install this for You.

Request Installation

Come to Our 9-Bay Diesel Shop in Wildwood, FL — Fill Out the Request Form to Schedule.

Part: WCFab WCF100831 Traction Bar Brackets & Hardware Install Kit (2020-2026 6.6L Duramax)

Secure Checkout
Genuine Parts
Fast Shipping
Diesel Experts
Not sure this fits your build? Call or Text Us: (352) 722-5295 Save Contact
Ships from our vendor network — most orders ship in 2–5 business days. Text us to confirm stock on big-ticket items.

Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!

By ordering the WCFab WCF100831 Traction Bar Brackets & Hardware Install Kit (2020-2026 6.6L Duramax) you will earn 280 DIESEL DOLLARS in your SDS Fuel Tank!

The WCFab WCF100831 is the bracket and hardware install kit for WCFab traction bars on 2020-2026 Chevrolet Silverado and GMC Sierra 2500HD/3500HD trucks with the 6.6L L5P Duramax. It includes the axle-side bolt-on mounts, the frame-side weld-on mounts and Grade 8 hardware. Bars are not included. It is the kit you buy when you need replacement mounts or hardware.

Fitment

Listed for 2020-2026 Chevrolet Silverado 2500HD and 3500HD and GMC Sierra 2500HD and 3500HD trucks with the 6.6L L5P Duramax. The L5P also powered the 2017-2019 trucks, but this kit is listed for 2020 and newer only, so verify fitment by VIN before you order. If you are not sure which kit matches your truck or your bars, call the shop.

Why this part

This is a replacement hardware and install kit, not a complete traction bar kit. It is the part you want when your bars are fine but the mounts or hardware need replacing. WCFab builds the brackets in house. The axle-side brackets bolt on to the bottom of the axle tube using the axle u-bolts, and the frame-side mounts weld to the frame at the front end. Grade 8 hardware connects the bars to the mounts on the frame and axle.

The axle-side mounts are finished with powder coating over a zinc primer base coat. If you need the bars too, skip this kit and go with one of WCFab's complete traction bar kits, which include the full assembly.

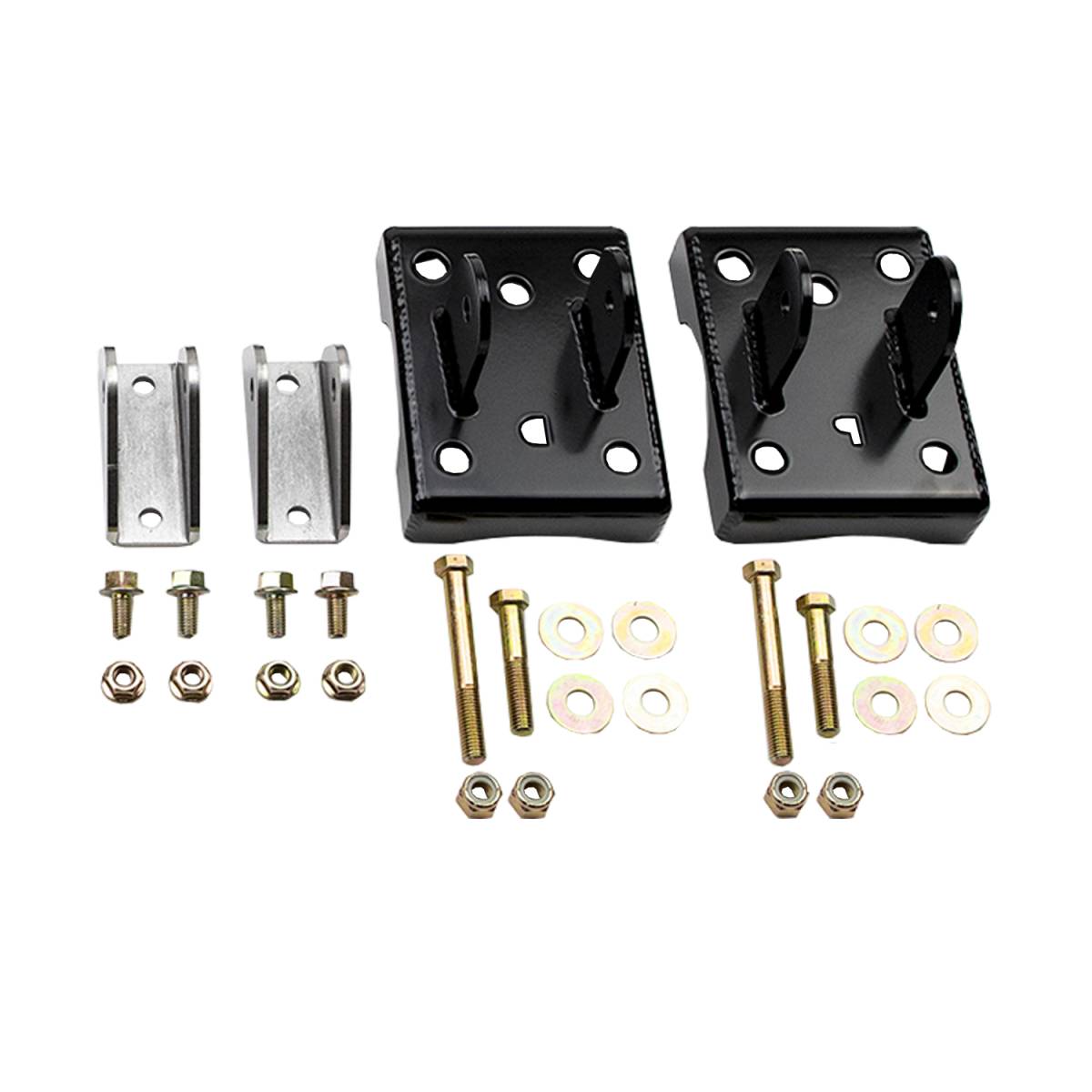

What you get

  • Includes Axle side bolt on and Frame side weld on mounts
  • Grade 8 Hardware
  • This part number is mounting hardware only - Bars not included
  • Powder Coating with zinc primer base coat on axle side mounts

This is a replacement hardware / install kit. Bars are not included. See WCFab's complete traction bar kits for the full assembly.

Specifications

  • Part number: WCF100831
  • Axle-side mounts: bolt on to the bottom of the axle tube via the axle u-bolts
  • Frame-side mounts: weld on, at the front end
  • Hardware: Grade 8
  • Finish: powder coating with zinc primer base coat on the axle-side mounts
  • Bars: not included

Installation notes

Plan on welding. The frame-side mounts weld to the frame at the front end, so you will need a welder and someone who knows how to use it on a truck frame. The axle-side brackets bolt to the bottom of the axle tube through the axle u-bolts, and the Grade 8 hardware then connects the bars to the frame and axle mounts. Our shop handles the welding and the install if you would rather not take it on.

About Wehrli Custom Fabrication

WCFab (Wehrli Custom Fabrication) has been building diesel truck parts in DeKalb, Illinois since 2010. Traction bars are one of its core lines, sold as complete 60 in. and 68 in. kits and as bracket and hardware install kits like this one, and most of its catalog is built for the 6.6L Duramax.

Frequently asked questions

Does this kit include the traction bars?

No. WCF100831 is mounting hardware only: the axle-side bolt-on mounts, the frame-side weld-on mounts and Grade 8 hardware. For the bars, see WCFab's complete traction bar kits.

Is welding required?

Yes. The frame-side mounts weld to the frame at the front end. The axle-side mounts bolt on using the axle u-bolts.

Will it fit a 2018 Silverado 2500HD?

This kit is listed for 2020-2026 trucks only. For a 2017-2019 truck, call us with your VIN before you order.

Questions on fitment? Call the shop at the number in the header. We install everything we sell.
