Part #: WCF100278-BB

WCFab WCF100278 Stage 1 High Flow Intake Bundle Kit (2011-2016 6.6L Duramax)

Sale price$1,489.99 Regular price$1,529.99
Color: Bengal Blue

Fits: Chevrolet • GMC

Get It Installed at Our Shop
Skip the Driveway — Our 9-Bay Diesel Shop in Wildwood, FL can Install this for You.

Request Installation

Come to Our 9-Bay Diesel Shop in Wildwood, FL — Fill Out the Request Form to Schedule.

Part: WCFab WCF100278 Stage 1 High Flow Intake Bundle Kit (2011-2016 6.6L Duramax)

Secure Checkout
Genuine Parts
Fast Shipping
Diesel Experts
Not sure this fits your build? Call or Text Us: (352) 722-5295 Save Contact
Ships from our vendor network — most orders ship in 2–5 business days. Text us to confirm stock on big-ticket items.

Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!

By ordering the WCFab WCF100278 Stage 1 High Flow Intake Bundle Kit (2011-2016 6.6L Duramax) you will earn 1490 DIESEL DOLLARS in your SDS Fuel Tank!

WCFab's WCF100278 Stage 1 High Flow Intake Bundle Kit rebuilds the charge-air side of the 2011-2016 LML 6.6L Duramax in Chevrolet Silverado and GMC Sierra 2500HD/3500HD trucks: both intercooler pipes, a CNC machined Y-bridge and a larger upper crossover pipe. It is the fix for blown boots and boost leaks between the turbo and the engine.

Fitment

Made for the 6.6L LML Duramax in 2011-2016 Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD. It bolts on to a stock truck with no other modifications or upgrades, and it connects to the factory throttle valve, grid heater, EGR and stock intake runners. Stage 1 keeps your OEM intake horn and includes a billet turbo resonator plate for it. Verify fitment by VIN or call us before you order.

Why this part

On the LML, the plumbing between the turbo and the intake runners is where boost goes missing. The factory driver (hot) side pipe is a two-piece 2.5" design, the passenger (cold) side is a two-piece plastic pipe, and the factory boots are a weak point that can blow on hard-working and high performance trucks. Further along, the OEM Y-bridge narrows the intake tract into a bottleneck and caps how much air reaches the heads.

Stage 1 swaps those parts for larger aluminum pipes, a high flow bridge and a larger crossover, with upgraded silicone boots made to withstand higher boost pressures than the factory components. WCFab's numbers: the 3.5" cold side pipe flows 23% more than stock, the 3" hot side 18% more, the cast bridge on its own 40% more, and the bridge with the 20% larger 3" crossover adds up to 33% more total air flow than the stock setup. The payoff WCFab claims is better efficiency, throttle response and turbo spool-up, plus fewer boost leaks and failures.

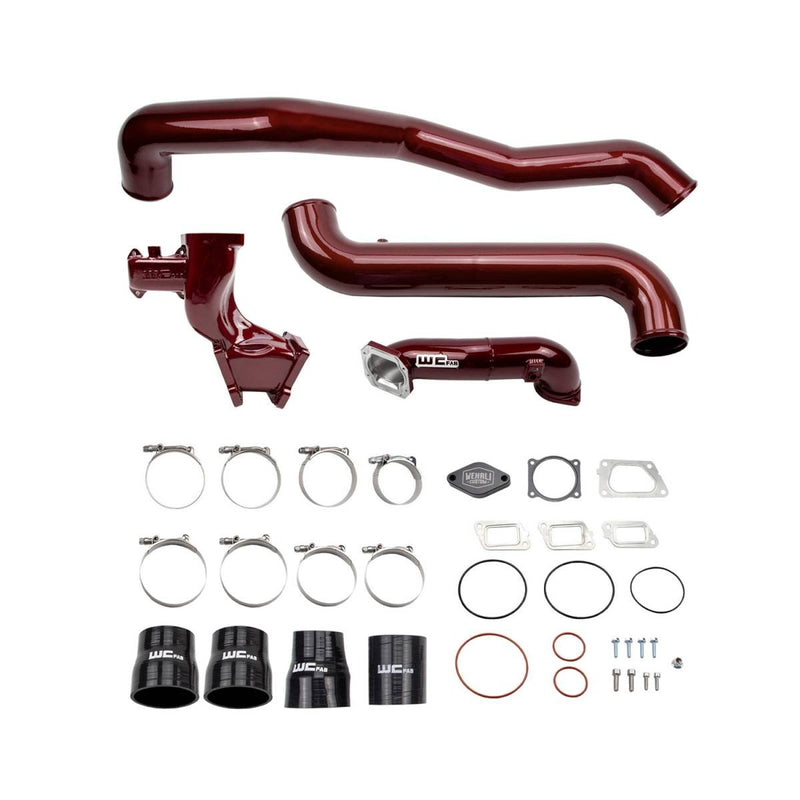

What you get

  • 3" driver (hot) side intercooler pipe in place of the factory two-piece 2.5" pipe
  • One-piece 3.5" passenger (cold) side intercooler pipe in 14 ga. aluminum, replacing the factory plastic two-piece pipe
  • High flow, precision CNC machined cast aluminum Y-bridge that takes over from the OEM upper intake manifold feeding the runners and cylinder heads
  • 3" fabricated aluminum upper intercooler crossover pipe, 20% larger than stock, matched to the bridge's larger inlet
  • Billet turbo resonator plate for the OEM intake horn, replacing the stock plastic resonator
  • Upgraded silicone boots and t-bolt clamps

Specifications

  • 3.5 in. Passenger (Cold) Side Intercooler Pipe (23% Gain in Air Flow Over Stock)
  • 3 in. Driver (Hot) Side Intercooler Pipe (18% Gain in Air Flow Over Stock)
  • High Flow, Precision CNC machined, Cast Aluminum Y-Bridge (33% Gain in Air Flow Over Stock)
  • 3 in. High Flow Upper Intercooler Cross Over Pipe
  • 14g mandrel bent aluminum construction
  • Incorporated threaded bung to reinstall OEM Intake Temperature Sensor
  • Silicone Boots
  • T-Bolt Clamps
  • Includes Billet Turbo Resonator Plate for OEM Intake Horn
  • Connects to factory throttle valve, grid heater, EGR and stock intake runners
  • NO Tuning required, bolt on.
  • Will fit on stock truck no other modifications or upgrades necessary.
  • Durable Custom Powder Coat Finish
  • Made in USA

Finish: choose from 25 custom powder coat colors in the selector.

Installation notes

No tuning is required, and nothing else on the truck has to change. Move the OEM intake temperature sensor into the kit's threaded bung. The factory intake air heater grid stays in the system for cold weather performance, and the bridge works with the OEM throttle valve and EGR controls. With the billet plate in place of the plastic resonator, you get a cleaner engine bay and a more aggressive turbo and engine sound. WCFab says the kit pairs best with emissions-compliant tuning and drop-in turbochargers for optimum performance gains.

About Wehrli Custom Fabrication

WCFab, short for Wehrli Custom Fabrication, is a DeKalb, Illinois fabrication shop in business since 2010. It makes intake, intercooler, cooling and traction parts for diesel pickups, with its deepest coverage on the 6.6L Duramax. Browse WCFab parts.

Frequently asked questions

Does Stage 1 include a cold air intake or filter?

No. Stage 1 covers the intercooler pipes, Y-bridge, upper crossover pipe and a billet resonator plate for the factory intake horn. If you want the intake side too, see our intakes.

Will it stop my intercooler boots from blowing off?

That is what it is built for. The kit includes upgraded silicone boots made to withstand higher boost pressures than the factory parts, and the new pipes replace the factory two-piece designs.

Do I need a tune?

No. It is compatible with stock trucks and needs no tuning, modifications or other upgrades. WCFab recommends emissions-compliant tuning and a drop-in turbo if you want the most out of it.

Questions on fitment? Call the shop at the number in the header. We install everything we sell.
