WCFab WCF100441 Stage 2 High Flow Intake Bundle Kit (2017-2019 6.6L Duramax)
Fits: Chevrolet • GMC
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the WCFab WCF100441 Stage 2 High Flow Intake Bundle Kit (2017-2019 6.6L Duramax) you will earn 1440 DIESEL DOLLARS in your SDS Fuel Tank!
WCFab's WCF100441 Stage 2 High Flow Intake Bundle Kit combines the WCFab Stage 1 High Flow Bundle and Stage 2 Intake Kit for 2017-2019 Chevrolet Silverado and GMC Sierra 2500HD/3500HD trucks with the 6.6L L5P Duramax. It replaces the plastic intake parts and the leak-prone factory intercooler pipes, the parts that choke airflow or blow apart on a working truck.
Fitment
Fits the 6.6L L5P Duramax in 2017-2019 Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD. It does not fit 2020 and newer L5P trucks: GM changed the hood, scoop and air box with the 2020 redesign, so 2017-2019 intakes do not carry over. The kit fits a stock truck with no other modifications or upgrades and keeps the factory connection points and sensors. Verify fitment by VIN or call us before you order.
Why this part
Two factory parts are the usual upgrade targets on these trucks. The plastic intercooler return pipe and its boots can crack or blow off, especially when towing heavy, and when they do you get a sudden loss of power, a loud whoosh, a P0299 code or limp mode. On the intake side, the restrictive stock turbo inlet elbow and resonator limit airflow and raise drive pressure, which shows up as higher EGTs and drive pressure under load.
Stage 2 replaces both ends of that system. Up front, a 4 in. aluminum intake pipe, a larger intake horn and an aluminum air box with dry filter replace the restrictive plastic factory parts and pull cold air through the hood Ram Air duct and inner fender. WCFab says that significantly increases airflow to the turbo for more horsepower and torque, cooler intake temperatures and a more aggressive engine and turbo sound. Because the kit keeps the hood scoop duct, the factory water separation path stays in the system. After the turbo, the restricted 2-piece, resonator equipped 2.5 in. driver (hot) side pipe and the leak-prone 2-piece plastic / rubber passenger (cold) side pipe give way to one-piece 3 in. and 3.5 in. aluminum pipes with reinforced silicone boots, a double o-ring flange and stainless t-bolt clamps built to hold more boost than the factory parts. WCFab built the bundle to improve efficiency, throttle response and turbo spool-up, and to eliminate weak points in the factory design that can contribute to lost power, boost leaks and complete failures in hard working and high performance applications. The upgraded boots are there to increase reliability and eliminate blown factory boots and horsepower robbing boost leaks. If you only want the intake side, see our intakes.

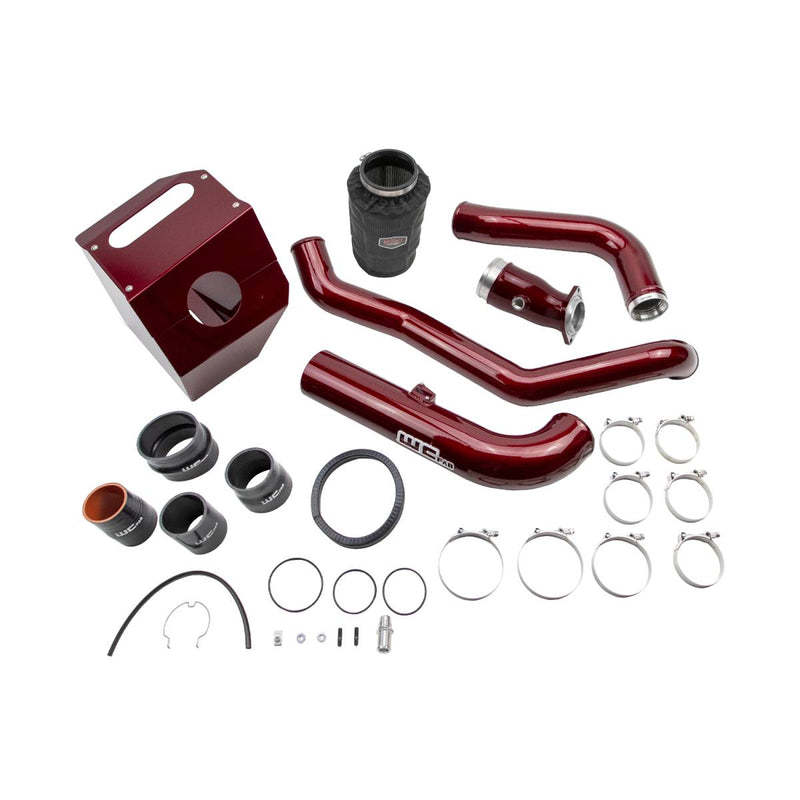

What you get
- 4 in. Aluminum Intake Pipe
- 3.5 in. Intake Horn with PCV Port and Surge Ring
- Air box enclosure with dry filter assembly and Outerwears pre-filter cover
- Installation hardware, 4 in. silicone hump boot and stainless t-bolt clamps
- 3 in. Hot Side Intercooler Pipe
- 3.5 in. Cold Side Intercooler Pipe
- CNC Machined Flange with Double O-Rings provides an improved sealing surface to eliminate boost leaks.
- OEM Clip Ring Design at Y-bridge connection replaced by high quality silicone boot and stainless steel t-bolt clamps for improved sealing and ability to hold higher boost pressures without leaking
- Silicone Boots
- Stainless Steel T-Bolt Clamps
- O-Rings
- Intercooler Outlet Clip
- Retains factory connection points and sensors
- NO Tuning required, bolt on.
- Will fit on stock truck no other modifications or upgrades necessary.
- Durable Powder Coat Finish
Specifications
- Intake pipe: 4 in. diameter, all aluminum 14 ga. construction with smooth aerodynamic bends for better intake air velocity and volume
- Air box: 10G aluminum sheet with a removable lid for easy filter inspection and maintenance; the hydrophobic pre-filter cover helps keep the MAF sensor, turbo and engine airways contaminant free
- Intake horn: over an inch larger than the OEM diameter; WCFab measured a 25HP gain with its 3.5 in. turbo inlet on a tuned truck
- Driver (hot) side intercooler pipe: 3 in. diameter, 1-piece; eliminates the OEM resonator and middle boot joint
- Passenger (cold) side intercooler pipe: 3.5 in. diameter, 1-piece, CNC machined flange with double o-ring seal and upgraded silicone boot
- Tube: high strength, heavy duty 14 ga. aluminum with smooth mandrel bends, made in the USA
- Boots and clamps: high quality reinforced silicone boots and stainless t-bolt clamps for temperature resistance and boost holding
- Finish: WCFab signature custom powder coat, 25 color options
Installation notes
The kit installs with basic hand tools and needs no tuning. It retains the factory connection points and sensors, and the OEM clip ring at the Y-bridge connection is replaced by a silicone boot and stainless t-bolt clamps. The critical ram air duct seal has been moved to the bottom of the hood for a clean engine compartment appearance. WCFab says the kit pairs best with emissions-compliant tuning and larger drop-in turbochargers.
About Wehrli Custom Fabrication
Wehrli Custom Fabrication (WCFab) has been building diesel parts in DeKalb, Illinois since 2010. Its catalog centers on fabricated cold air intakes, intercooler piping, cooling system parts and traction bars, with the 6.6L Duramax getting the deepest coverage. Shop all WCFab parts.
Frequently asked questions
Will this fit my 2020 or newer L5P?
No. This kit is for 2017-2019 trucks only. The 2020 redesign changed the hood, scoop and air box, and 2017-2019 intakes do not interchange with the newer trucks.
Does it keep the hood scoop and water separator?
Yes. The kit draws air through the hood Ram Air duct and the inner fender, and because it keeps the duct, the factory water separation path stays in place. Intakes that drop the hood-scoop duct lose that path.
Can I buy this kit in California?
WCFab lists its 2017-2019 Stage 2 intake as not shippable to California, so treat this bundle as a 49-state kit. If you are in California, call us before you order.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
