WCFab WCF100455 CP3 Conversion Kit w/ Exergy Pump (2017-2026 Duramax)
Fits: Chevrolet • GMC
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the WCFab WCF100455 CP3 Conversion Kit w/ Exergy Pump (2017-2026 Duramax) you will earn 2580 DIESEL DOLLARS in your SDS Fuel Tank!
WCFab's CP3 Conversion Kit swaps the factory Denso HP4 high-pressure pump on 2017-2026 6.6L L5P Duramax Silverado and Sierra 2500HD/3500HD trucks for a custom Exergy CP3, offered in Sportsman, 10mm, 12mm and 14mm sizes. It is built for trucks whose bigger turbo and injector combinations have outgrown the stock HP4, and for owners replacing a failed one.
Fitment
Fits the 6.6L L5P Duramax in 2017-2026 Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD trucks. Read this before you order: the kit requires use of an aftermarket low pressure / CP3 compatible lift pump with 15-20PSI of pressure. It is not compatible with the OEM L5P in-tank pump or high pressure lift pumps designed for use with HP4 injection pumps. If your truck still runs the factory in-tank pump, or a lift pump set up for the HP4, plan a CP3 compatible lift pump into the same job. Verify fitment by VIN or call us.
Why this part
From the factory the L5P runs a Denso HP4 high-pressure pump, not the Bosch CP4.2 used on the 2011-2016 LML, so the CP4.2 failure stories you read online are about the LML, not this engine. This kit exists for a different reason. Once you add a bigger turbo kit and larger injectors, the stock HP4 reaches its limit and can't keep up with what the rest of the build needs. WCFab offers four pump sizes so you can match fuel volume to the turbo, injectors and power level you are building toward, and the Sportsman pump also works as a replacement for a failed HP4.
Fuel supply matters as much as the pump. The factory L5P lift pump is considered modest for higher-power use, which fits with WCFab's requirement for a separate 15-20PSI CP3 compatible lift pump. Contaminated fuel, whether water, air from a mis-installed filter O-ring or poor fuel, is the leading cause of pump and injector trouble on the L5P, so keep up with filter changes no matter which pump you run. If you are replacing a failed HP4, debris from the old pump can contaminate the rails, lines and injectors. Talk to us about the rest of the high-pressure side before the new pump goes in.

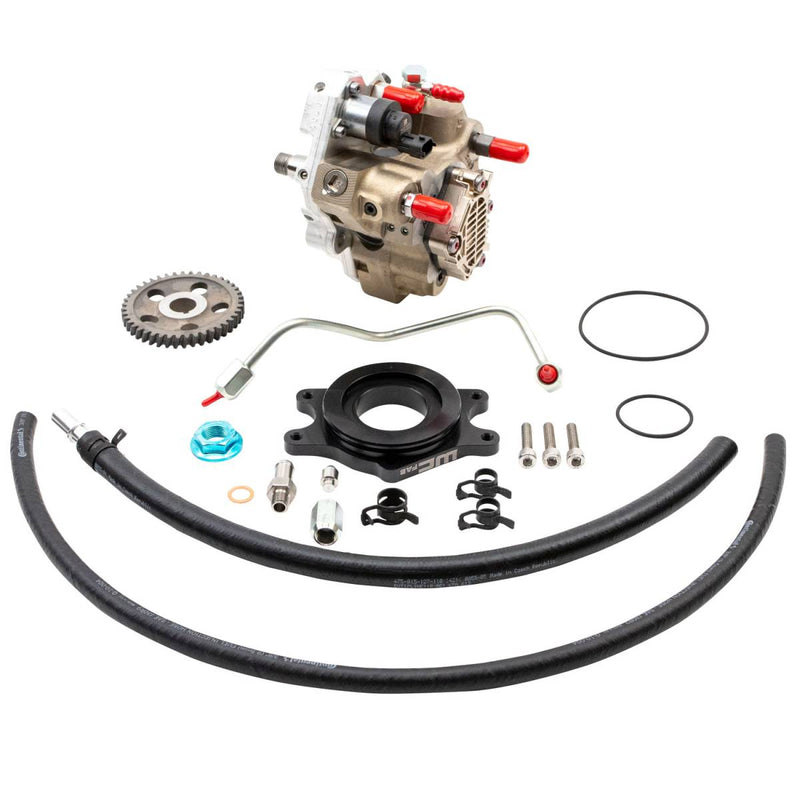

What you get
- Your Choice of Custom Exergy Sportsman, 10mm, 12mm, or 14mm CP3 pump specific to this kit
- Billet Aluminum, Black Anodized CP3 Pump Mount Plate
- High Pressure Fuel Line
- High Pressure Rail Fitting
- Fuel line and Clamps
- Stainless CP3 Barb Fitting
- Stainless Hardware
Specifications
Pick the pump size by your turbo, injectors and power goal. WCFab's guidance for each option:
- Sportsman (WCF100455) - A good choice for trucks replacing a failed HP4, or for stock injectors or Exergy 30% over modified units used with stock or drop-in VGT chargers or WCFab's S364.5 or S369 Drop in Fixed Vane Turbo Kits. With proper tuning this pump supports power levels equivalent to the HP4, up to 750 HP to the wheels.
- 10mm (WCF100456) - Pairs well with WCFab's S372, S463 and S467.7 kits with Exergy 60 or 100% over injectors, targeting power levels up to 850 HP to the wheels.
- 12mm (WCF100457) - Works best with WCFab's S472 and S476 kits with Exergy 100% over injectors, and has been proven to reliably support over 1000 WHP in WCFab's regular cab shop truck.
- 14mm (WCF100458) - Ideal for built competition engines using power adders, big single or custom compound chargers with custom injectors, looking to push the limits of the L5P platform.
Installation notes
Install the required aftermarket low pressure / CP3 compatible lift pump, delivering 15-20PSI, as part of this job. The CP3 will not work with the OEM in-tank pump or an HP4-style high pressure lift pump. The pump bolts to the kit's billet aluminum, black anodized mount plate, and the kit supplies the high pressure fuel line, high pressure rail fitting, stainless CP3 barb fitting, fuel line, clamps and stainless hardware. WCFab's 750 HP figure for the Sportsman assumes proper tuning. If you are not sure which size suits your combination, call us with your turbo and injector details before you order.
About Wehrli Custom Fabrication
WCFab (Wehrli Custom Fabrication) started in 2010 and works out of DeKalb, Illinois. Its parts are built mainly for the 6.6L Duramax, with Cummins and 6.7L Powerstroke lines as well, and it is best known for fabricated intake, intercooler, cooling and traction parts. Shop all WCFab parts.
Frequently asked questions
Which CP3 pump size is right for my truck?
Match it to your turbo and injectors. The Sportsman suits stock or Exergy 30% over injectors and supports up to 750 HP to the wheels with proper tuning. The 10mm targets up to 850 HP to the wheels with Exergy 60 or 100% over injectors. The 12mm has reliably supported over 1000 WHP in WCFab's shop truck, and the 14mm is for built competition engines.
Can I keep my factory lift pump?
No. The kit is not compatible with the OEM L5P in-tank pump or with high pressure lift pumps designed for HP4 injection pumps. You need an aftermarket low pressure / CP3 compatible lift pump making 15-20PSI.
Does the L5P use a CP4 pump?
No. The L5P uses a Denso HP4 from the factory. The Bosch CP4.2 is the 2011-2016 LML pump. This kit replaces the L5P's HP4 with an Exergy CP3.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
