Part #: WCF100469

WCFab WCF100469 Transmission Cooler Thermostat Bypass Plug (2017-2019 6.6L Duramax)

Sale price$59.99 Regular price$61.99

Fits: Chevrolet • GMC

Get It Installed at Our Shop
Skip the Driveway — Our 9-Bay Diesel Shop in Wildwood, FL can Install this for You.

Request Installation

Come to Our 9-Bay Diesel Shop in Wildwood, FL — Fill Out the Request Form to Schedule.

Part: WCFab WCF100469 Transmission Cooler Thermostat Bypass Plug (2017-2019 6.6L Duramax)

Secure Checkout
Genuine Parts
Fast Shipping
Diesel Experts
Not sure this fits your build? Call or Text Us: (352) 722-5295 Save Contact
Ships from our vendor network — most orders ship in 2–5 business days. Text us to confirm stock on big-ticket items.

Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!

By ordering the WCFab WCF100469 Transmission Cooler Thermostat Bypass Plug (2017-2019 6.6L Duramax) you will earn 60 DIESEL DOLLARS in your SDS Fuel Tank!

The WCFab WCF100469 transmission cooler thermostat bypass plug is a direct replacement for the failure-prone factory thermostat in the transmission cooler circuit on 2017-2019 6.6L Duramax trucks. By reducing fluid flow restriction to the trans cooler, it can drop fluid temperature 15-50 degrees F. WCFab recommends it for trucks that tow heavy in warm climates.

Fitment

Listed for 2017-2019 Chevrolet Silverado and GMC Sierra 2500HD/3500HD trucks with the L5P 6.6L Duramax and Allison 1000 transmission. The title and WCFab's application list both stop at 2019, so verify fitment by VIN before ordering for a newer truck. GM redesigned the HD trucks for 2020, and cooling-system parts should be checked by model year. Shop more Duramax parts in our engine section.

WCFab says the plug is a quick and easy install and will work with the following range of GM vehicles equipped with a factory installed transmission cooler thermostat bypass (6L80, 6L90, 8L90):

  • 2017-2019 Chevrolet Silverado & GMC Sierra 2500HD/3500HD with 6.6L Duramax Diesel
  • 2014-2018 Chevrolet Silverado & GMC Sierra 1500 with 4.3L 6 Cyl, 5.3L 8 Cyl, and 6.2L 8 Cyl Gas Engines
  • 2015-2020 Chevrolet Suburban, Tahoe & GMC Yukon with 5.3L 8 Cyl, and 6.2L 8 Cyl Gas Engines
  • 2015 Cadillac Escalade with 6.2L 8 Cyl Gas Engine

This page is set up for the Duramax HD trucks. If you are buying for one of the gas applications, call and we will confirm it first.

Why this part

The factory transmission-fluid thermal bypass valve on the 2017-2019 L5P (GM 23413140) can stick closed, so fluid never reaches the cooler and transmission temperatures climb when you tow or sit in stop-and-go traffic. WCFab reports seeing the valve fail in the stock application, forcing trans fluid around the cooler in warm weather and pushing fluid temperatures into a dangerous range for built and stock transmissions alike.

The bypass plug takes the thermostat out of the equation. It is a direct replacement for the OEM thermostat, and by reducing fluid flow restriction to the trans cooler it can drop fluid temperature 15-50 degrees F. WCFab recommends it for trucks with stock or built transmissions that do heavy towing in warm climates. If you tow heavy behind the Allison 1000 and still run hot after this, an auxiliary transmission cooler is the usual next step.

What you get

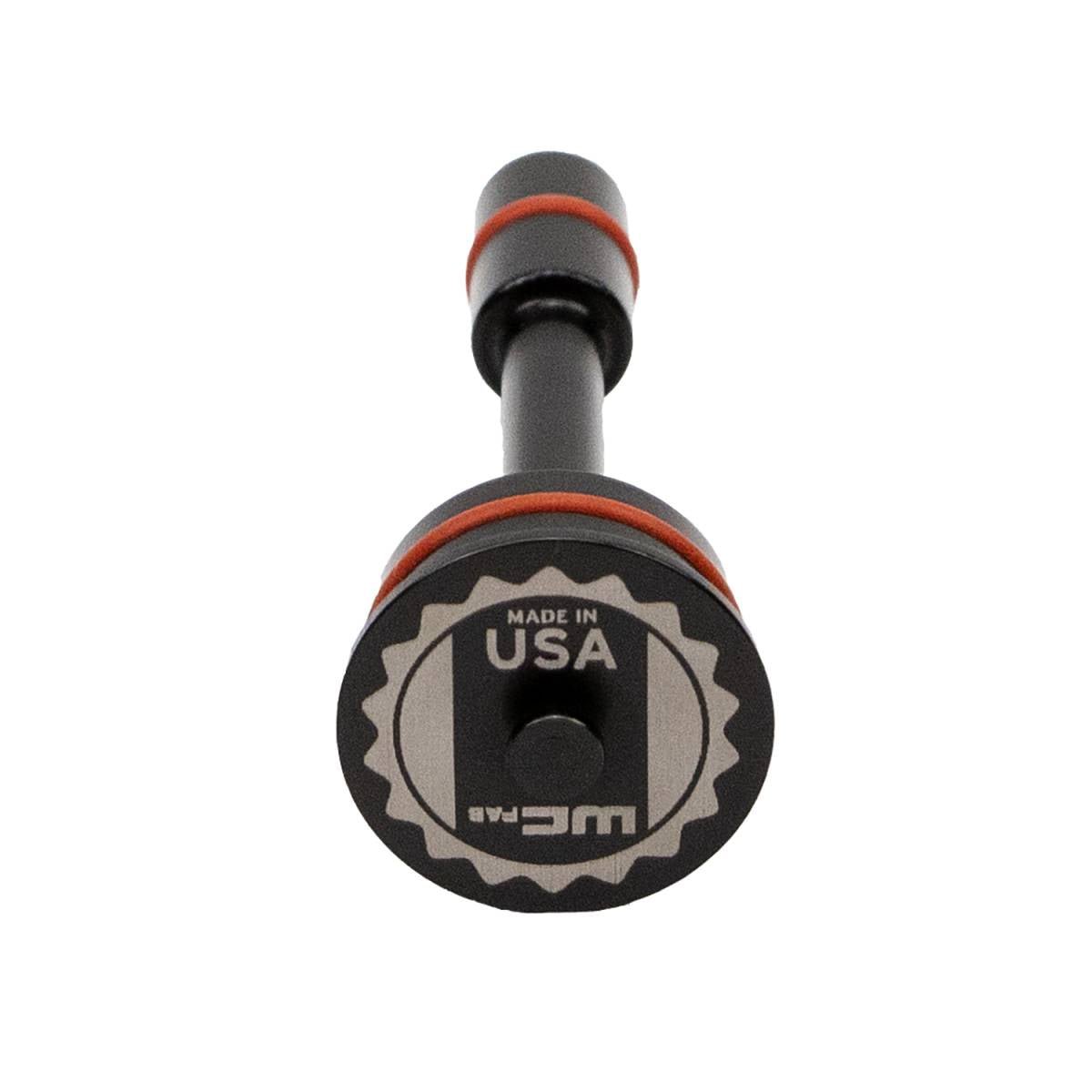

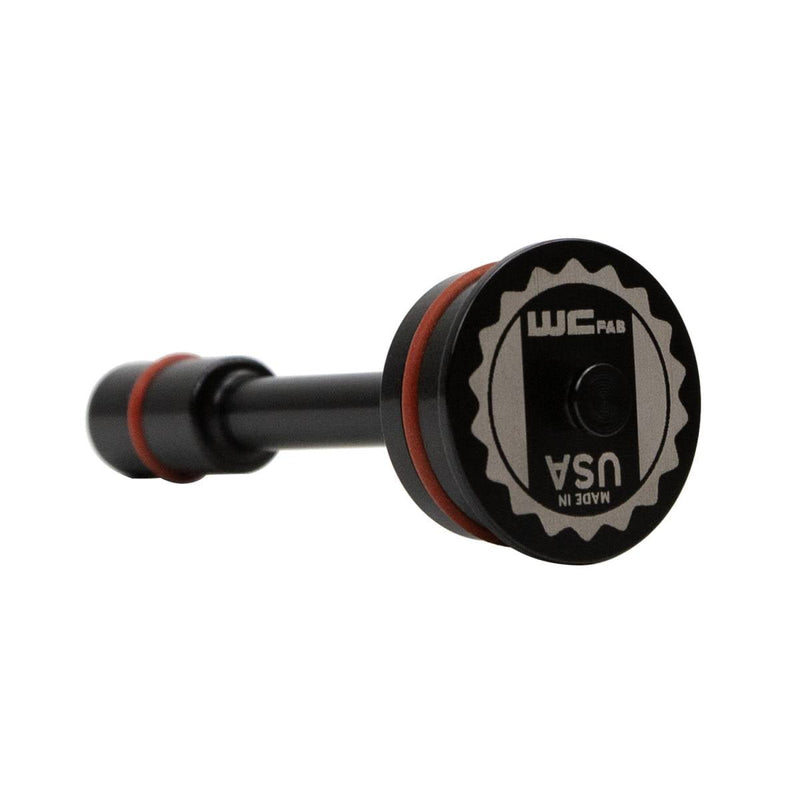

  • One WCFab WCF100469 transmission cooler thermostat bypass plug, CNC machined from billet aluminum with a black anodized finish
  • High temperature silicone O-ring seals

Specifications

  • CNC Machined Billet Aluminum Thermostatic Bypass Plug
  • Black Anodized Finish
  • High temperature silicone O-ring seals
  • Reduces fluid flow restriction to trans cooler
  • Simple Installation
  • Experience fluid temperature drops from 15-50 degrees F
  • Direct replacement of the failure prone OEM thermostat
  • Easy swap back to OEM setup for cold weather use

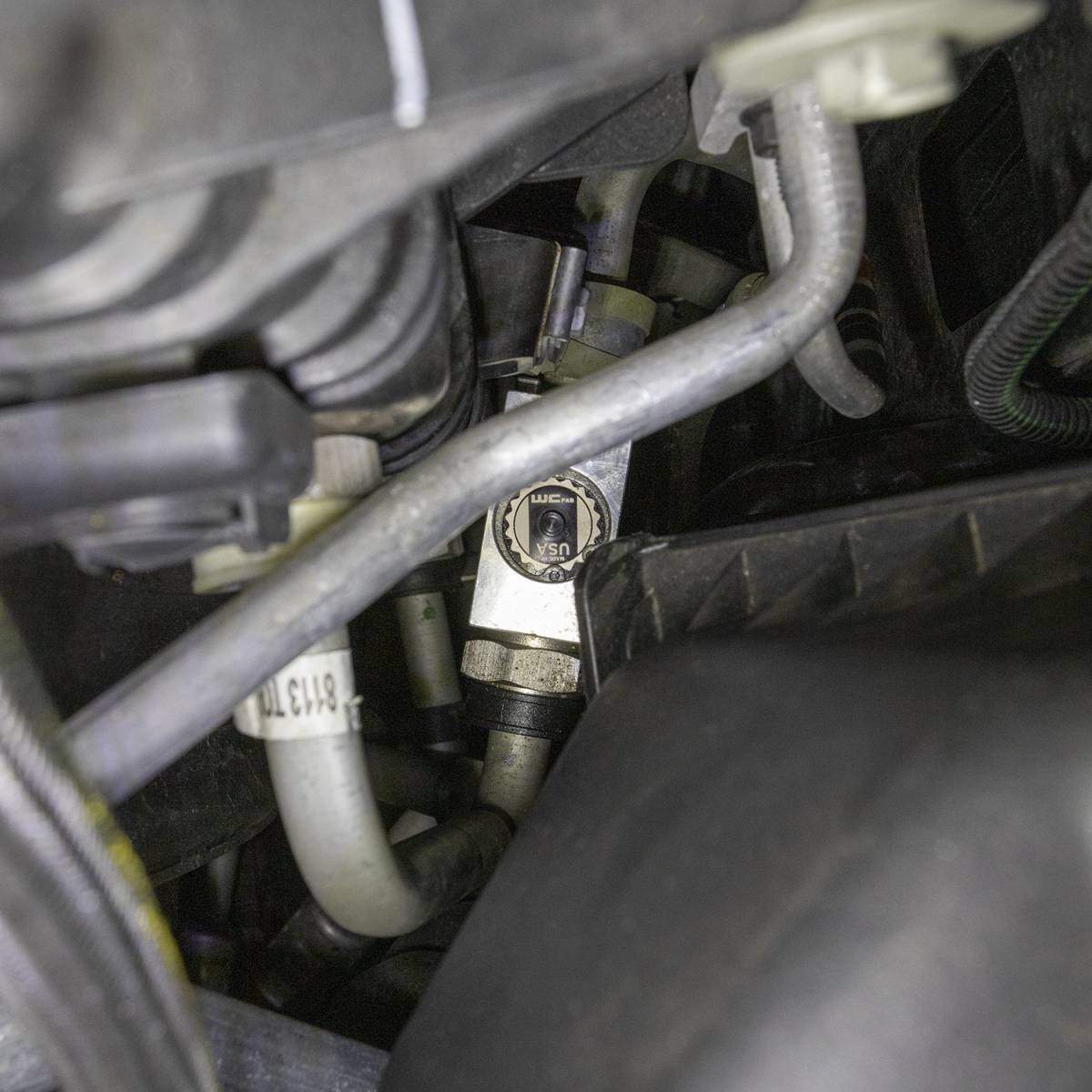

Installation notes

WCFab calls this a quick and easy install, and the plug goes in as a direct replacement for the factory thermostat. Keep the OEM thermostat when you take it out: WCFab notes the truck is easy to swap back to the OEM setup for cold weather use.

About Wehrli Custom Fabrication

WCFab (Wehrli Custom Fabrication) started in 2010 in DeKalb, Illinois. Its catalog centers on fabricated parts for diesel pickups, including cooling system pieces such as upper coolant pipes and coolant tank kits, and most of it is built for the 6.6L Duramax.

Frequently asked questions

Can I go back to the factory thermostat for winter?

Yes. WCFab designed it as an easy swap back to the OEM setup for cold weather use, so keep your factory thermostat on the shelf.

Does it fit a 2020 or newer Duramax?

It is listed for 2017-2019 HD trucks. GM redesigned the trucks for 2020, so call us with your VIN before ordering for a newer truck.

How much cooler will my transmission run?

WCFab reports fluid temperature drops from 15-50 degrees F. The drop you see depends on how and where you tow.

Questions on fitment? Call the shop at the number in the header. We install everything we sell.
