Part #: WCF100226

WCFab WCF100226 Billet Exhaust Manifold & 2" Stainless Up Pipe Kit (2017-2026 6.6L Duramax)

Sale price$2,159.99 Regular price$2,229.99

Fits: Chevrolet โ€ข GMC

Get It Installed at Our Shop
Skip the Driveway โ€” Our 9-Bay Diesel Shop in Wildwood, FL can Install this for You.

Request Installation

Come to Our 9-Bay Diesel Shop in Wildwood, FL โ€” Fill Out the Request Form to Schedule.

Part: WCFab WCF100226 Billet Exhaust Manifold & 2" Stainless Up Pipe Kit (2017-2026 6.6L Duramax)

Secure Checkout
Genuine Parts
Fast Shipping
Diesel Experts
Not sure this fits your build? Call or Text Us: (352) 722-5295 Save Contact
Ships from our vendor network — most orders ship in 2–5 business days. Text us to confirm stock on big-ticket items.

Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!

By ordering the WCFab WCF100226 Billet Exhaust Manifold & 2" Stainless Up Pipe Kit (2017-2026 6.6L Duramax) you will earn 2160 DIESEL DOLLARS in your SDS Fuel Tank!

WCFab's WCF100226 kit replaces the factory cast exhaust manifolds and thin 1 5/8" up pipes on 2017-2026 6.6L L5P Duramax Silverado and Sierra 2500HD/3500HD trucks with TIG-welded billet steel manifolds and heavy-duty 11 gauge 2" stainless up pipes. Owners buy it to end leaking up pipes for good and get quicker turbo spool with lower EGTs.

Fitment

Built for the 6.6L L5P Duramax in 2017-2026 Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD pickups. WCFab also lists it for 2019 and newer L5D Duramax medium duty trucks (4500/5500/6500). It bolts onto a stock truck with no other modifications or upgrades. The manifolds keep the EGR riser flange and the kit includes a new EGR flange gasket, so the factory EGR connection goes back together as designed. Verify fitment by VIN or call us before you order.

Why this part

The factory hot side has two problems. The OEM up pipes are lightweight, leak prone 1 5/8" tubes, and their bellows crack and leak. The factory cast manifolds are restrictive. WCFab replaces both with high-strength, TIG-welded billet steel manifolds and 2" stainless up pipes designed to improve exhaust flow. WCFab's stated result is quicker turbo spool-up, lower EGTs, and more power and economy.

The manifolds are exhaust port gasket matched and internally divided, so they flow well whether you run OEM or ported cylinder heads. The up pipes are heavy-duty 11 gauge stainless with HD stainless bellows that will not crack and leak like the factory pieces. Doing manifolds and up pipes together means you take the exhaust apart once, and the joints between the heads, manifolds and up pipes all get fresh gaskets on the way back together.

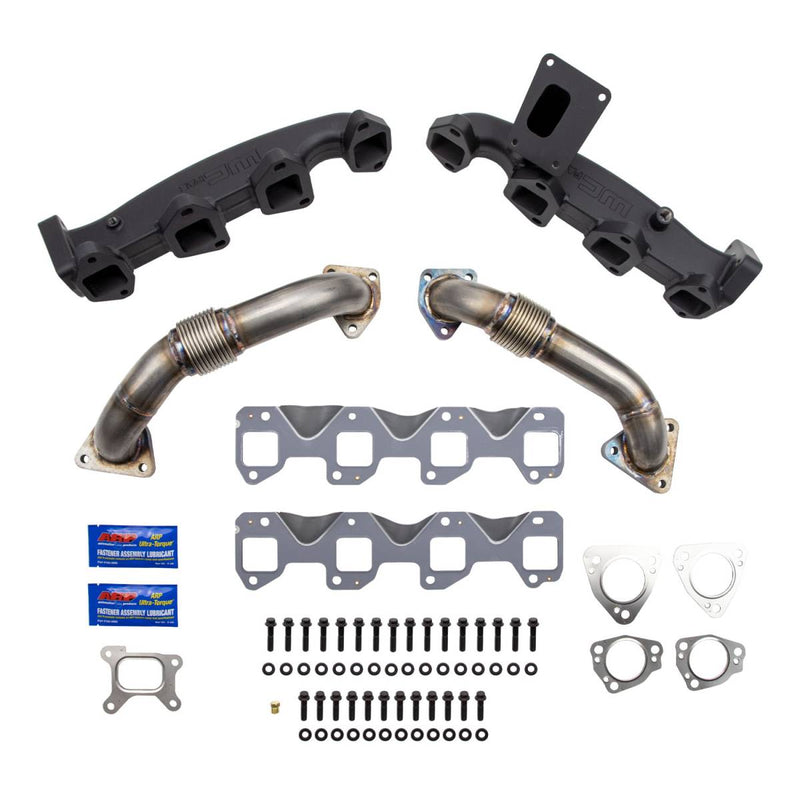

What you get

  • Driver side and passenger side billet steel exhaust manifolds with EGR riser flange
  • Driver side and passenger side 2" 11 gauge stainless up pipes with HD stainless bellows
  • New gaskets for manifold to cylinder head, EGR flange, and manifold to up pipe
  • Up pipe gaskets (4)
  • ARP 12PT fasteners and washers for the cylinder head
  • ARP up pipe bolt kit
  • Assembly lube
  • Optional plug for the 1/8 NPT port in the driver side manifold

Specifications

  • Fully TIG Welded, CNC machined billet steel exhaust manifolds
  • Finished in Black Ceramic Coat rated for 1800ยบF
  • Includes new gaskets for manifold to cylinder head, EGR flange, and manifold to up pipe
  • Includes ARP 12PT Fasteners and washers for installation to cylinder head
  • 1/8 NPT port (and optional plug) included in driver side manifold for installation of EGT or drive pressure sensor
  • Includes ARP Up Pipe Bolt Kit
  • Passenger Side Up Pipe
  • Driver Side Up Pipe
  • Up Pipe Gaskets (4)
  • No tuning required

Installation notes

This is a bolt-on job. No tuning is required, and the kit fits a stock truck with no other modifications or upgrades. New gaskets, ARP 12PT fasteners, the up pipe bolt kit and assembly lube all come in the box, so you are not chasing hardware halfway through. If you want to watch exhaust temperature or drive pressure, the 1/8 NPT port in the driver side manifold takes an EGT probe or drive pressure sensor. If not, thread in the supplied plug. The Black Ceramic Coat finish is rated for 1800ยบF. Shopping for the rest of the system? See our exhaust parts.

About Wehrli Custom Fabrication

Wehrli Custom Fabrication, better known as WCFab, has built diesel truck parts in DeKalb, Illinois since 2010. The company is known for fabricated intake, intercooler, cooling and traction parts, and most of its lineup is built for the 6.6L Duramax. Shop all WCFab parts.

Frequently asked questions

Do I need a tune after installing this kit?

No. WCFab built it as a bolt-on for stock trucks. No tuning is required and no other modifications or upgrades are needed.

Can I add an EGT or drive pressure gauge?

Yes. The driver side manifold has a 1/8 NPT port for an EGT or drive pressure sensor. A plug is included if you leave the port unused.

Will it fit my medium duty truck?

WCFab lists it for 2019 and newer L5D Duramax 4500/5500/6500 medium duty trucks as well as 2017-2026 L5P pickups. Send us your VIN and we will confirm before you order.

Questions on fitment? Call the shop at the number in the header. We install everything we sell.
