SPE Motorsport S100117 SO Hot Side Intercooler Pipe (2011-2025 6.7L PowerStroke)
Fits: Ford 6.7L (2011-2016 Powerstroke) • Ford 6.7L (2017-Current Powerstroke)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the SPE Motorsport S100117 SO Hot Side Intercooler Pipe (2011-2025 6.7L PowerStroke) you will earn 250 DIESEL DOLLARS in your SDS Fuel Tank!
The SPE Motorsport S100117 hot side intercooler pipe is a direct fit aluminum replacement for the factory hot side pipe on 2011-2025 Ford Super Duty trucks with the standard-output (non-HO) 6.7L Powerstroke. A billet 3” turbo adapter with a thick 5mm o-ring replaces the leak-prone factory o-ring, and no tuning is required.
Fitment
Direct fit for the 2011-2025 6.7L Powerstroke (non-HO). SPE lists it for standard pick-ups and cab & chassis for the following years:
- 2011 F250/F350/F450/F550 6.7L Powerstroke
- 2012 F250/F350/F450/F550 6.7L Powerstroke
- 2013 F250/F350/F450/F550 6.7L Powerstroke
- 2014 F250/F350/F450/F550 6.7L Powerstroke
- 2015 F250/F350/F450/F550 6.7L Powerstroke
- 2016 F250/F350/F450/F550 6.7L Powerstroke
- 2017 F250/F350/F450/F550 6.7L Powerstroke
- 2018 F250/F350/F450/F550 6.7L Powerstroke
- 2019 F250/F350/F450/F550 6.7L Powerstroke
- 2020 F250/F350/F450/F550 6.7L Powerstroke
- 2021 F250/F350/F450/F550 6.7L Powerstroke
- 2022 F250/F350/F450/F550 6.7L Powerstroke
- 2023 F250/F350/F450/F550 6.7L Powerstroke (non-HO)
- 2024 F250/F350/F450/F550 6.7L Powerstroke (non-HO)
- 2025 F250/F350/F450/F550 6.7L Powerstroke (non-HO)
It does not fit 2023-2025 High Output trucks. HO and standard-output trucks use different hot-side pipes, so check which engine you have before you order. The pipe is designed to work with factory and aftermarket turbo kits, including most non-VGT applications. Verify fitment by VIN or call us if you are not sure.
Why this part
The hot side pipe carries boost from the turbo outlet to the intercooler, and the turbo end is a known trouble spot. The factory hot-side connection can pop off the turbo outlet on 2011-2026 trucks, which shows up as sudden boost loss, a loud hiss, limp mode or derate and black smoke. Boost leaks at couplers and cracked factory pipes are common on every 6.7L year, more so on trucks that tow or run a tune.

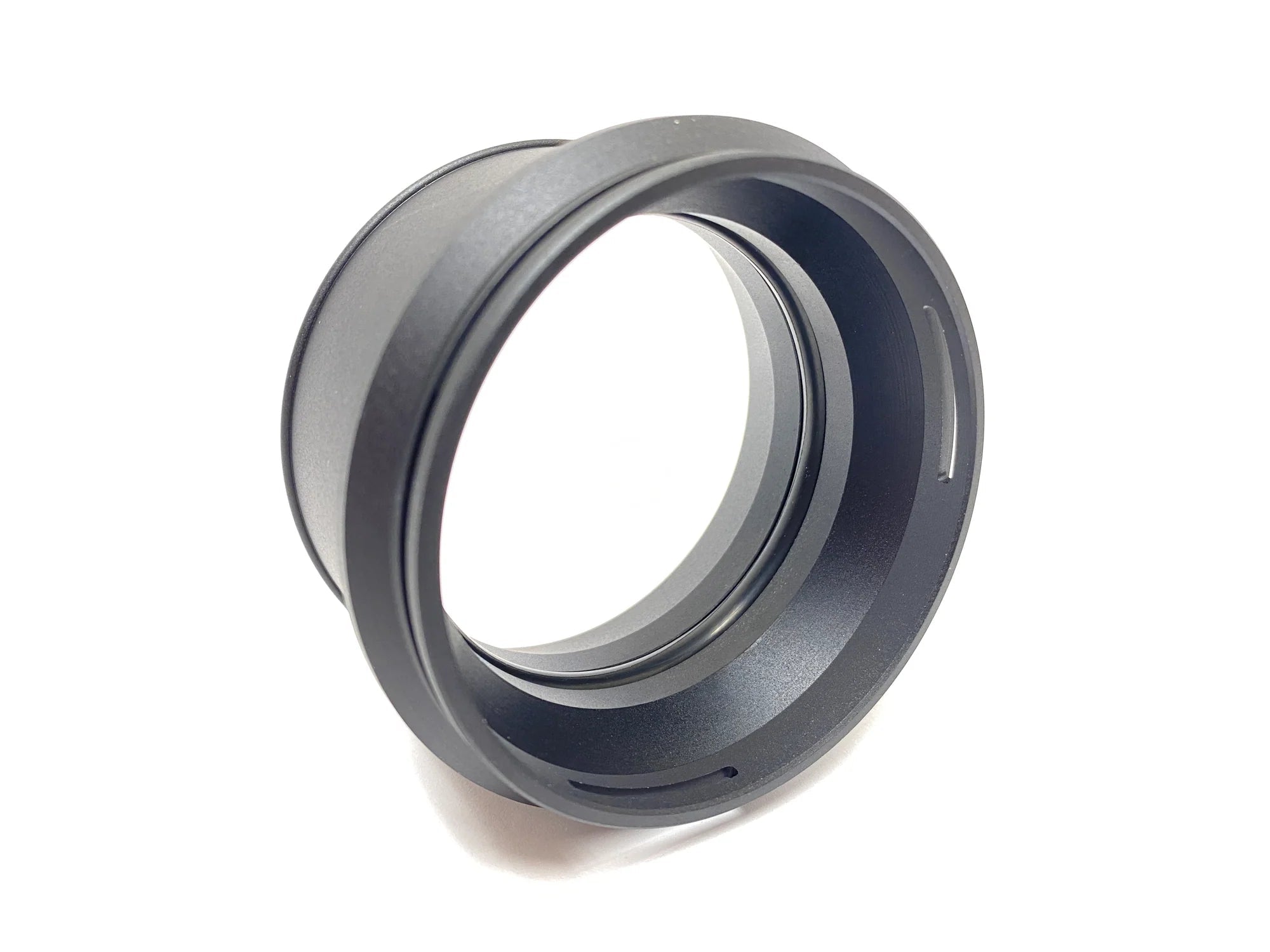

SPE started its engineering at the compressor outlet. The billet 3” adapter seals to the turbo with a 5mm o-ring. The thicker o-ring keeps a consistent seal as temperatures rise and fall, which SPE says other pipes on the market do not do. The outlet also retains the factory snap/quick connect ring for ease of installation. The pipe itself is a mandrel bent 3” intercooler pipe made of thick wall T6 aluminum, bent with as few angles as possible to reduce flow restriction. The 5-ply silicone couplers are stronger and more durable than the factory design. SPE says it engineered and hard-tested this pipe and waited until it could offer the strongest, most modular design possible. For more charge-air and engine parts, see our Powerstroke collection.
What you get

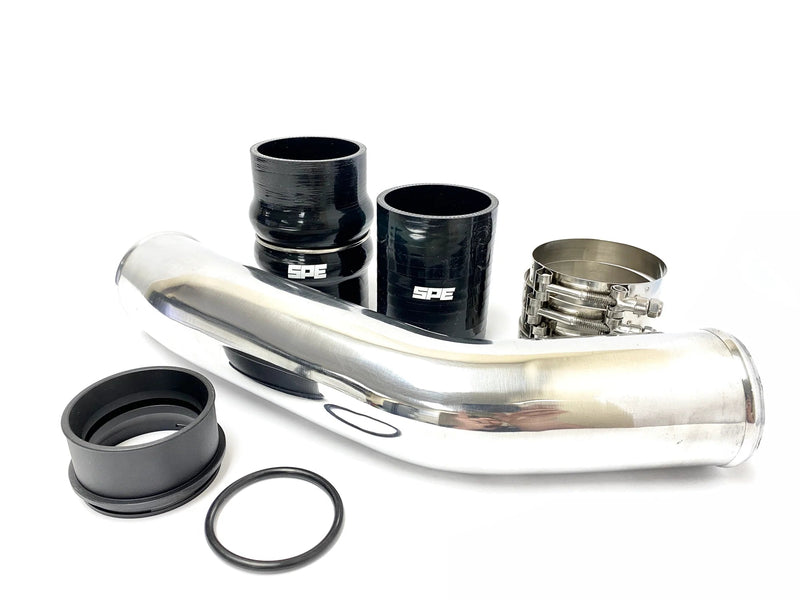

Kit includes:
- 1- Billet aluminum adapter (black anodized)
- 1- 3” mandrel bent intercooler pipe
- 1- 5mm o-ring
- 2- 5-ply silicone couplers
- 4- T-bolt clamps
- 1- Detailed instructions
The flex coupler for the intercooler side is reinforced with a metal ring for extra strength.
Specifications
Benefits:
- Direct fit for the 2011-2025 6.7L Powerstroke (non-HO)
- Mandrel bent, heavy wall aluminum tubing
- Larger pipe size
- Available in polished for a clean, sleek look
- Billet 3” turbo adapter with a thick 5mm o-ring unlike the competition
- Eliminates leak-prone factory o-ring
- Designed to work with factory and aftermarket turbo kits including most non-vgt applications
- 5-ply silicone couplers— stronger, more durable than the factory design
- Easy installation allowing even a novice to install
- NO TUNING REQUIRED
Installation notes
SPE rates this as an easy installation that even a novice can handle, and detailed instructions come in the box. The billet adapter keeps the factory snap/quick connect ring at the turbo, the metal-ring reinforced flex coupler goes on the intercooler side, and the four T-bolt clamps secure the two couplers. No tuning is required after the swap.
About SPE Motorsport
SPE Motorsport is Snyder Performance Engineering, started in 2011 and based in Latrobe, Pennsylvania. The company builds for Ford diesels, and its intercooler piping sits alongside turbo, cooling, fuel system protection and oil system parts for the 6.7L Powerstroke.
Frequently asked questions
Will this fit a 2023-2025 High Output truck?
No. On 2023-2025 trucks this pipe fits standard-output (non-HO) engines only. HO and standard-output trucks use different hot-side pipes.
Does it work with an aftermarket turbo?
Yes. SPE designed it to work with factory and aftermarket turbo kits, including most non-VGT applications.
Do I need a tune after installing it?
No tuning is required. It is a direct fit replacement that keeps the factory quick connect at the turbo.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
