SPE Motorsport S100102 Gen-2 Billet Fuel Drain Valve (2017-2026 6.7L PowerStroke)
Fits: Ford 6.7L (2017-Current Powerstroke)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the SPE Motorsport S100102 Gen-2 Billet Fuel Drain Valve (2017-2026 6.7L PowerStroke) you will earn 65 DIESEL DOLLARS in your SDS Fuel Tank!
The SPE Motorsport S100102 is a Gen-2 billet aluminum fuel drain valve for the 2017-2026 6.7L Power Stroke in the F-250, F-350, F-450 and F-550 Super Duty, cab and chassis included. It replaces the brittle plastic factory drain valve, OEM part number HC3Z-9J305-A, so a snapped valve at the water separator does not leave you stranded.
Fitment
SPE lists the Gen-2 valve for:
- 2017-2026 Ford F250 (including cab & chassis)
- 2017-2026 Ford F350 (including cab & chassis)
- 2017-2026 Ford F450 (including cab & chassis)
- 2017-2026 Ford F550 (including cab & chassis)
It is a factory replacement component for the OEM drain valve, part number HC3Z-9J305-A. A lot of fuel parts split at 2020, when Ford moved the lift pump out of the frame-mounted fuel conditioning module and into the tank, but SPE lists this valve across the full 2017-2026 run. Own a 2011-2016 truck? That generation takes the SPE S100150 valve. Verify by VIN or call us if you are unsure.
Why this part
Water and debris are what kill the Bosch CP4.2 high-pressure pump on these trucks. The pump is lubricated by the fuel itself and depends on clean fuel, which is why fuel filter service and regular water-separator drains are the most effective maintenance you can do on this fuel system. That means you open this valve a lot.

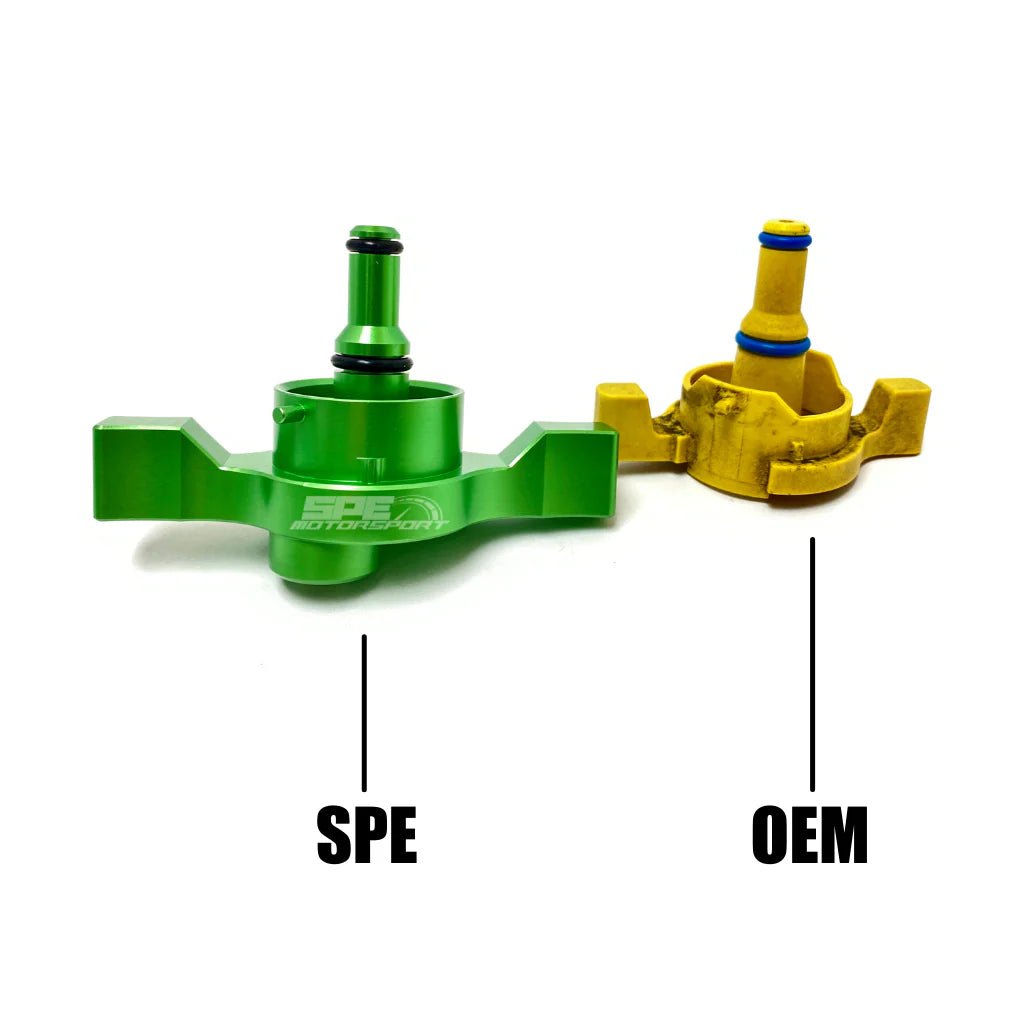

The factory valve is plastic, and it gets brittle. Nothing is worse than opening your water separator and having the valve break, leaving you stranded. SPE got caught in exactly that spot, so they designed a billet aluminum version and anodized it green for strength and corrosion resistance. The Gen-2 design adds two things. The drain port has an integrated fuel hole sized to fit inside a plastic bottle opening, so you can pull a clean, simple fuel sample when you suspect contaminated fuel. And the valve funnels fuel better as it drains, which cuts down on splashing and the odds of getting drenched in diesel when you open it. Find more for your truck in our Power Stroke parts.
SPE's feature list:
- Inexpensive, easy fix to the brittle, often broken, 2017+ plastic fuel drain valve
- Simple, easy install
- Designed to better funnel fuel when draining to reduce fuel splashing and drenching you when removing
- All billet & green anodized component — increases strength & corrosion resistant

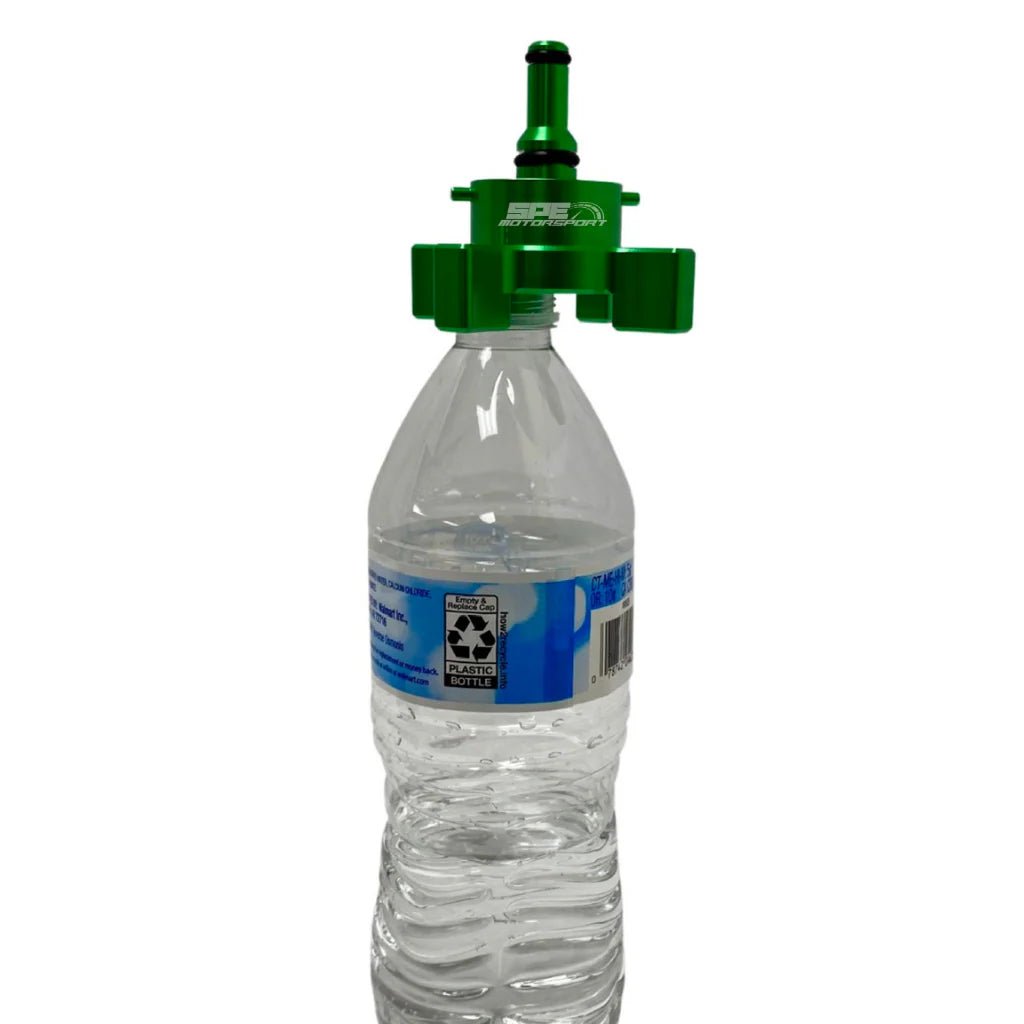

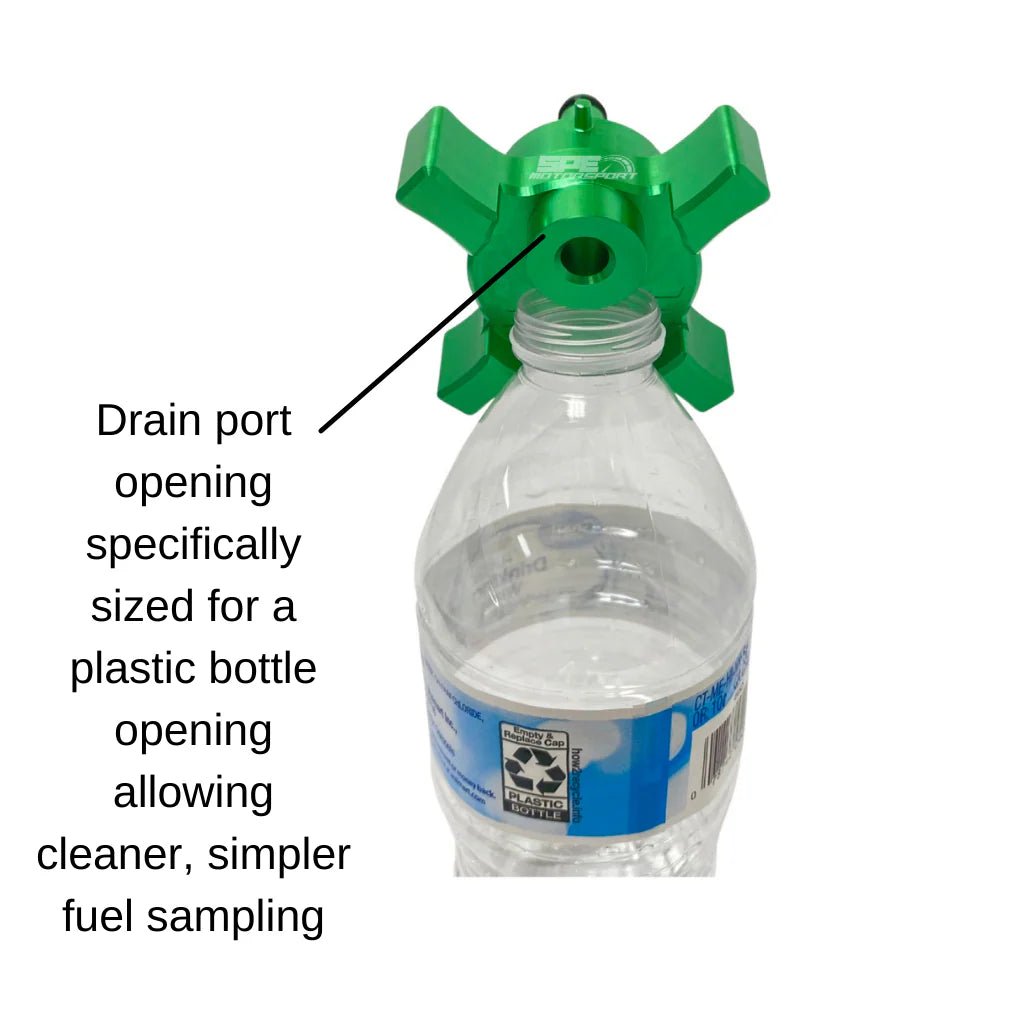

- Features drain port opening specifically sized for a plastic bottle opening allowing cleaner, simpler fuel sampling
What you get

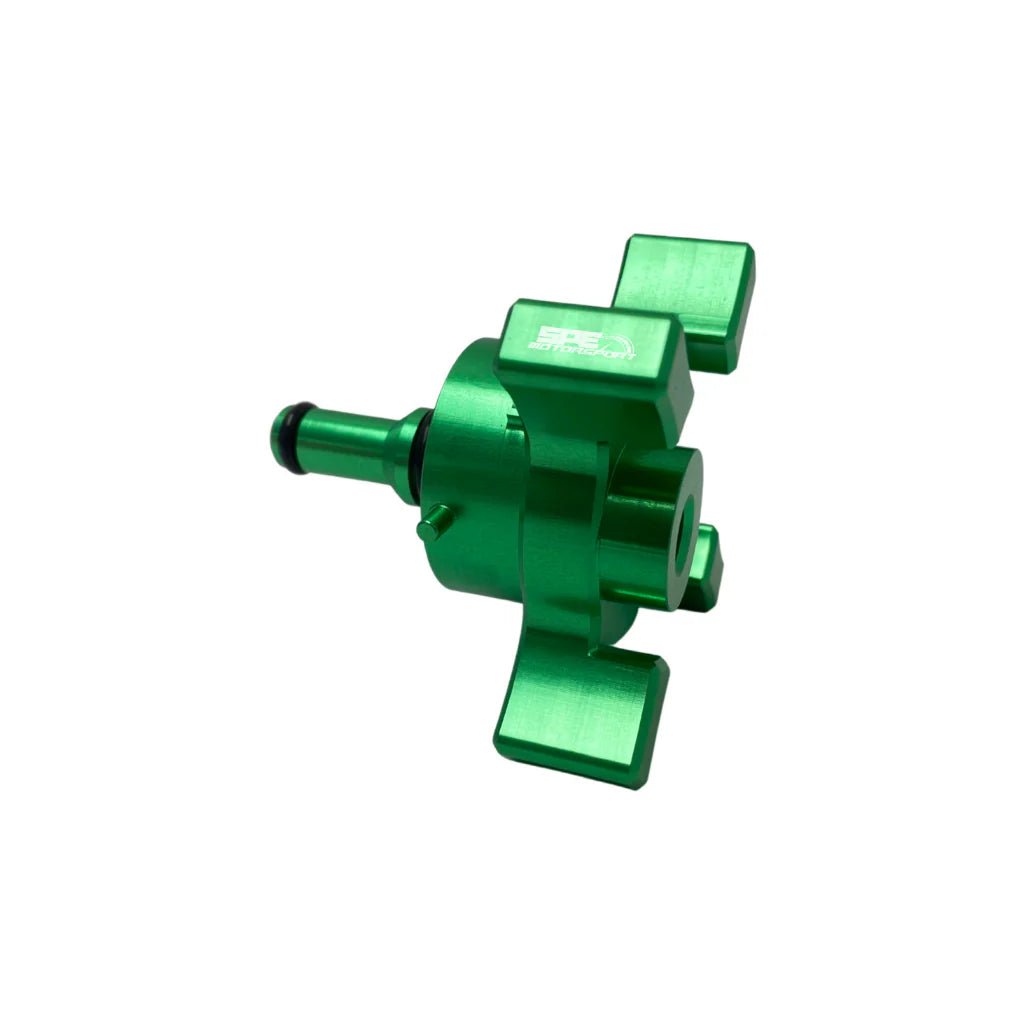

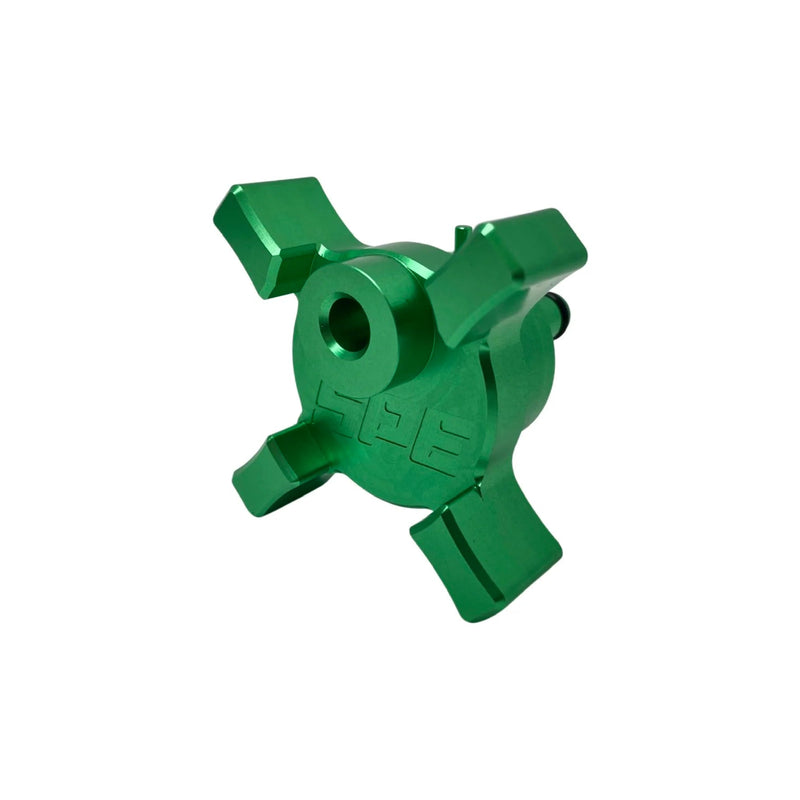

- Anodized billet fuel drain valve
- New o-rings
Specifications
- Part number: S100102
- Replaces: OEM drain valve HC3Z-9J305-A
- Material: billet aluminum
- Finish: green anodized
- Design: Gen-2, with an integrated fuel hole sized for a plastic bottle opening
Installation notes
SPE calls this a simple, easy install. The billet valve replaces the factory valve directly. Use the new o-rings that come in the kit. If you would rather we handle it, our Wildwood, FL shop can do it during a fuel filter service.
About SPE Motorsport
SPE Motorsport, short for Snyder Performance Engineering, has built parts for Ford diesels out of Latrobe, Pennsylvania since 2011. Its 6.7L Power Stroke line leans hard on fuel system protection, alongside turbo, cooling and oil system parts, and this drain valve came out of SPE's own run-in with a broken factory valve. See the full SPE Motorsport lineup.
Frequently asked questions
Why would I want to take a fuel sample?
If you suspect contaminated fuel, a sample shows you what is in the system. A water-in-fuel warning or hard starts after fueling at a suspect station are the usual signs of water or debris in the fuel. The Gen-2 drain port is sized to fit inside a plastic bottle opening, so you can catch a sample without a mess.
Does it fit 2020 and newer trucks?
Yes. SPE lists it for 2017-2026 F250, F350, F450 and F550 trucks, including cab and chassis. Verify by VIN if you are unsure.
How often should I drain the water separator?
Drain it regularly and at every fuel filter change, and keep the filters on schedule or change them early. Clean, dry fuel is the best protection the CP4.2 pump has.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
