SPE Motorsport Emperor Turbo & Intake Piping Kit Ultimate Turbo System Bundle (2020+ 6.7L PowerStroke)
Fits: Ford 6.7L (2017-Current Powerstroke)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the SPE Motorsport Emperor Turbo & Intake Piping Kit Ultimate Turbo System Bundle (2020+ 6.7L PowerStroke) you will earn 3750 DIESEL DOLLARS in your SDS Fuel Tank!
This SPE Motorsport bundle pairs the Emperor Turbo System with the SPE intake piping kit for 2020 and newer Ford Super Duty trucks with the 6.7L Powerstroke. You get a modular turbo system capable of supporting up to 800hp and aluminum charge piping that replaces the restrictive factory parts, in one package designed to work together.
Fitment
SPE lists this bundle for 2020 and newer Super Duty trucks with the 6.7L Powerstroke:
- Fits 2020+ Ford SuperDuty F-250/F-350/F-450/F-550
- Works with both standard (wide frame) pickups and cab & chassis configurations
Turbo parts are year-specific on the 6.7L. Ford switched to electronic VGT actuation for 2020, so do not cross-reference a turbo from a 2019 or earlier truck onto a 2020 or newer one. If you have a 2023 or newer High Output engine, call us first: HO trucks route coolant to the turbo compressor cover and standard-output trucks do not, so HO and standard-output turbo plumbing differ. Verify fitment by VIN before you order.
Why this part
On 2020 and newer trucks the stock turbo is not usually the weak link. Turbo failures are rare on these trucks when they are maintained properly. The complaints that do come up are VGT vanes sticking from soot on short-trip trucks, which shows up as sluggish spool, limp mode and VGT position codes, and boost leaks on the air side. The stock plastic intercooler pipe can crack or rupture under high boost on 2015-2022 trucks, and the factory cold-side tube on 2017-2026 trucks is rubber and can burst under pressure. Leaks like these bring hissing under boost, low power, elevated EGTs and P0299 underboost codes.

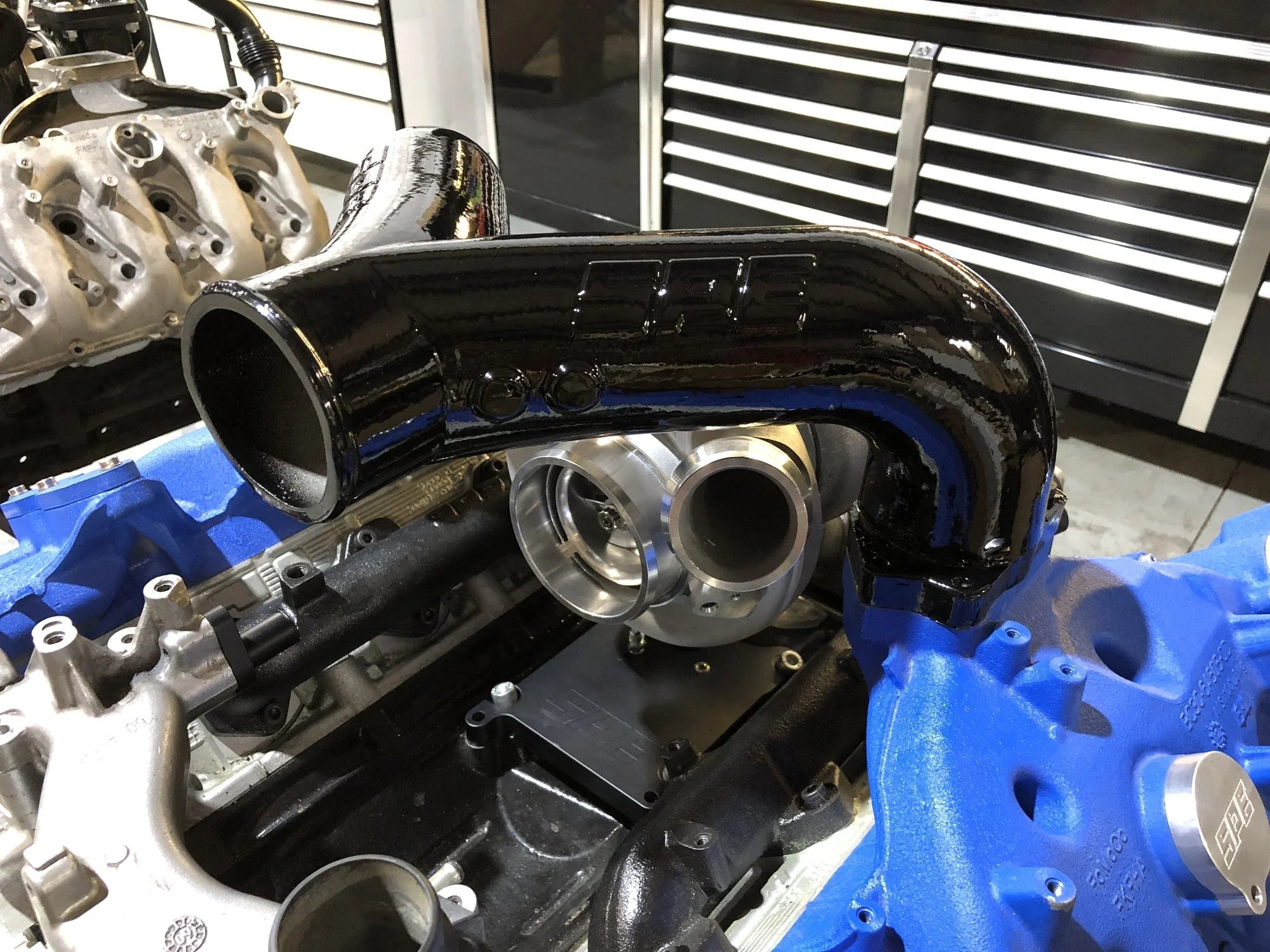

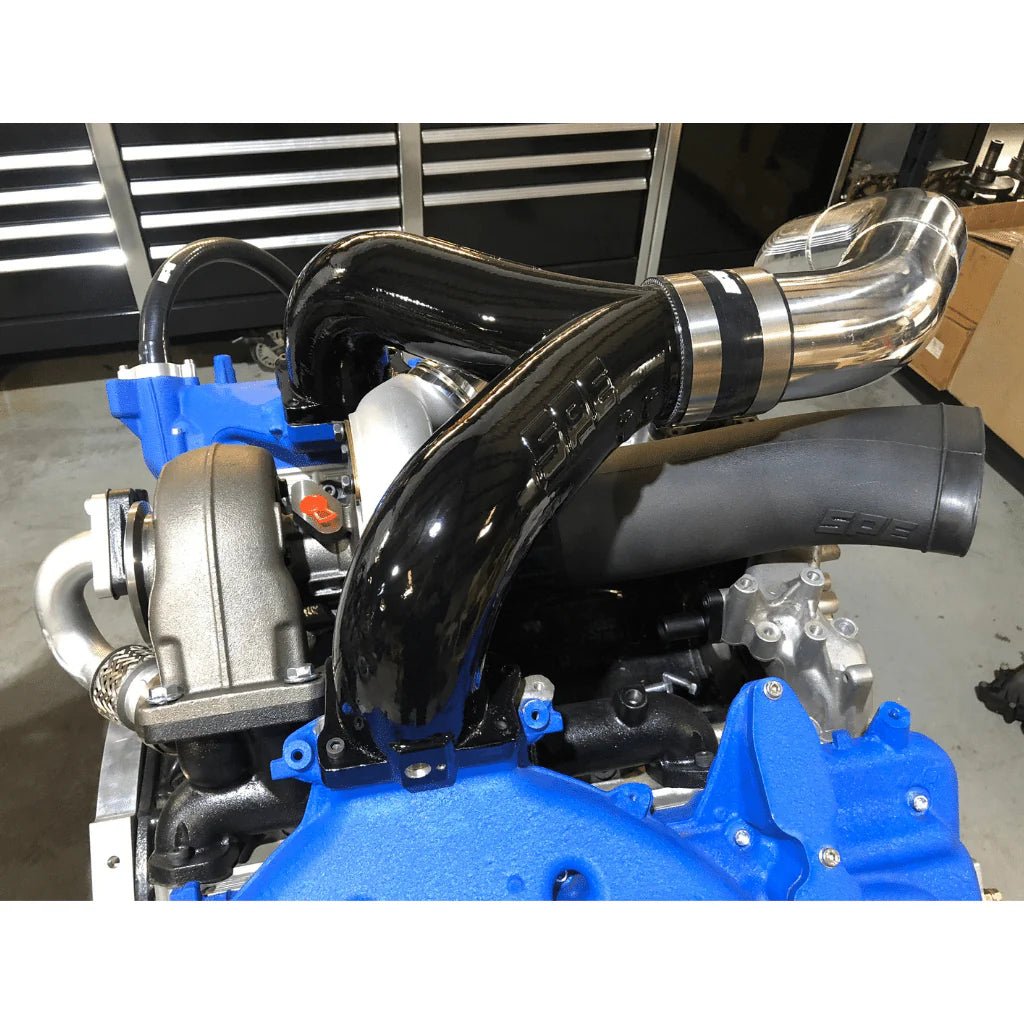

This bundle handles both sides in one install. The Emperor Turbo System is a 100% drop-in replacement or upgrade turbo system designed for both VGT and non-VGT setups and capable of supporting up to 800hp. SPE engineered it for durability, ease of installation and flexibility, as a replacement for the problematic Garrett GT32 SST turbo on 2011-2014 models or an upgrade on newer trucks like yours. The intake piping kit swaps the restrictive factory parts for polished aluminum piping, a cast aluminum Y manifold with a true 3” internal diameter and a 3.5” cold-side pipe. If you are replacing failing components, adding performance or want one installation instead of two, this package covers it, and SPE designed it for towing, street driving and racing. More supporting parts are in our Powerstroke collection.

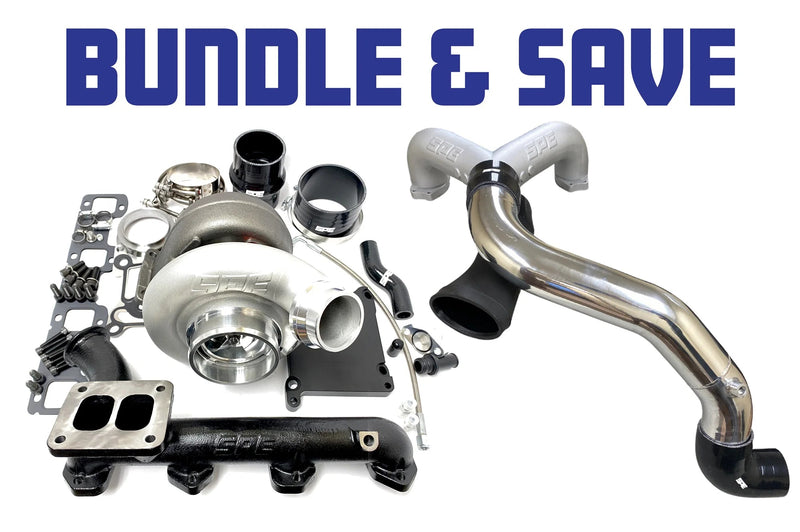

What you get

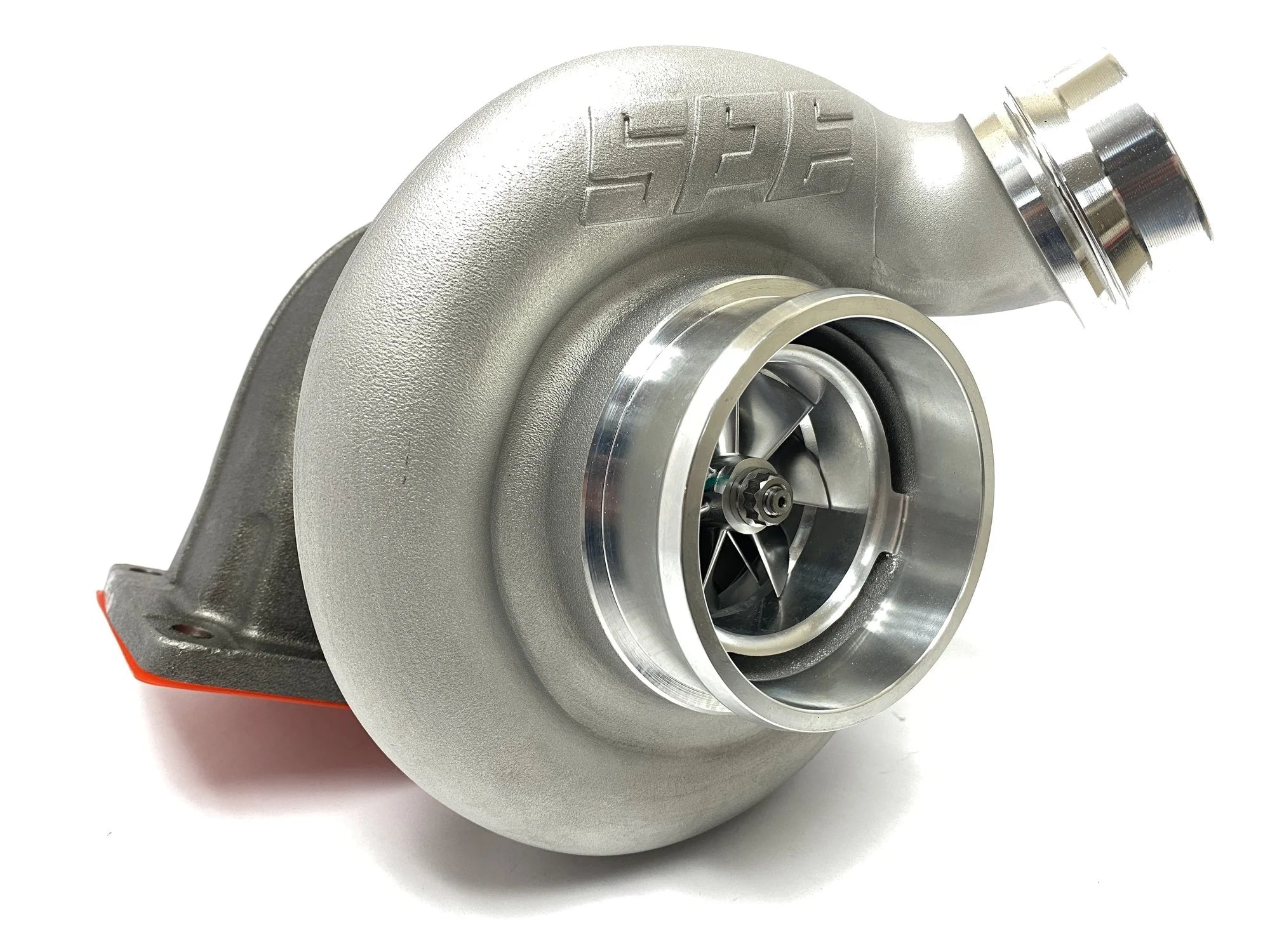

- SPE Emperor Turbo System: a drop-in replacement or upgrade turbo system for VGT and non-VGT setups, capable of supporting up to 800hp

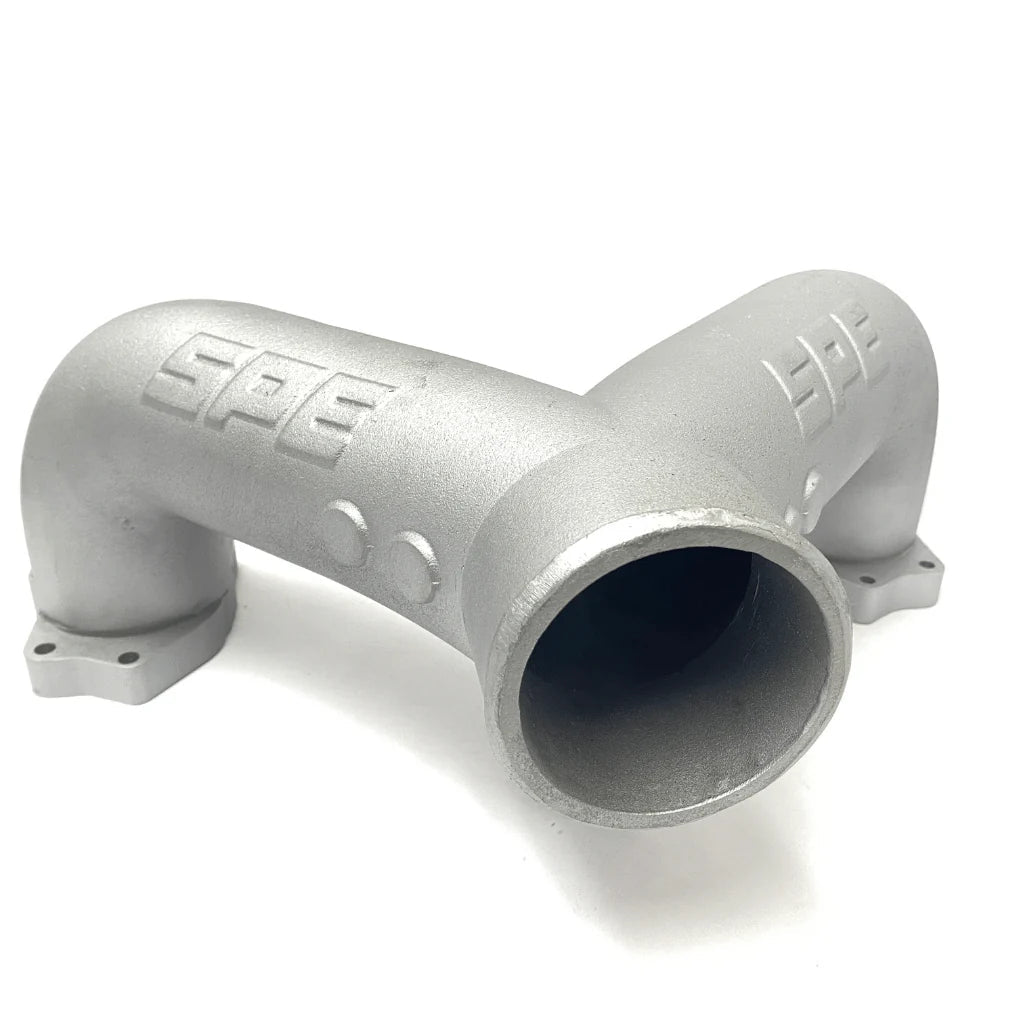

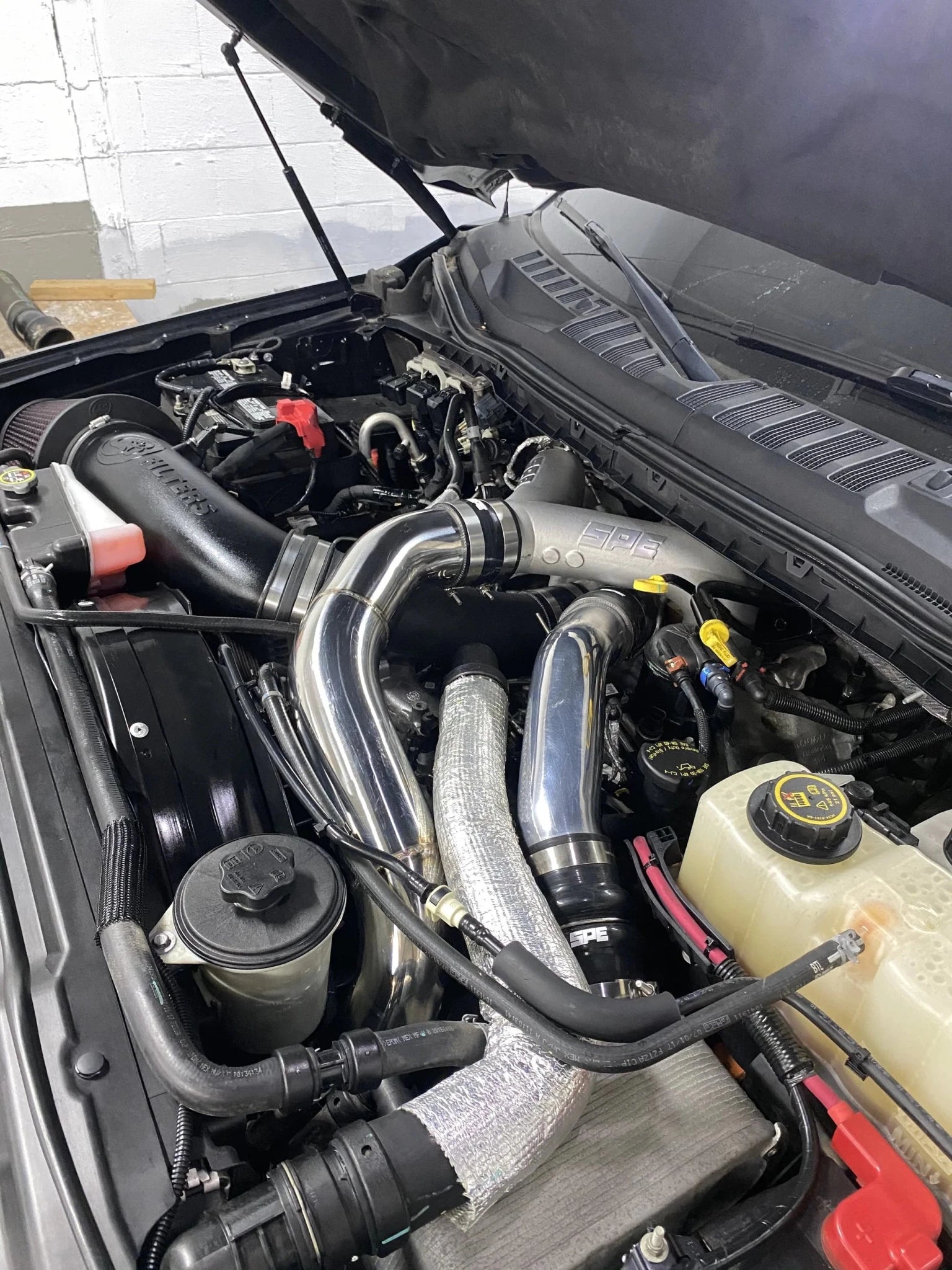

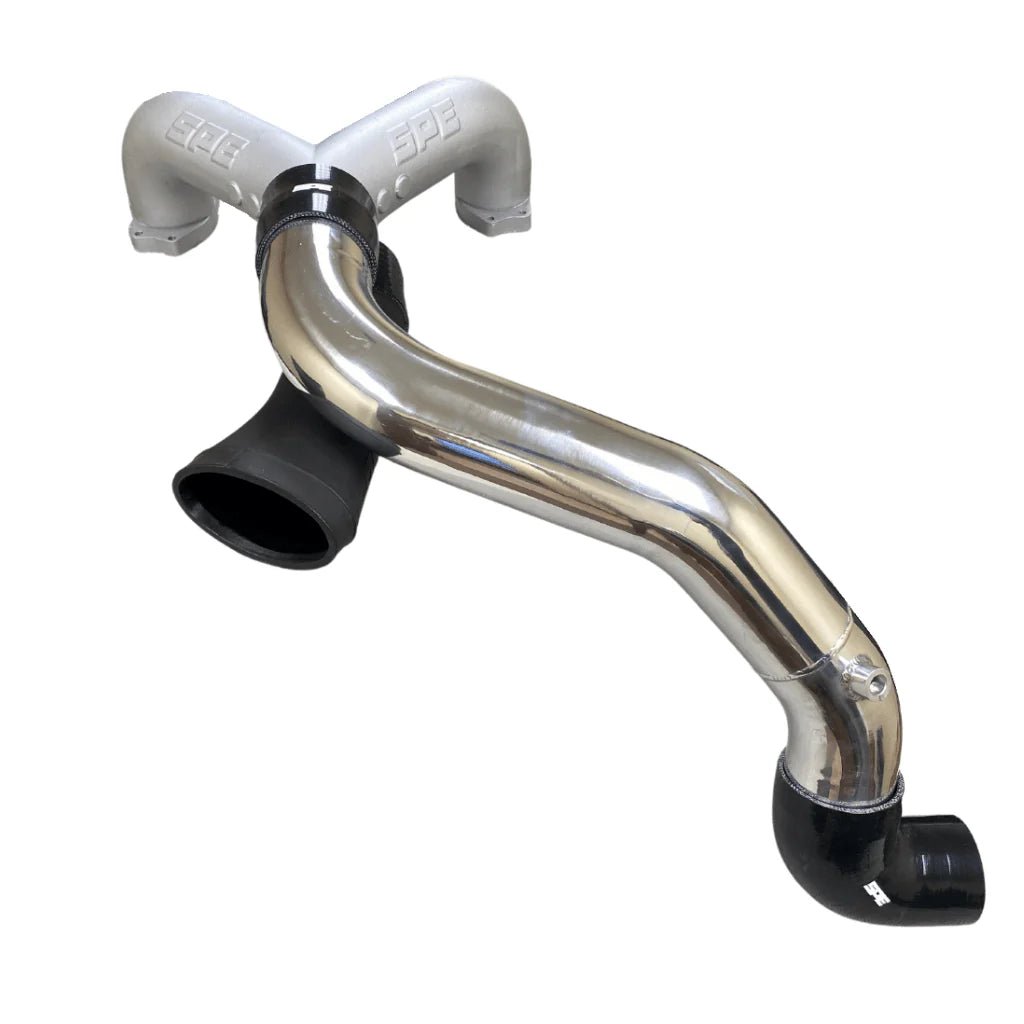

- SPE Intake Piping Kit: polished aluminum piping, a cast aluminum Y manifold with a true 3” internal diameter, a 3.5” cold-side pipe, 5-ply silicone couplers, T-bolt clamps and a rotomolded adapter for stock or aftermarket cold air intakes
Specifications
Features and benefits:
- Supports VGT and Non-VGT configurations
- Modular design for easy future upgrades
- Fits 2020+ Ford SuperDuty 6.7L Powerstroke
- Available in multiple turbo sizes: S363, S366, and S370
- Choice of journal or ball-bearing turbocharger
- Includes raw or powder-coated Y manifold
- Capable of supporting up to 800hp
- Designed for towing, street driving, and racing

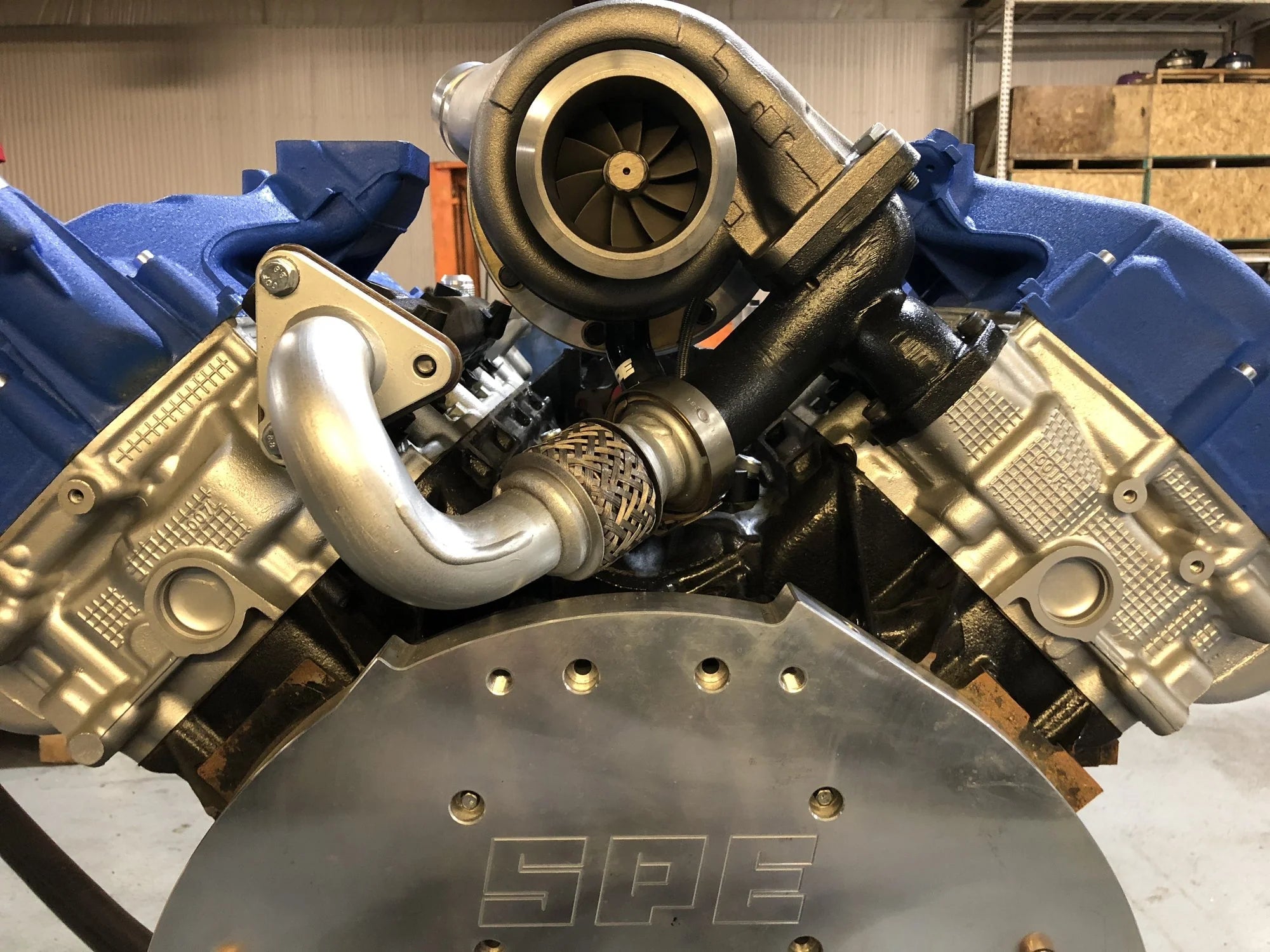

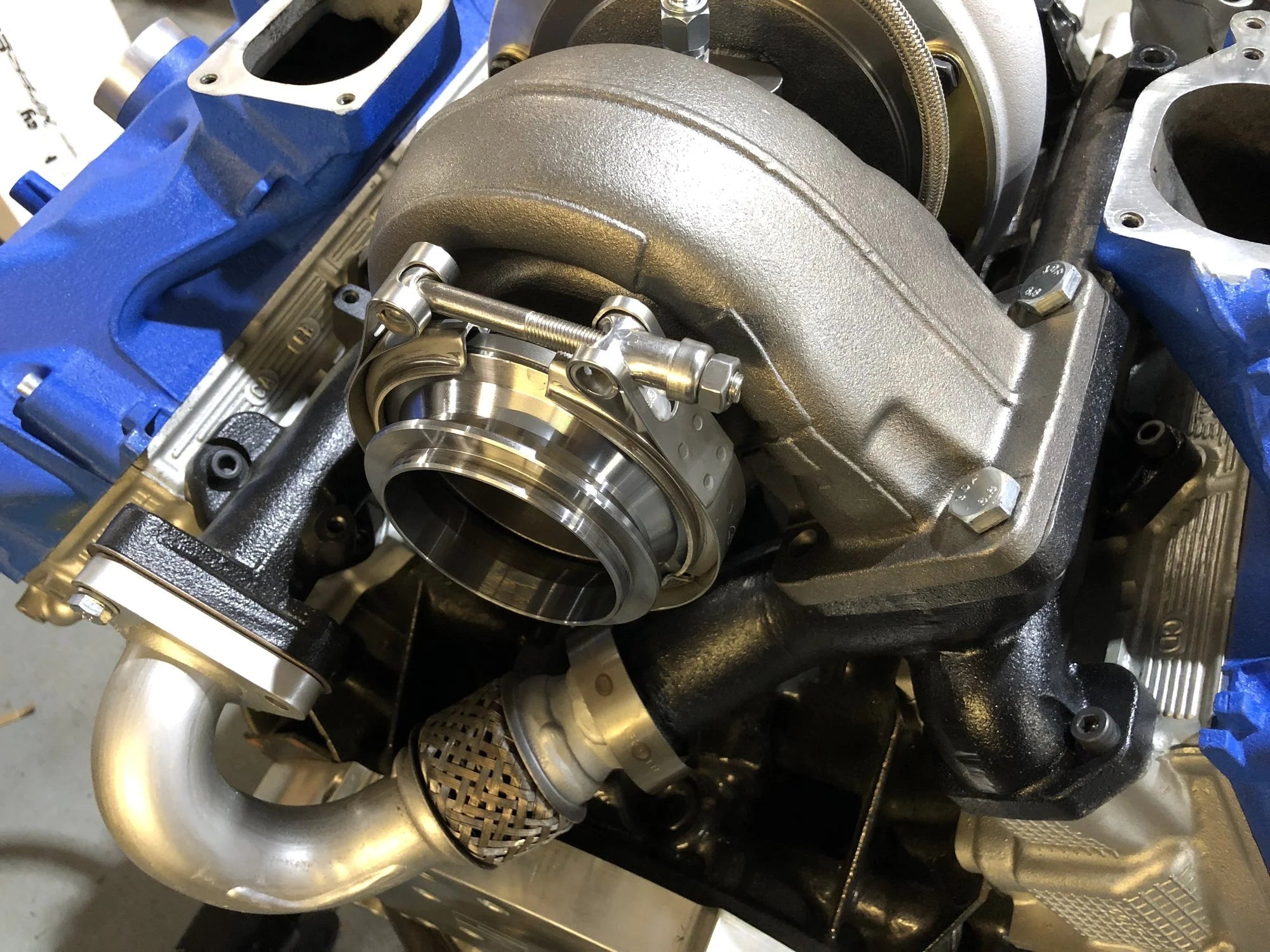

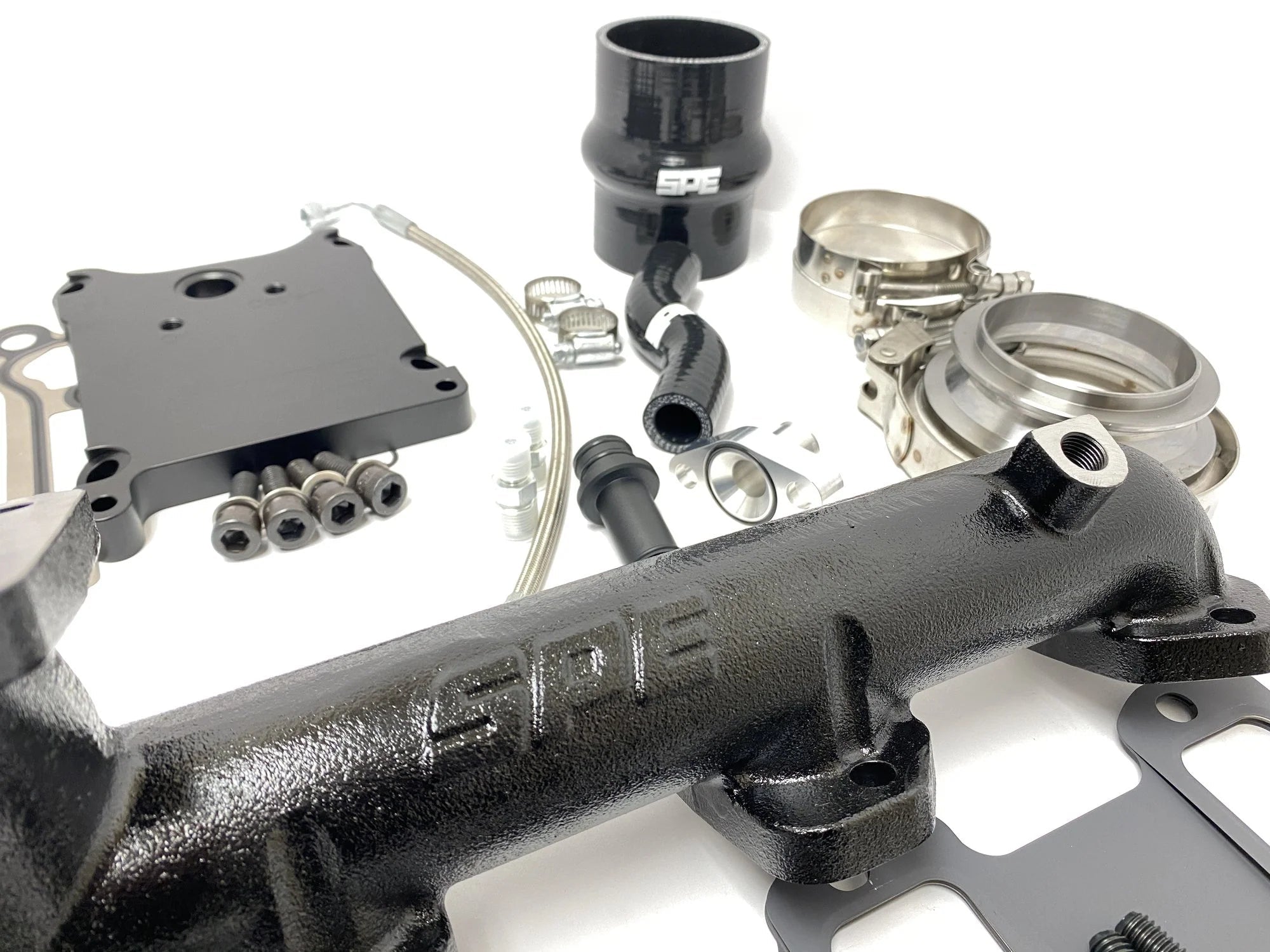

Emperor Turbo System:

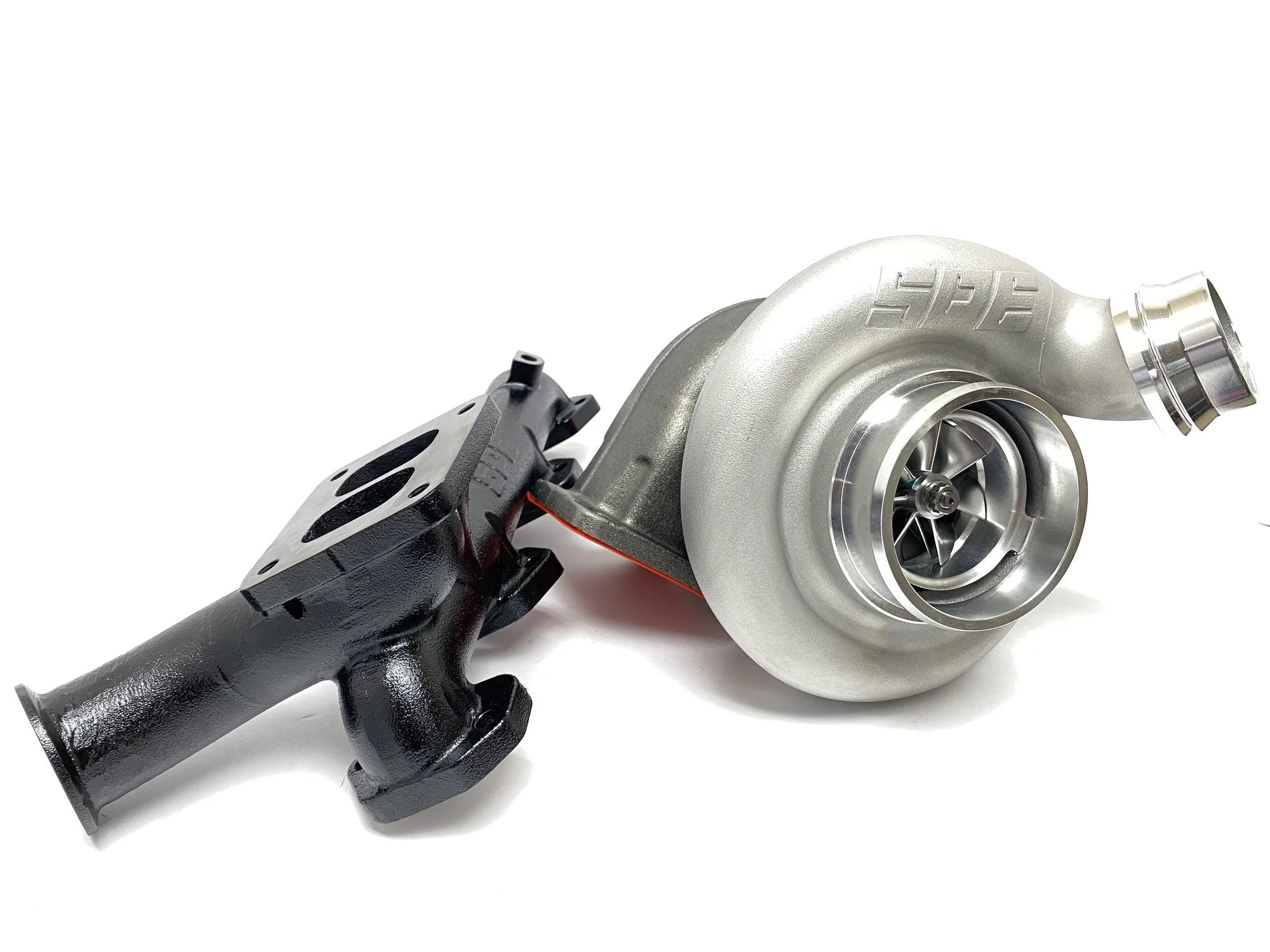

- Cast aluminum manifold with dual-volute T4 flange for optimal spool-up
- Durable pedestal with hard anodizing to minimize corrosion
- Modular design allowing future upgrades without replacing core components
Intake piping kit:
- Superior airflow with larger diameter piping

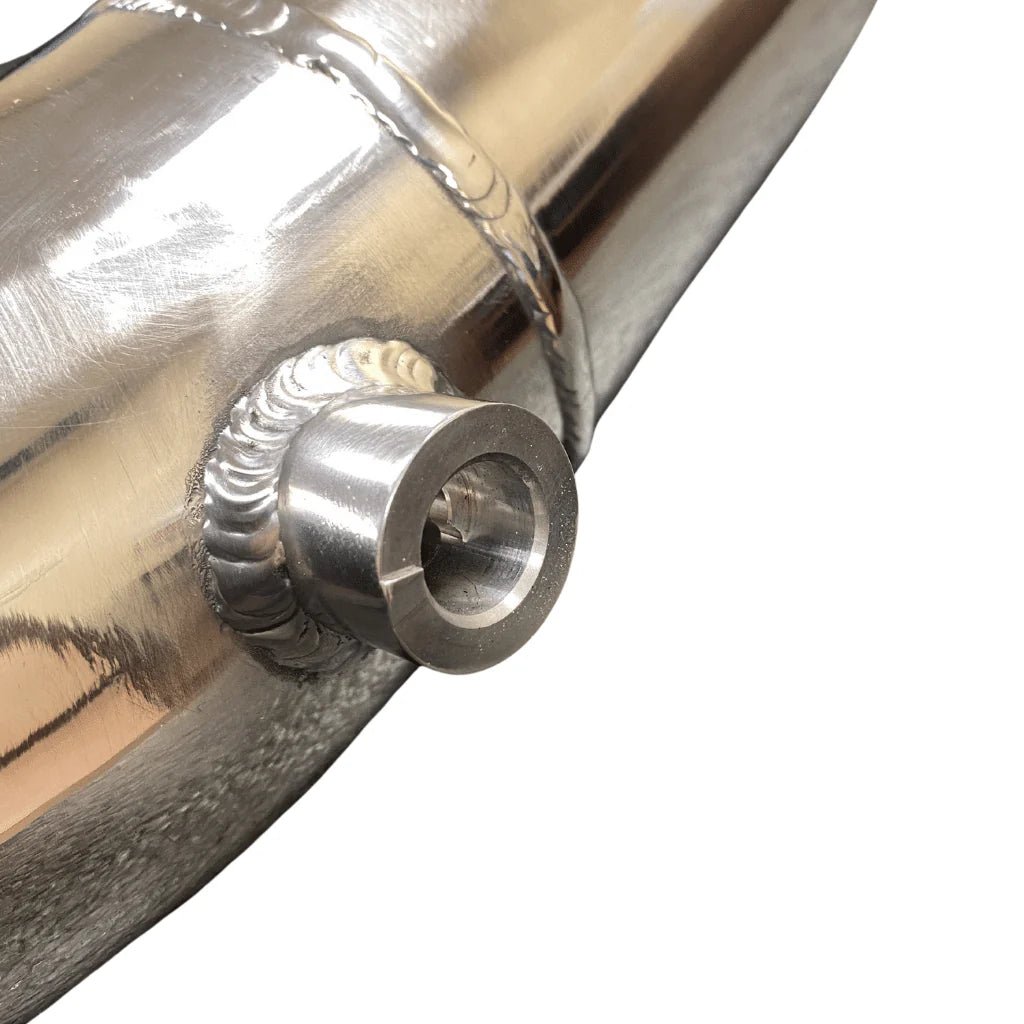

- Retention of factory IAT sensor functionality
- Compatibility with existing cold air intakes, saving you money
Installation notes
Tuning may be required. The system is designed to work with SPE 6.7L based Emperor engines. SPE recommends the SPE Hot Side Pipe to complement this kit, and an aftermarket downpipe is recommended for easier installation. Because the turbo system is modular, later upgrades do not mean replacing core components, and the rotomolded adapter lets you keep an existing cold air intake. Tell us what is already on your truck and we will check what else the install needs.
About SPE Motorsport
SPE Motorsport, or Snyder Performance Engineering, is a Pennsylvania company that started in 2011 and is based in Latrobe. It builds for Ford diesels. Emperor turbo systems and intercooler piping are two of the main lines in the 6.7L Powerstroke catalog we carry from them. Browse the rest on our SPE Motorsport page.
Frequently asked questions
Which turbo sizes are offered?
The bundle comes with your choice of S363, S366 or S370 turbo, each with a journal or ball-bearing option, and the Y manifold comes raw or powder coated.
Will I need a tune?
Tuning may be required depending on your setup. Call us with your truck and your goals before you order and we will talk it through.
Does it fit a 2023 or newer High Output truck?
SPE lists the bundle for 2020+ Super Duty trucks. On 2023 and newer trucks the High Output and standard-output turbo plumbing differ, so verify fitment by VIN with us before ordering for an HO engine.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
