SPE Motorsport 10.25 And 10.5 Sterling Rear Diff Cover (1985-2025 6.7L PowerStroke SRW)
Fits: Ford 6.0L (2003-2007 Powerstroke) • Ford 6.4L (2008-2010 Powerstroke) • Ford 6.7L (2011-2016 Powerstroke) • Ford 6.7L (2017-Current Powerstroke) • Ford 7.3L (1999-2003 Powerstroke) • Ford 7.3L OBS (1994-1997 Powerstroke)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the SPE Motorsport 10.25 And 10.5 Sterling Rear Diff Cover (1985-2025 6.7L PowerStroke SRW) you will earn 250 DIESEL DOLLARS in your SDS Fuel Tank!

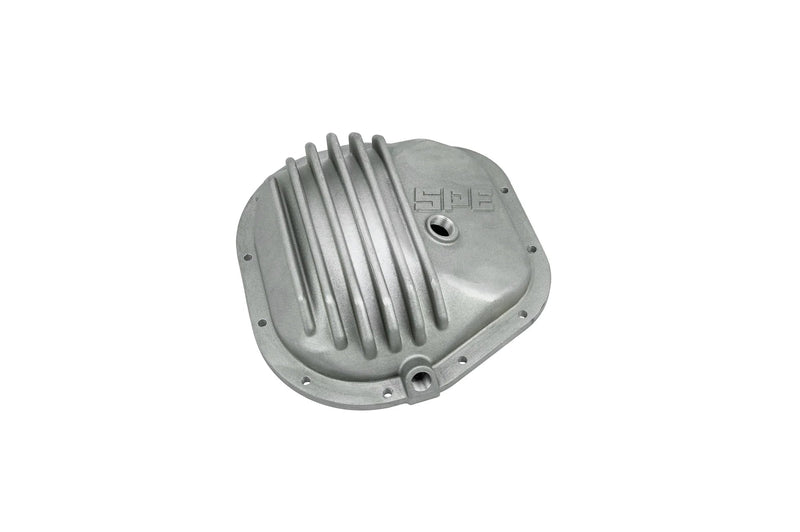

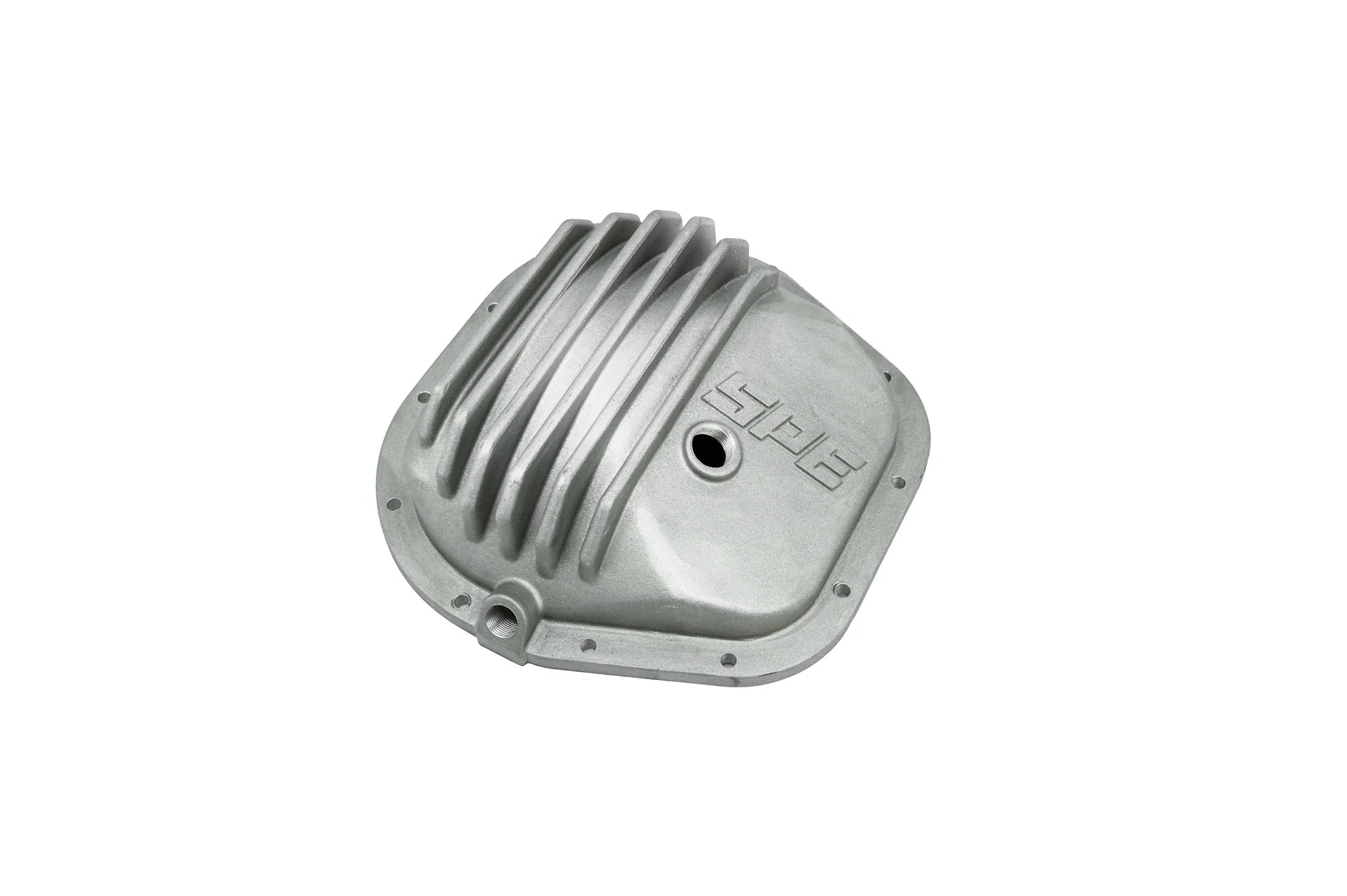

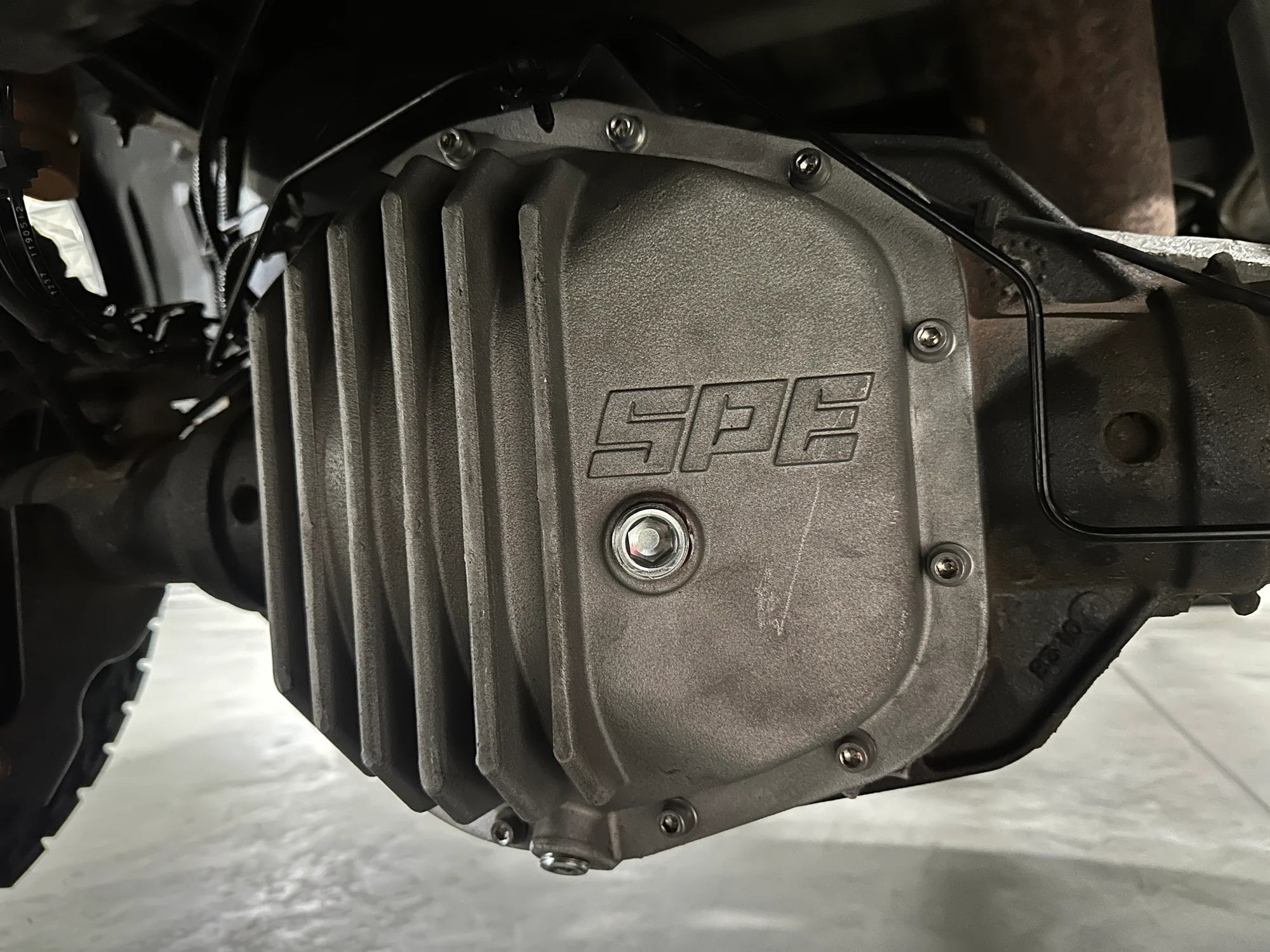

The SPE Motorsport 10.25 and 10.5 Sterling Rear Diff Cover fits 12-bolt Sterling single rear wheel axles under Ford Super Duty and older Powerstroke trucks. You buy it for easier, cleaner fluid service: NPT drain and fill plugs, a large fill port, a machined O-ring seal and added fluid capacity.
Fitment
This cover is matched to the axle, not the engine.
Fits 1985-current 10.25 and 10.5 Sterling single rear wheel axles (12 bolt). Verify your axle type before ordering.
In our catalog it's listed for single rear wheel Ford trucks with the 7.3L (1994-1997 OBS and 1999-2003), 6.0L (2003-2007), 6.4L (2008-2010) and 6.7L Powerstroke (2011-2025). Our listing stops at the 2025 model year, so verify fitment by VIN. Dual rear wheel axles are not part of SPE's fitment. If you're not sure which axle is under your truck, send us your VIN or call the shop before you order.
Why this part
A diff cover gets ignored until it's time to change the fluid. Then the details matter. The NPT drain and fill plugs make service easy, and if you ever need to replace a plug, it's a standard NPT fitting. SPE angled the drain plug so nearly all the fluid drains cleanly into the pan instead of running along the axle. The fill port is large enough to put the bottle straight in.
The cover seals with a machined O-ring, so there's no RTV mess or guesswork. Inside, it's contoured to keep fluid flowing across the bearings; SPE points out that cheap square covers can cause bearing starvation. The thick cover adds axle rigidity under load, the integrated heat fins help shed heat and are thick enough to take real abuse, and the added fluid capacity helps the diff run cooler and last longer. SPE designed and tested it for heavy towing, off-roading or just peace of mind.
SPE's feature list:
- Simple Maintenance: Features NPT drain and fill plugs for easy service. If you ever need to replace a plug, standard NPT fittings make it simple.
- Proper Drainage: Drain plug is positioned at an optimized angle to drain nearly all fluid cleanly into a pan without running along the axle.
- Easy Filling: Large fill port allows direct bottle insertion for faster, easier fluid fills.
- Sealed Tight: Machined O-ring main seal — no RTV mess or guesswork.
- Stainless Hardware: Corrosion-resistant stainless steel bolts included.

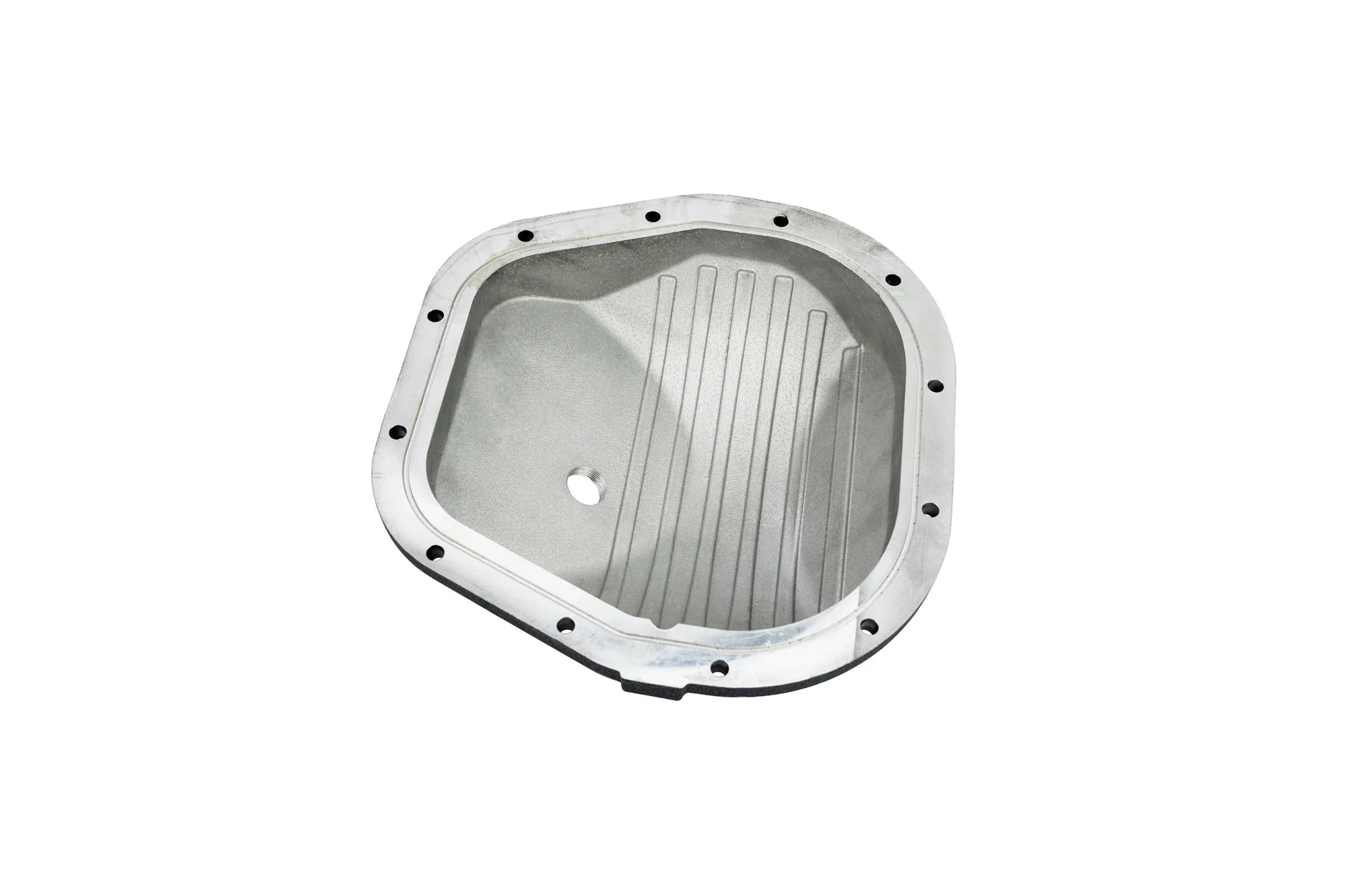

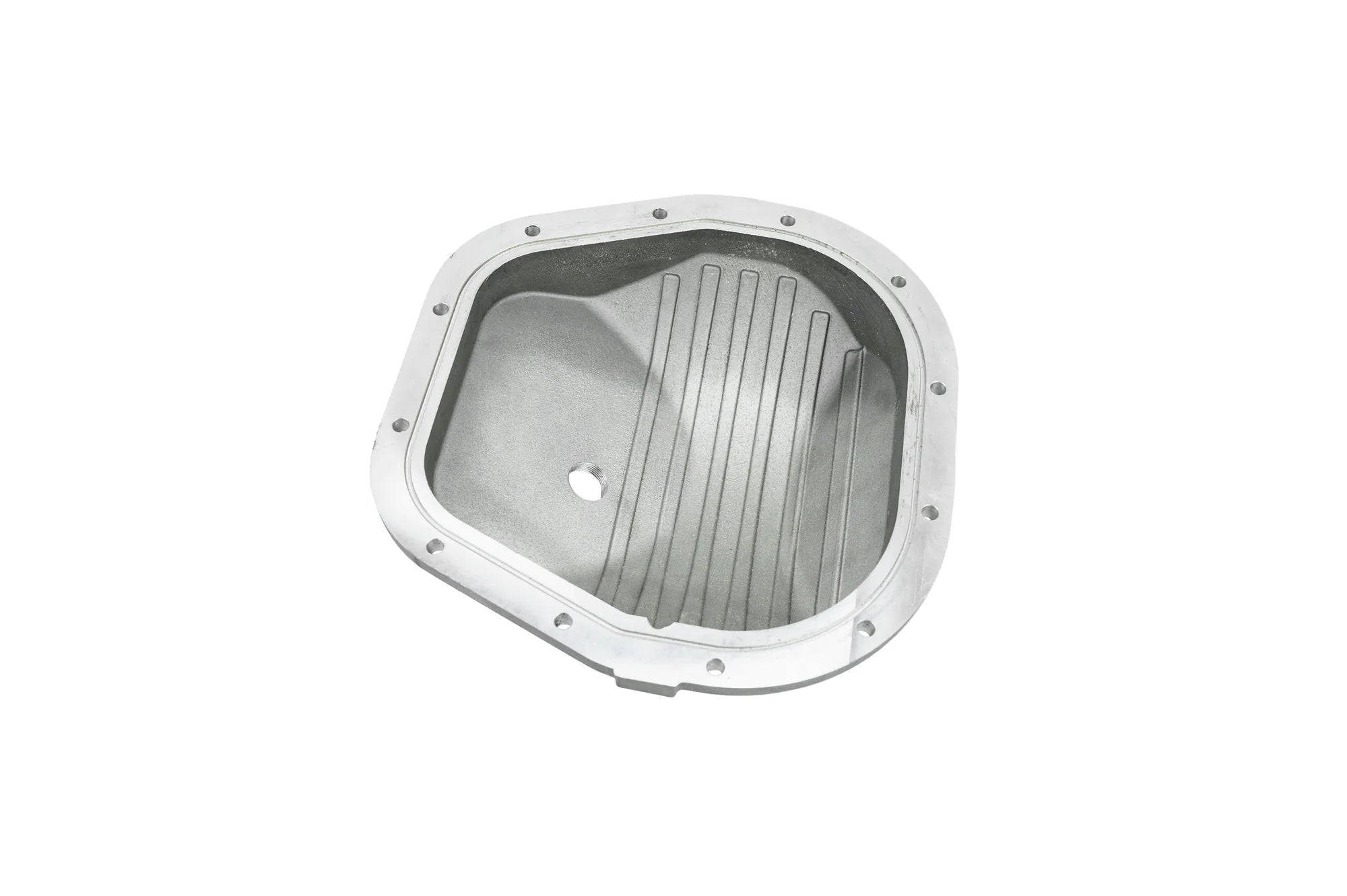

- Designed for Performance: Internally contoured to maintain proper fluid flow across bearings, unlike cheap square covers that cause bearing starvation.
- Built for Clearance: Clears most factory and aftermarket sway bars.

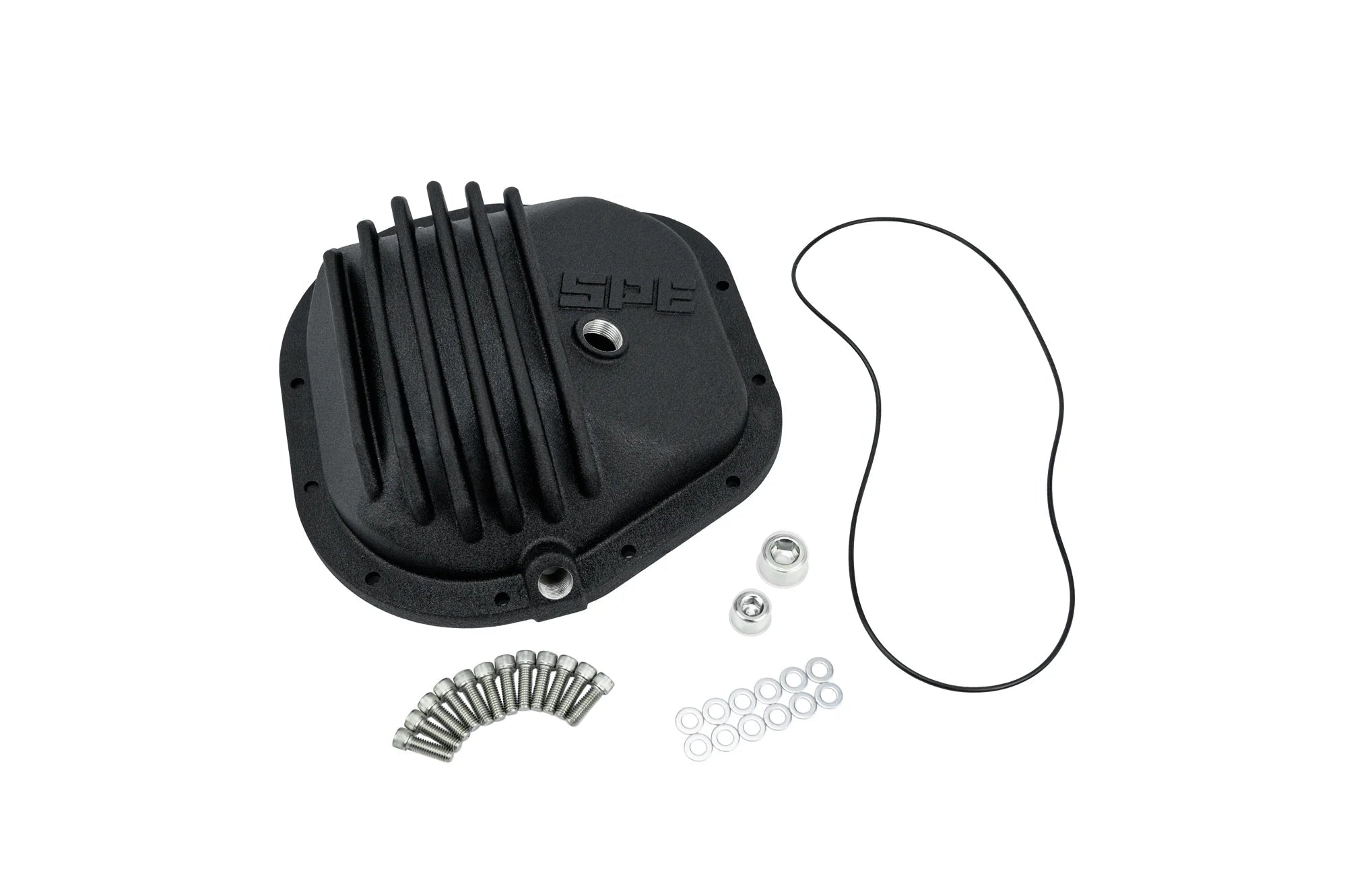

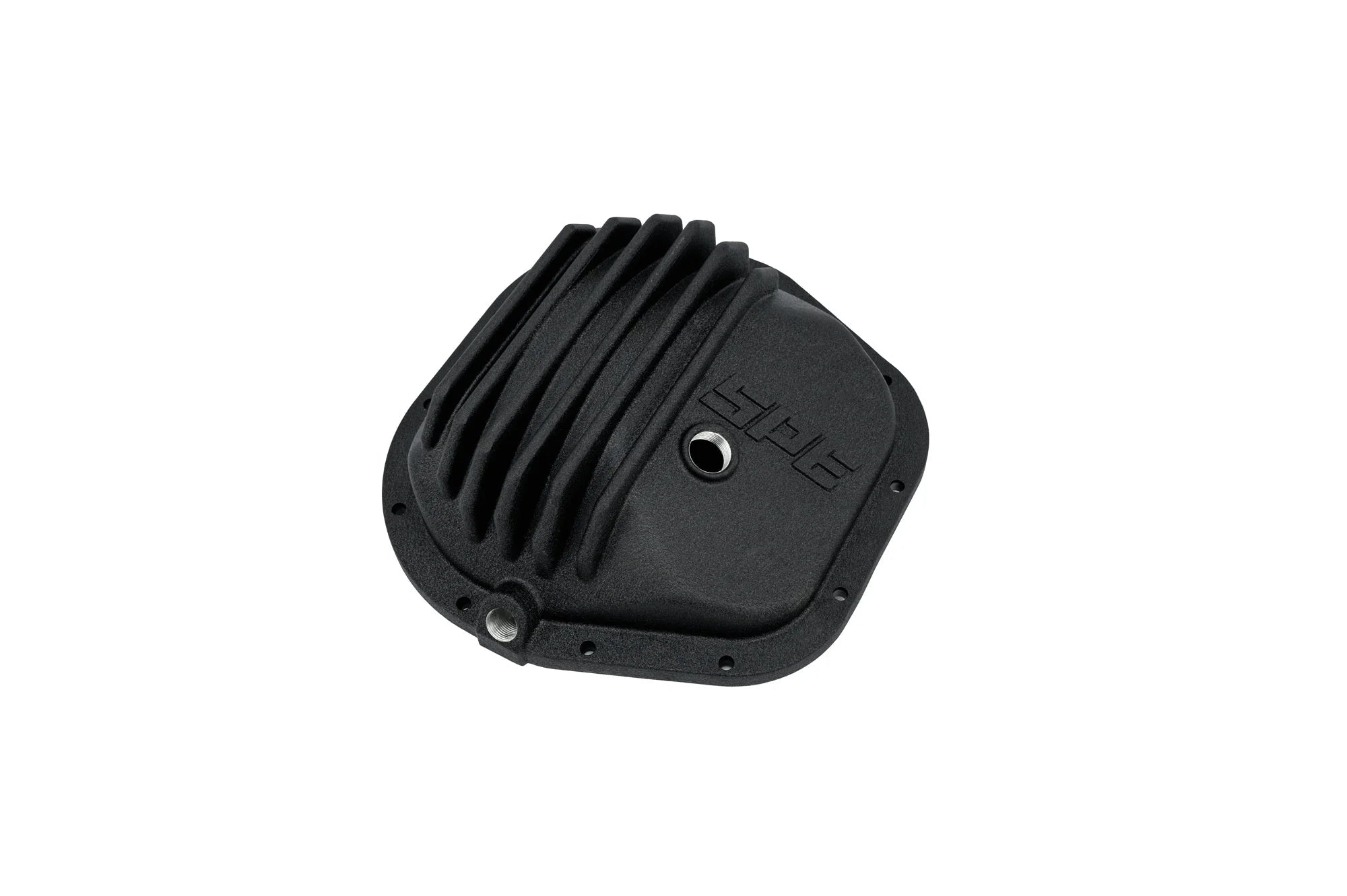

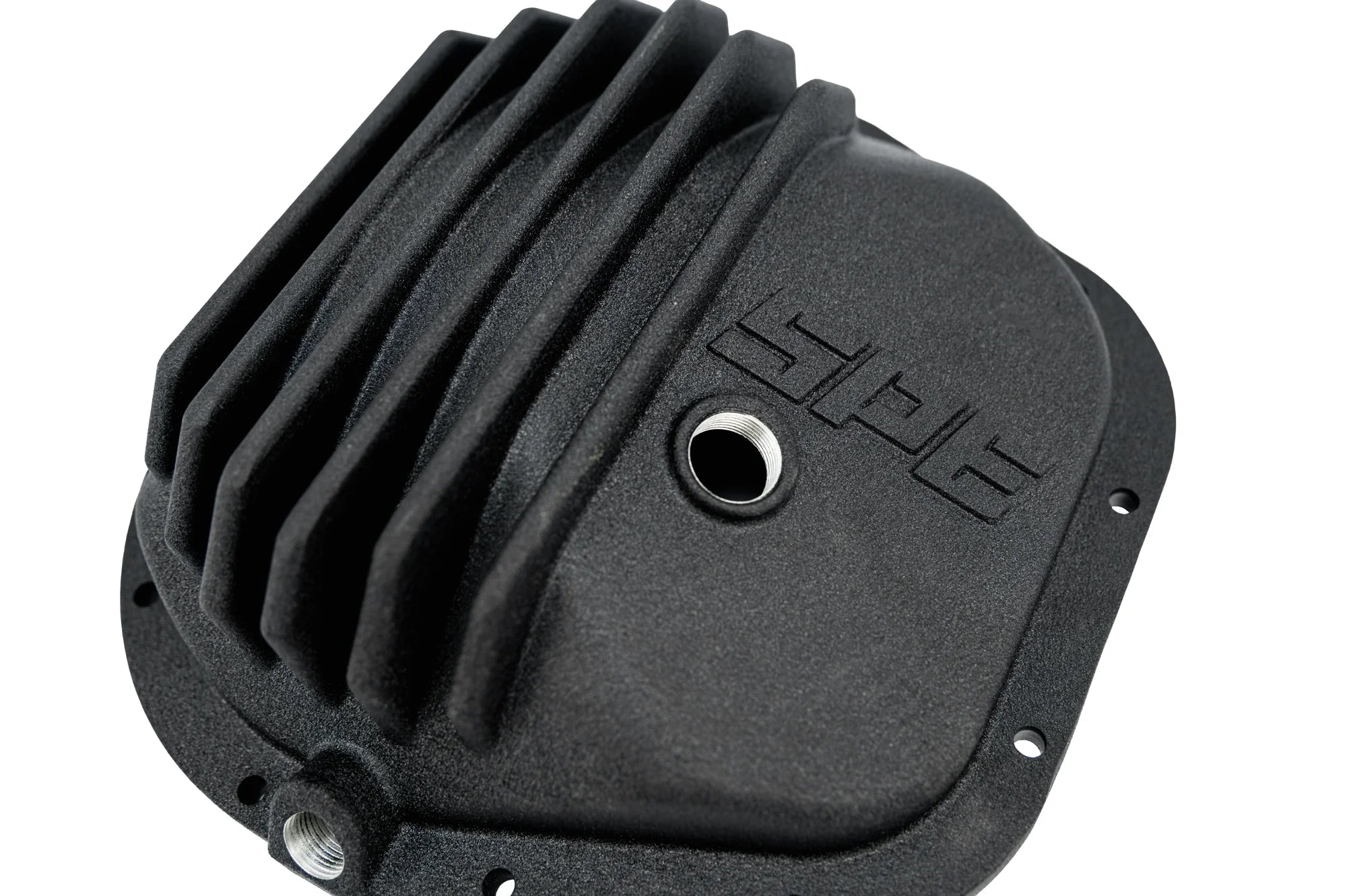

- Finish Options: Available raw or powdercoated in a durable wrinkle black finish.
- Added Capacity: Increased fluid capacity for better cooling and extended differential life.
- Strength Where It Matters: Thick cover design improves axle rigidity under load.

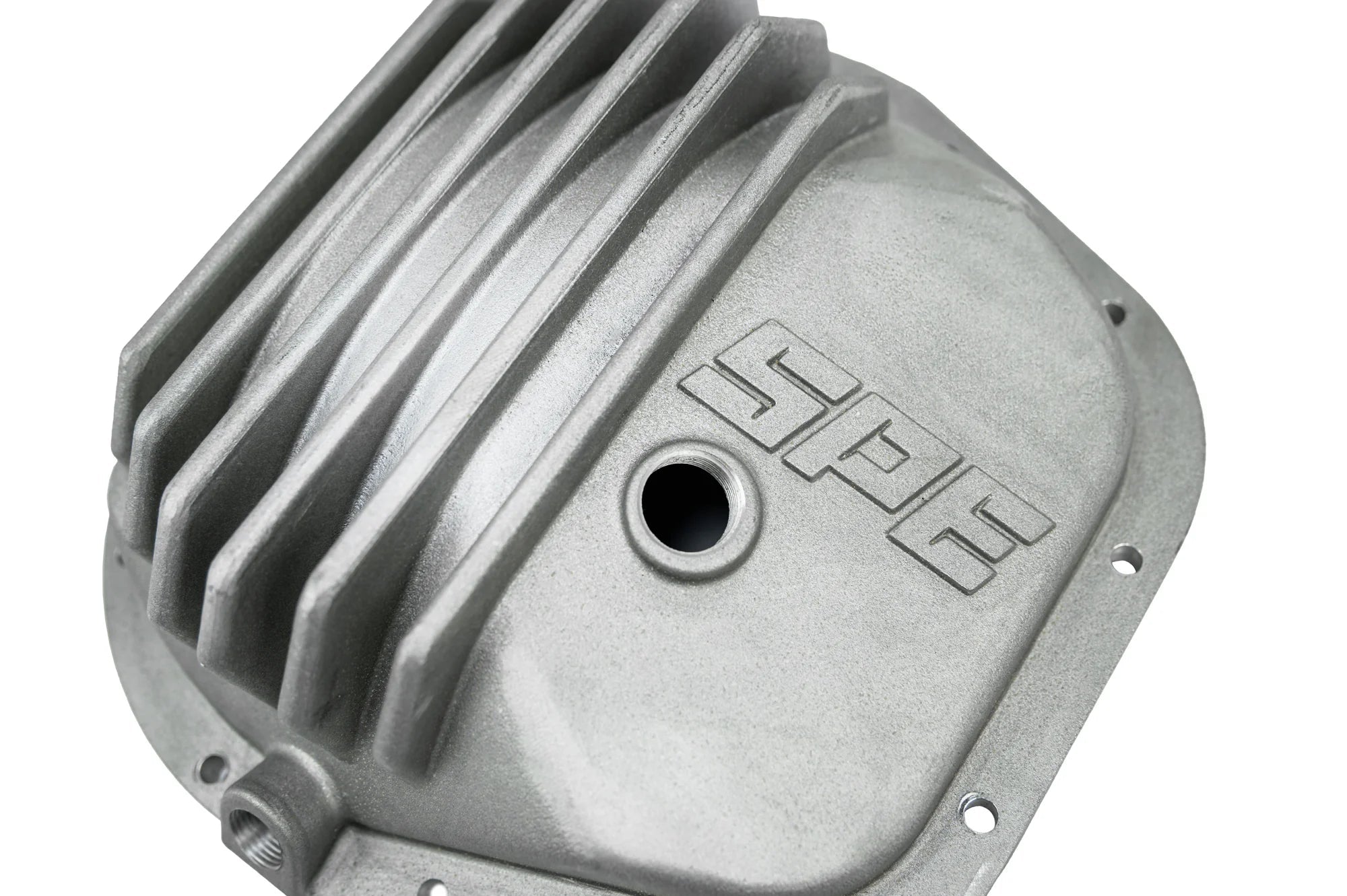

- Built-in Cooling: Integrated heat fins help dissipate heat but are thick enough to handle real abuse — no fragile fins here.

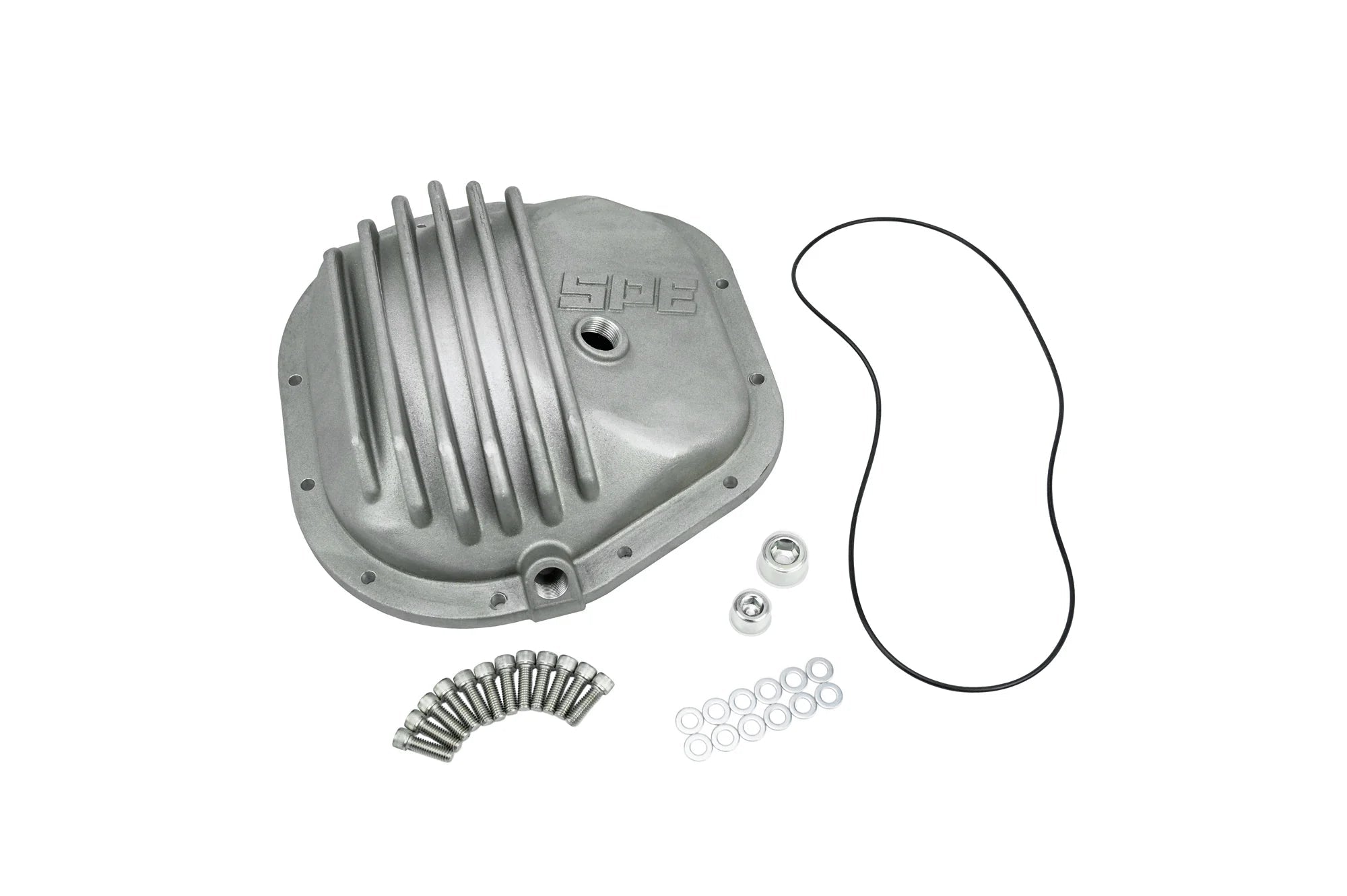

What you get
- SPE Motorsport rear differential cover for 10.25 and 10.5 Sterling single rear wheel axles, raw or powdercoated wrinkle black
- O-ringed gasket (machined O-ring main seal)
- NPT drain and fill plugs
- Corrosion-resistant stainless steel bolts
This listing carries three SKUs: S100327, S100367 and S100381.
Installation notes
Factory differentials come from more than one outside supplier, so some housings have minor variations in their machining or sealing surfaces compared to the unit SPE used during design. This cover includes an O-ringed gasket, but a thin film of sealant may still be required to ensure a proper seal, since those variations are outside SPE's control.
About SPE Motorsport
SPE Motorsport stands for Snyder Performance Engineering. The company started in 2011 in Latrobe, Pennsylvania, east of Pittsburgh, and builds parts for Ford diesels. Most of their catalog is aimed at the 6.7L Powerstroke, from fuel system protection and turbo systems to cooling and oil system parts. This cover is axle-specific, so it also covers older Powerstroke trucks with the right Sterling axle.
Frequently asked questions
How do I know if this fits my axle?
It fits 10.25 and 10.5 Sterling single rear wheel axles with a 12-bolt cover. Check your axle before ordering. If you're not sure what's under the truck, send us your VIN or call the shop and we'll confirm it.
Do I need RTV with the O-ring seal?
The machined O-ring main seal is there so you can skip the RTV mess. SPE notes that some factory housings have minor machining or sealing-surface variations, so a thin film of sealant may still be required for a proper seal.
Will it clear my sway bar?
SPE says it clears most factory and aftermarket sway bars. If you run an unusual aftermarket bar, call us and we'll talk it through.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
