PPE 114002000 304 Stainless Steel Remote Filter Mount (2001-2010 Duramax)

Certain engine installations (such as racing and marine applications) often require relocating the oil filter so it can be accessed for basic maintenance.

Made from polished 304 Stainless Steel.

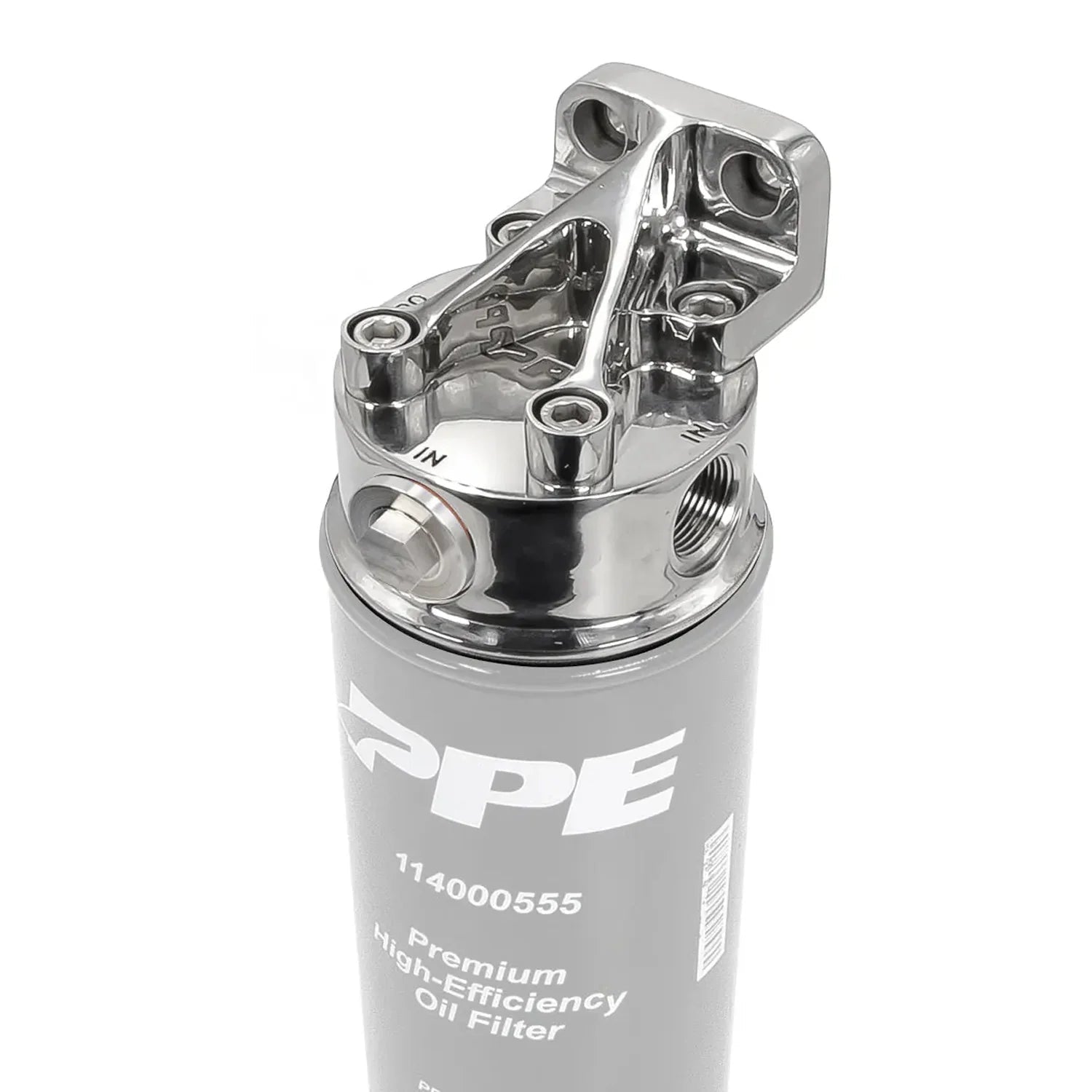

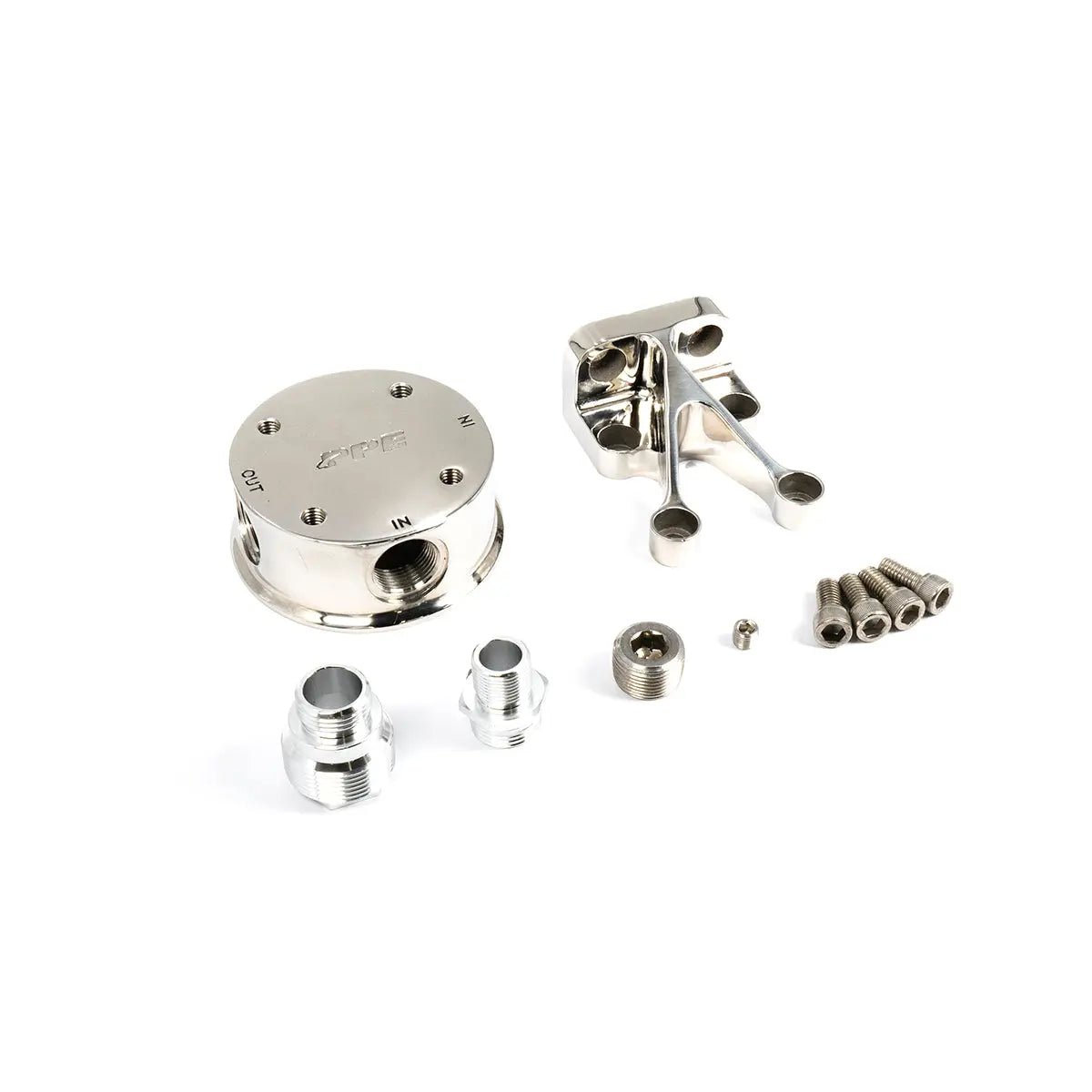

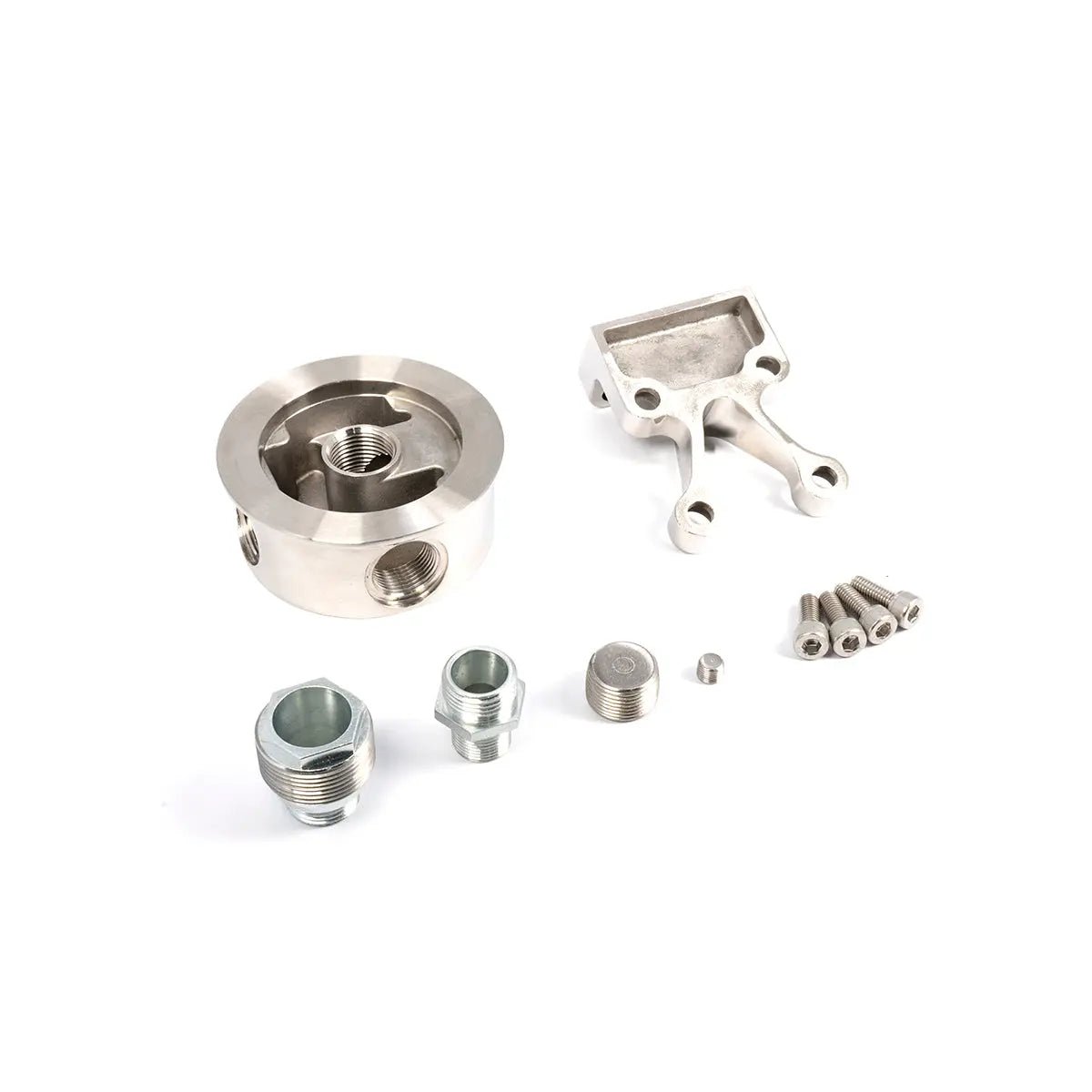

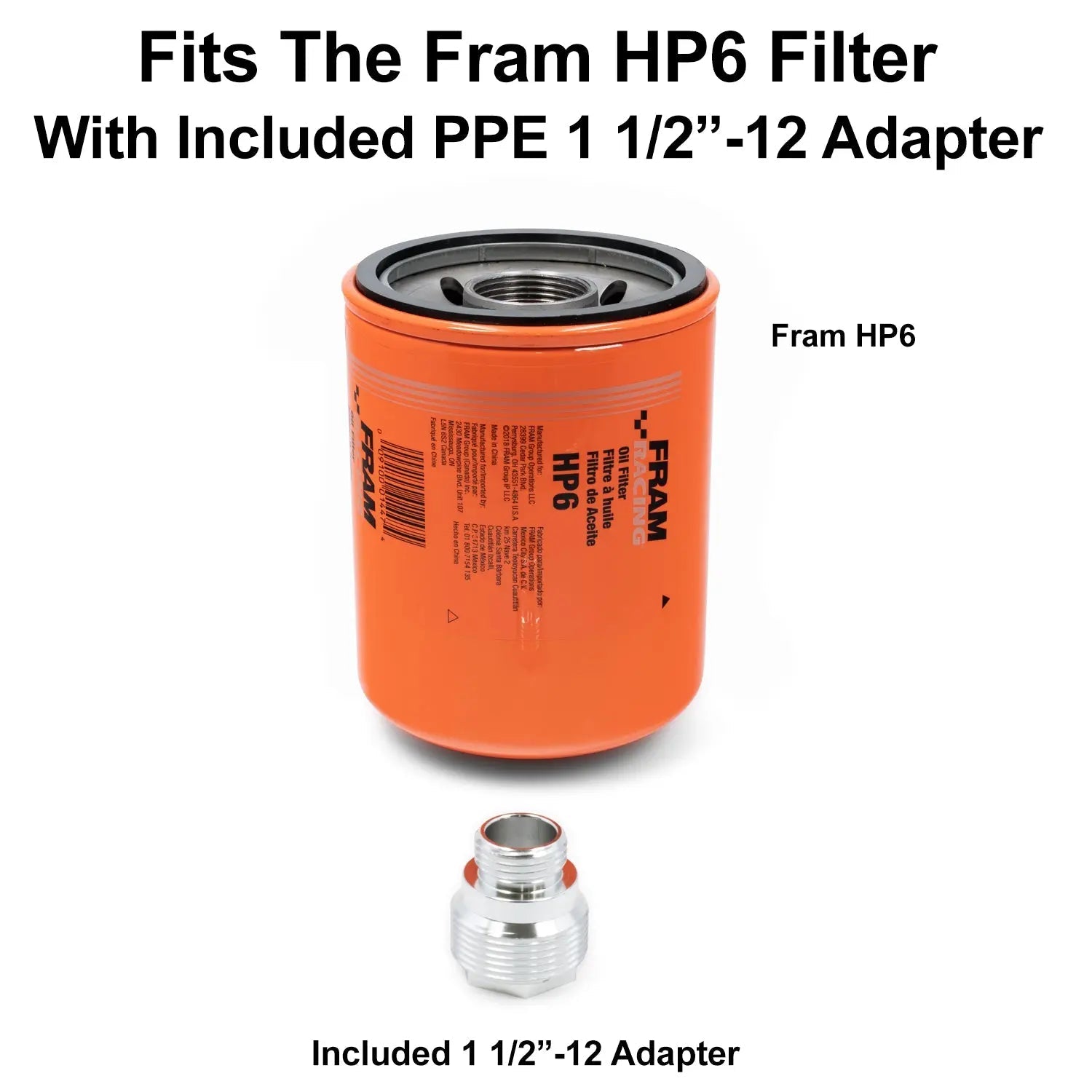

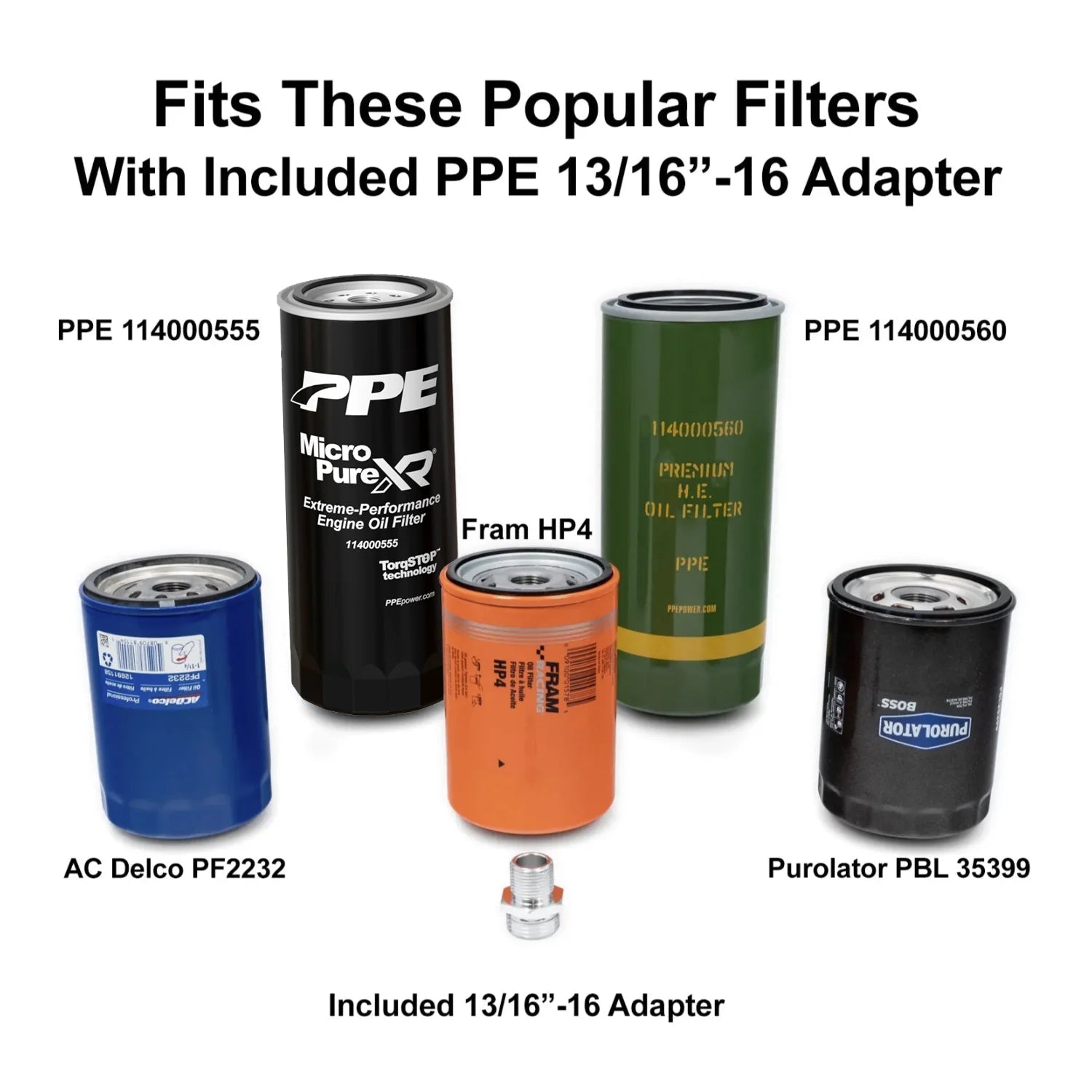

This remote filter mount has a higher flow rate than stock and is compatible with a variety of filters, including HP4 and HP6 Racing Filters. It features one outlet and three inlet ports, all -12 ORB for an easy leak-free installation and non-restrictive flow. Two out of the three inlet ports will be plugged by PPE Neodymium-magnet-equipped drain plugs, which pull harmful ferrous particles out of your oil. These plugs can be serviced by simply unplugging them and wiping out the trapped metal particles. It also features a 1/8” NPT port for an oil pressure/temperature sending unit. The mounting bracket can be mounted in four different positions to suit your application. Two threaded oil filter adapters are also included: 13/16”-16 (fits PPE Filters and GM filters) and 1 ½”-12.

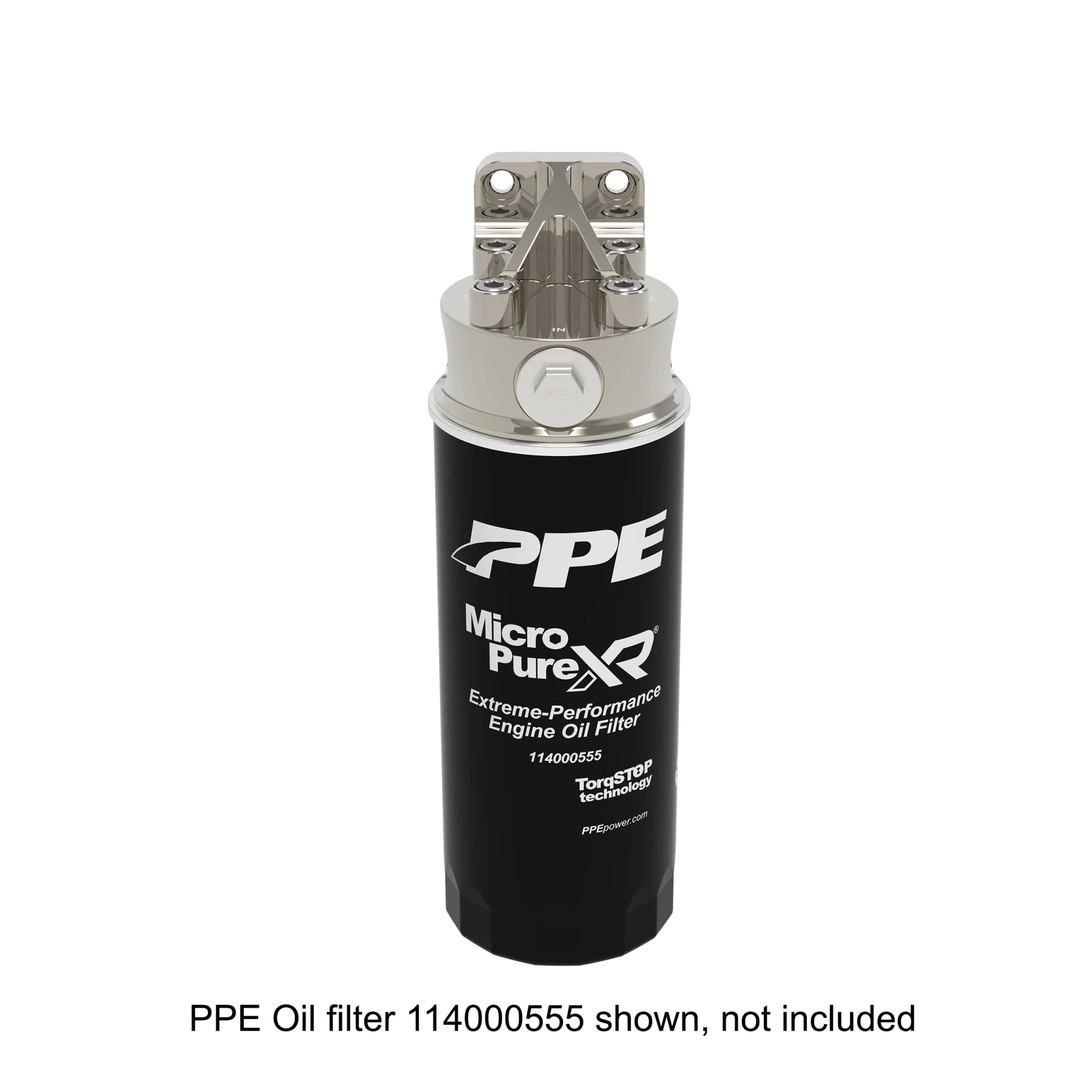

Relocate your oil filter with this Remote Oil Filter Mount. Whether you are relocating your stock oil filter (PF2232) for easier access or wanting to use a larger filter such as our PPE High-Performance Engine Oil Filters (114000555), complete your project with this remote filter mount.

Oil lines are available separately. Please call for details.

For high-performance builds, the Remote Oil Filter is designed to also work in conjunction with PPE’s Internal Engine Oil Cooler Delete Kit for Duramax (114001000).
