PPE 114000740 MicroPure XR Engine Oil Filter (2020-2025 6.6L L5P Duramax)
Fits: Chevrolet • GMC
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the PPE 114000740 MicroPure XR Engine Oil Filter (2020-2025 6.6L L5P Duramax) you will earn 25 DIESEL DOLLARS in your SDS Fuel Tank!
The PPE 114000740 MicroPure XR is a 5-micron engine oil filter for the 6.6L L5P Duramax in 2020-2025 Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD trucks. It goes on in place of the PF26 or PF63 with 330 square inches of synthetic microfiber media, a sealed bypass valve and a built-in magnet.
Fitment

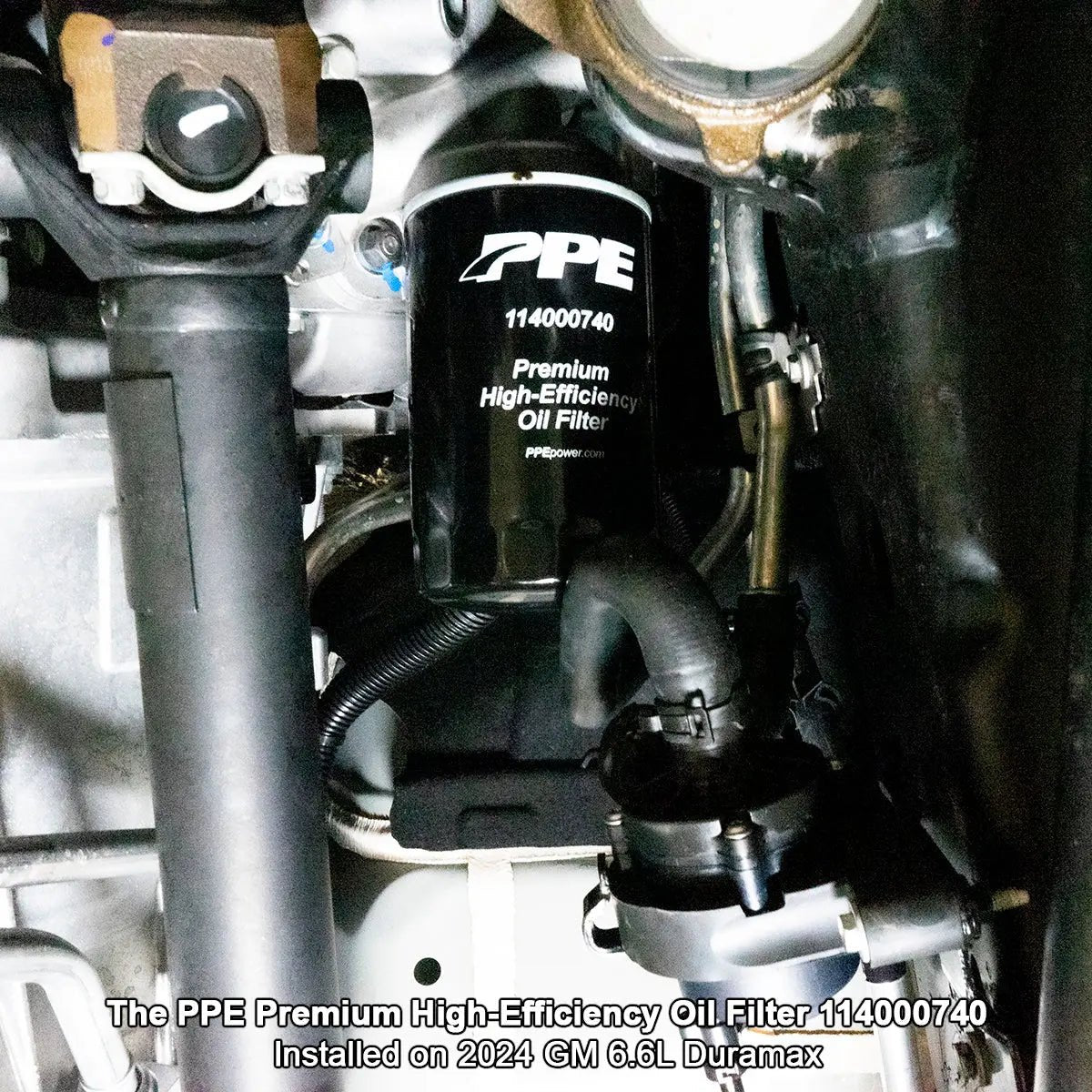

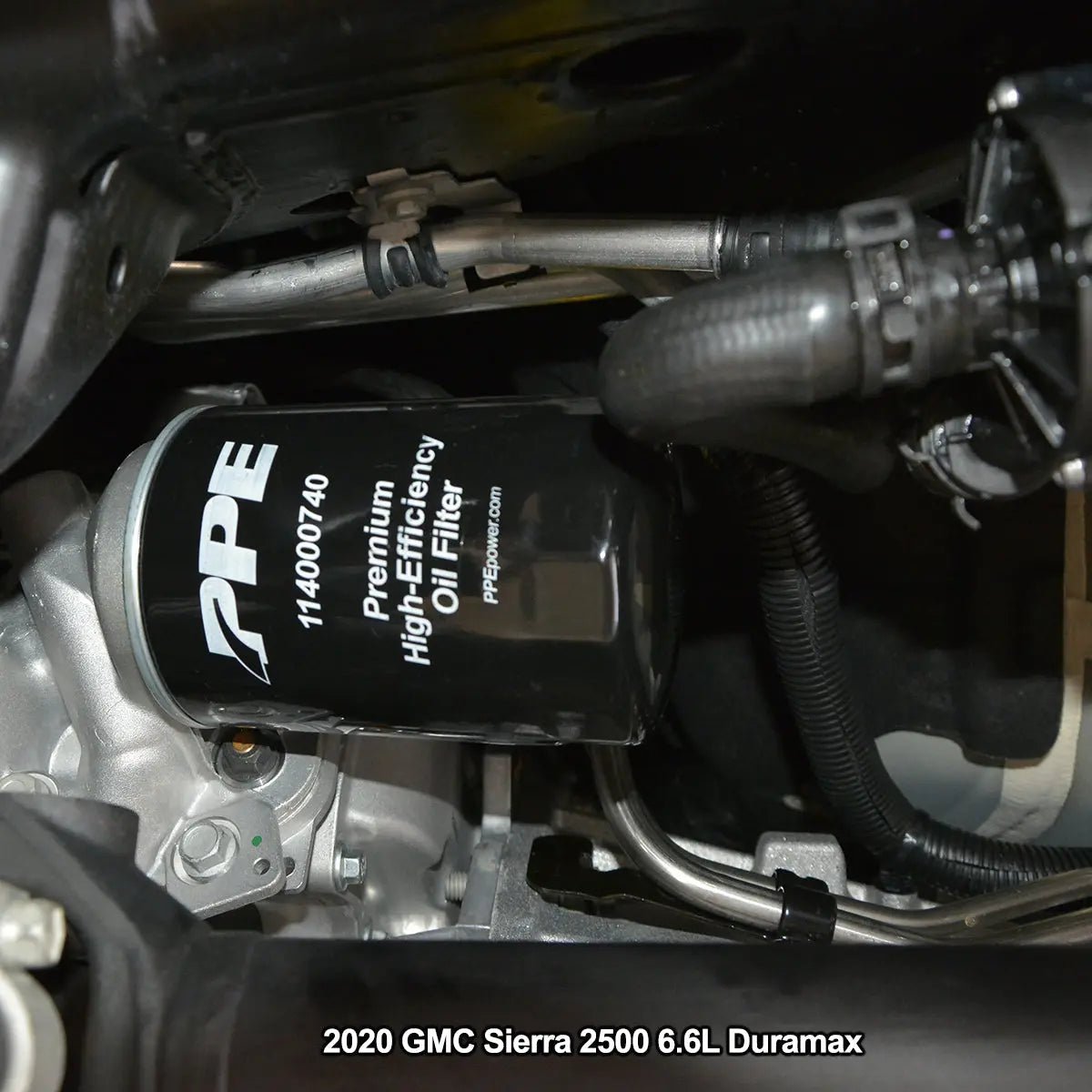

Fits the 6.6L L5P Duramax in Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD pickups, 2020-2025. PPE notes that the 2020-2023 trucks used the AC Delco PF26 and that the Duramax moved to the PF63 for 2024; this filter replaces either one.
PPE's comparison notes list the 114000740 as compatible with 2020-2024 Duramax trucks. We list it through 2025, so on a 2025, verify fitment by VIN or call us. It does not fit 2017-2019 L5P trucks. Those use the PF2232-size filter, which does not interchange with the 2020-and-newer filter; PPE 114000555 is the one for them.
Why this part
The oil filter is the engine's first line of defense against contaminants that degrade the oil and shorten its life, and dirt that gets past a poor filter wears engine internals and can lead to their failure. PPE's case against the OEM filter on the 2020-and-newer L5P: 259 square inches of 25-micron media, held in place by a weak leaf spring that reduces seal quality and lets dirty oil blow past the media.
The 114000740 answers each point. It carries 330 square inches of filtration area, a 27% increase over the OEM filter, in ultra-fine synthetic microfiber MicroPure XR® media rated at 5 microns nominal. A heavy-duty coil spring holds the media end cap tight to the base plate so dirty oil cannot blow by. An integrated high-temperature-rated neodymium magnet captures ferrous particles before they clog the media, which PPE says extends filter and oil life.
The bypass valve is where PPE separates this filter from competitors' filters, which PPE says use an unsealed bypass valve. This one uses a steel-NBR poppet and a precision coil spring for a proper seal and consistent performance. A heat-resistant silicone anti-drainback valve holds oil in the filter after the engine is turned off, for better protection against dry starts.

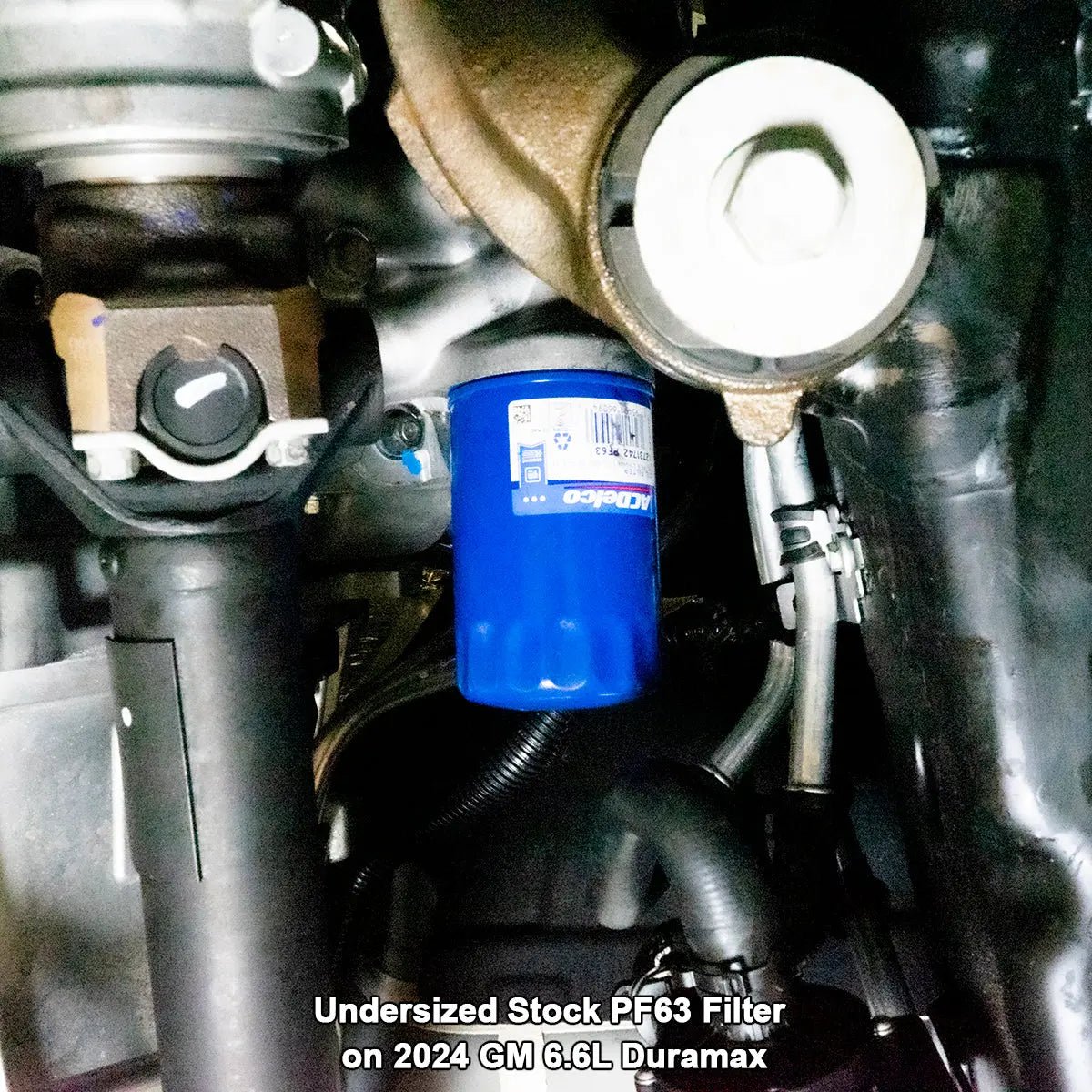

On the PF26 and PF63: PPE points out that the PF63 has larger passage holes for improved flow, but it is the same filter used on the 5.3L Small Block, with smaller filtration media that clogs more easily. GM now lists the PF63 as its recommended filter for 2020-and-newer L5P trucks and still calls the PF26 compatible. PPE says the 114000740 gives you better flow, more capacity and more protection than either one.
What you get

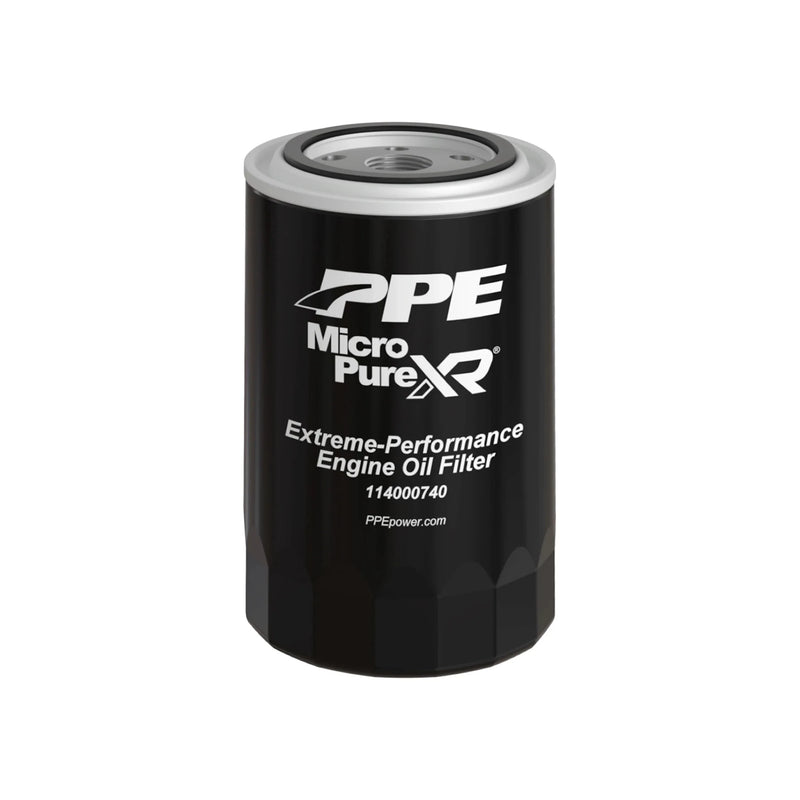

- PPE MicroPure XR engine oil filter, part number 114000740
- Built-in bypass valve, neodymium magnet, silicone anti-drainback valve and TorqSTOP gasket reinforcement
Specifications
- MicroPure XR® filtration with a 5-micron nominal rating
- 330 Square inches of ultra-fine synthetic microfiber media, a 70% increase over the stock filter
- Integrated high-temperature rated neodymium magnet captures ferrous particles, providing extra engine protection
- Built-in bypass valve with precision coil spring and steel-NBR poppet
- High-strength steel base plate with increased thread engagement and large oil passages
- Durable metal center tube provides excellent media support and pressure resistance
- TorqSTOP™ Technology prevents over-tightening and reinforces the gasket against high oil pressures
- Silicone anti-drainback valve delivers superior protection during engine start-ups
- Heavy-duty coil spring ensures a secure seal and prevents oil blow-by, maximizing filtration performance.
Burst pressure rating: 450 PSI. PPE gets there with a high-strength steel base plate with increased thread engagement and large oil passages, a durable metal center tube for rigid media support and pressure resistance, and TorqSTOP™ Technology, which prevents over-tightening and reinforces the rubber gasket.
About PPE
We stock Pacific Performance Engineering because most of what they build is aimed at the 6.6L Duramax. PPE was founded in 1985 in North Las Vegas, Nevada, and has since grown into Cummins and Power Stroke parts, covering exhaust, transmission, fuel system, cooling and steering along with cast aluminum pans and covers.
Frequently asked questions
My truck came with a PF26. Does this replace it?
Yes, on a 2020-2025 6.6L L5P (verify a 2025 by VIN). PPE positions the 114000740 as the upgrade over both the PF26 and the PF63. GM has since superseded the PF26 to the PF63B, so you may see that number at a parts counter too.
How is this different from the PPE 114000750?
Both are PPE MicroPure XR filters covered by the same 2020-and-newer L5P compatibility notes. The 114000740 is the standard-size filter with 330 square inches of media. The 114000750 is PPE's oversized version, sold as its own listing with its own install requirements, so read its page before you choose it.
Will it fit my 2017-2019 L5P?
No. The 2017-2019 L5P uses the PF2232-size filter, and it does not interchange with the 2020-and-newer filter. PPE 114000555 covers 2001-2019 Duramax trucks.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
