Radflo Off Road 2.5 Inch Coil-Over w/ 7/8 Inch Shaft & Remote Reservoir 90 Deg Fitting & Dual Rate Spring Hardware
Fits: RAM • Chevrolet • GMC • Ford
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Radflo Off Road 2.5 Inch Coil-Over w/ 7/8 Inch Shaft & Remote Reservoir 90 Deg Fitting & Dual Rate Spring Hardware you will earn 730 DIESEL DOLLARS in your SDS Fuel Tank!

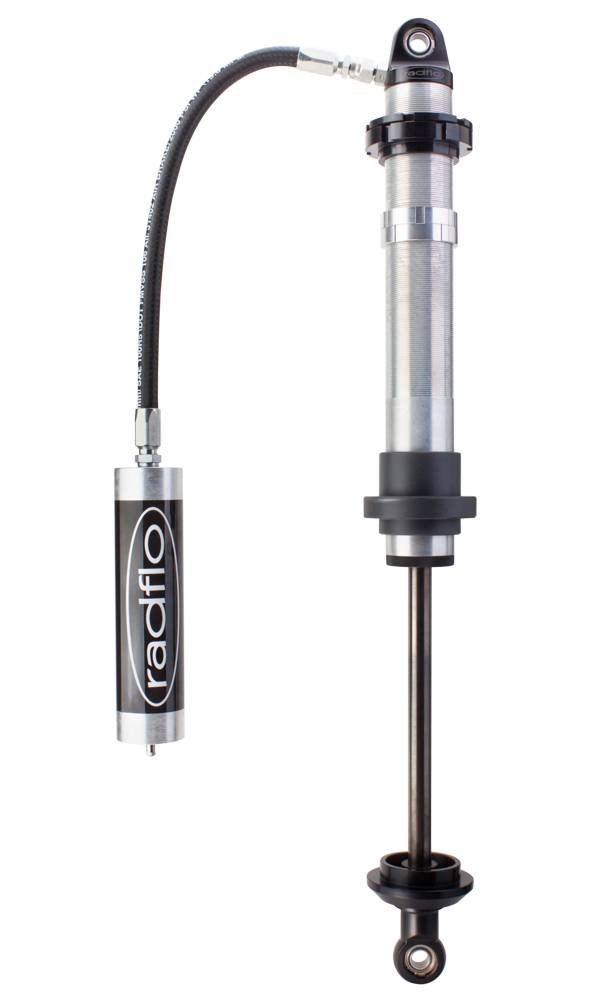

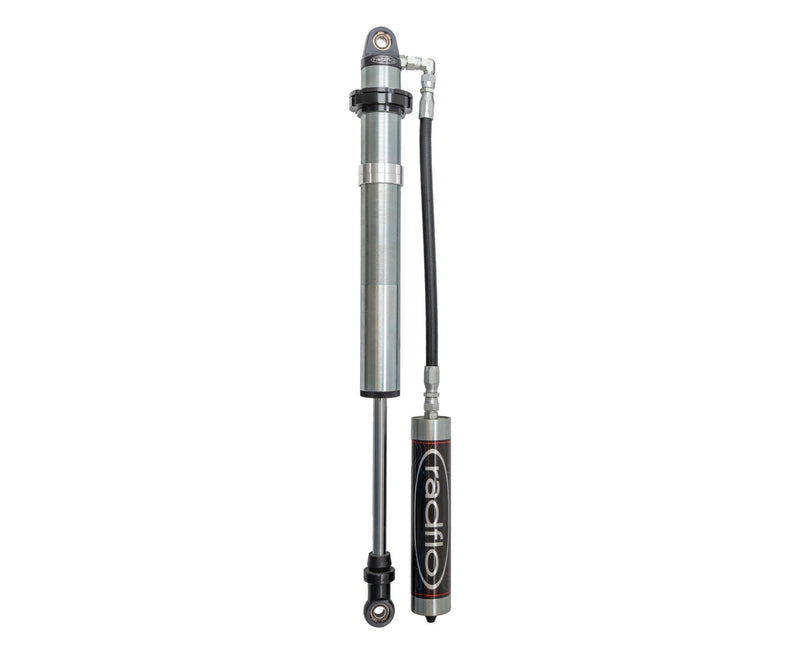

This is Radflo's 2.5 inch body coil-over with a 7/8 inch (0.875 inch) shaft, a remote reservoir on a 90 degree fitting and dual rate spring hardware. It is a universal, built-to-order off-road shock for front or rear use, offered in six lengths from 8.0 to 18.0 inches of travel. Owners pick it for an adjustable, rebuildable spring-and-shock unit in the 2.5 inch body size.
Fitment
Nothing about this shock is specific to one truck; Radflo lists it for front or rear applications on custom off-road builds. Each one is sold as a single shock with universal spherical bearings and mounting hardware, 0.625 inch bearing size. Six part numbers, 6CR-001-90 through 6CR-006-90, cover 8.0, 10.0, 12.0, 14.0, 16.0 and 18.0 inches of travel, and each one's extended and collapsed length is listed under Specifications.
The remote reservoir connects through a 90 degree fitting, so plan where the reservoir mounts and how the hose routes before you build brackets. Each shock is built to order and valved for your vehicle, so confirm the part number and lengths with us before you order.
Why this part
Running the spring on the shock body saves room, and Radflo says the integrated spring and shock performs better than separate parts. The compact package fits mounting spots where a conventional coil spring would never work. After installation you can tune ride height, preload and travel for your application, and spring adjustments are fast and precise with the shock still on the vehicle.
Radflo builds this shock around your spring choice. You select single or multiple-rate coil combinations from their spring range, then Radflo sets rebound and compression valving independently to complement those springs and your vehicle's specifications. Standardized spring sizes keep a broad range of springs available for it.
Inside, velocity-sensitive deflective disc valving self-adjusts to terrain for better control, handling and comfort. Radflo's own Freeflo racing piston uses adaptive damping to match the shock's response to the surface, and the multi-stage compression and rebound characteristics can each be customized for your setup and driving style.
On this 2.5 inch model the shaft is 7/8 inch Nitro Steel with a mirror polished finish, riding in a CNC machined bronze rod guide with PTFE coating. Radflo offers rods in 5/8 inch, 7/8 inch and 1 inch diameters. A multi-direction, triple lip sealing system keeps contamination out of the oil while holding gas and oil in, and the piston rod assembly is built for the harshest off-road racing conditions. Radflo designs for consistent, fade-free damping and machines its parts to close tolerances.
Shocks wear out, so every component is designed to be serviced or replaced. Even the individual valve shims can be changed to fine-tune damping. Radflo's technicians can do the work, or you can service it yourself and see the result right away.
What you get
- One Radflo 2.5 inch coil-over with 7/8 inch shaft and remote reservoir on a 90 degree fitting (sold individually)
- Dual spring hardware in CNC machined aluminum with a Nylatron spring slider
- Universal spherical bearings and mounting hardware, 0.625 inch bearing size
- Springs sold separately
Radflo does not pull these off a shelf: each off-road shock is custom built to order and valved to your needs and vehicle specifications, with an average turnaround of 10 days. Those 10 days are Radflo's build time, not a delivery date.
Specifications
Product Details:
- Product Type: Off Road 2.5 Inch Diameter Coil-Over 8 Inch Travel With 7/8 Inch Shaft, With Remote Reservoir, 90 Degree Fitting
- Shaft Size: 0.875 Inch
- Front/Rear App: Front|Rear
- Bearing Size: 0.625 Inch
- Body Diameter: 2.5 Inch
- Body Material: SSID Alloy Steel Tube
- Body Finish: Clear Cadmium Plating
- Body Caps/Eyelets Material: CNC Machined 6061 Aluminum
- Body Caps/Eyelets Finish: Black Anodized
- Coil-Over Hardware: CNC Machined Aluminum with Nylatron Spring Slider
- Mounting Hardware: Universal Spherical Bearing and Hardware
- Rod Material: Nitro Steel
- Rod Finish: Mirror Polished
- Rod Guide Material: CNC Machined Bronze
- Rod Guide Finish: PTFE Coating
- Piston Type: Radflo Aluminum Freeflo Racing Piston
- Seal Type: Combination Quad-Ring and Lip Seal (Rebuildable)
- Service Status: Consumer Or Factory Serviceable
- Springs: Dual Spring Hardware Included - Springs Sold Separately
- Valving Type: Velocity-Sensitive Deflective Disc
- Valving Tuning: Consumer or Factory Tunable
- Valving Adjustment: Self-Adjusting
- Oil Type: Radflo High-Temp Foam Resistant Suspension Fluid
- Pressurization: Nitrogen Gas
- Pressure Amount: 200 psi
- Sold Individually
6CR-001-90
- Travel Length 8.0 Inch
- Extended Length 25.55 Inch
- Collapsed Length 17.56 Inch
6CR-002-90
- Travel Length 10.0 Inch
- Extended Length 29.53 Inch
- Collapsed Length 19.53 Inch
6CR-003-90
- Travel Length 12.0 Inch
- Extended Length 33.5 Inch
- Collapsed Length 21.5 Inch
6CR-004-90
- Travel Length 14.0 Inch
- Extended Length 38.5 Inch
- Collapsed Length 24.49 Inch
6CR-005-90
- Travel Length 16.0 Inch
- Extended Length 42.52 Inch
- Collapsed Length 26.54 Inch
6CR-006-90
- Travel Length 18.0 Inch
- Extended Length 46.46 Inch
- Collapsed Length 28.46 Inch
About Radflo
Radflo traces back to 1980s South Africa, where it built shocks with a racing background and custom valving. Today Radflo Suspension Technology works out of Fountain Valley, California. Its range includes coil-overs with piggyback or remote reservoirs and dual-rate spring hardware, along with smooth-body shocks, bypass shocks and hydraulic bump stops. Radflo also makes a 2.5 inch C-spanner wrench for adjusting its 2.5 inch coil-overs.
Frequently asked questions
Is this shock for the front or the rear?
Either. Radflo lists the application as front or rear. It is sold individually, so order one for each corner you are building and pick the springs for each.
What does the 90 degree fitting mean for my install?
The remote reservoir connects to the shock through a 90 degree fitting. Plan the reservoir location and hose routing before you weld or drill mounts, and keep the hose clear of anything that moves with the suspension.
How is the shock pressurized?
It runs nitrogen gas at 200 psi over Radflo High-Temp Foam Resistant Suspension Fluid. The seal is a rebuildable combination quad-ring and lip seal, so the seal can be rebuilt when the shock is serviced.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
