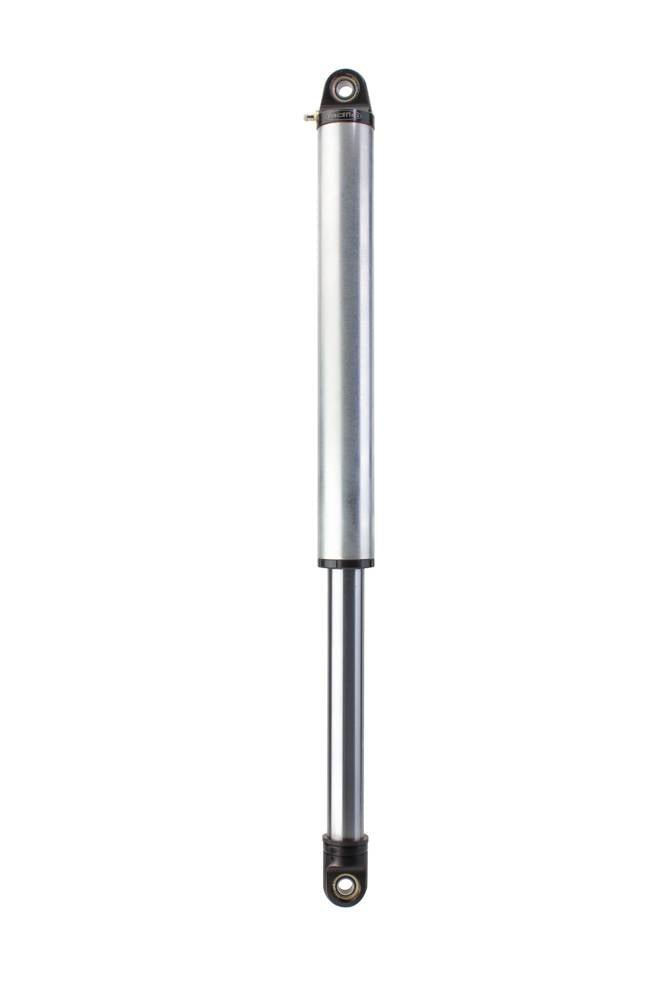

Radflo Off Road 2.5 Inch Air Shock w/ 1 5/8 Inch Shaft
Fits: RAM • Chevrolet • GMC • Ford
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Radflo Off Road 2.5 Inch Air Shock w/ 1 5/8 Inch Shaft you will earn 590 DIESEL DOLLARS in your SDS Fuel Tank!
This is Radflo's 2.5 inch body air shock with a 1 5/8 inch (1.625 inch) shaft. Like a coil-over, it supports vehicle weight and damps suspension motion, but spring rate and ride height come from internal nitrogen pressure and oil volume instead of a coil. Rock crawler and lightweight-vehicle builders buy it to shave suspension weight without giving up control.
Fitment
This is a universal, built-to-order off-road shock for front or rear use, not a bolt-on part for one truck. It is sold individually with universal spherical bearings and mounting hardware at a 0.625 inch bearing size. Six part numbers, 6SA-001-00 through 6SA-006-00, cover 8.0, 10.0, 12.0, 14.0, 16.0 and 18.0 inches of travel, with extended and collapsed lengths listed under Specifications.
Radflo aims its air shocks at lightweight vehicle applications such as rock crawlers. If you are planning one for a heavier diesel build, call us before you order and we will talk it through with you. Since each shock is built to order, confirm the travel and lengths for your part number with us first.
Why this part
An air shock does the job of a coil-over in a smaller, lighter package. It supports the vehicle and damps suspension motion, and you tune spring rate and ride height by adjusting internal nitrogen pressure and oil volume. The ultra-compact size makes it easy to fit. Radflo positions it either as the only spring and damper on a lightweight vehicle or as a secondary spring carrier on more advanced setups, and calls it an economical alternative to a single rate coil-over.
The lightweight design saves weight and reduces unsprung mass. The extra large alloy steel piston rod gives the shock its strength and displaces more fluid, which reduces overall weight. A multi-direction, triple lip sealing system keeps contamination out of the oil while holding gas and oil in.
Radflo builds its air shocks in 2.0 inch or 2.5 inch bodies of SSID steel tubing, mirror polished with a clear cadmium finish for corrosion resistance; chrome plating is also available. This one is the 2.5 inch body. Velocity-sensitive valving adjusts to terrain on its own for control, handling and comfort, and Radflo's Freeflo racing piston uses adaptive damping to match the shock to surface conditions. Multi-stage compression and rebound damping can each be customized for your vehicle setup and driving preferences.
Like every Radflo off-road shock, it is completely rebuildable, serviceable and tunable. Every component is designed to be serviced or replaced as it wears, including the individual valve shims that fine-tune damping. Radflo's technicians can handle that, or you can do it yourself.
What you get
- One Radflo 2.5 inch air shock with 1.625 inch shaft (sold individually)
- Universal spherical bearings and mounting hardware
- Nitrogen gas charge at 200 psi with Radflo High-Temp Foam Resistant Suspension Fluid
Every Radflo off-road shock is custom built to order and valved for you and your vehicle. Radflo quotes an average turnaround of 10 days to build it, which is time at Radflo and not a delivery date.
Specifications
Product Details:
- Product Type: Off Road 2.5 Inch Diameter Air Shock 8 Inch Travel With 1.625 Inch Shaft
- Shaft Size: 1.625 Inch
- Front/Rear App: Front|Rear
- Bearing Size: 0.625 Inch
- Body Diameter: 2.5 Inch
- Body Material: SSID Alloy Steel Tube
- Body Finish: Clear Cadmium Plating
- Body Caps/Eyelets Material: CNC Machined 6061 Aluminum
- Body Caps/Eyelets Finish: Black Anodized
- Mounting Hardware: Universal Spherical Bearing and Hardware
- Rod Material: Steel
- Rod Finish: Mirror Polished and Chrome Plated
- Rod Guide Material: CNC Machined Bronze
- Rod Guide Finish: PTFE Coating
- Piston Type: Radflo Aluminum Freeflo Racing Piston
- Seal Type: Combination Quad-Ring and Lip Seal (Rebuildable)
- Service Status: Consumer or Factory Serviceable
- Valving Type: Velocity-Sensitive Deflective Disc
- Valving Tuning: Consumer or Factory Tunable
- Valving Adjustment: Self-Adjusting
- Oil Type: Radflo High-Temp Foam Resistant Suspension Fluid
- Pressurization: Nitrogen Gas
- Pressure Amount: 200 psi
- Sold Individually
6SA-001-00
- Travel Length 8.0 Inch
- Extended Length 24 Inch
- Collapsed Length 16 Inch
6SA-002-00
- Travel Length 10.0 Inch
- Extended Length 29.53 Inch
- Collapsed Length 19.53 Inch
6SA-003-00
- Travel Length 12.0 Inch
- Extended Length 34.65 Inch
- Collapsed Length 22.68 Inch
6SA-004-00
- Travel Length 14.0 Inch
- Extended Length 38.82 Inch
- Collapsed Length 24.84 Inch
6SA-005-00
- Travel Length 16.0 Inch
- Extended Length 42.52 Inch
- Collapsed Length 26.54 Inch
6SA-006-00
- Travel Length 18.0 Inch
- Extended Length 46.46 Inch
- Collapsed Length 28.46 Inch
About Radflo
Radflo got its start in South Africa in the 1980s, building shocks with a racing background and custom valving, and is based today in Fountain Valley, California. The lineup covers 2.0, 2.5 and 3.0 inch smooth-body shocks in emulsion and remote-reservoir versions, coil-overs, 2-tube and 4-tube bypass shocks and 2.5 inch hydraulic bump stops, all aimed at off-road and custom suspension work.
Frequently asked questions
How do I set ride height and spring rate?
On this air shock, spring rate and ride height are tuned by adjusting the internal nitrogen pressure and the oil volume. Radflo lists the pressurization as nitrogen gas at 200 psi. Because Radflo valves each shock for your vehicle, tell us the vehicle and how you use it when you order.
Can I run it alongside coil-overs?
Radflo says it can be used alone to suspend and damp a lightweight vehicle, or as a secondary spring carrier on more advanced setups. Call us with your plan and we will help you work out where it fits.
Is the body chrome?
The listed body finish is clear cadmium plating over SSID steel tubing, and Radflo notes chrome plating is also available. The rod is mirror polished and chrome plated.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
