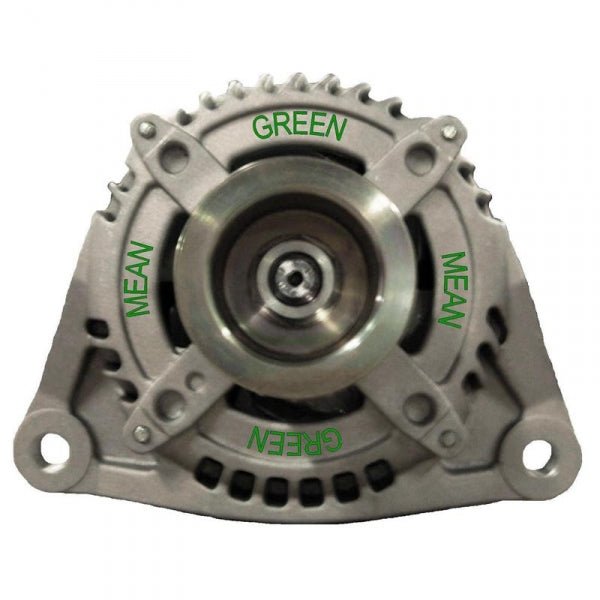

Mean Green 1398 High Output Alternator (2003-2007 5.9L Cummins)
Fits: Cummins CR (2003-2007 5.9L Cummins)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Mean Green 1398 High Output Alternator (2003-2007 5.9L Cummins) you will earn 440 DIESEL DOLLARS in your SDS Fuel Tank!
The Mean Green 1398 is a 220-amp high output alternator for 2003-2007 Dodge Ram trucks with the 5.9L Cummins. It mounts on the stock brackets, plugs into the stock harness and puts out up to 300% more charging power than the factory unit, for trucks running winches, light bars, inverters, audio or plow gear.
Fitment
Listed for the 5.9L Cummins common-rail engine in 2003-2007 Dodge Ram trucks. Mind the year split: a 2007.5 truck has the 6.7L, so this alternator is for the 5.9L 2007 trucks, not the later 6.7L ones. Verify by VIN or call us if you are not sure what is under the hood. More Cummins parts are in the engine hub.
Why this part
Every accessory you add to a diesel pickup draws on the charging system: lift pumps, light bars, winches, inverters, audio and plow gear. Mean Green builds the 1398 as the answer to charging problems on the 5.9L, with up to 300% more power than stock and the output to keep up no matter what the truck's power requirements are. Mean Green points it at ambulances, tow trucks and motorhomes, and at any vehicle running auxiliary lights, winches, stereo systems or other power accessories.
The internals are built for long service. The tool steel rotorshaft is supported at both ends by heavy-duty double-sealed bearings, the heavy-duty solid copper windings are sealed with high-temperature insulation, and the unit is precision balanced for smooth operation. That build is one reason Mean Green includes a 1-year warranty at no charge on every alternator. Mean Green designed it to outlast and outperform any other unit and rates it for a 300,000-mile life expectancy.
What you get
- Mean Green 1398 high output alternator, 220 AMP output
- No core required: there is no old unit to send back
Specifications
- Superior Design
- 220 AMP Output
- No Core Required
- 300,000 Mile Life Expectancy
- 1 Year Unconditional Guarantee
- Up to 300% More Charging Power
- Precision Balanced for Smooth Operation
Mean Green part number 1398. Manufacturer warranty: 1 Year.
Installation notes
Special new castings let the 1398 use the stock bracketry and bolt hole locations, so it mounts where the factory alternator came off. The stock wiring harness can be used too, so it plugs in without rewiring.
About Mean Green
Mean Green is a western Pennsylvania company that builds high output alternators and gear reduction starters for gas and diesel trucks, Jeeps and boats. We stock the diesel pickup side of the line: high output alternators for the 5.9L and 6.7L Cummins, Power Stroke and Duramax, plus gear reduction starters for all three engine families.
Frequently asked questions
Do I have to send my old alternator back?
No. The 1398 is no core required.
Will it bolt to my factory brackets and plug into my harness?
Yes. Mean Green's castings match the stock bracketry and bolt hole locations, and the stock wiring harness plugs right in.
How long is the warranty?
One year. Mean Green lists a 1 Year Unconditional Guarantee and includes the warranty at no charge on every alternator.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
