MAHLE GS33616 Turbocharger Mounting Gasket Set (2007.5-2018 6.7L Cummins)
Fits: Cummins 6.7L (2007.5-2012 Cummins) • Cummins 6.7L (2013-2018 Cummins)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the MAHLE GS33616 Turbocharger Mounting Gasket Set (2007.5-2018 6.7L Cummins) you will earn 28 DIESEL DOLLARS in your SDS Fuel Tank!
The MAHLE GS33616 Turbocharger Mounting Gasket Set gives you the mounting gasket, drain-back gasket and O-rings needed to remove or replace the turbo on a 2007.5-2018 Ram 2500 or 3500 with the 6.7L Cummins. It is an OE-style design built to meet or exceed OE specifications, with every piece cross-referenced to a factory part number.
Fitment
Listed for the 6.7L Cummins from 2007.5 through 2018 in Ram 2500 and 3500 pickups. That span crosses a turbo change: 2007.5-2012 trucks use the Holset HE351VE and 2013-2018 trucks use the HE300VG. The turbos, their actuators and drop-in replacements do not interchange, but this gasket set is listed for both.
Chassis-cab turbo and intake parts often differ from pickup parts, so if you have a 3500, 4500 or 5500 chassis cab, verify fitment by VIN before you order. For 2019-2024 trucks, the set is MAHLE GS34105. More Cummins parts are in the engine hub.
Why this part
Here is why the turbo on these trucks comes off. On 2007-2009 trucks the sliding nozzle ring and vanes coat with soot, oil and ash and stop moving freely. That shows up as excessive turbo lag, poor top-end power, surging and a weak or stuck exhaust brake. Idling and short trips make it worse, and it can appear well under 100,000 miles; 2009 turbos got an access port in the turbine housing to help with cleaning. On 2010-2018 trucks the same sticking sets codes P226B or P226C, and the fix is disassembly and manual cleaning.
Hard failures happen too: leaking oil seals, compressor wheel damage from dust, turbine damage from heat, speed-sensor faults and worn bearings with shaft play. Oil in the intercooler piping, blue smoke and a whine are the usual tells. Whether you are cleaning the VGT or bolting on a factory-type Holset replacement, every joint you break needs a fresh seal. GS33616 covers the mounting flange, the oil drain-back and the O-rings in one box.
What you get
OEM Part# Cross Reference:
- Turbocharger Mounting Gasket 5260648
- Drainback Gasket 5264568
- O-Ring 3678603 (x2)
- O-Ring 3678786
- O-Ring 3883284
- O-Ring 3922794 (x2)
- O-Ring 3928624 (x2)

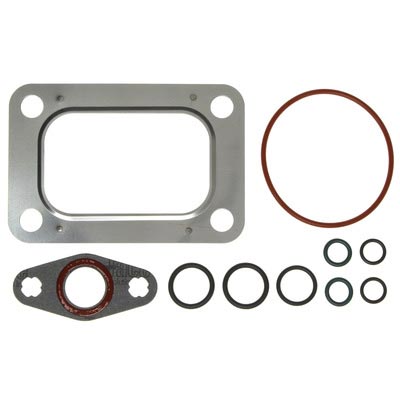

That is ten pieces in all: the turbo mounting gasket, the drain-back gasket and eight O-rings.
Specifications
- Meets Or Exceeds OE Specs
- Direct-Fit Replacement
MAHLE part number GS33616. OE-style design. Manufacturer warranty: 1 Year Limited.
About MAHLE
Founded in 1920 as a small engine shop in Stuttgart, Germany, MAHLE built its name on pistons and now supplies rings, bearings, valves and gaskets to engine builders and the aftermarket. Its turbo and exhaust gasket sets are the kind of sealing parts that put a component back on the engine the way the engine wants it.
Frequently asked questions
Does one set cover both the HE351VE and HE300VG trucks?
Yes. GS33616 is listed for the full 2007.5-2018 run even though the turbo changed for 2013. The turbos and actuators themselves do not interchange, so order those by model year.
How do I know if it is the turbo or the actuator?
Read the codes before you pull anything. Stuck vanes usually set P226B or P226C rather than actuator codes, while P00AF almost always means the actuator. The actuator is a separate replaceable module, and factory Holset actuators typically fail around 5,000 operating hours.
What warranty comes with this set?
The manufacturer warranty is 1 Year Limited.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
