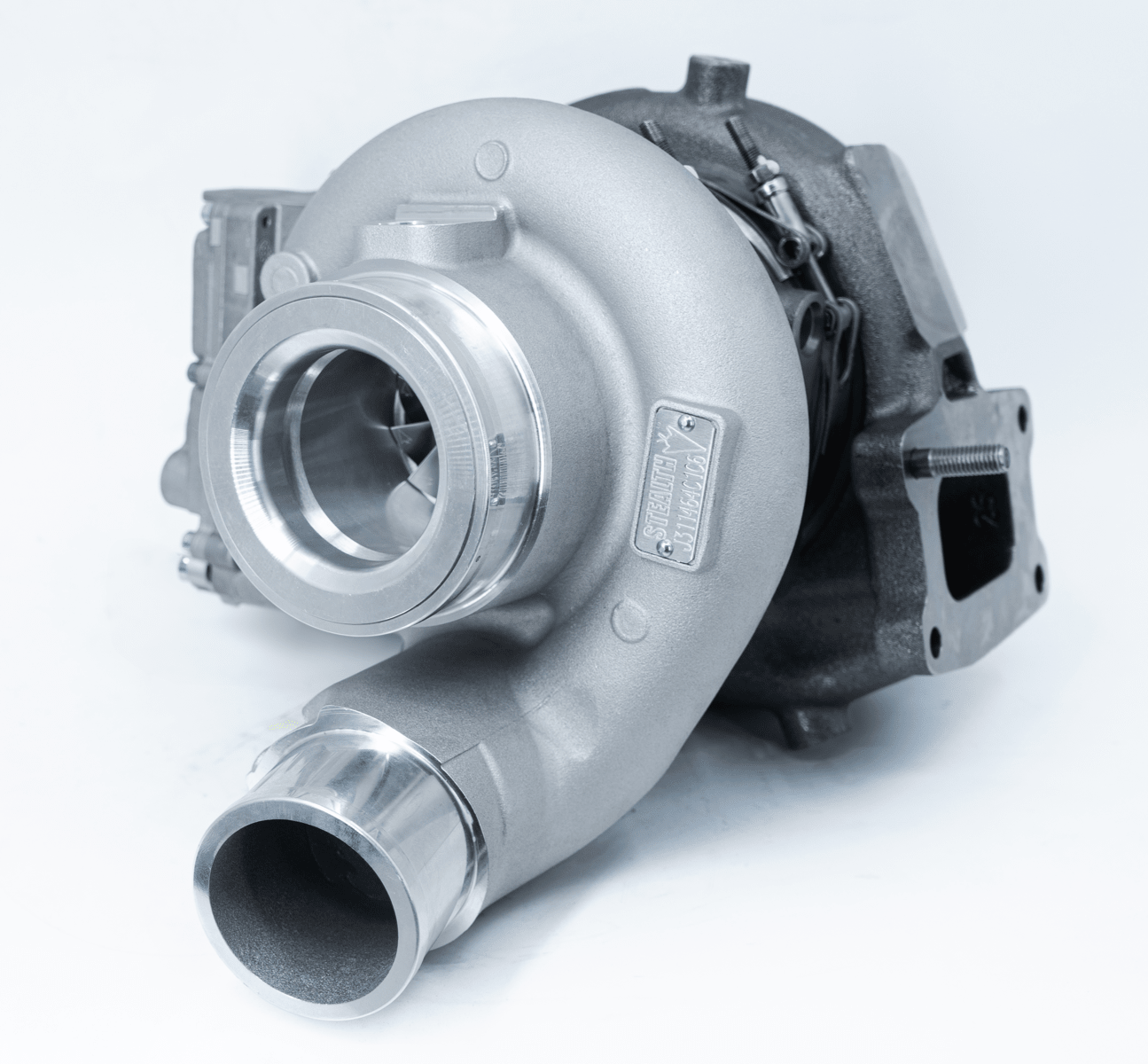

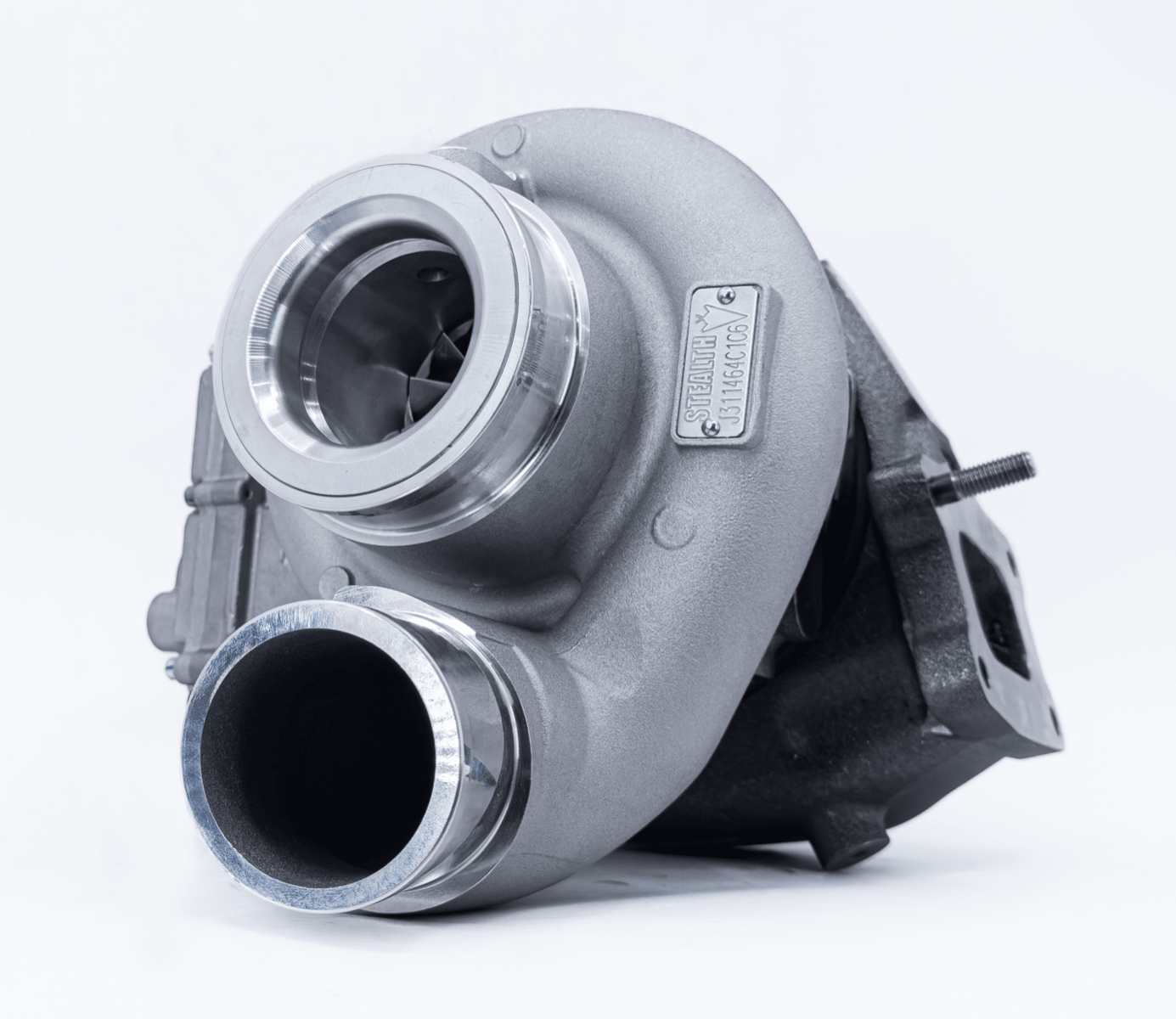

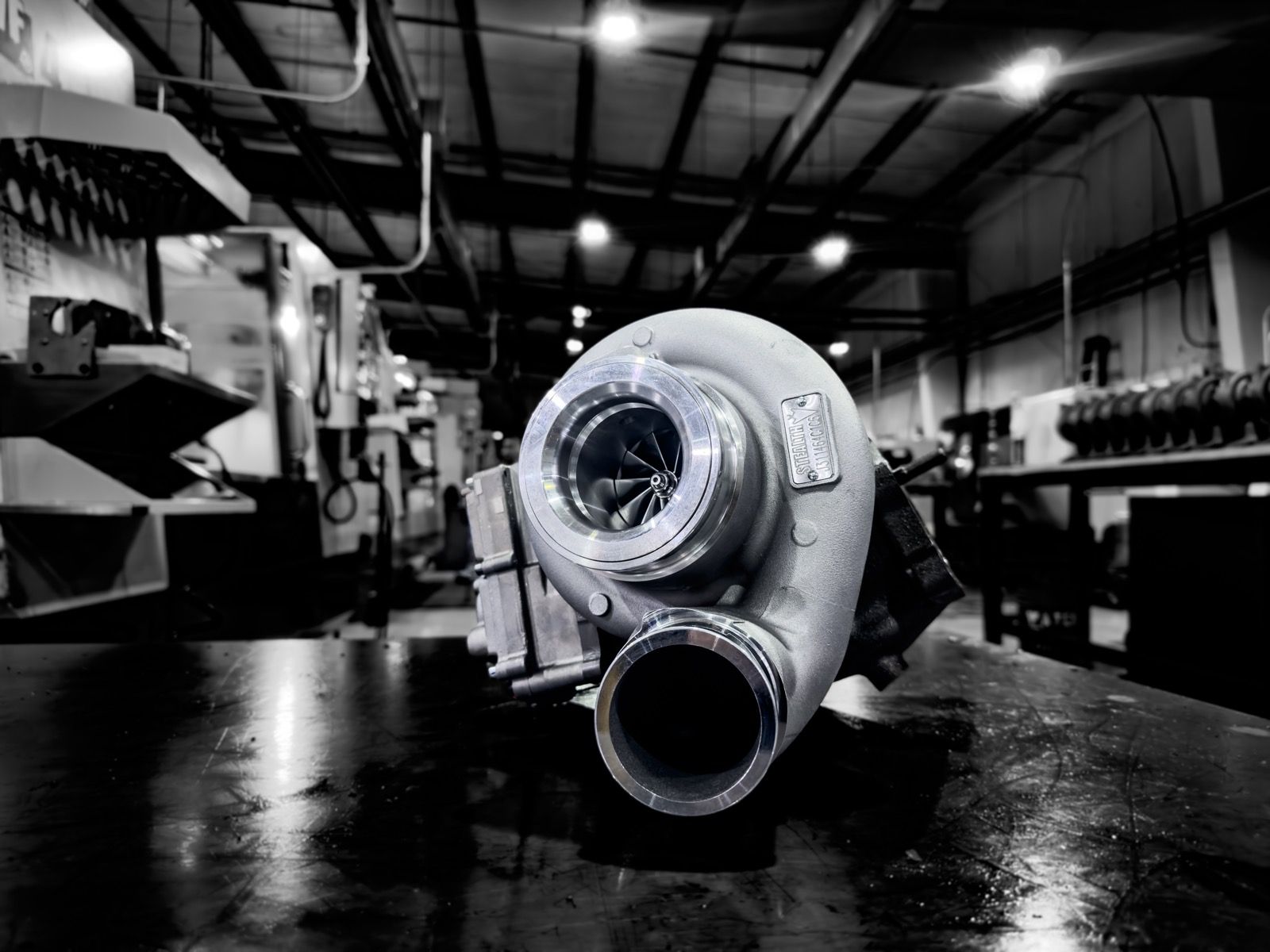

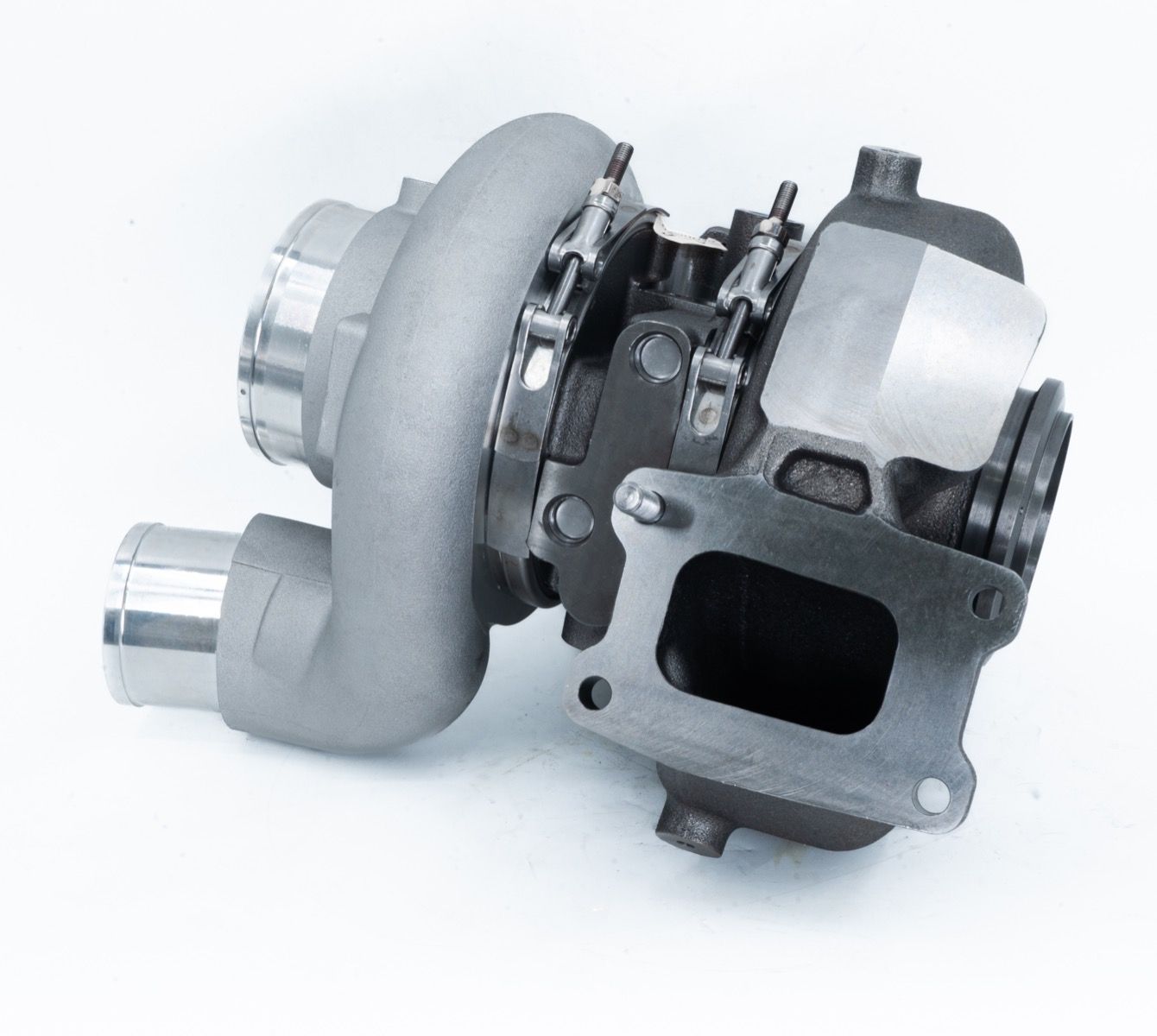

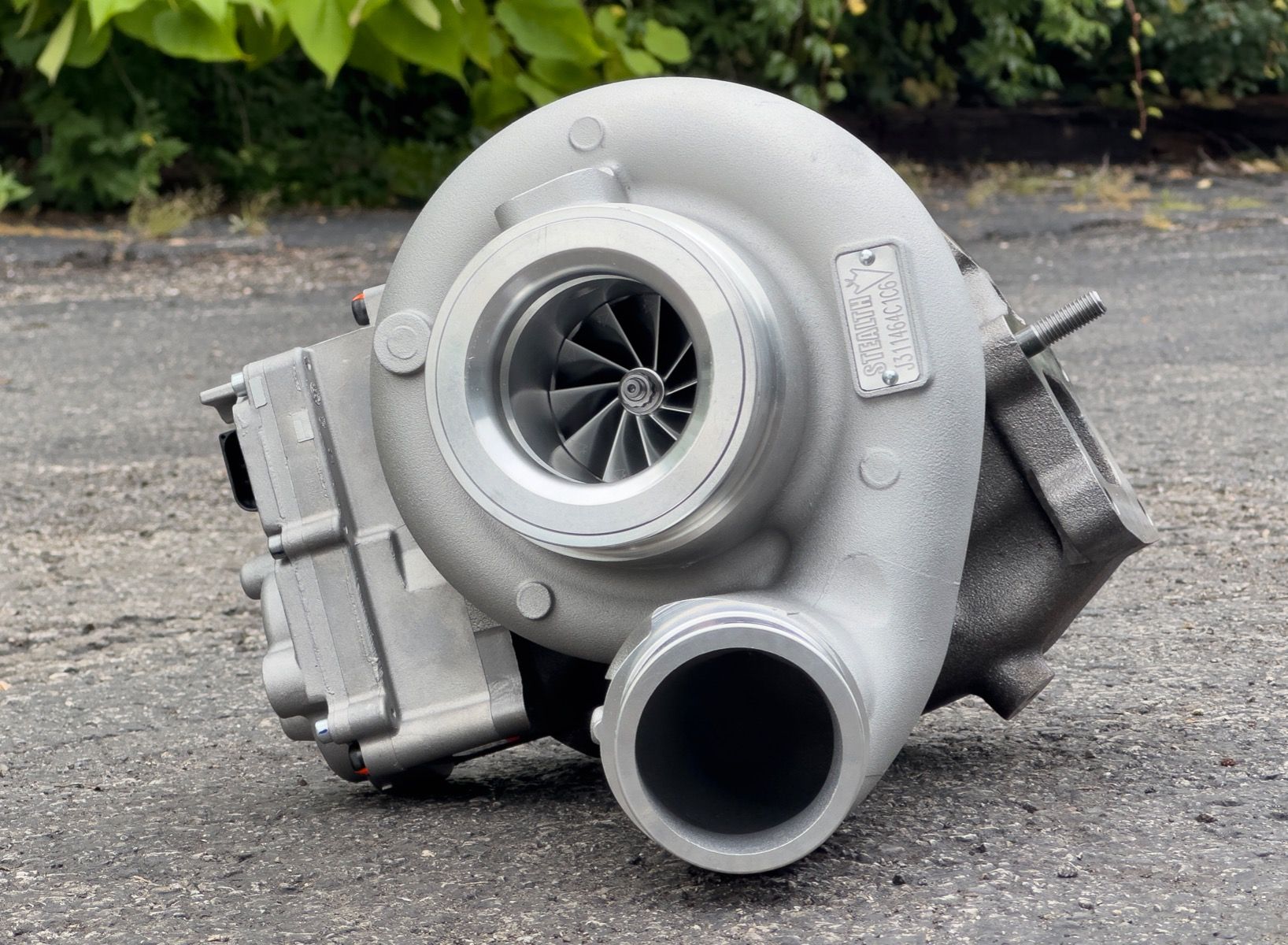

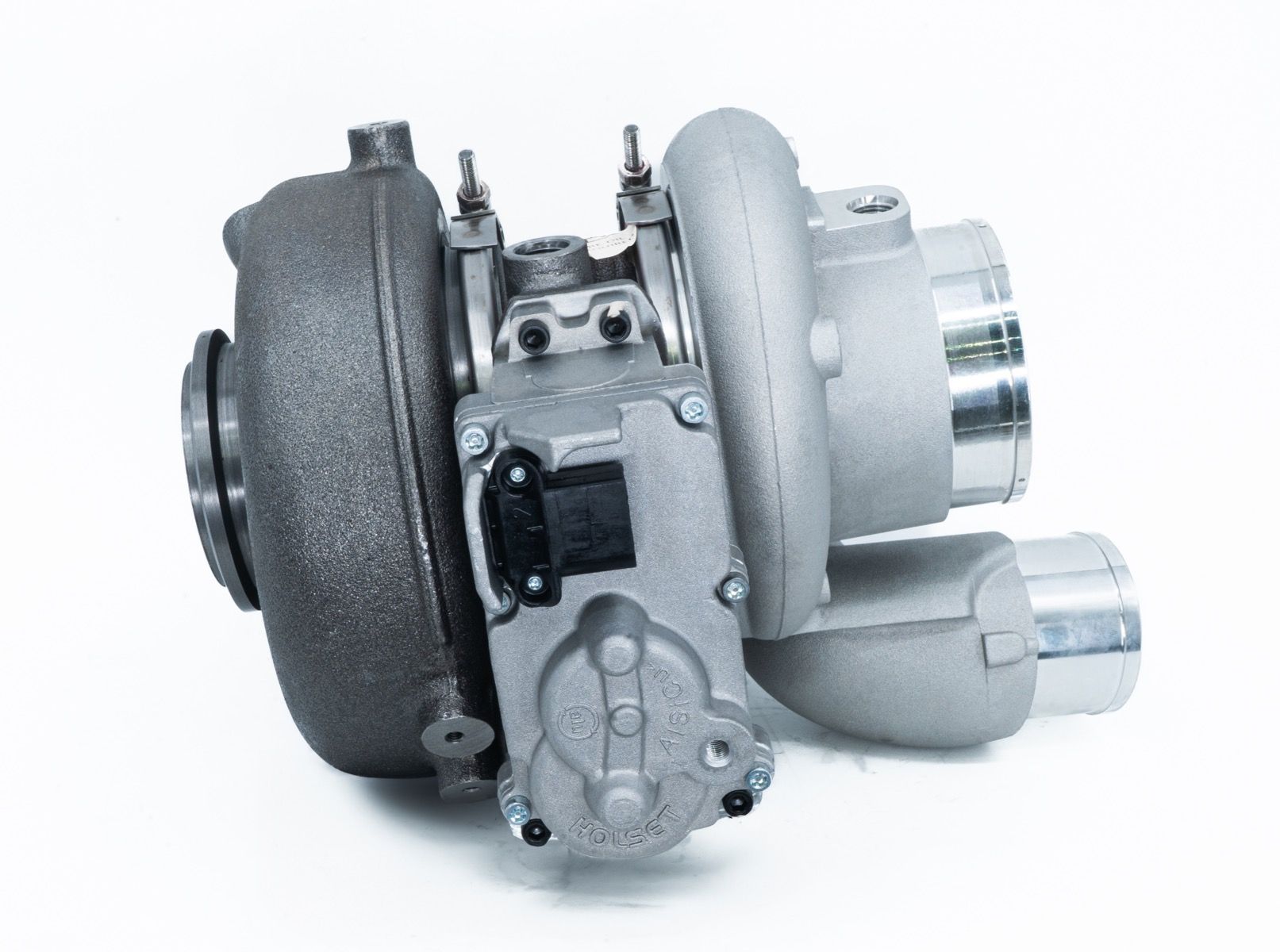

Calibrated Power Solutions CPS200257 Stealth Mach 1 (64) Turbo (2019-2024 6.7L Cummins)
Fits: Cummins 6.7L (2019-Current Cummins)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Calibrated Power Solutions CPS200257 Stealth Mach 1 (64) Turbo (2019-2024 6.7L Cummins) you will earn 3700 DIESEL DOLLARS in your SDS Fuel Tank!

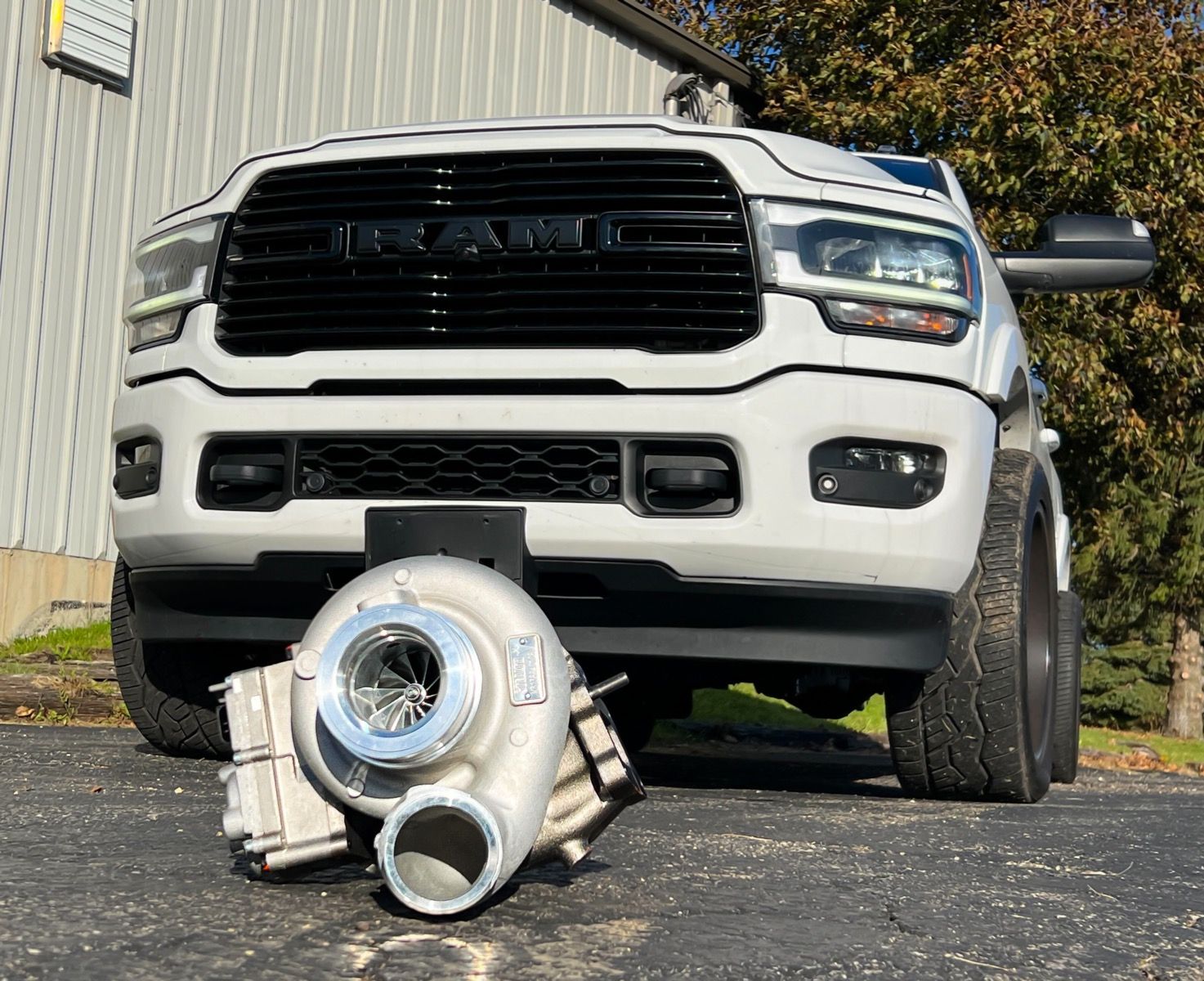

The Calibrated Power Solutions CPS200257 Stealth Mach 1 (64) is a drop-in HE300VG replacement turbo for 2019-2024 Ram 2500 and 3500 pickups with the 6.7L Cummins. Owners buy it when the factory turbo or actuator is done and they want a stronger towing turbo that still spools fast and keeps the factory exhaust brake.
Fitment
Calibrated Power lists this turbo for 2019, 2020, 2021, 2022, 2023 and 2024 Ram 2500 and 3500 pickups with the 6.7L Cummins. Our engine tag reads 2019-current, but the 2025 truck got a new turbo, and 2019-2024 replacement turbos should not be assumed to fit a 2025 or newer Ram. Verify fitment by VIN.
Ram built this engine in standard-output and High Output versions, and the two use different turbo calibrations. Check your build sheet for sales code ETL (standard output) or ETM (High Output) and send us the VIN so we can match this turbo to your truck. Ram 3500, 4500 and 5500 chassis cabs run their own calibration, so call before ordering for one of those.
Stealth turbos cannot ship to California and do not fit California-emissions trucks. Calibrated Power states the Stealth Mach 1 64 HE300VG has undergone testing to demonstrate that it complies with federal emissions regulations, which provides the reasonable basis required by the standards defined by the EPA. Their test report covers a 2022 Ram 6.7L running the CPS turbo.
See all of our diesel turbos or shop more parts for the Cummins.
Why this part
The 2019-2024 6.7L runs a single Holset HE300VG with an electronic actuator, and that turbo also works as the exhaust brake. Its known weak spot is sticking vanes. Soot and oil coke up the unison ring and pivots, the exhaust brake fades first, then boost turns low or erratic, EGTs climb, you see black smoke and the truck can drop into limp mode. Codes P003A, P2262, P226C, P00AF, P0299 and P0234 all point that way. It commonly shows up between 50,000 and 150,000 miles, sooner with short trips, idling and extended oil drains. Past about 120,000 miles, worn bearings add slow spool and a whine.
The actuator can also fail on its own, through the motor, position sensor, electronics or plastic gears, even when the vanes are fine. The Mach 1 ships with a brand-new, 100% genuine HE300VG Holset actuator, so you are not carrying an old one over.
Calibrated Power built the Mach 1 for owners who tow or haul heavy loads on a regular basis. With an upgraded compressor wheel, turbine and variable geometry nozzle assembly, it can move 30% more air than stock while running a better drive-to-boost pressure ratio than the stock charger. That means more power with spool-up comparable to stock, so pulling away from a stop with a load is easy. Keeping the factory exhaust brake makes braking easier and saves your brake pads, and the upgraded turbine wheel and HFV technology help lower EGTs when you are pulling a heavy load up a steep grade.
Whatever turbo you run, the same habits keep a VGT alive: factory oil intervals, a full warm-up before you load it, an idle-down after a hard pull, regular exhaust brake use and a clean OEM-spec air filter.
This turbo is designed for you if you...
- Want a turbo that's manufactured in the USA
- Want superior towing performance
- Want to make more power and still retain a quick spool up
- Daily drive your truck
- Want more power when you need it, but still want excellent street-ability
- Just want to replace your stock turbo with something more durable and offers better performance
What you get
- Calibrated Power Solutions CPS200257 Stealth Mach 1 (64) HE300VG turbocharger
- Custom billet 64mm, 11-blade compressor wheel made from 7075 aluminum
- Custom oversized turbine wheel
- HFV custom billet vanes and nozzle ring assembly
- Brand new, 100% genuine He300vg Holset actuator, pre-calibrated
- No core charges, and no sending back your stock failed actuator
Specifications

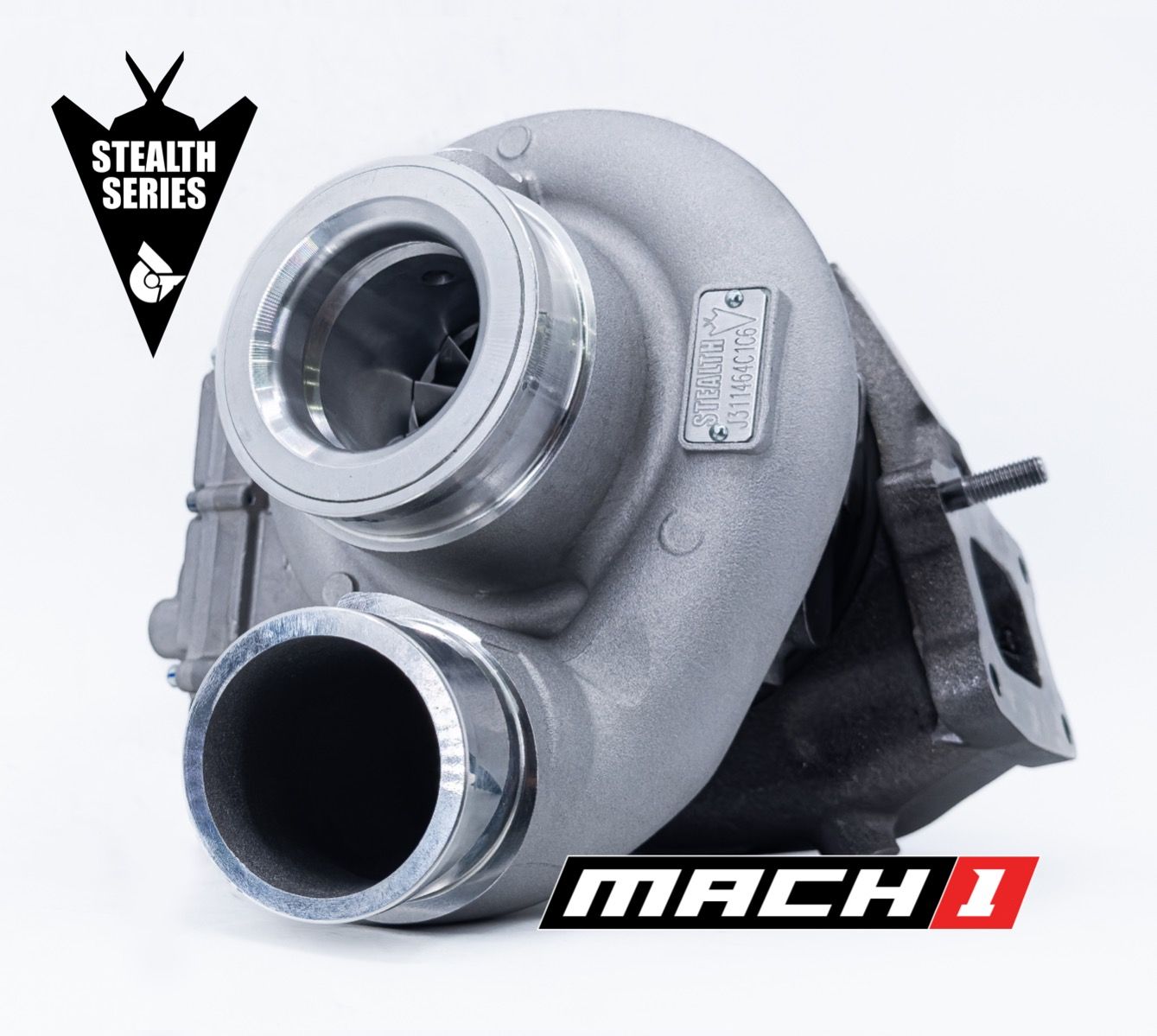

Cummins 6.7L Stealth Mach 1 Turbo Featuring HFV (High Flow Vane) Technology
- Airflow to Support up to 700+ RWHP
- Tested up to 600 RWHP with stock emissions equipment and tuning
- 30% more airflow available compared to stock
- 41+psi boost capable at sea level
- Custom Billet Compressor Wheel
- 64mm, 11-Blade Wheel eliminates surge while towing
- Made from the highest quality 7075 Aluminum
- Tow without any risk of surge (even while lugging)
- Lightweight and high strength
- Expertly balanced to ensure longevity
- Custom Oversized Turbine Wheel
- 25% larger inducers
- 30% Larger exducers
- Custom higher efficiency blade design
- Low drive pressures at high load
- Better EGT control and lower EGTs
- Distinct Stealth exhaust sound
- HFV (High Flow Vane) Technology
- Only found in select Stealth turbochargers
- Custom, billet vanes and nozzle ring assembly
- Exclusive design produced in-house specific to this application
- Taller and wider vanes match larger turbine to provide superior high-load efficiency
- Retain factory exhaust brake and quick throttle response
- Brand New Parts and Electronics
- Most reliable actuator available
- More robust than the He351ve actuator
- No sending back the stock failed actuator
- Pre-Calibrated and no tuning required
- 100% Genuine He300vg Holset actuator
- No Core Charges
About Calibrated Power
Calibrated Power Solutions, the company behind DuramaxTuner, is a diesel calibration shop founded by Nick Priegnitz. It grew up in Marengo, Illinois, and now runs a full-service diesel performance and repair shop in Woodstock, Illinois, with a 4WD chassis dyno. The company built its name on emissions-intact power, and it sells its Stealth drop-in turbos in three tiers: STR, Mach 1 and Mach 2.
Frequently asked questions
Do I need tuning to run the Mach 1?
No. The actuator comes pre-calibrated and no tuning is required. Calibrated Power tested this turbo up to 600 RWHP with stock emissions equipment and tuning, and rates its airflow to support 700+ RWHP.
Will I keep my factory exhaust brake?
Yes. The taller, wider HFV vanes are designed to retain the factory exhaust brake and quick throttle response. The 64mm, 11-blade billet compressor wheel is designed to let you tow without surge, even while lugging.
Do I have to send my old turbo or actuator back?
No. There are no core charges, and you do not send back the stock failed actuator.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
