**You will be contacted and charged separately about shipping cost.**

BDS offers complete coilover conversion upgrade kits for your Chevy Silverado and GMC Sierra 2500 / 3500 HD that make it effortless to convert your standard lifted suspension into coilovers.

These kits are equipped with heavy-duty brackets and FOX 2.5 Coilovers to withstand any rugged use and abuse you subject them to, taking your vehicle's performance to new heights. These upgrade kits are compatible with existing BDS 6-inch lift kits, allowing for seamless integration.

BDS provides a bolt-on bracket for mounting the coilovers to the frame in the shock mount location. To reinforce the upper mount, a weld-in support gusset is utilized. Aside from replacing the factory torsion bars, the upper and lower control arms are also upgraded for enhanced strength and travel to accommodate the new coilovers.

The tubular performance upper control arms, specially designed by BDS for this system, work seamlessly with the 2.5 coilovers. The new lower control arms, on the other hand, are built from high-strength steel, fully boxed, and internally gusseted to complement the uppers.

FOX 2.5 Coil-Overs

FOX 2.5 Factory Dual Speed Compression Adjust shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 Inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability.

Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

• Type: Shocks
• Lower Mount Type: No Lower Mount Type
• Upper Mount Type: No Upper Mount Type
• Gas Charged: No Gas Charged
• Adjustable: true
• Adjustable Dampening: No Adjustable Dampening
• Compressed Length: No Compressed Length
• Travel Length: No Travel Length
• Extended Length: No Extended Length
• Shaft Diameter: No Shaft Diameter

• FOX 2.5 Coilovers w/ Remote Dual Speed Compression Adjust Adjustment
• Heavy duty tubular UCAs to improve travel
• Fully Boxed and Gusseted LCAs
• Next Level Performance On and Offroad
• Compatible with existing 4.5 Inch and 6.5 Inch BDS Lifts
• Easy Installation (Only minor welding for gusset)

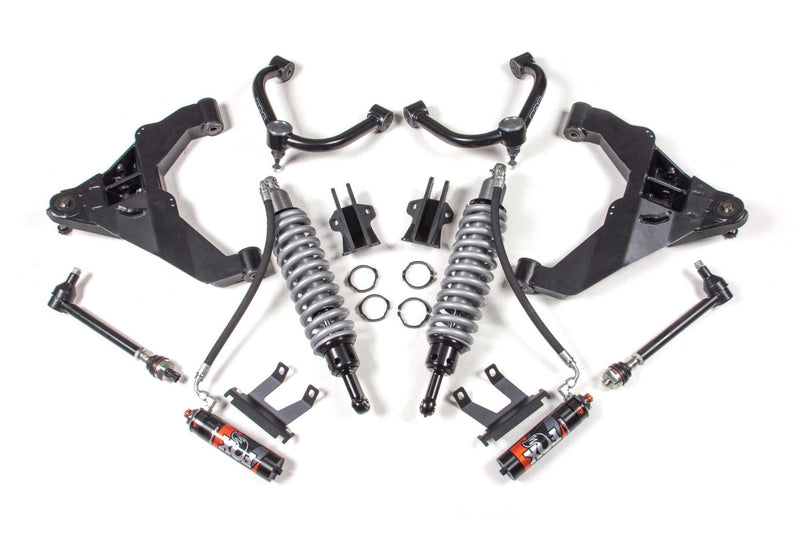

Kit Components:

• Includes one BDS021303, 2020-2024 GM HD LCA Kit - Drv, UPC Code 711745611894
• Includes one BDS021304, 2020-2024 GM HD LCA Kit - Pass, UPC Code 711745611900
• Includes one BDS121301, 2020-2024 GM HD Coil Over Conversion UCA Kit, UPC Code 711745612051
• Includes one BDS121663, 2020-2024 GM HD Coil Over Conversion Kit - 6.5 Inch, UPC Code 711745612099
• Includes one FOX88406339, Kit: 20+ GM 2500/3500 HD Front Coilover, 2.5 Series, R/R 6.5 Inch Lift, Dual Speed Compression Adjust
