Fleece Performance Engineering FPE-FMC-UHFA-1123 Engine Mounted Filter Assembly (2011-2026 6.7L Powerstroke)
Fits: Ford 6.7L (2011-2016 Powerstroke) • Ford 6.7L (2017-Current Powerstroke)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Fleece Performance Engineering FPE-FMC-UHFA-1123 Engine Mounted Filter Assembly (2011-2026 6.7L Powerstroke) you will earn 200 DIESEL DOLLARS in your SDS Fuel Tank!

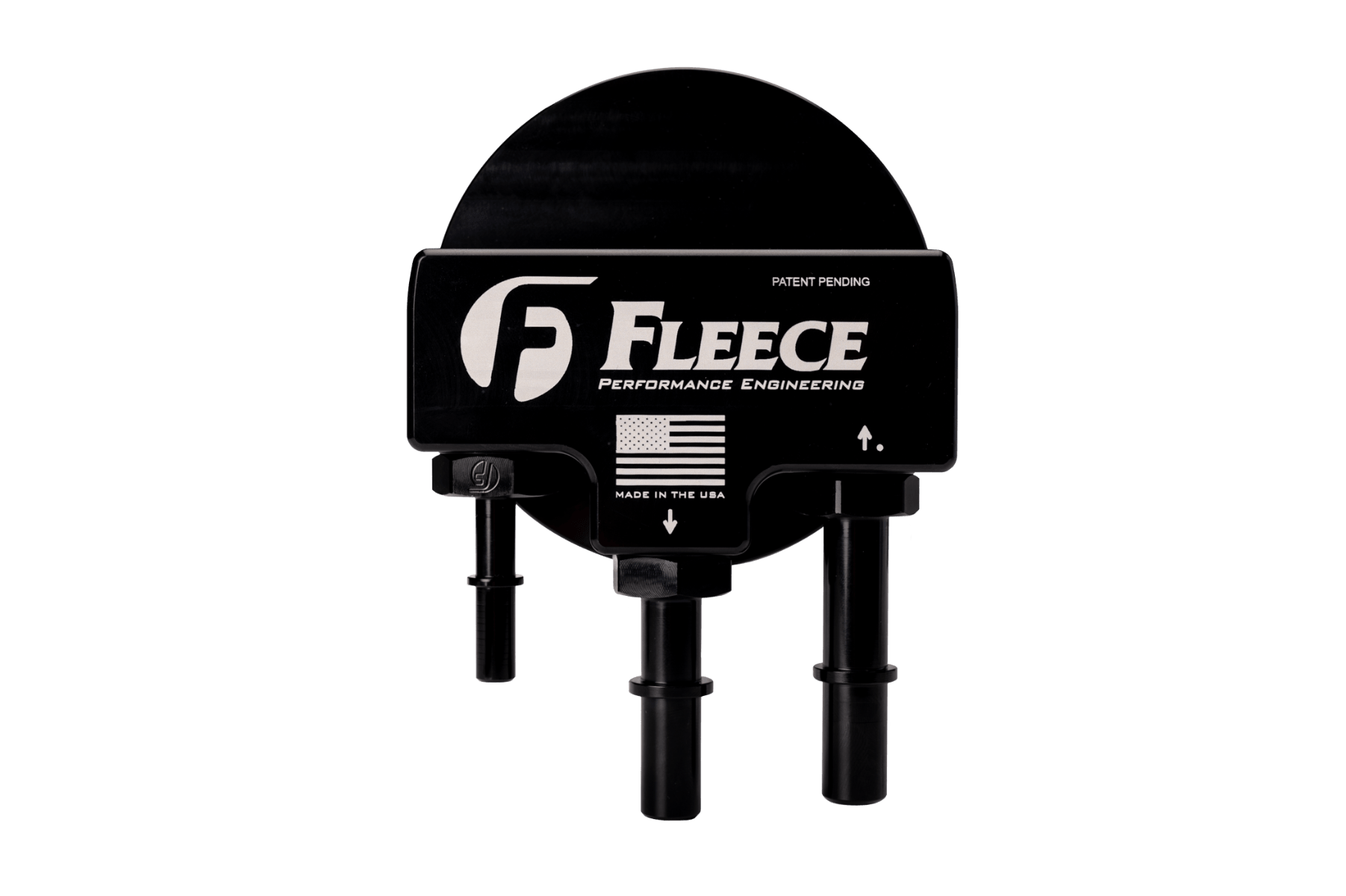

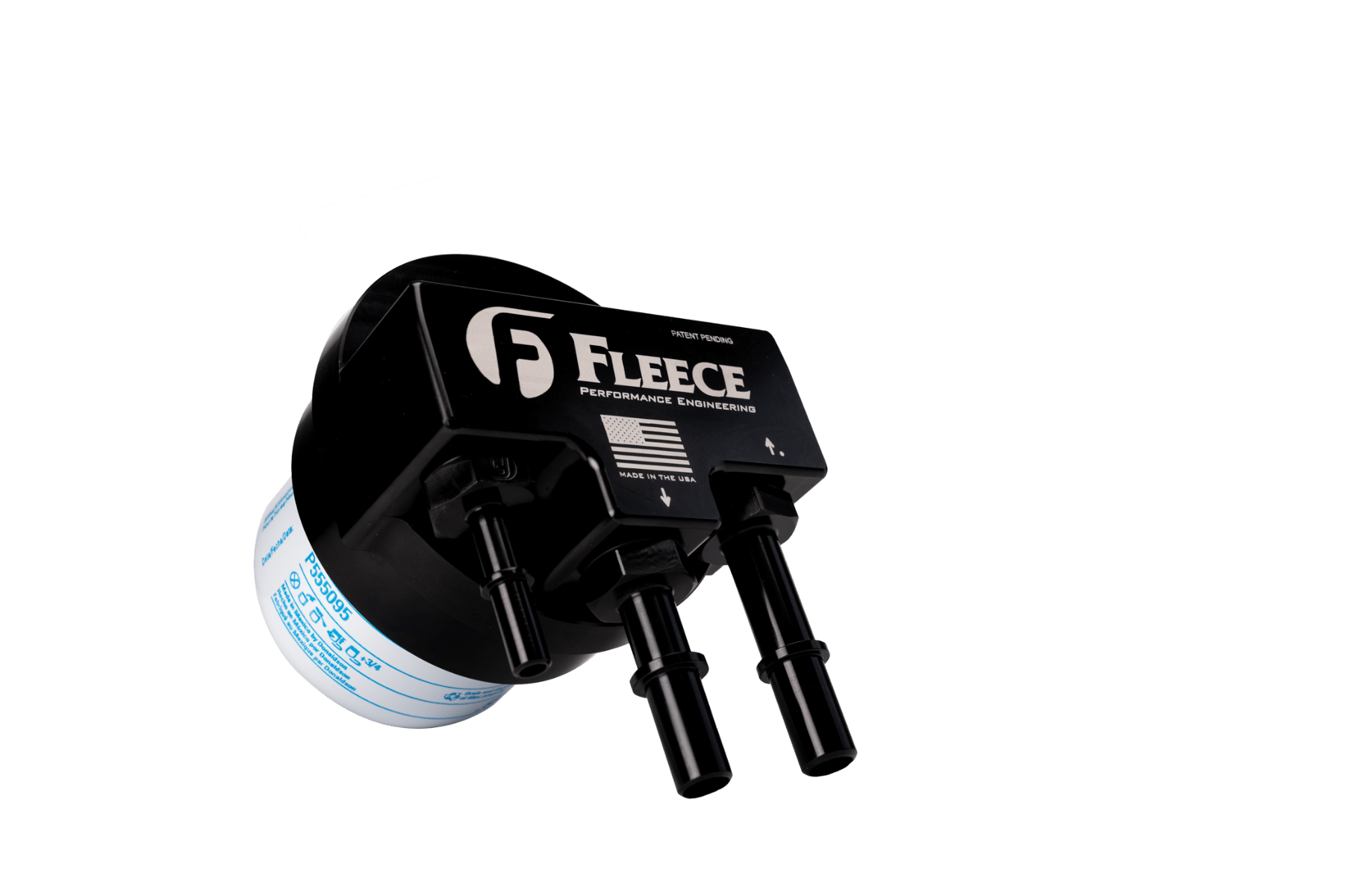

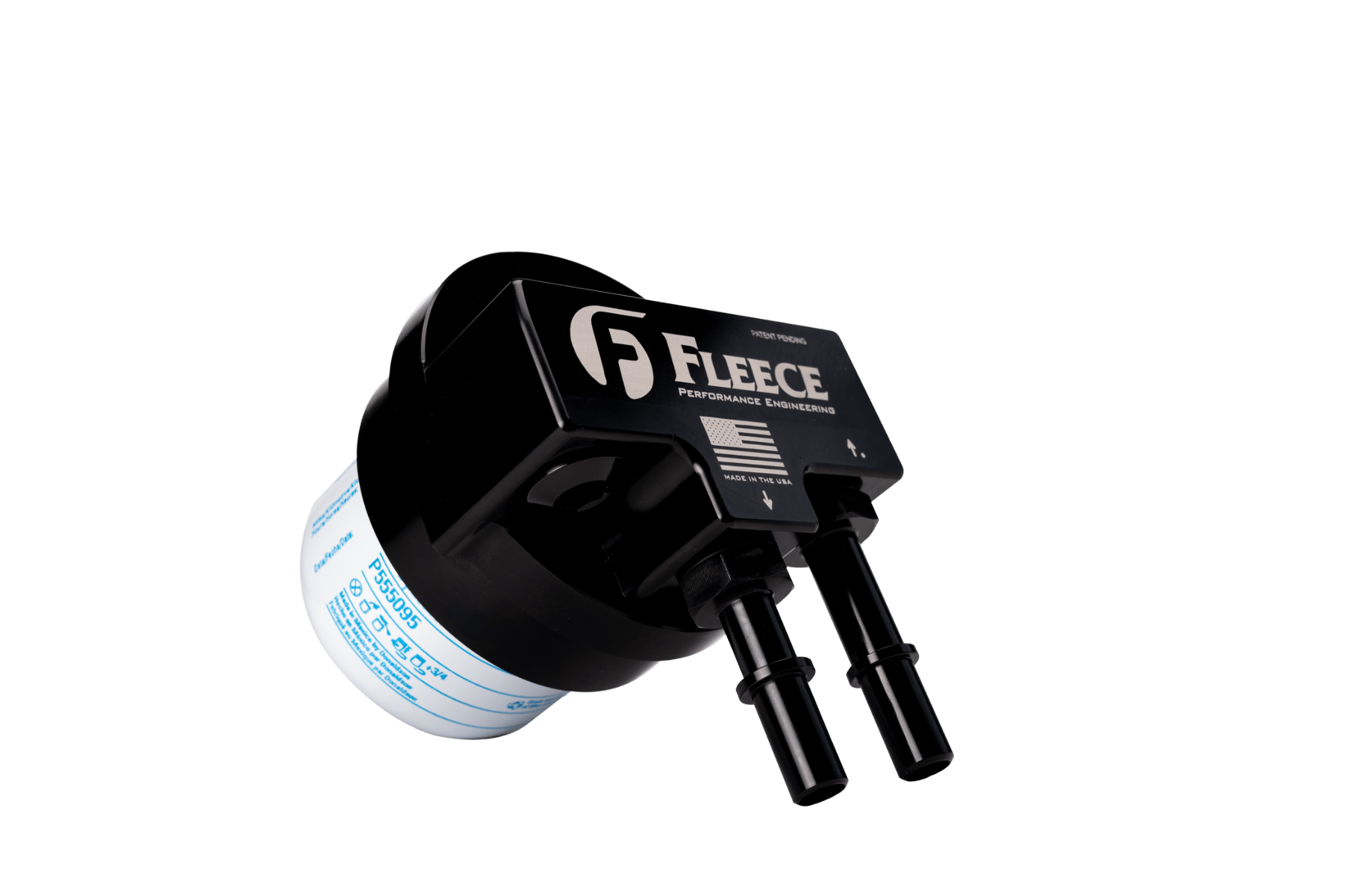

The Fleece Performance FPE-FMC-UHFA-1123 is a billet aluminum replacement for the plastic under-hood fuel filter assembly on 2011-2026 Ford F-250, F-350, F-450 and F-550 trucks with the 6.7L Power Stroke. Owners buy it to get rid of a factory plastic filter that can crack and leak fuel on top of the engine.
Fitment
Fleece lists this assembly for 2011-2026 Ford F-250 and F-350 Super Duty pickups and F-450 and F-550 trucks with the 6.7L Power Stroke. That covers both the 2011-2016 first-generation engine and the 2017-and-later second generation. Ford changed the filter kit and the engine-mounted housing at 2017, with FD-4615 on 2011-2016 trucks and FD-4625AA from 2017 on. Fleece covers both with one kit: older trucks use one inlet and one outlet fitting, and newer trucks get an extra quick-disconnect for the additional fuel return. Fleece's application notes:
- Fits 2011-2026 F250/350/450/550 with 6.7L Powerstroke. The 2011-2016 model trucks use only one inlet and one outlet fitting. For 2017-2024 trucks, an additional quick disconnect fitting is provided for the required additional fuel return.
- This product is compatible with trucks equipped with an S&S Diesel Motorsport DCR conversion kit or the S&S Diesel Motorsport CP4 Disaster Prevention Kit.
- Replaces the under hood factory filter in Motorcraft Kits FD-4615 and FD-4625AA that contain manufacturer part numbers HC3Z9N184C and BC3Z9N184B.
- For 2011-2016 applications, the under bed primary fuel filter may be purchased individually, Fleece Performance part number: FPE-FMC-FFUB-1116
Not sure which setup your truck has? Verify fitment by VIN or call us before you order.
Why this part

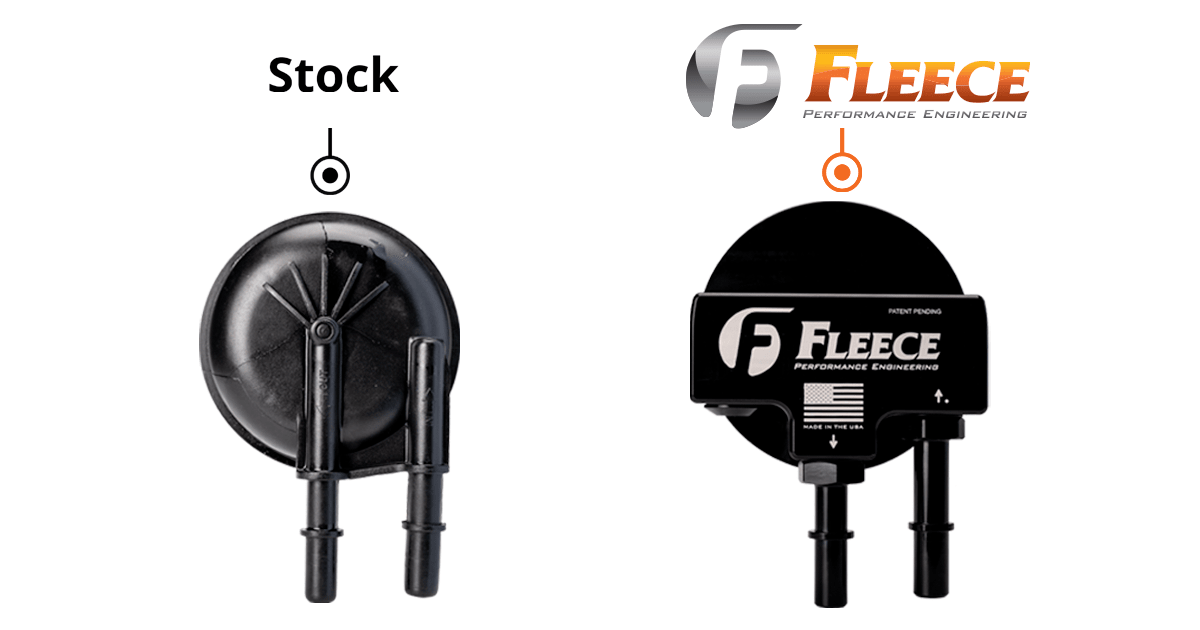

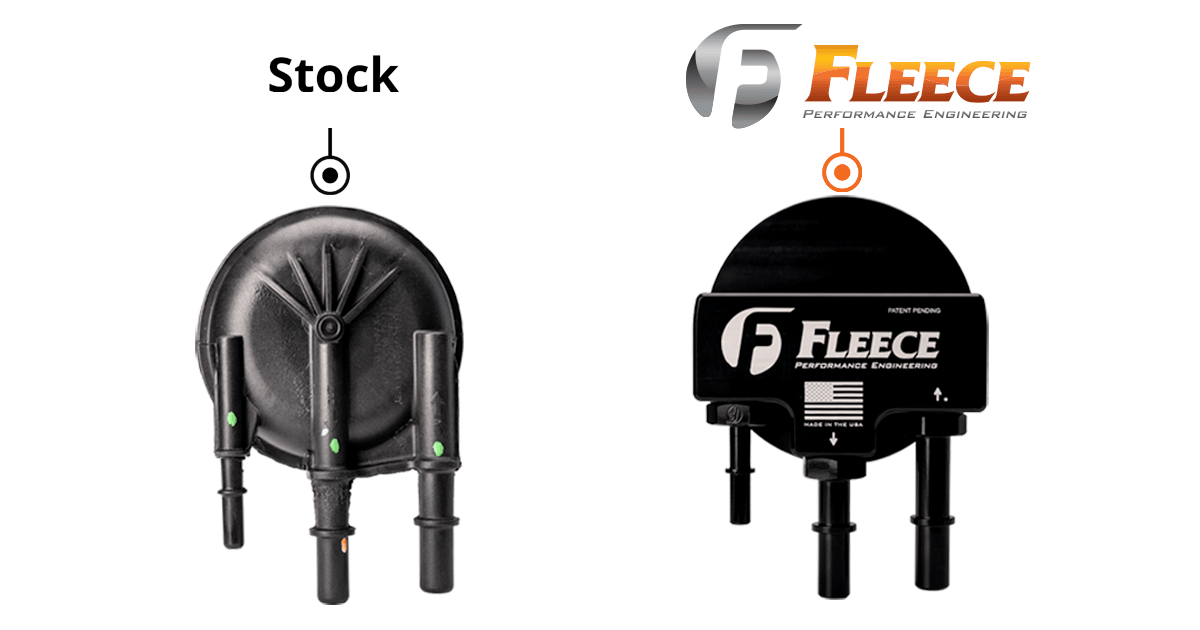

The factory under-hood filter assembly on the 6.7L is plastic, and Fleece's reason for building this one is plain: the plastic OE filters are prone to cracking and fuel leakage. The platform record agrees. On 2011-2016 trucks the plastic engine-mounted housings get brittle with age and start to weep fuel. On 2015-2016 trucks a cracked housing can spray fuel onto the inboard exhaust, which is a fire hazard. A diesel smell, fuel on top of the engine or drips near the driver-side filter are the signs to look for.
This kit replaces the plastic with a heavy duty anodized billet aluminum cap and billet aluminum quick-disconnect fittings, so the cracked-filter risk goes away. It runs a replaceable spin-on Donaldson filter that is easy to service, and filter service matters on this engine. On 2015-2016 trucks Ford's interval is 22,500 miles normal, or 15,000 miles, 6 months or 600 hours severe, with biodiesel counted as severe. Metal debris in a cut-open filter is the earliest warning of a CP4 pump problem, so every change is also a chance to check.
What you get

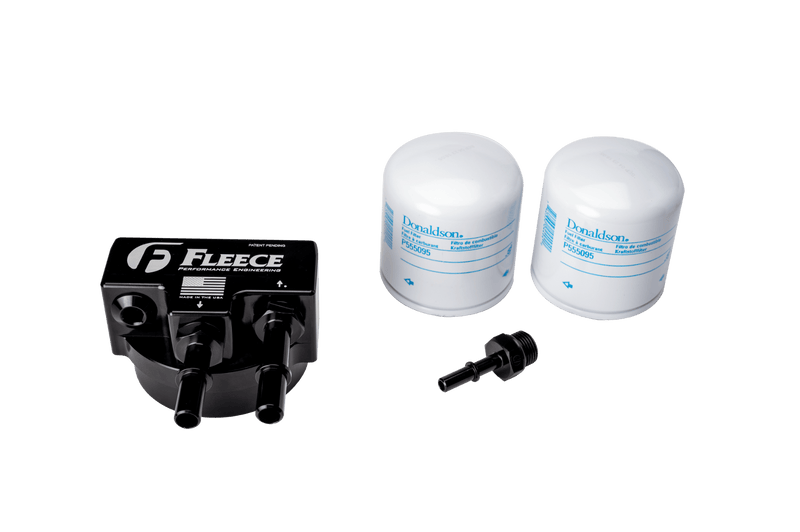

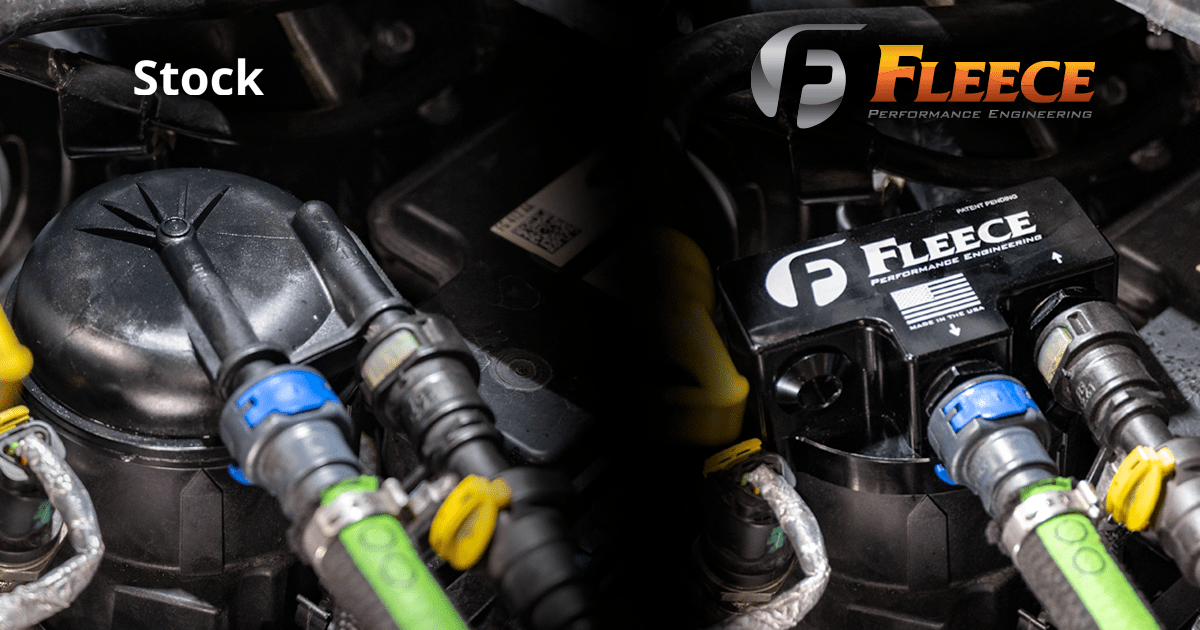

The assembly is a drop-in part that locks directly into the stock filter location. Fleece includes an extra Donaldson fuel filter, so the next change is already on the shelf and you go longer before buying another filter.
- Drop-in replacement for the factory under hood filter
- Heavy duty anodized billet aluminum cap
- Heavy duty anodized billet aluminum quick-disconnect fittings
- Steel adapter fitting for the filter
- Extra Donaldson P555095 filter included with the kit
Kit includes the following Fleece Performance components: FPE-34552-A, FPE-34550-A, FPE-34781-A, FPE-FF-M16-ADPT, FPE-SP-3416.
About Fleece Performance Engineering
Fleece Performance Engineering was started in 2008 by brothers Brayden and Chase Fleece and is headquartered in Pittsboro, Indiana. The company is known for Freedom Series cylinder heads, PowerFlo lift pumps, turbochargers and turbo plumbing, plus fuel, cooling and transmission line kits for Cummins, Duramax and Powerstroke trucks.
Frequently asked questions
Does one kit cover both 2011-2016 and 2017-and-later trucks?
Yes. The 2011-2016 trucks use one inlet and one outlet fitting. For 2017-2024 trucks, the kit includes the additional quick-disconnect fitting needed for the extra fuel return.
What filter does it take?
A replaceable spin-on Donaldson filter that mounts on a steel adapter fitting. The kit comes with an extra Donaldson P555095 filter.
Does it replace the under-bed primary filter too?
No. This replaces the under-hood factory filter only. On 2011-2016 trucks, Fleece sells the under-bed primary fuel filter separately as FPE-FMC-FFUB-1116.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
