Fleece Performance Engineering FPE-CUMM-CLNT-TNK-1318 Replacement Coolant Tank (2013-2018 6.7L Cummins)
Fits: Cummins 6.7L (2013-2018 Cummins)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Fleece Performance Engineering FPE-CUMM-CLNT-TNK-1318 Replacement Coolant Tank (2013-2018 6.7L Cummins) you will earn 480 DIESEL DOLLARS in your SDS Fuel Tank!

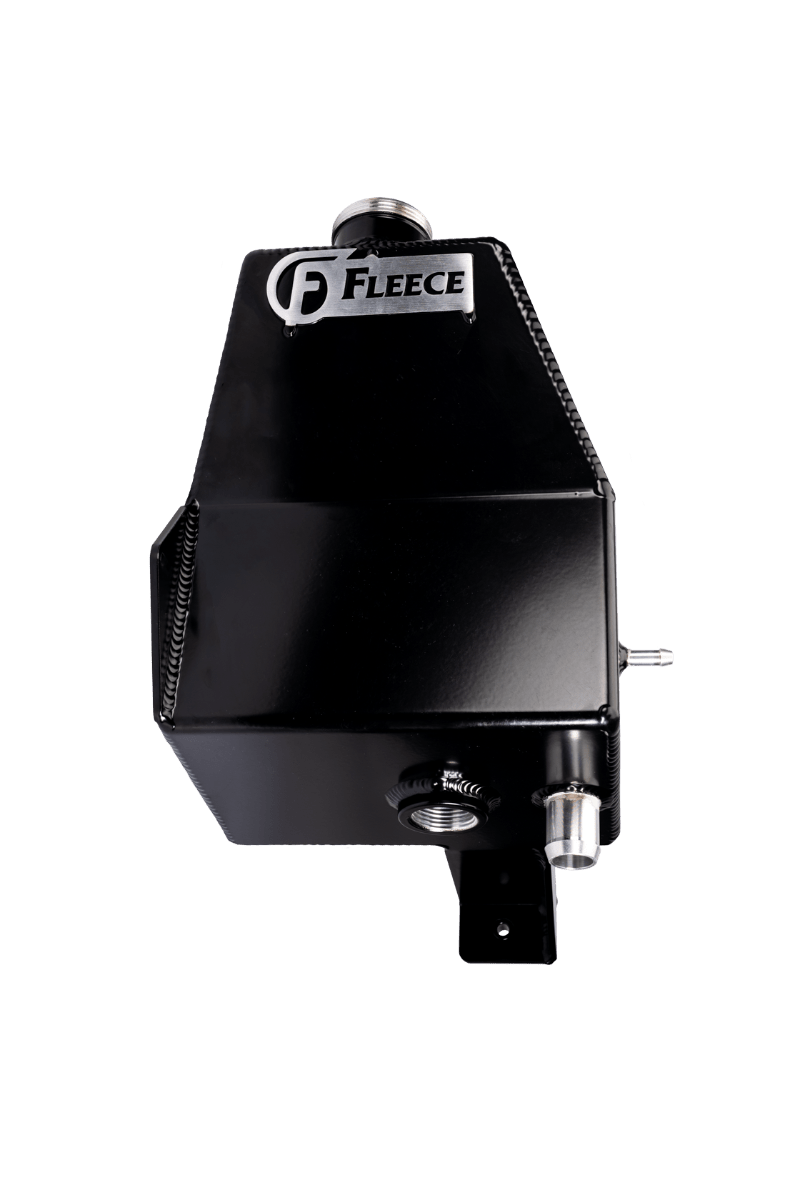

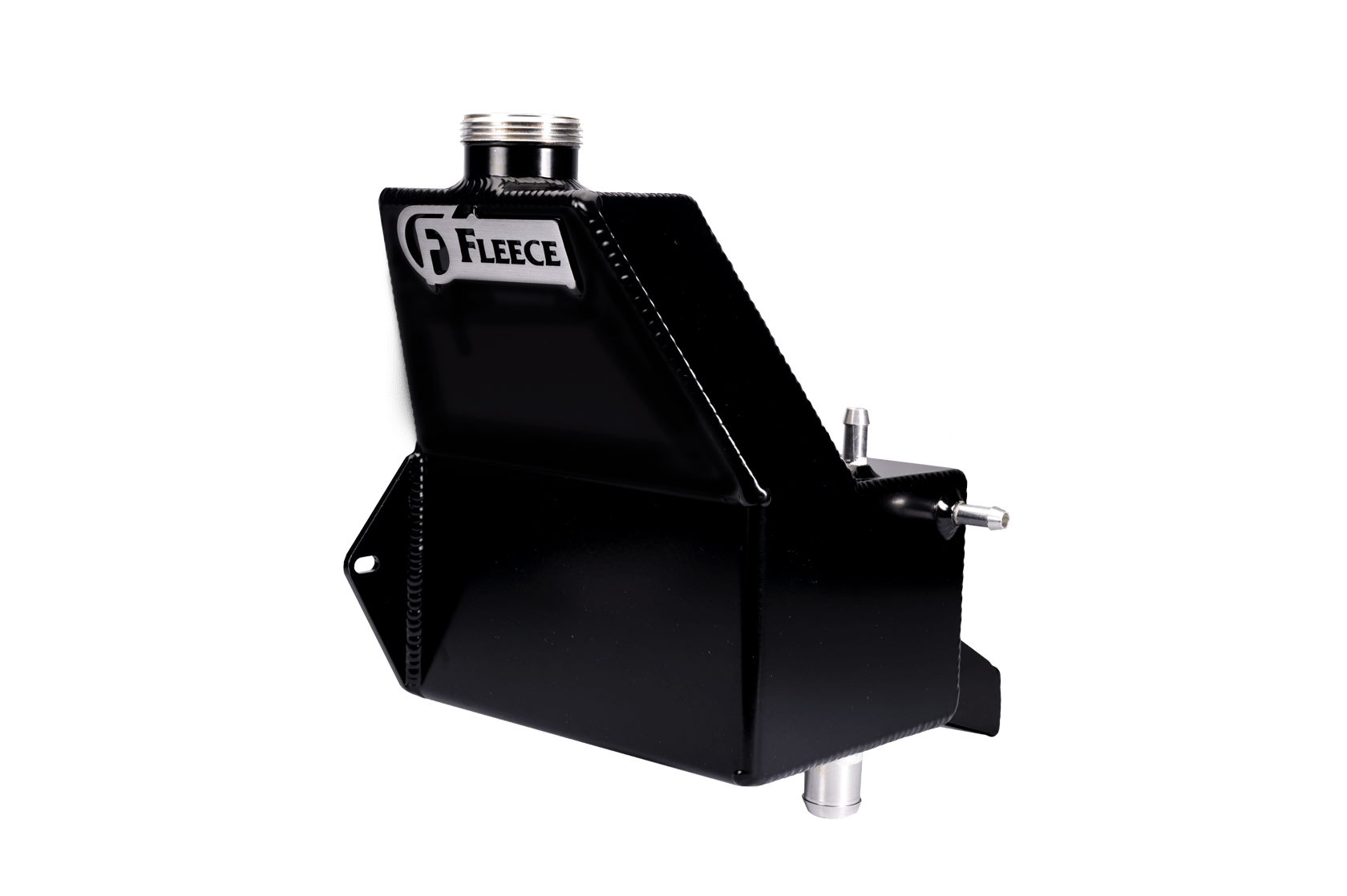

The Fleece FPE-CUMM-CLNT-TNK-1318 is a fabricated aluminum coolant tank that takes the place of the factory plastic reservoir on 2013-2018 Ram 2500 and 3500 trucks with the 6.7L Cummins. Owners buy it to replace a leaking factory tank with aluminum, or to clean up the engine bay and allow additional room around the turbocharger.
Fitment
This tank fits 2013-2018 Ram 2500 and Ram 3500 pickups with the 6.7L Cummins. It is a direct replacement for the factory plastic coolant reservoir and mounts in the factory coolant tank location behind the passenger side battery. Fleece's application notes:
- 2013-2018 Ram with 6.7L Cummins
- Replaces MOPAR 68166475AD
Ram 3500, 4500 and 5500 chassis cabs share the 6.7L but use different frames, filters and exhaust routing, so verify chassis-cab fitment separately. On any truck, check your VIN against MOPAR 68166475AD or call us before you order.
Why this part
The factory reservoir is plastic. When it starts leaking, you can put in another plastic tank or step up to fabricated aluminum. This tank is the aluminum route. It is powder coated in gloss black, it uses your factory cap, and it comes with a low coolant float switch, mounting hardware, hose and clamps. Fleece also designed it to clean up the engine bay and allow for additional room around the turbocharger.
Before you blame the tank, look at how the coolant is getting out. On 2013-2018 trucks, a head gasket that is starting to lift often shows up first in the cooling system: a stiff, pressurized upper hose on a cold engine, overheating that acts like an air pocket, and coolant pushed out of the degas bottle. If your old tank is wet because coolant is being pushed out rather than leaking from a crack, find that cause first. A new tank will not fix it.
Because this tank reuses the factory cap, check the cap while you are at it. The 6.7L runs a 16 psi cap, and a cap that only holds 5-6 psi cuts your boil-over margin. Have it pressure-tested when the new tank goes in.

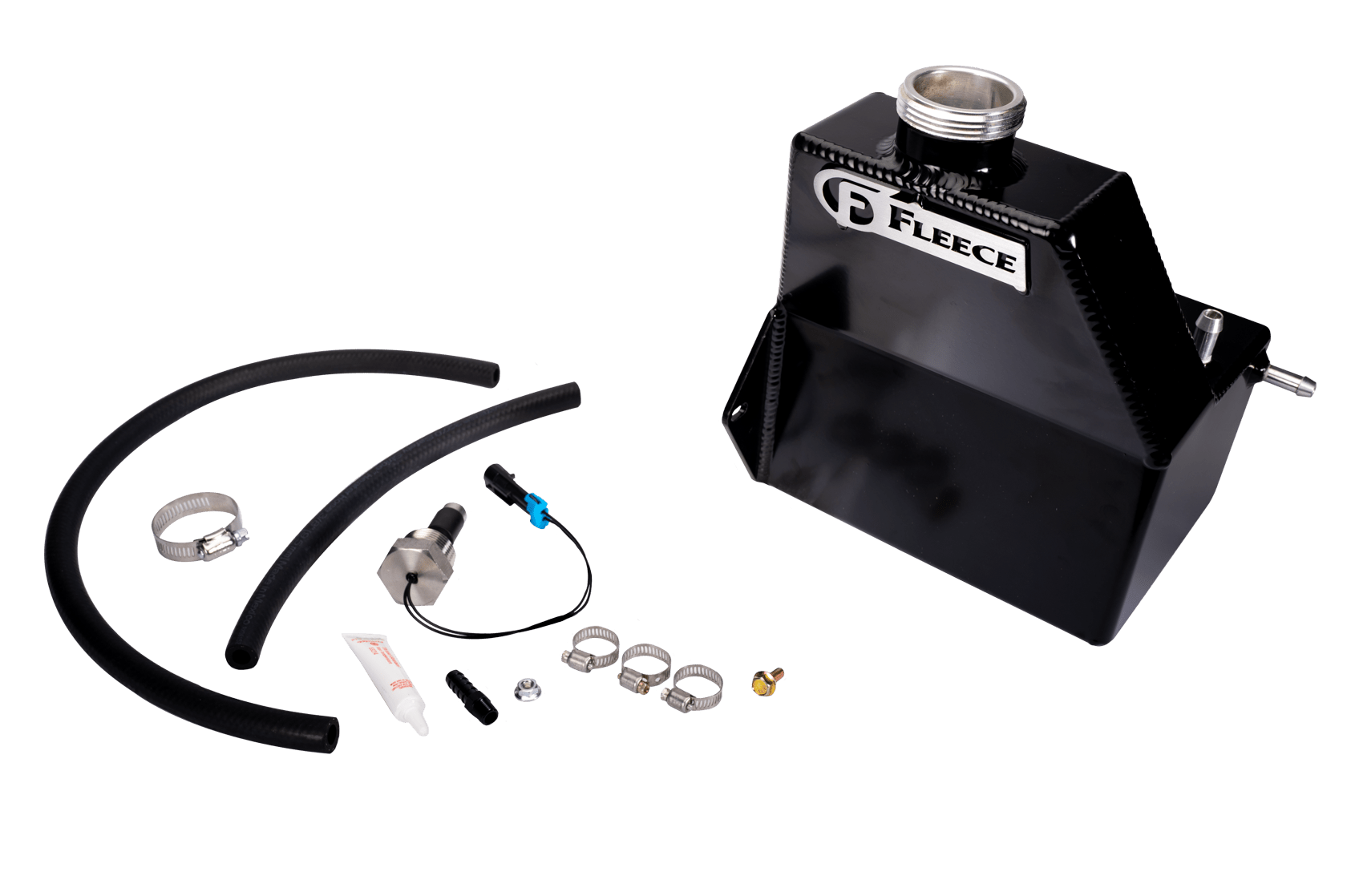

What you get
- Powder coated in gloss-black
- Includes low coolant float switch (FPE-FS-UNIV-2M-SS)

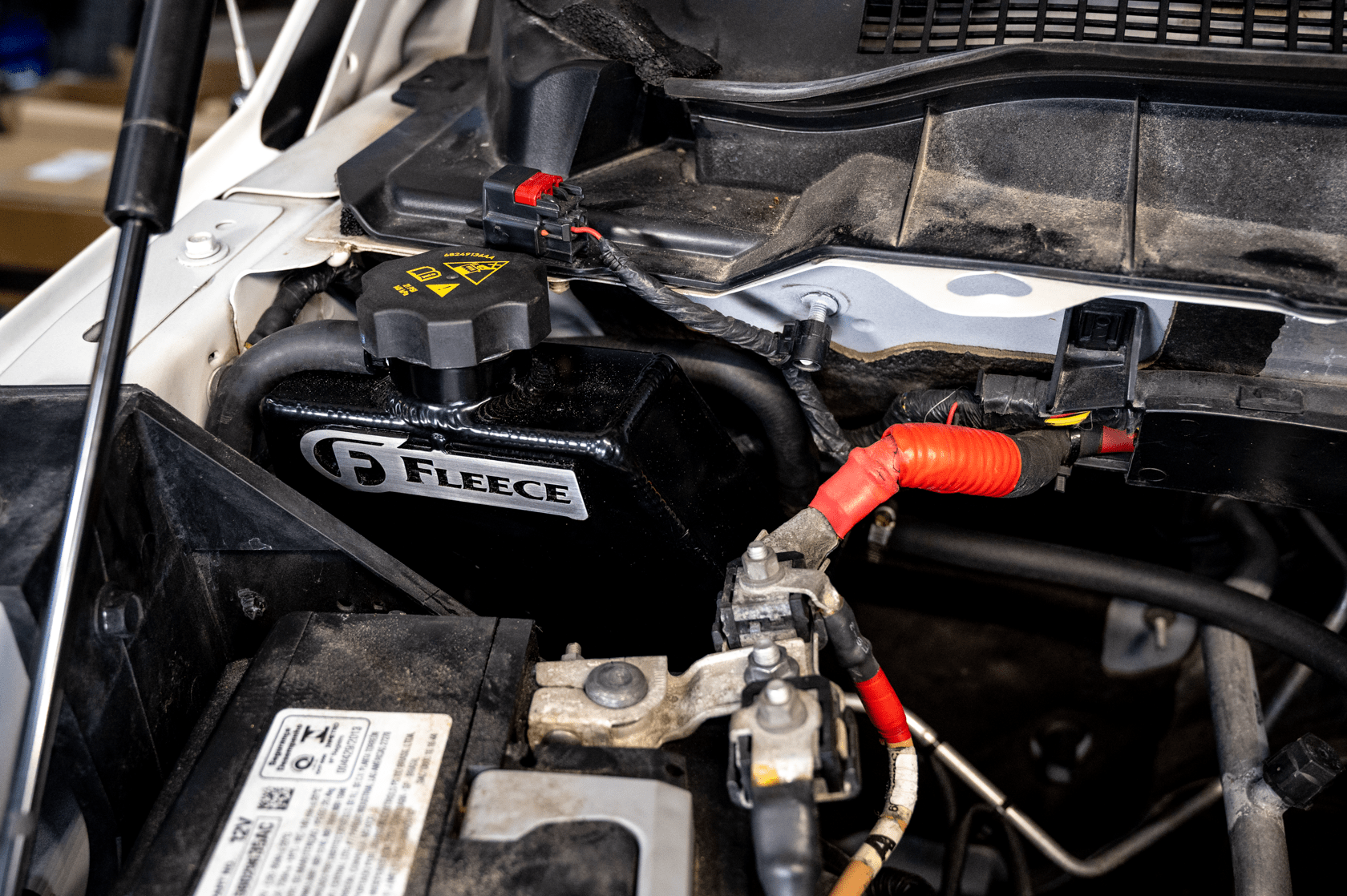

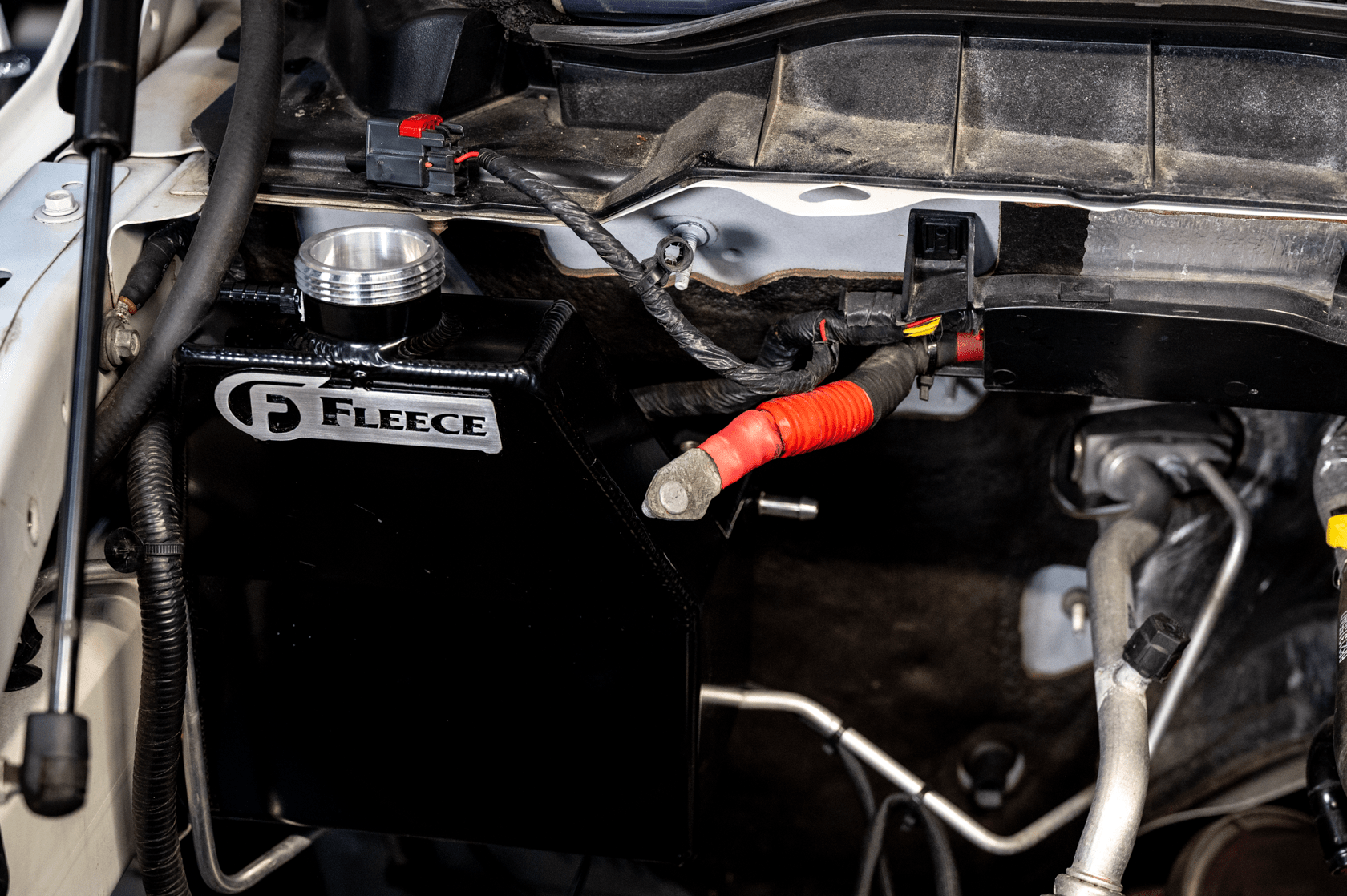

- Mounts in the factory coolant tank location behind the passenger side battery
- Utilizes the factory coolant tank cap
- Includes mounting hardware, hose, and hose clamps for a simple installation.
The float switch is Fleece part FPE-FS-UNIV-2M-SS, which Fleece lists as a stainless steel universal float switch with a two-pin Metri-Pack connector.
Installation notes
The tank mounts in the factory location behind the passenger side battery, takes the factory cap, and ships with the mounting hardware, hose and hose clamps you need. When you refill, use the coolant your owner's manual calls for. Coolant interval and chemistry differ between 2007.5-2012 and 2013-2018 trucks, so check the manual before you mix anything.
About Fleece Performance Engineering
Brothers Brayden and Chase Fleece started Fleece Performance Engineering in 2008, and the company is based in Pittsboro, Indiana. Fleece is best known for Freedom Series cylinder heads, PowerFlo lift pumps and turbo parts, and it also builds fuel, cooling and transmission line kits for Cummins, Duramax and Powerstroke trucks. Most of the Fleece parts we stock fit the 5.9L and 6.7L Cummins.
Frequently asked questions
Can I keep my factory coolant cap?
Yes. The tank utilizes the factory coolant tank cap. It is worth having that cap pressure-tested during the swap, since the system is built around a 16 psi cap and a weak one lowers your boil-over margin.
Does it come with a low coolant sensor?
Yes. It includes the FPE-FS-UNIV-2M-SS low coolant float switch, along with the mounting hardware, hose and hose clamps.
Will it fit a 2019 or newer Ram?
Fleece lists this tank for 2013-2018 Ram trucks with the 6.7L Cummins, replacing MOPAR 68166475AD. For any other year, send us your VIN and we will check it.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
