Fleece FPE-CTDT-VGT-KIT Turbo Drain Tube Kit for VGT Turbochargers (2007.5-2018 6.7L Cummins)
Fits: Cummins 6.7L (2007.5-2012 Cummins) • Cummins 6.7L (2013-2018 Cummins)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Fleece FPE-CTDT-VGT-KIT Turbo Drain Tube Kit for VGT Turbochargers (2007.5-2018 6.7L Cummins) you will earn 100 DIESEL DOLLARS in your SDS Fuel Tank!
The Fleece FPE-CTDT-VGT-KIT is a turbo drain tube kit for 2007.5-2018 Dodge and Ram 2500 and 3500 trucks with the 6.7L Cummins and a factory VGT turbo. It takes the place of the stiff factory drain tube, Chrysler part No. 68005450AA, with a formed silicone hose and billet fittings. You buy it so the drain line goes back on easily during a turbo job.
Fitment
Fits the 6.7L Cummins from 2007.5 through 2018: the 2007.5-2009 Dodge Ram 2500 and 3500 and the 2010-2018 Ram 2500 and 3500 pickups. Fleece designed it for all 6.7L Cummins-equipped Ram factory VGT turbochargers in those years and for aftermarket drop-in replacements like the Fleece Cheetah Series. The factory turbo itself changed, from the HE351VE on 2010-2012 trucks to the HE300VG on 2013-2018 trucks, and those turbos do not interchange. This drain kit is listed for both.
Chassis cab trucks share the engine but use different frames, filters and exhaust routing, so confirm chassis cab fitment separately. For 2019-2024 trucks, Fleece makes a different drain tube kit. Verify by VIN or call us. More parts for these engines are in our Cummins section.
Why this part

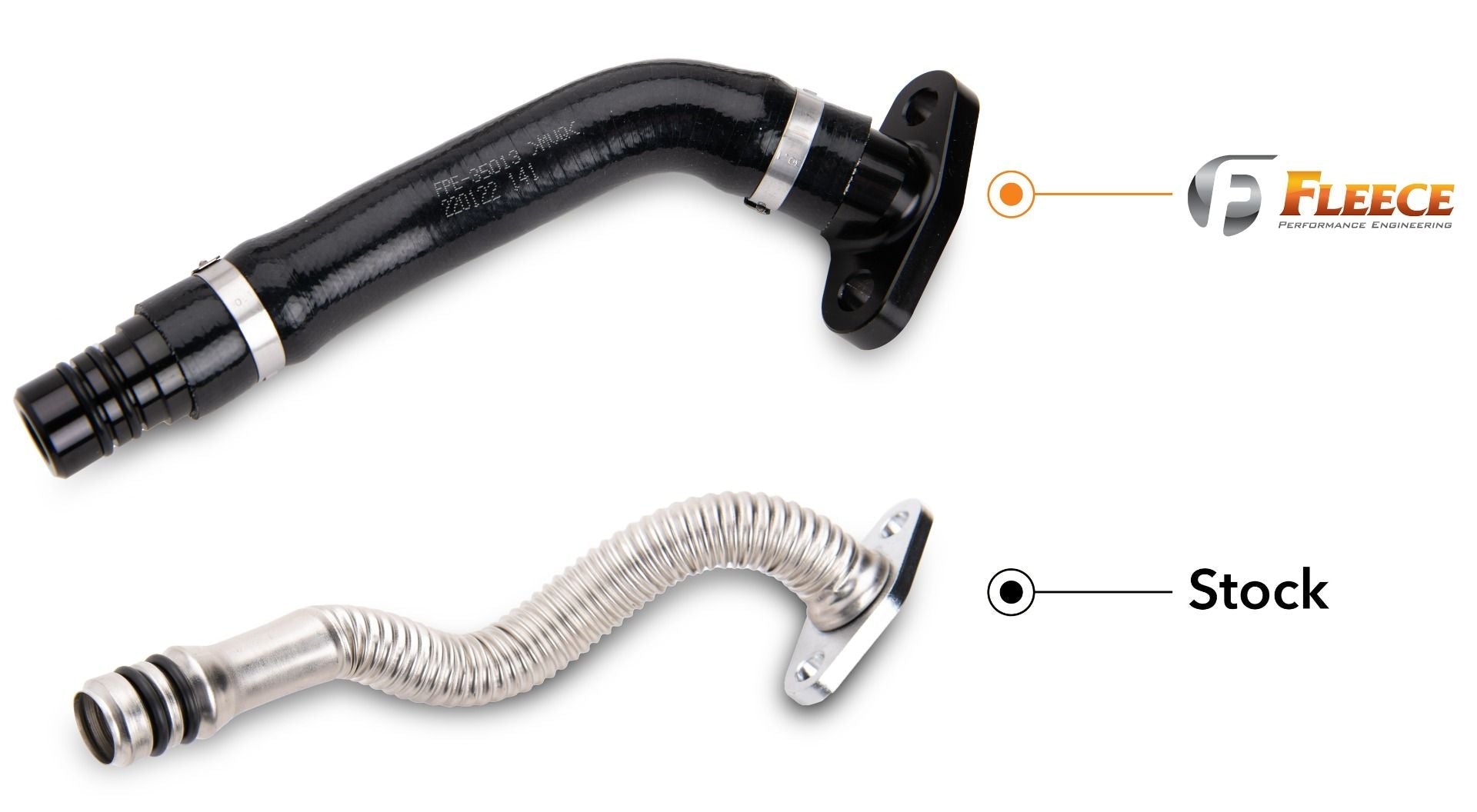

Fighting a non-flexible factory drain line is one of the headaches of a turbo install. Fleece answered it with a formed silicone hose that has a larger ID and a smooth bore, with black anodized billet aluminum fittings and integral O-rings at the connections. The hose design is protected under US Patent D1,031,948 with more patents pending. The point is a simpler turbocharger install and proper oil drainage from the turbo once it is running.
The turbo is a common repair on these trucks. On 2007.5-2009 engines the VGT nozzle ring and vanes coat with soot, oil and ash and stop moving freely, which brings lag, surging and a weak exhaust brake. Hard failures on early 6.7Ls include oil seals leaking into the housings, wheel damage and worn bearings with shaft end play. On 2010-2018 trucks a stuck nozzle ring is fixed by disassembly and manual cleaning, and oil seals, wheels, speed sensors and bearings fail too. Whether the turbo comes off for cleaning, a factory-type Holset replacement or a drop-in, the drain tube comes off with it. Browse replacement turbos in our turbo section.

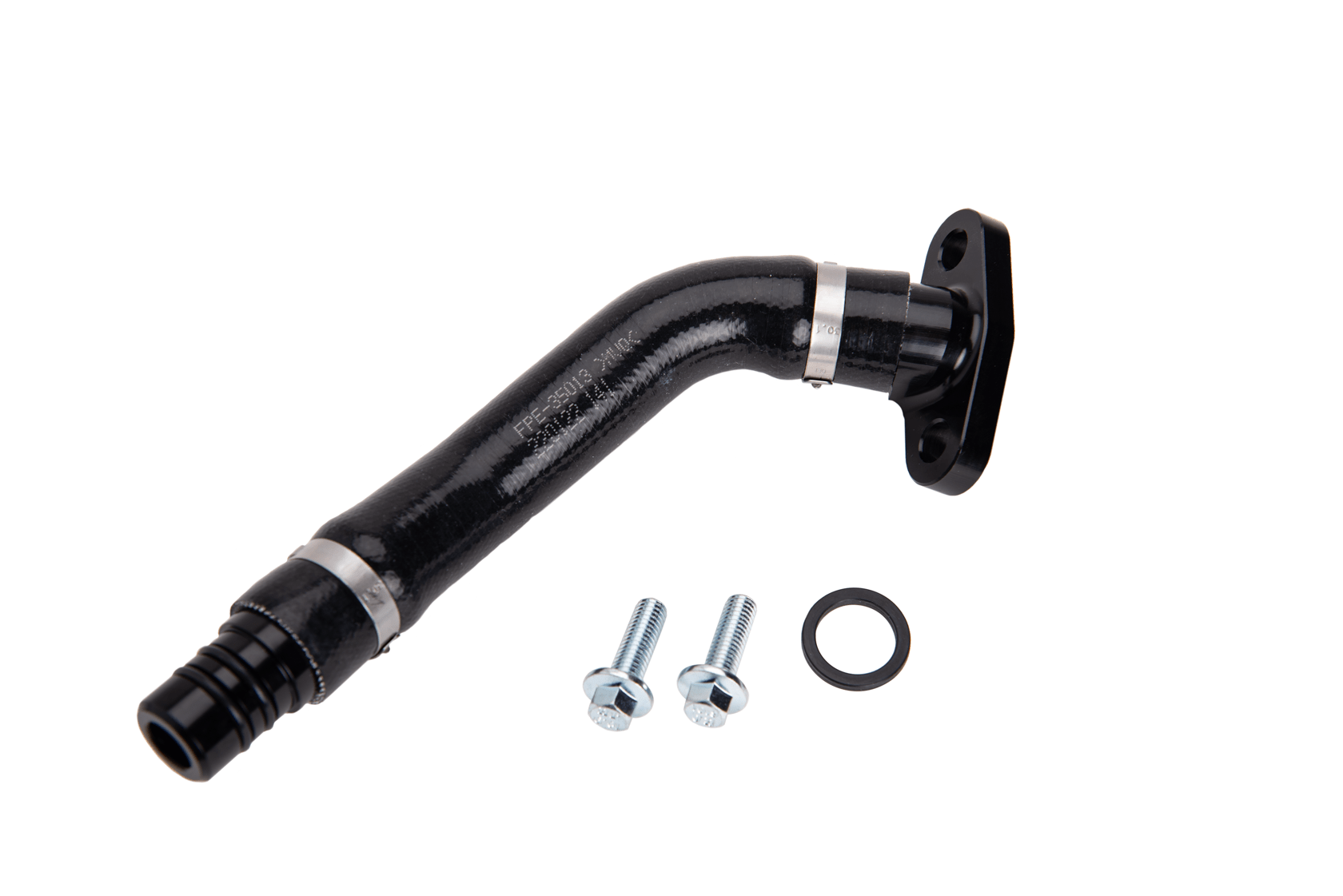

What you get

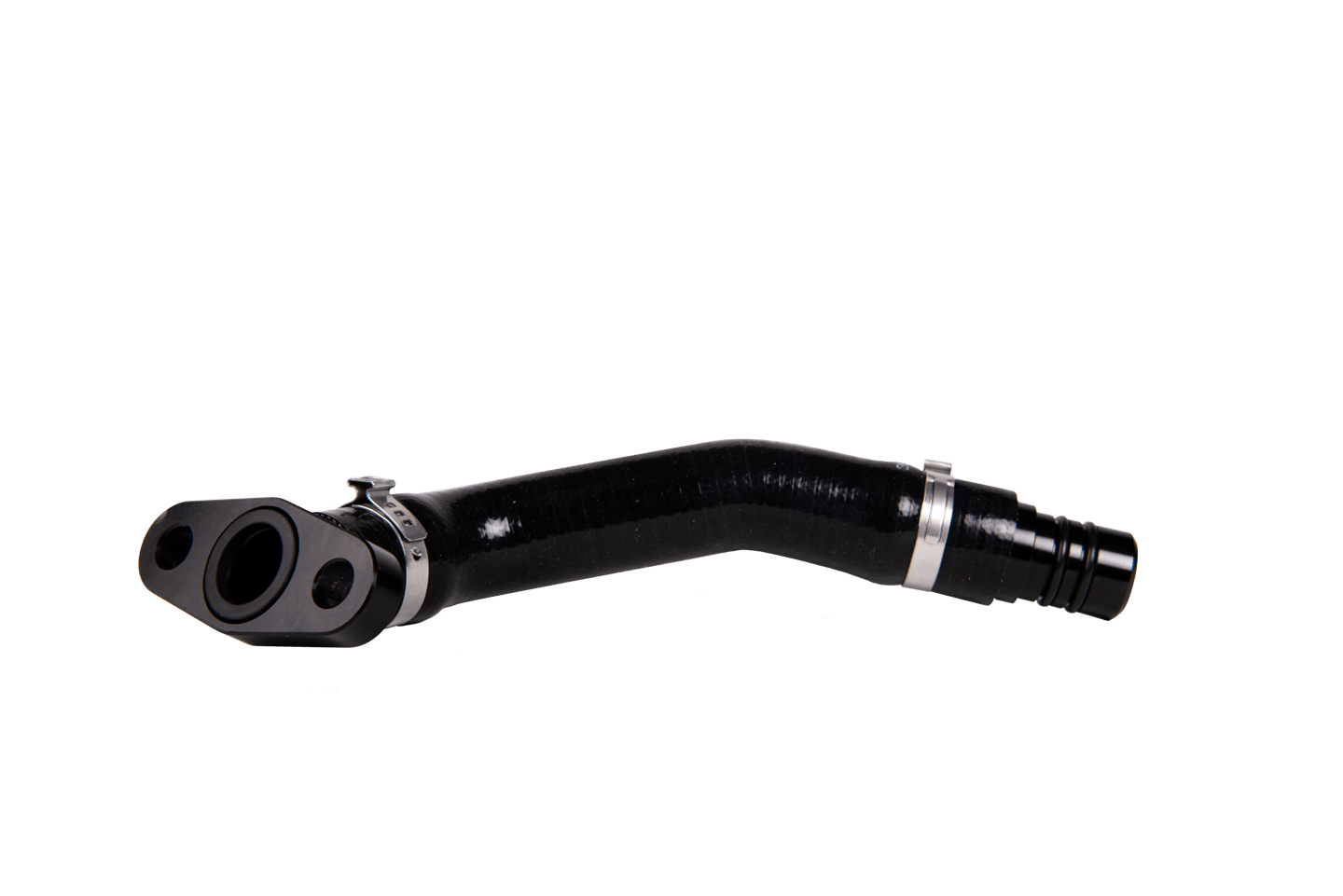

- Silicone drain hose, formed to shape, with a larger ID smooth bore
- Black anodized billet aluminum fittings with built-in O-rings
- New fasteners for the install
Specifications
Features
- Formed silicone hose for longevity and durability
- Anodized aluminum fittings with integral O-rings for leak free installation
- New fasteners
Application Notes
- Direct replacement for Chrysler part No.: 68005450AA
*Protected under US Patent D1,031,948 and Patents Pending
About Fleece Performance Engineering
Started in 2008 by Brayden and Chase Fleece, Fleece Performance Engineering works out of Pittsboro, Indiana. The company is known for turbochargers and turbo accessories, Freedom Series cylinder heads and PowerFlo lift pumps. Cummins trucks, 5.9L and 6.7L, make up most of the Fleece lineup we carry.
Frequently asked questions
Does it fit both the early and late 6.7L factory turbos?
Yes. Fleece lists it for 2007.5-2018 trucks with the factory VGT turbo, which covers the HE351VE used through 2012 and the HE300VG used on 2013-2018 trucks, plus drop-in replacements like the Cheetah Series.
Will it fit my 2021 Ram 3500?
No. This kit stops at 2018. Fleece makes a separate drain tube kit for 2019-2024 trucks.
What factory part does it replace?
It is a direct replacement for the factory drain tube, Chrysler part No. 68005450AA.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
