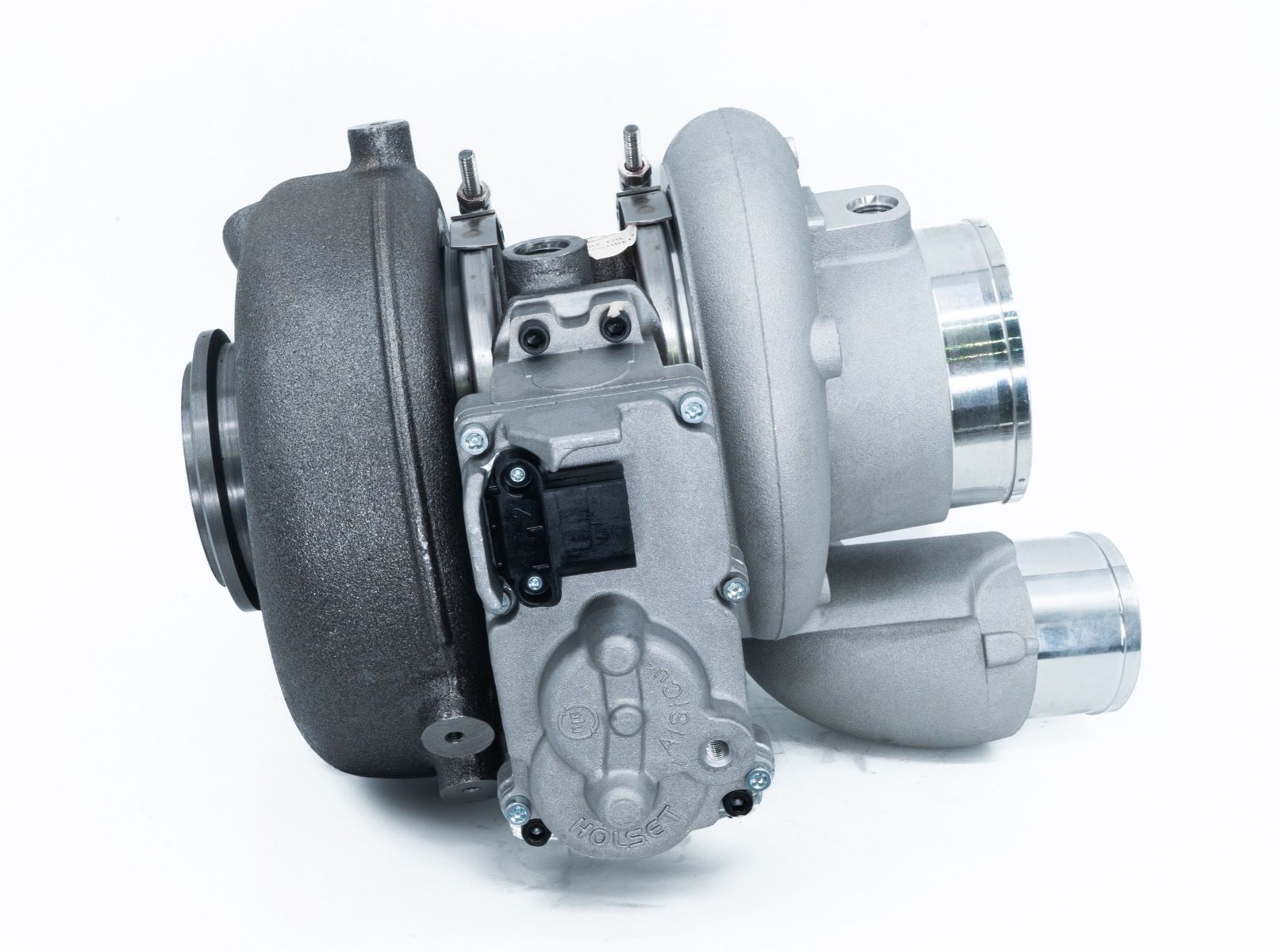

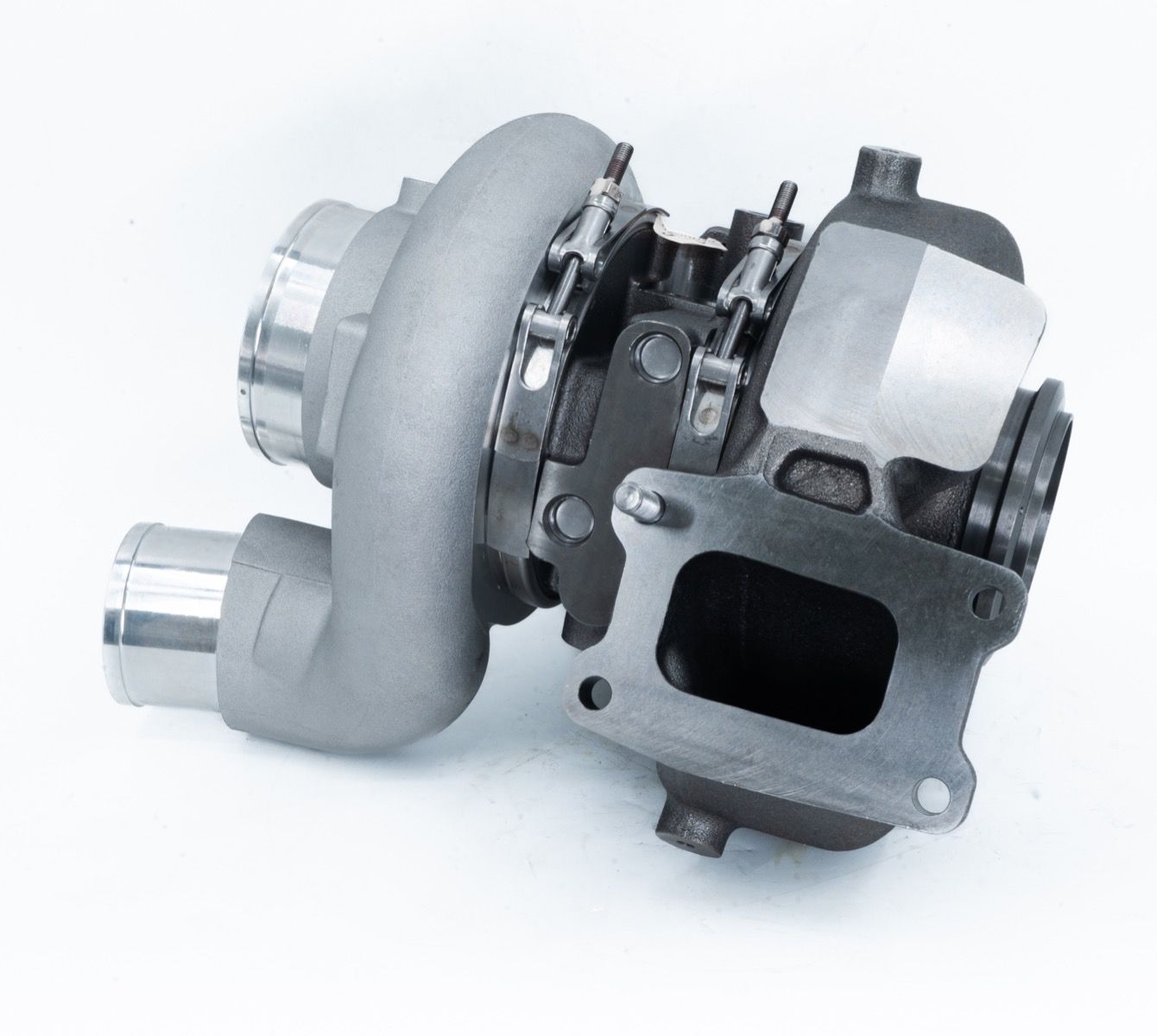

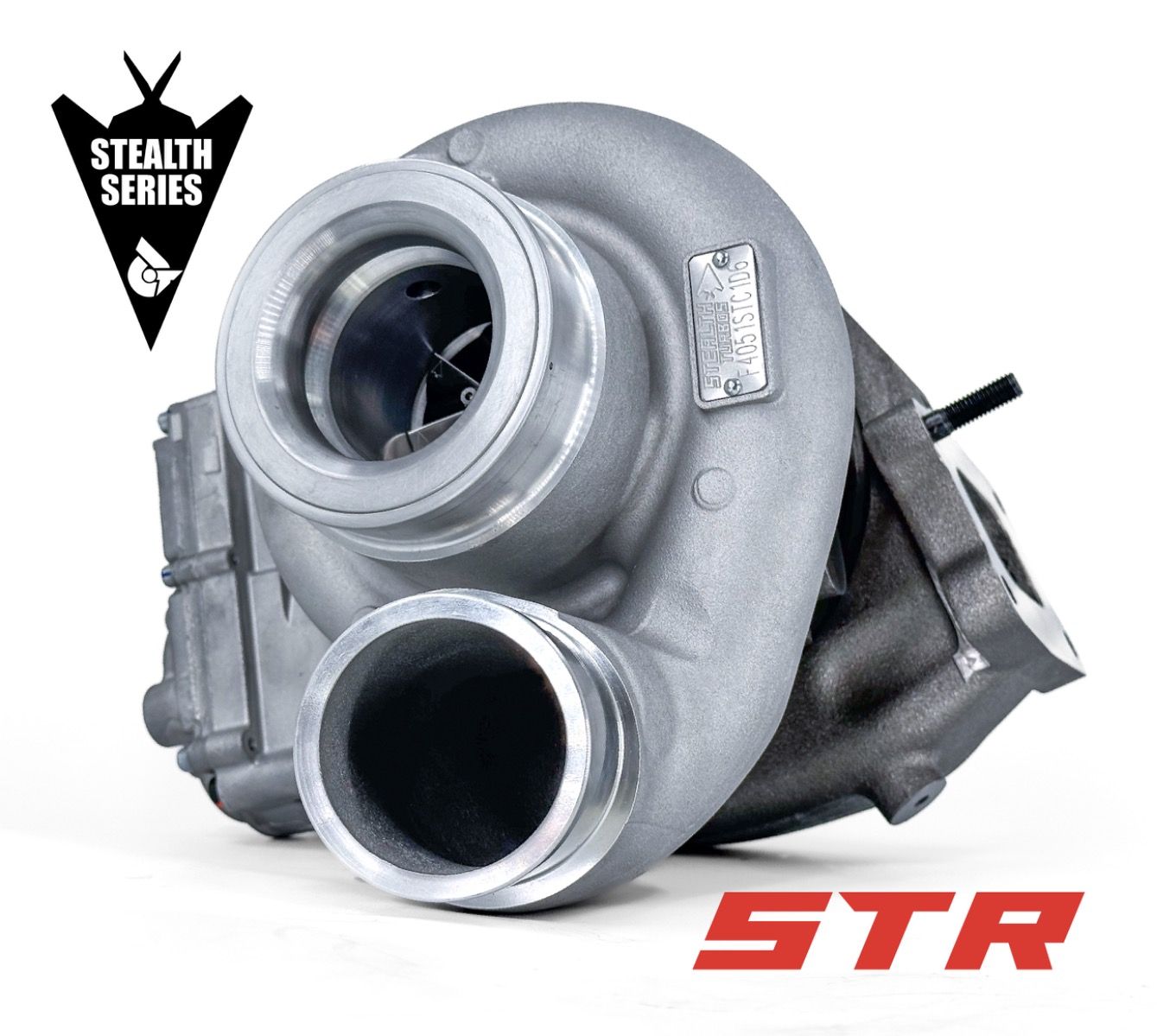

Calibrated Power Solutions CPS200183 Stealth STR (2019-2024 6.7L Cummins)
Fits: Cummins 6.7L (2019-Current Cummins)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Calibrated Power Solutions CPS200183 Stealth STR (2019-2024 6.7L Cummins) you will earn 3400 DIESEL DOLLARS in your SDS Fuel Tank!
The Calibrated Power Solutions CPS200183 Stealth STR is an HE300VG replacement turbo for 2019-2024 Ram 2500 and 3500 pickups with the 6.7L Cummins. Owners pick it when the stock charger is done and they want something a bit better than factory: more durability, lower EGTs and more airflow, with no custom tuning needed to run it.
Fitment
The STR is built for 2019, 2020, 2021, 2022, 2023 and 2024 Ram trucks with the 6.7L Cummins: the Ram 2500 pickup (single rear wheel) and the Ram 3500 pickup (single or dual rear wheel). Our catalog tag reads 2019-current, but Ram put a new turbo on the 2025 truck, so do not assume a 2019-2024 HE300VG replacement fits a 2025 or newer Ram. Verify fitment by VIN.
Standard-output and High Output trucks are not identical under the hood. Ram identifies them by sales code on the build sheet, ETL for standard output and ETM for High Output, so have that or your VIN handy when you call. The 3500, 4500 and 5500 chassis cabs use a separate calibration; check with us first if yours is a chassis cab.
Stealth turbos cannot ship to California and do not fit California-emissions trucks. According to Calibrated Power, the Stealth STR HE300VG has undergone testing to demonstrate that it complies with federal emissions regulations, testing that provides the reasonable basis required by the standards defined by the EPA.
Browse more turbos or the full Cummins lineup.
Why this part
On a 2019-2024 Ram the variable-geometry turbo and its electronic actuator take the abuse. The actuator can fail on its own, through the motor, the position sensor, the electronics or its plastic gears, or it can wear itself out fighting vanes that have stuck. One 2019 2500 owner reported codes P003A and P006F along with lost power and no exhaust brake. An overboost code, P0234, almost always means the vanes are stuck closed.
When the turbo has to come off, the STR is a step up from a stock swap. Calibrated Power builds it with OEM-or-better parts, including a billet extended-tip compressor wheel, a custom turbine wheel and HFV technology. It provides 64 lbs/min of mass airflow against 48 lbs/min for the stock turbo, about 30% more, while running lower drive pressure at high load, which means less strain on the turbo. A ported exhaust housing cuts post-turbine back pressure compared to the factory design. You get improved durability, lower EGTs and better performance, and you keep the factory exhaust brake.
The STR does not require any additional tuning to function correctly; just replace and go. It pairs well with box tuners or custom tuning alike, and Calibrated Power notes that you need some type of tuning installed to get the maximum performance from it. Calibrated Power also offers custom tuning designed for this turbo.
This turbo is designed for you if you...
- Want a turbo that's manufactured in the USA
- Want a turbo with higher durability than stock
- Want better performance and cooler EGTs while towing
- Want to make just a bit more power than the stock charger can
- Want to make more power and still retain a quick spool up
- Daily drive your truck
- Run custom tuning, a box tuner, or no tuning at all
- Want better drive pressure (less strain on your turbo)
- Just want to replace your stock turbo with something better
What you get
- Calibrated Power Solutions CPS200183 Stealth STR HE300VG turbocharger
- Billet 60mm, 7+7 blade extended-tip compressor wheel
- Custom turbine wheel
- HFV custom billet vanes and nozzle ring assembly in 310 stainless steel
- Ported exhaust housing
- Brand new actuator, pre-calibrated
- No core charges; your stock failed actuator does not go back
Specifications
Cummins 6.7L Stealth STR Turbo Featuring HFV (High Flow Vane) Technology
- Airflow to Support over 600HP
- Tested to make 615hp with stock emissions equipment and tuning
- Provides 64 lbs/min mass airflow compared to 48lbs/min stock
- 30% more airflow available compared to stock
- 40+psi boost capable at sea level
- Custom Billet Compressor Wheel
- 60mm, 7+7 Blade Extended Tip Wheel
- Made from lightweight, high-strength aerospace grade billet aluminum
- Machined to create more surface area than the stock wheel
- Tow without any risk of surge (even while lugging)
- Wider range of torque and power
- Better top-end efficiency/ peaks higher boost than stock
- Expertly balanced to ensure longevity
- Custom Turbine Wheel
- Custom higher efficiency blade design
- Lower drive pressures at high load
- Better EGT control and lower EGTs
- Distinct Stealth exhaust sound
- HFV (High Flow Vane) Technology
- Only found in select Stealth turbochargers
- Custom, billet vanes and nozzle ring assembly
- Made from high heat resistance billet 310 stainless steel
- Exclusive design produced in-house specific to this application
- Taller and wider vanes provide superior high-load efficiency
- Retain factory exhaust brake and quick throttle response
- Ported Exhaust Housing
- Less post turbine back pressure than the factory design
- Brand New Parts and Electronics
- No sending back the stock failed actuator
- Pre-Calibrated and no tuning required
- Brand new actuator
- No Custom Tuning Required
- No Core Charges
About Calibrated Power
Calibrated Power Solutions is the diesel calibration shop behind DuramaxTuner. Nick Priegnitz started it, the company grew up in Marengo, Illinois, and today it works out of Woodstock, Illinois, where it runs a full-service performance and repair shop with a 4WD chassis dyno. Calibrated Power says the STR runs on stock tuning, while its Mach 2 tier needs custom tuning.
Frequently asked questions
Do I need a tuner to run the STR?
No. It comes pre-calibrated with a brand new actuator and needs no custom tuning. It also works with a box tuner or custom tuning if you run one, and Calibrated Power says some type of tuning is needed to get its maximum performance.
How much more air does it move than the stock turbo?
Calibrated Power rates it at 64 lbs/min of mass airflow against 48 lbs/min stock, and lists 30% more airflow available compared to stock. It is 40+ psi boost capable at sea level and was tested to make 615hp with stock emissions equipment and tuning.
My truck set a P0299 underboost code. Is the turbo bad?
Not always. On these trucks P0299 can come from a boost leak, a clogged or non-OEM air filter, or the actuator. Put in a Mopar air filter before you condemn the turbo. If you are checking a used turbo, it should show zero axial shaft play and an undamaged compressor wheel. Still stuck? Call us with your VIN.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
