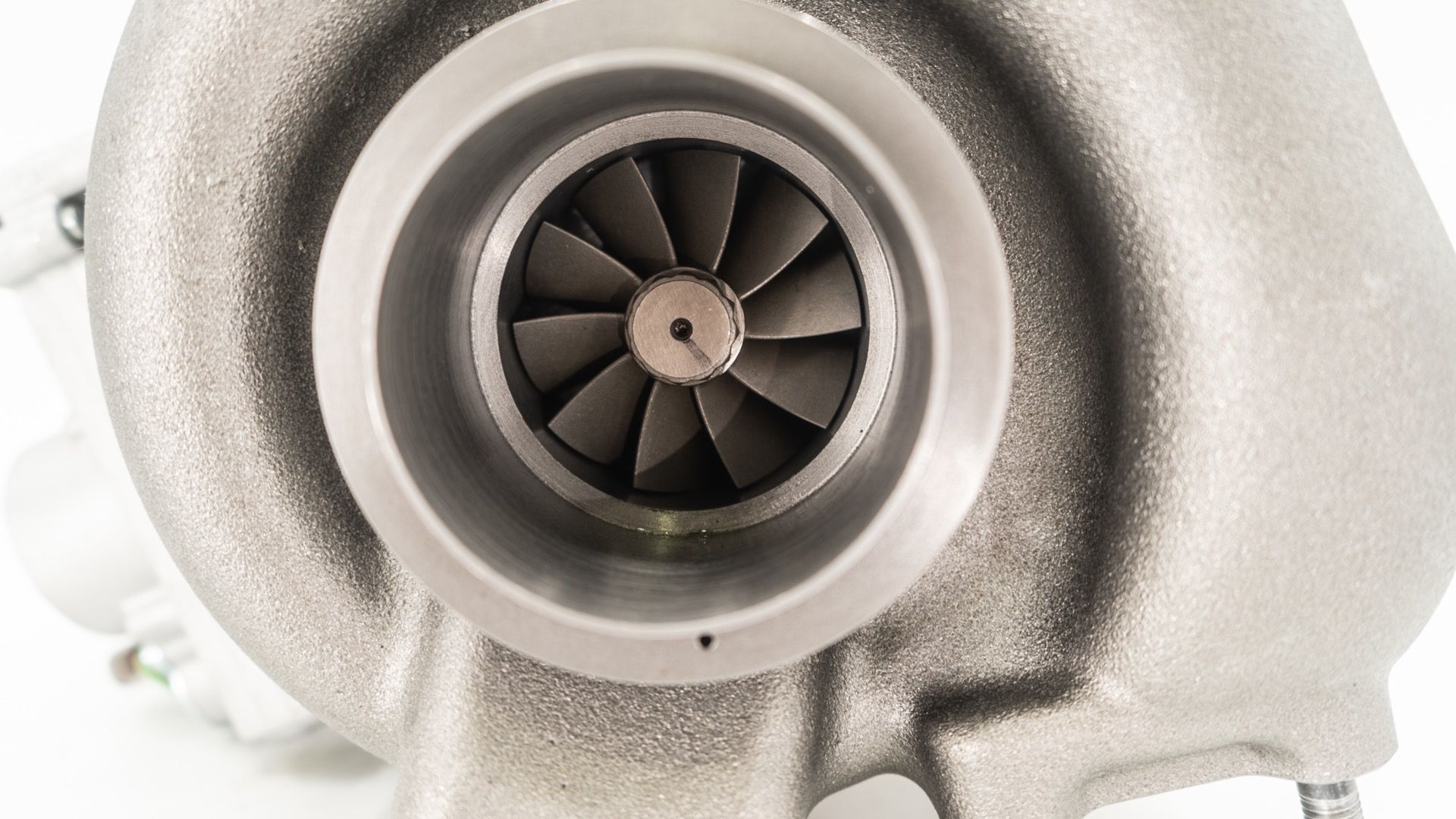

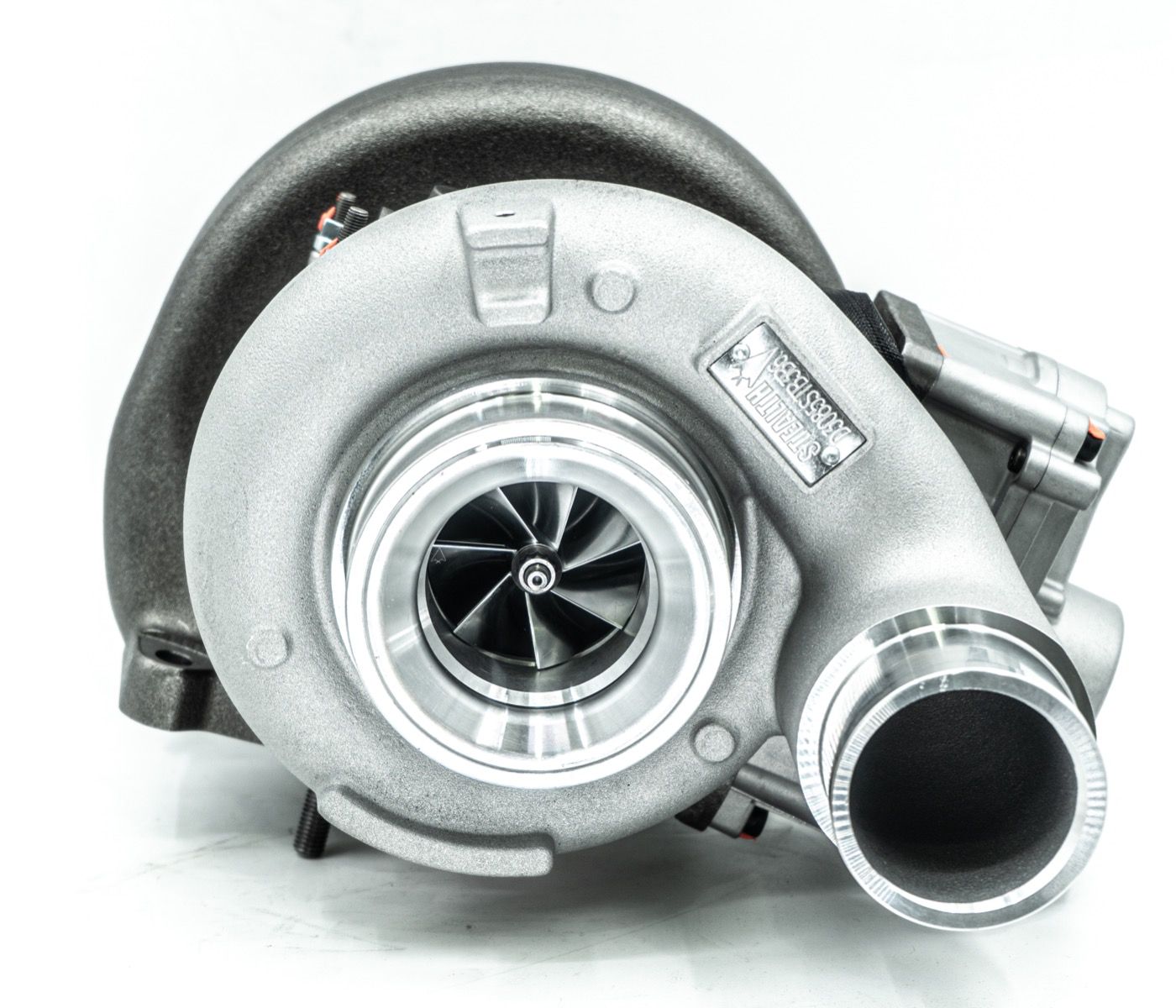

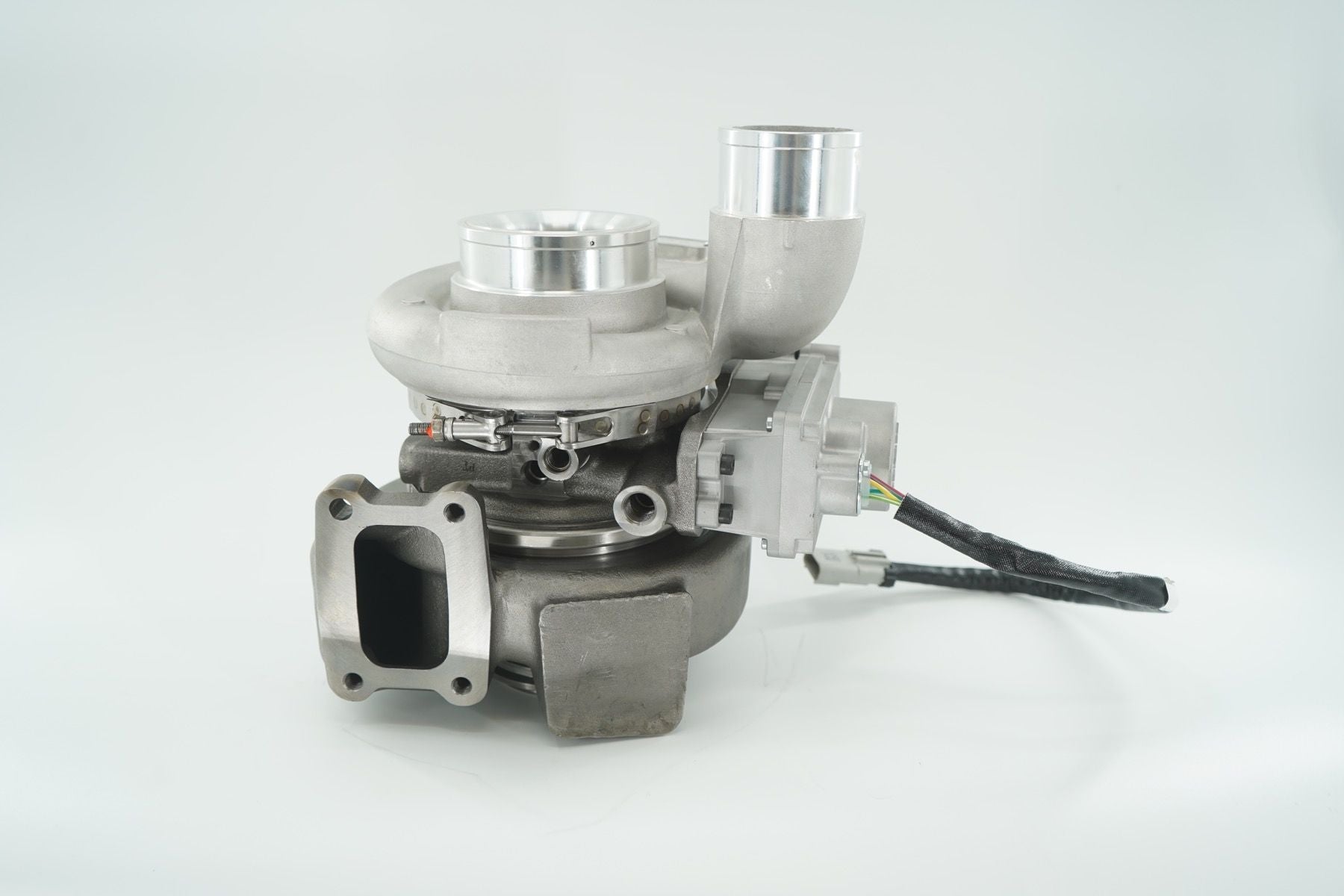

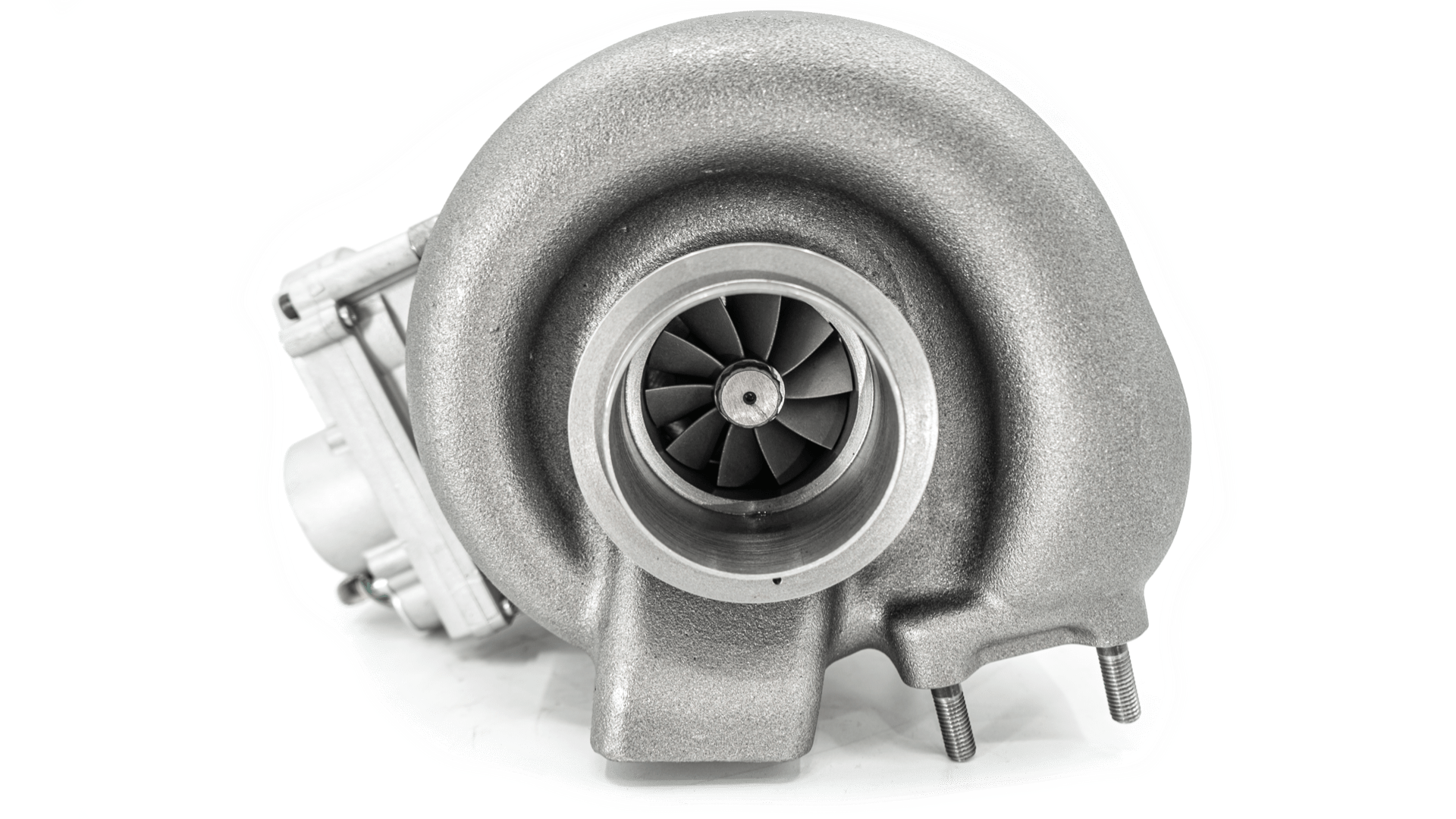

Calibrated Power Solutions CPS200195 Stealth STR (2007.5-2018 6.7L Cummins)
Fits: Cummins 6.7L (2007.5-2012 Cummins) • Cummins 6.7L (2013-2018 Cummins)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the Calibrated Power Solutions CPS200195 Stealth STR (2007.5-2018 6.7L Cummins) you will earn 3250 DIESEL DOLLARS in your SDS Fuel Tank!
The Calibrated Power Solutions CPS200195 Stealth STR is an HE351ve-based replacement turbo for 2007.5-2018 heavy-duty Dodge and Ram 2500 and 3500 pickups with the 6.7L Cummins. It is for owners whose factory charger is worn out and who want better durability, lower EGTs and more airflow without paying for custom tuning to make it run right.
Fitment
Calibrated Power lists the STR for 2007.5-2018 Ram trucks with the 6.7L Cummins, which spans both of our 6.7L engine groups: 2007.5-2012 and 2013-2018. That covers the 2500 pickup and the 3500 pickup in single or dual rear wheel. Ram 3500, 4500 and 5500 chassis cabs share the engine, but their turbo and intake parts often differ from pickup parts, so verify chassis-cab fitment separately. Verify fitment by VIN or call us before you order.
Stealth turbos cannot ship to California and do not fit California-emissions trucks. Calibrated Power says the Stealth STR HE351ve has undergone testing to demonstrate that it complies with federal emissions regulations; that testing provides the reasonable basis required by the standards defined by the EPA.
Compare it with our other turbos, or shop the rest of the Cummins catalog.
Why this part
On 2010-2018 Rams, sticking vanes and actuator failure are the two most common turbo problems. Soot, oil and ash coat the moving nozzle ring in the turbine housing until it seizes. You get lag, low boost, poor top-end power, a weak exhaust brake and stuck-vane codes P226B or P226C, and the fix is to take the turbo apart and clean it by hand.
The electronic actuator is the other weak link. OEM Holset actuators typically fail around 5,000 operating hours, their electronics are rated to 140 C, and one 2014 truck's actuator quit at 1,591 hours (54,700 miles). When it goes, boost drops to zero, the exhaust brake stops working or stays engaged, and the truck goes into limp mode. P00AF almost always means the actuator. Do not ignore an exhaust brake that stays on under acceleration: it overloads the turbo and cylinders and can contribute to a blown head gasket. VGTs also fail from leaking oil seals, damaged wheels, speed-sensor faults and worn bearings, with oil in the intercooler piping, whine or shaft play as the warning signs.
If your turbo is past saving, the STR replaces it with OEM-or-better parts: a billet extended-tip compressor wheel in 7075 aluminum, a custom turbine wheel and HFV technology. Calibrated Power rates it at 64 lbs/min of mass airflow against 48 lbs/min stock, with lower drive pressure at high load and lower EGTs, and it comes with a brand-new actuator, so the part that failed is not going back on your truck. You keep the factory exhaust brake and quick throttle response. Afterward, fresh air filters, oil changes to spec, regular exhaust brake use (which cycles the nozzle) and idling before shutdown help keep the vanes moving.
No extra tuning is needed for the STR to function properly. It pairs well with box tuners or custom tuning alike, but to get the maximum performance advantage you will need some type of tuning, and Calibrated Power sells custom tuning designed for this turbo.
This turbo is designed for you if you...
- Want a turbo that's manufactured in the USA
- Want a turbo with higher durability than stock
- Want better performance and cooler EGTs while towing
- Want to make just a bit more power than the stock charger can
- Want to make more power and still retain a quick spool up
- Daily drive your truck
- Run custom tuning, a box tuner, or no tuning at all
- Want better drive pressure (less strain on your turbo)
- Just want to replace your stock turbo with something better
What you get
- Calibrated Power Solutions CPS200195 Stealth STR HE351ve turbocharger
- Billet 60mm, 7+7 blade extended-tip compressor wheel in 7075 aluminum
- Custom turbine wheel
- HFV custom billet vanes and nozzle ring assembly
- Brand new actuator, pre-calibrated
- No core charges; the stock failed actuator stays with you
Specifications
Cummins 6.7L Stealth STR Turbo Featuring HFV (High Flow Vane) Technology
- Airflow to Support over 600 RWHP
- Tested to make 615 RWHP with stock emissions equipment and tuning
- Provides 64 lbs/min mass airflow compared to 48lbs/min stock
- 30% more airflow available compared to stock
- 40+psi boost capable at sea level

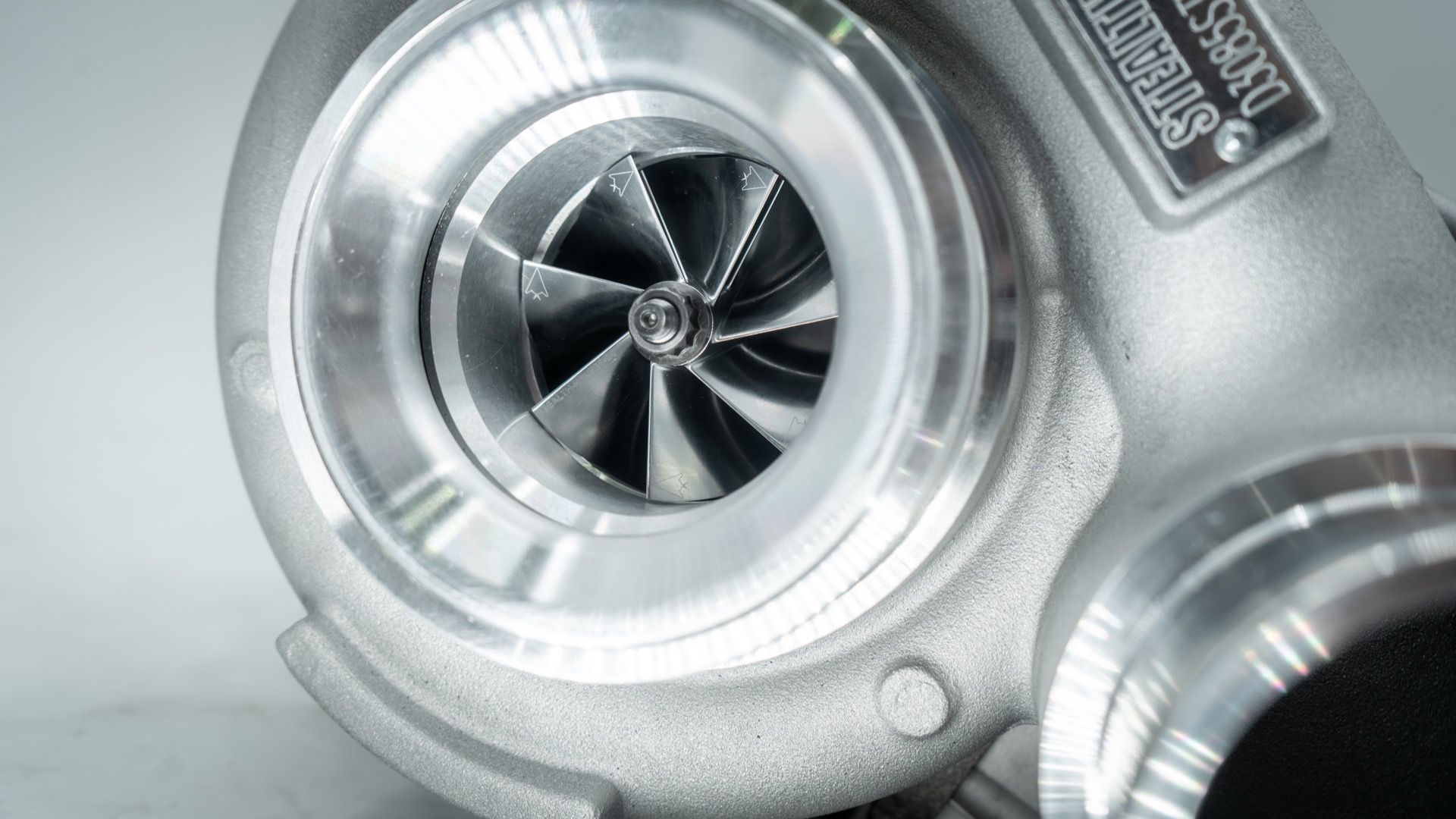

- Custom Billet Compressor Wheel
- 60mm, 7+7 Blade Extended Tip Wheel
- Made from lightweight, high strength 7075 billet aluminum
- Machined to create more surface area than the stock wheel
- Tow without any risk of surge (even while lugging)
- Wider range of torque and power
- Better top-end efficiency/ peaks higher boost than stock
- Expertly balanced to ensure longevity
- Custom Turbine Wheel
- Custom higher efficiency blade design
- Lower drive pressures at high load
- Better EGT control and lower EGTs
- Distinct Stealth exhaust sound
- HFV (High Flow Vane) Technology
- Only found in select Stealth turbochargers
- Custom, billet vanes and nozzle ring assembly
- Exclusive design produced in-house specific to this application
- Taller and wider vanes provide superior high-load efficiency
- Retain factory exhaust brake and quick throttle response
- Brand New Parts and Electronics
- Brand new actuator
- No sending back the stock failed actuator
- Pre-Calibrated and no tuning required
- No Custom Tuning Required
- No Core Charges
- Brand new actuator
About Calibrated Power
Nick Priegnitz founded Calibrated Power Solutions, the diesel calibration company behind DuramaxTuner. The shop grew up in Marengo, Illinois, and now operates in Woodstock, Illinois, doing full-service diesel performance and repair work with a 4WD chassis dyno. It covers Duramax, Cummins and Powerstroke trucks and has built its reputation on emissions-intact power.
Frequently asked questions
Does one turbo really cover 2007.5 through 2018?
Calibrated Power lists the CPS200195 for 2007.5-2018 Ram trucks with the 6.7L Cummins. Because that span crosses two engine generations, send us your VIN and a tech at our Wildwood, FL shop will confirm it fits your truck before you order.
Can I just replace the actuator instead?
Sometimes. The actuator is a separate, replaceable module, and an OEM-style Holset actuator is the direct repair when the rest of the turbo is healthy. If the vanes are seized, the seals are leaking or the bearings are worn, a complete turbo like the STR, which includes a brand-new actuator, is the better fix.
Do I have to send in a core?
No. The CPS200195 carries no core charge, and your stock failed actuator does not have to go back.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
