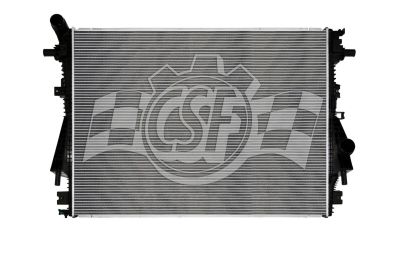

CSF 3849 OEM Style Replacement Radiator (2017-2026 6.7L Powerstroke, Primary Radiator)

Fitment

Fits 2017-2026 Ford F-250 and F-350 Super Duty pickups with the 6.7L Powerstroke. This is the primary radiator. Your 6.7L runs two separate cooling loops with two radiators, two degas bottles and two thermostats, so make sure you are ordering for the right loop. The secondary radiator is a separate part; we carry the CSF 3850 secondary radiator for Standard Output trucks. Verify fitment by VIN, especially on the newest model years, and call us first if you have an F-450 pickup or a chassis cab. Find more parts for your truck in our Powerstroke section.

Why this part

Coolant leaks from the radiator, hoses, water pump and fittings are the cooling-system failure you see on every generation of the 6.7L, and they get worse with mileage and towing hours. A leaking primary radiator is not something to nurse along, especially if you tow. The CSF 3849 replaces it with an aluminum core, OE style plastic tanks and quick-connect inlet and outlet pipes, the same style as the factory radiator.

CSF tests this radiator through repeated thermal cycles, high velocity wind tunnel runs, pressure testing, vibration and corrosion testing to make sure it stands up to real-world use. When CSF finds a flaw in either its own replacement or the OEM design, it puts a stronger solution in place. CSF is an ISO certified cooling system manufacturer that supplies many OEM customers worldwide.

On 2017-2019 trucks, check the two plastic degas tanks before you blame the radiator for coolant loss. They get brittle with heat cycles and crack or weep at the seams, and a leaking tank usually shows crusty residue.

What you get

• One CSF 3849 OEM style replacement primary radiator
• Aluminum core with OE style plastic tanks and quick-connect inlet and outlet pipes
• Radiator cap not supplied

Specifications

Features:

• Primary Radiator
• Direct-Fit Replacement
• Meets Or Exceeds Factory Specifications
• 1 Year Warranty

Specifications:

• Bottom Hose Fitting (in): 2 1/4 Right
• Top Hose Fitting (in): 2 Left
• Core Length (in): 38 3/8
• Core Material: Aluminum
• Core Thickness (in): 15/8
• Core Width (in): 27 11/16
• Cross-flow/ Down-flow: Cross Flow
• Hazardous Material: No
• Inlet Length (in): 283/8
• Inlet Width (in): 23/16
• No. Of Rows: 2
• Oil Cooler (in): No
• Outlet Length (in): 28 3/8
• Outlet Width (in): 23/16
• Radiator Cap Supplied: No
• Tank Material: Plastic
• Tech Note: O.E.M. Style Plastic Tank & Aluminum Core With Quick-Connect Inlet & Outlet Pipe

Manufacturer Warranty:

• 1 Year

Installation notes

CSF built the 3849 as a true direct-fit replacement that does not require any modifications for installation, and the quick-connect inlet and outlet pipes match the factory style. No radiator cap is supplied. When you refill, use the coolant your under-hood decal or VIN calls for and do not mix coolant types. Remember this truck has two separate loops with their own degas bottles, so a full coolant service is two jobs, not one.

About CSF

CSF has been making cooling parts since 1947 and is still family owned, based in Rancho Cucamonga, California. Its OEM style replacement radiators carry a 1-year limited warranty, and every design goes through in-house burst pressure, vibration, thermal cycle and salt spray corrosion testing. CSF also builds intercoolers, A/C condensers and oil coolers for OE replacement and the performance aftermarket.

Frequently asked questions

Is this the primary or the secondary radiator?

The CSF 3849 is the primary radiator. The 6.7L uses two radiators on two separate cooling loops, and the secondary radiator is a separate part. Order by loop, and call us with your VIN if you are not sure which one is leaking.

Will it bolt in without modifications?

Yes. CSF designed the 3849 as a true direct-fit replacement that meets or exceeds factory specifications and does not require any modifications. It uses OE style quick-connect inlet and outlet pipes. It is backed by a 1 year manufacturer warranty.

My truck only runs hot when towing. Is it the radiator?

Not always. Temperature climb only on grades or under tow usually traces to a plugged cooling stack, restricted airflow or a worn fan clutch. A stuck fan clutch sets no code, so it gets checked by comparing actual and desired fan speed on a scan tool. Rule those out first, then replace the radiator if it is leaking or damaged.

Questions on fitment? Call the shop at the number in the header. We install everything we sell.
