CSF 3710 OEM Style Replacement Radiator (2003-2009 5.9/6.7L Cummins)
Fits: Cummins 6.7L (2007.5-2012 Cummins) • Cummins CR (2003-2007 5.9L Cummins)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the CSF 3710 OEM Style Replacement Radiator (2003-2009 5.9/6.7L Cummins) you will earn 201 DIESEL DOLLARS in your SDS Fuel Tank!

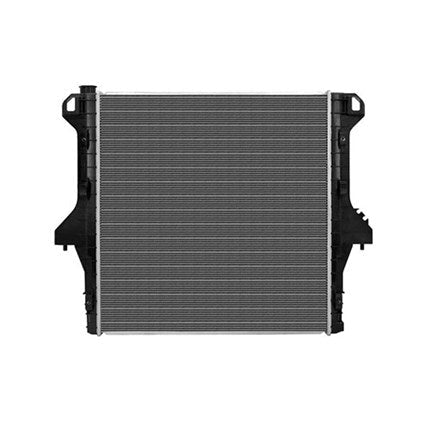

The CSF 3710 is an OE-style replacement radiator for 2003-2009 Dodge Ram 2500 and 3500 trucks with the 5.9L or 6.7L Cummins. It is built to OE specifications for a true drop-in fit, individually pressure tested and serial # certified, and covered by a 1-year warranty. It is the part to grab when your factory radiator is leaking or worn out.
Fitment
Fits 2003-2009 Dodge Ram 2500 and 3500 pickups with the 5.9L or 6.7L Cummins. That covers the 2003-2007 common-rail 5.9L and the 2007.5-2009 6.7L. Radiators for these trucks carry across both engines from 2003 through 2009, which is why one CSF part number covers both. The 2007 model year was built with either engine, and this radiator is listed for both.
Our catalog tags the 6.7L through 2012, but CSF lists the 3710 for 2003-2009 only. 2010-2012 trucks are not covered by this listing, so verify fitment by VIN. These trucks were sold as Dodge Ram; Ram became its own brand later. Send us your VIN or call the shop and we will confirm it before you order.
Why this part
On the 5.9L trucks the radiator sits behind the intercooler and A/C condenser in a crowded cooling stack. As that stack ages and packs with debris, the coolers lose capacity and transmission and intercooler temperatures climb, especially when you tow. High temperature is the single most damaging factor for powertrain life, so a leaking or clogged radiator is not something to put off.
The 3710 is built to OE specifications for a true drop-in fit that matches the performance of your original radiator. CSF tests every radiator design in-house at a facility that runs wind tunnel, burst pressure, vibration, thermal cycle and salt spray corrosion testing. When CSF finds a weakness in either the OEM design or its performance, it puts a stronger solution in place. CSF is an ISO certified cooling system manufacturer with many OEM customers around the world. If you want a stock-style replacement instead of an all-aluminum performance radiator, this is the one to run.
What you get
- One CSF 3710 OE-style radiator: plastic tanks, 2-row aluminum core, cross-flow design
- Individually pressure tested and serial # certified
- 1-year manufacturer warranty
- Radiator cap not supplied (CSF cap number 4515)
Specifications
Features:
- OEM Replacement
- Drop-In Installation
- Includes 1-Year Warranty
Specifications:
- Bottom Hose Fitting: 2" Right
- Top Hose Fitting: 2" Left
- Core Length: 26 15/16"
- Core Material: Aluminum
- Core Thickness: 1 5/8"
- Core Width: 28 9/16"
- Cross-flow/ Down-flow: Cross Flow
- CSF Cap Number: 4515
- Hazardous Material: No
- Inlet Length: 29 1/4"
- Inlet Width: 2 7/16"
- No. Of Rows: 2
- Outlet Length: 29 1/4"
- Outlet Width: 2 7/16"
- Radiator Cap Supplied: No
- Tank Material: Plastic
- Tech Note: O.E.M. Style Plastic Tanks & Aluminum Core
- Manufacturer Warranty*: 1 Year
Installation notes
The 3710 is a drop-in installation built to OE specifications. Both hose fittings are 2 in, with the top fitting on the left and the bottom on the right. The cap is not included; CSF's cap number for this radiator is 4515. For 2003-2008 trucks the factory coolant spec is Mopar HOAT (MS-9769), and the older green coolant spec does not apply. If someone has topped your truck off with green coolant, drain it and refill with HOAT rather than mixing the two. On a 2009, check your owner's manual for the coolant spec.
About CSF
CSF has been building cooling parts since 1947 and is family owned, based today in Rancho Cucamonga, California. Its line covers radiators, intercoolers, A/C condensers and oil coolers for both OE replacement and the performance aftermarket. CSF's OEM-style replacement radiators carry a 1-year limited warranty.
Frequently asked questions
Does one radiator really fit both the 5.9L and the 6.7L?
Yes. CSF lists the 3710 for 2003-2009 Dodge Ram trucks with either the 5.9L or the 6.7L Cummins, including 2007 trucks with either engine. It is not listed for 2010-2012, so check those by VIN.
Is a radiator cap included?
No. Radiator Cap Supplied is listed as No. CSF's cap number for this radiator is 4515, or you can reuse a factory cap that still seals.
My 5.9L runs hot when I tow. Is the radiator the problem?
It can be, but check the fan clutch too. A viscous fan clutch that has lost its fluid lets the fan spin freely by hand, and the truck runs hot towing or sitting in traffic. A seized clutch does the opposite: a roaring fan, a fan that is hard to turn by hand and poor fuel economy. Look at both before you buy parts.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
