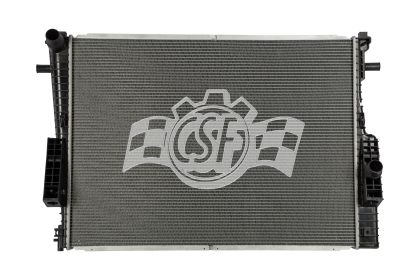

The CSF 3642 OEM Style Replacement Radiator is manufactured from the highest quality components to provide you with the best aftermarket OE replacement radiator available for your 2008-2010 Ford 6.4L Powerstroke. CSF is an ISO certified cooling system manufacturer with many OEM customers around the world. CSF is also known as an industry leader in automotive cooling for both OE and the performance aftermarket.

Each CSF Radiator is built to OE specifications for a true, "Drop-in Fit" that matches the performance of your OE radiator. CSF tests every radiator design in-house with their state-of-the-art testing facility that includes wind tunnel, burst pressure testing, vibration testing, thermal cycle, and salt spray corrosion testing. When CSF identifies a weakness in either the OEM design or performance, a stronger solution is implemented for class-leading performance and durability. Individually pressure tested and serial # certified. Comes complete with a 1-year warranty.

FEATURES:

• OEM Replacement
• Drop-In Installation
• Includes 1-Year Warranty

SPECIFICATIONS:

• Bottom Hose Fitting (in): 1 13/16 Right
• Top Hose Fitting (in): 113/16 Left
• Core Length (in): 37
• Core Material: Aluminum
• Core Thickness (in): 211/16
• Core Width (in): 27 1/16
• Cross-flow/ Down-flow: Cross Flow
• Hazardous Material: No
• Inlet Length (in): 27 11/16
• Inlet Width (in): 33/16
• No. Of Rows: 2
• Oil Cooler (in):
• 12 (high-efficiency Plate Type)
• Outlet Length (in): 27 11/16
• Outlet Width (in): 33/16
• Radiator Cap Supplied: No
• Tank Material: Plastic
• Fittings
• Tech Note: O.E.M. Style Plastic Tanks & Aluminum Core; OEM Style Venturi Kit Included (Required to Complete Correct Installation); OEM Style 2 11/16" Core; Quick-Connect Inlet & Outlet Pipe; OEM Style Steel Oil Cooler
