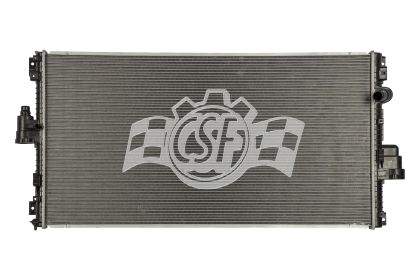

CSF 3602 OEM Style Replacement Radiator (2011-2016 6.7L Powerstroke, Secondary Radiator)

The CSF 3602 OEM Style Replacement Secondary Radiator from SDS is manufactured from the highest quality components to provide you with the best aftermarket OE-style replacement radiator available for your 2011-2016

Ford 6.7L Powerstroke. CSF is an ISO certified cooling system manufacturer with many OEM customers around the world. CSF is also known as an industry leader in automotive cooling for both OE and the performance aftermarket.

Each CSF Radiator is built to OE specifications for a true, "Drop-in Fit" that matches the performance of your OE radiator. CSF tests every radiator design in-house with their state-of-the-art testing facility that includes wind tunnel, burst pressure testing, vibration testing, thermal cycle, and salt spray corrosion testing. When CSF identifies a weakness in either the OEM design or performance, a stronger solution is implemented for class-leading performance and durability. Individually pressure tested and serial # certified. Comes complete with a 1-year warranty.

FEATURES:

• Secondary Radiator
• OEM Replacement
• Drop-In Installation
• Includes 1-Year Warranty

SPECIFICATIONS:

• Bottom Hose Fitting (in): 1 Left
• Top Hose Fitting (in): 1 1/4 Right
• Core Length (in): 39 3/8
• Core Material: Aluminum
• Core Thickness (in): 1 5/8
• Core Width (in): 20 11/16
• Cross-flow/ Down-flow:
• Cross Flow
• Hazardous Material: No
• Inlet Length (in): 21 3/8
• Inlet Width (in): 2 1/8
• No. Of Rows: 2
• Outlet Length (in): 21 3/8
• Outlet Width (in): 2 1/8
• Radiator Cap Supplied: No
• Tank Material: Plastic
• Tech Note: O.E.M. style Plastic Tanks & Aluminum Core; With Quick-Connect Outlet Pipe

Application Note:

• This is the replacement for the secondary radiator only.
• Thermostats not included. If you intend to replace them, you will need a left and a right side thermostat.

Manufacturer Warranty*:

• 1 Year
