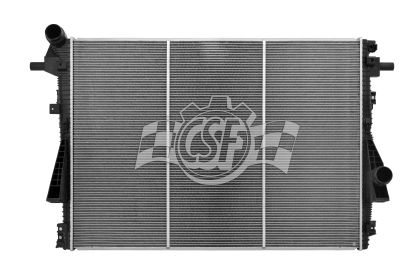

The CSF 3601 OEM Style Replacement Primary Radiator from SDS is constructed from high-quality materials to provide you with a durable aftermarket OE-style replacement radiator for your 2011-2016 Ford 6.7L Powerstroke.

CSF is an ISO certified cooling system manufacturer with many OEM customers around the world. CSF is also known as an industry leader in automotive cooling for both OE and the performance aftermarket.

Each CSF Radiator is built to OE specifications for a true, "Drop-in Fit" that matches the performance of your factory radiator. CSF tests every radiator design in-house with their state-of-the-art testing facility that includes wind tunnel, burst pressure testing, vibration testing, thermal cycle, and salt spray corrosion testing. When CSF identifies a weakness in either the OEM design or performance, a stronger solution is implemented for class-leading performance and durability. Individually pressure tested and serial # certified. This radiator comes complete with a 1-year warranty.

FEATURES:

• Primary Radiator
• OEM Replacement
• Drop-In Installation
• Includes 1-Year Warranty

SPECIFICATIONS:

• Bottom Hose Fitting (in): 21/4 Right
• Top Hose Fitting (in): 21/4 Left
• Core Length (in): 38 3/8
• Core Material: Aluminum

• Core Thickness (in): 1 5/8
• Core Width (in): 27 11/16
• Cross-flow/ Down-flow: Cross Flow
• Hazardous Material: No
• Inlet Length (in): 28 3/8
• Inlet Width (in): 2 3/16
• No. Of Rows: 2
• Outlet Length (in): 28 3/8
• Outlet Width (in): 2 3/16

• Radiator Cap Supplied: No
• Tank Material: Plastic

• Tech Note: O.E.M. style Plastic Tanks & Aluminum Core; With Quick-Connect Outlet Pipe.
• Manufacturer Warranty*:
• 1 Year
