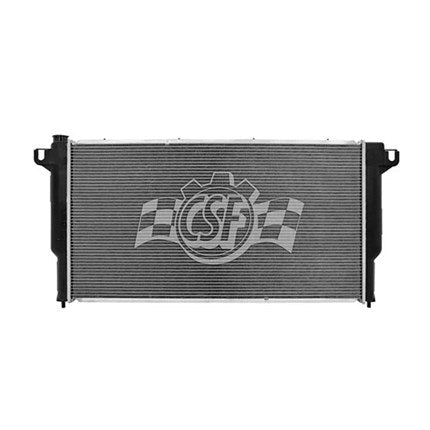

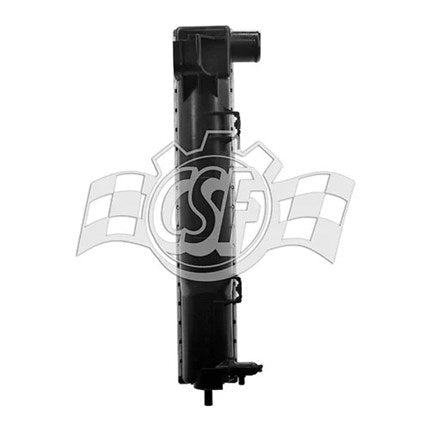

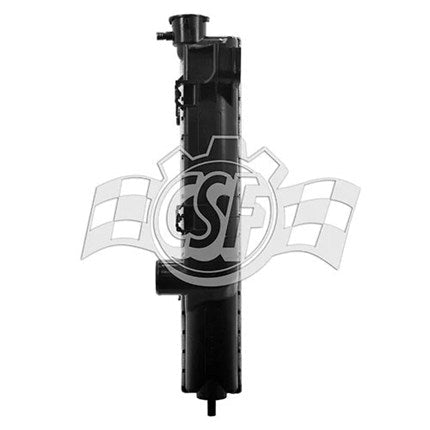

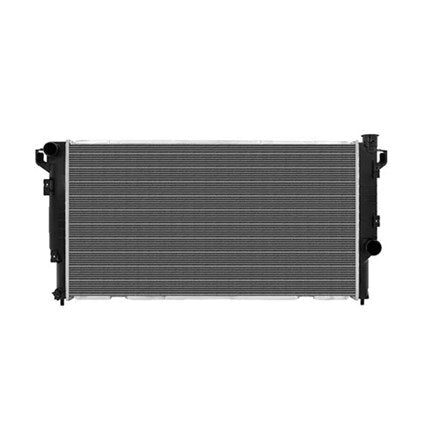

CSF 3273 OEM Style Replacement Radiator (1994-2002 5.9L Cummins)
Fits: Cummins 12V (1994-1998 5.9L Cummins) • Cummins 24V (1998.5-2002 5.9L Cummins)
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the CSF 3273 OEM Style Replacement Radiator (1994-2002 5.9L Cummins) you will earn 200 DIESEL DOLLARS in your SDS Fuel Tank!
The CSF 3273 is an OE-style replacement radiator for 1994-2002 Dodge Ram trucks with the 5.9L Cummins, both 12-valve and 24-valve. It is built to OE specifications for a drop-in fit, leak tested at 150% of operating pressure and covered by a 1-year warranty. Use it to replace a leaking or damaged factory radiator.
Fitment
Fits 1994-2002 Dodge Ram trucks with the 5.9L Cummins. That covers the 12-valve engine (1994-1998) and the 24-valve engine (1998.5-2002). The product title, CSF's application and our catalog tags all agree on 1994-2002. If you want us to double-check before you order, send us your VIN or call the shop.
Why this part
When the radiator on an older Cummins starts leaking or gets damaged, you want a replacement that bolts in like the original and cools like it too. The 3273 is built to OE specifications for a true drop-in fit that matches the performance of your OE radiator. Every CSF radiator design goes through in-house testing, including wind tunnel, burst pressure, vibration, thermal cycle and salt spray corrosion testing. Where CSF finds a weakness in the OEM design or performance, it builds in a stronger solution. Each unit is individually pressure tested and serial # certified.
The build follows the factory recipe with attention to the details. The tanks are made from virgin-grade engineered plastic resins that are glass filled for strength and durability, mounted on an aluminum core. The fins use an OEM-spec multi-louvered design, and the tubes are either welded or CSF's latest-generation B-tube design. All components are installed, torqued and tested on the radiator during assembly, and every unit is 100% leak tested at 150% of operating pressure before it leaves the factory.
What you get
- One CSF 3273 OE-style radiator: glass-filled plastic tanks, 2-row aluminum core, cross-flow design
- Gaskets made from special grade EPDM rubber
- Packed to CSF's 10-foot drop test packaging standard
- 1-year manufacturer warranty
- Radiator cap not supplied
Specifications
Features:
- Drop-In Fit
- Industry Best Packaging - "10 Foot Drop Test" Standard
- OEM Specified Plastic Tank-Aluminum Core Construction
- Tubes - Welded Type Or Latest Generation "B-Tube" Design
- 100% Leak Tested Before Leaving Factory At 150% Of Operating Pressure
- All Components Are Installed, Torqued, & Tested On Radiator During Assembly
- Fins (Heart Of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
- High Performance Transmission Cooler With Special Built-In Turbulator, When Applicable
- Gaskets Are Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Of Up To -120 Degrees F
- Tanks Are Made From Virgin Grade Engineered Plastic Resins, Which Are "Glass Filled" For Added Strength & Durability
Specifications:
- Bottom Hose Fitting (in): 1-3/4 Right
- Top Hose Fitting (in): 1-3/4 Left
- Core Length (in): 36
- Core Material: Aluminum
- Core Thickness (in): 2-1/16
- Core Width (in): 19-3/16
- Cross-flow/ Down-flow: Cross Flow
- Hazardous Material: No
- Inlet Length (in): 19-7/8
- Inlet Width (in): 3-1/16
- No. Of Rows: 2
- Outlet Length (in): 19-7/8
- Outlet Width (in): 3-1/16
- Radiator Cap Supplied: No
- Tank Material: Plastic
- Tech Note: O.E.M. Style Plastic Tanks & Aluminum Core
- Manufacturer Warranty*: 1 Year
Installation notes
The 3273 is a drop-in fit built to OE specifications. The hose fittings are 1-3/4 in, top on the left and bottom on the right. The radiator cap is not supplied, so reuse a factory cap that still seals or replace it. Fill and bleed the system with the coolant your owner's manual calls for.
About CSF
CSF is an ISO certified cooling system manufacturer with OEM customers around the world, and it is known in both OE and performance cooling. The company dates to 1947, is family owned and is based in Rancho Cucamonga, California, where it makes radiators, intercoolers, condensers and oil coolers.
Frequently asked questions
Does it fit both 12-valve and 24-valve trucks?
Yes. The 3273 is listed for 1994-2002 Dodge Ram trucks with the 5.9L Cummins, which covers the 12-valve (1994-1998) and the 24-valve (1998.5-2002).
Is a radiator cap included?
No. Radiator Cap Supplied is listed as No. Plan on reusing your factory cap if it seals well, or buy a new one with the radiator.
What warranty does it carry?
CSF covers the 3273 with a 1-year manufacturer warranty. Each radiator is serial # certified, so keep your paperwork in case you need to make a claim. Call us with any warranty question.
Questions on fitment? Call the shop at the number in the header. We install everything we sell.
